System And Components

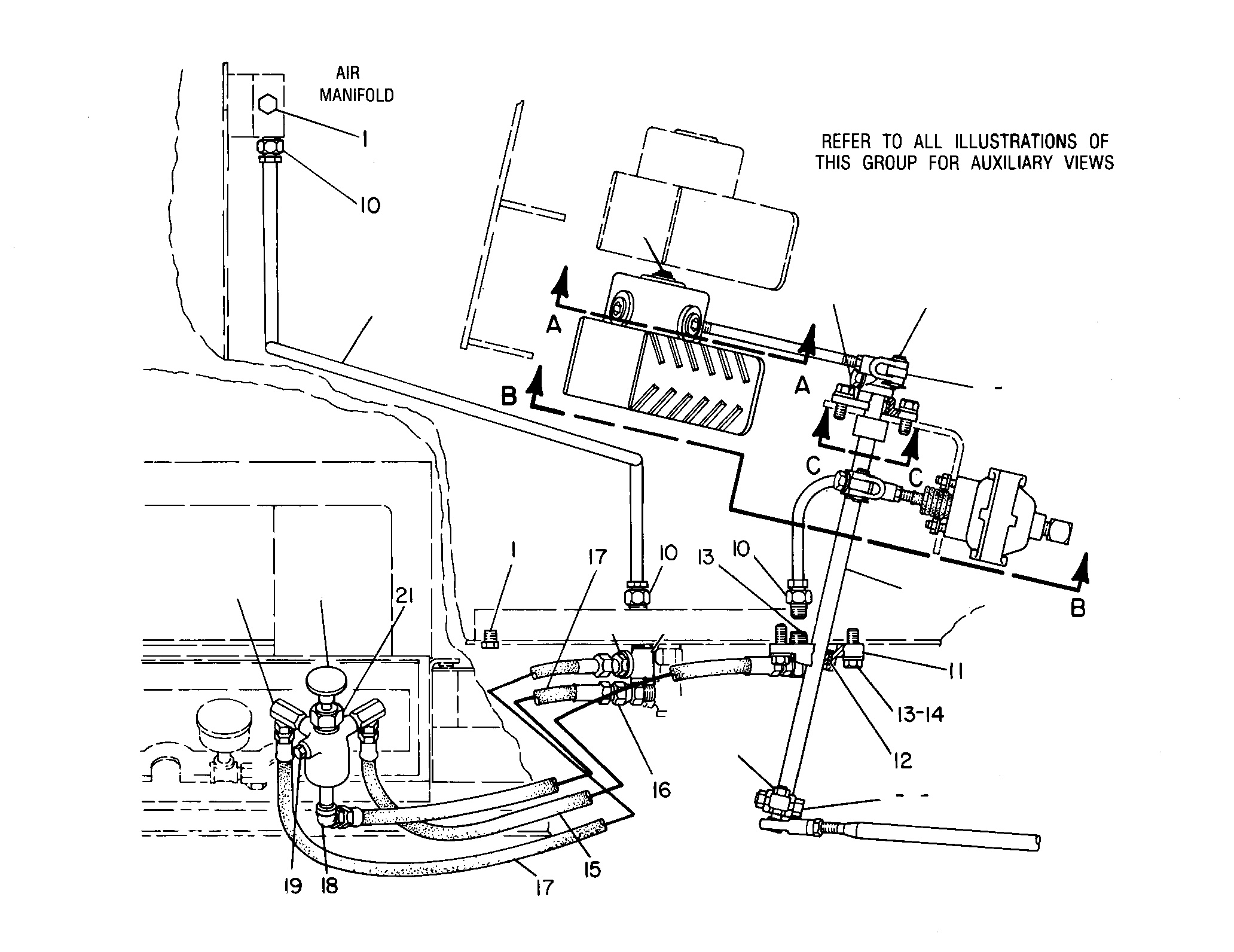

6G-4660 CONTROL GP-GOVERNORS/N 89Z99-119
Group No: 6G-4660
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5M6213 | 1 PLUG-PIPE (1/4-18-THD) | 2 | |
| 3K9042 | 2 RING-RETAINING | 1 | |
| 7S9203 | WASHER | 1 | |
| 1B0676 | 3 PIN | 2 | |
| 3B4615 | PIN-COTTER | 2 | |
| 4D8919 | 4 LEVER | 1 | |
| 1B8704 | 5 KEY-WOODRUFF | 2 | |
| 0308537 | 6 BOLT-LOCKING (3/8-16X1.5-IN) | 2 | |
| 9S8752 | NUT-FULL (3/8-16-THD) | 2 | |
| 6G4449 | 7 SHAFT | 1 | |
| 5H8633 | 8 LOCKNUT (3/8-24-THD) | 1 | |
| 4J2684 | 9 LEVER | 1 | |
| 5K9246 | 10 CONNECTOR | 3 | |
| 8D5253 | 11 BRACKET AS | 1 | |
| 8D0006 | BRACKET | 1 | |
| 4D2619 | 12 BEARING | 1 | |
| 2J3118 | 13 BOLT-LOCKING (3/8-16X1.25-IN) | 2 | |
| 5M2894 | 14 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 4D7969 | 15 HOSE AS | 1 | |
| 2D0193 | 16 CONNECTOR-PIPE | 1 | |
| 4D7928 | 17 HOSE AS | 2 | |
| 3B6493 | 18 ELBOW | 1 | |
| 4D2560 | CONNECTOR-PIPE | 1 | |
| 3B7263 | NIPPLE-PIPE | 1 | |
| 5M6214 | 19 PLUG (1/8-27 PTF) | 1 | |
| 2G3787 | 20 BUTTON | 1 | |
| 5D1319 | PIN-SPRING | 1 | |
| 6G8920 | 21 VALVE GP-AIR CONTROL | 1 | |
| 4S7606 | 22 ELBOW | 2 | |
| 6G5173 | 23 TUBE AS | 1 | |
| 4H6147 | 24 CONNECTOR | 1 | |
| 2D7325 | 25 TEE-PIPE | 1 | |
| 0308537 | 26 BOLT-LOCKING (3/8-16X1.5-IN) | 2 | |
| 9S8752 | 27 NUT-FULL (3/8-16-THD) | 5 | |
| 5J6131 | 28 ROD-CONTROL | 1 | |
| 5J5315 | 29 ROD END | 1 | |
| 5B9079 | 30 NUT-JAM (3/8-24-THD) | 5 | |
| 4D4064 | 31 ROD END (3/8-24-THD) | 3 | |
| 5P9938 | 32 BOLT-HEAD LOCKING (3/8-16X1.375-IN) | 3 | |
| 5H4215 | 33 ROD | 1 | |
| 5M2894 | 34 WASHER-HARD (10.2X18.5X2.5-MM THK) | 9 | |
| 4K5973 | 35 LEVER | 1 | |
| 1B8704 | 36 KEY-WOODRUFF | 2 | |
| 6G4451 | 37 SHAFT | 1 | |
| 0S1588 | 38 BOLT (3/8-16X1.25-IN) | 2 | |
| 5T4064 | 39 BRACKET | 1 | |
| 6V6582 | 40 BEARING | 2 | |
| 6G4443 | 41 BRACKET | 1 | |
| 5D0353 | 42 BOLT-LOCKING (3/8-16X1-IN) | 2 | |
| 6G4444 | 43 BRACKET AS | 1 | |
| 9F2978 | 44 NUT-WELD (3/8-16-THD) | 2 | |
| 7F3425 | 45 BOLT (3/8-16X5.75-IN) | 1 | |
| 0T0065 | 46 BOLT (3/8-16X3.5-IN) | 1 | |
| 4D2615 | 47 LEVER | 1 | |
| 1S5927 | 48 LEVER-GOVERNOR CONTROL | 1 | |
| 2A5546 | 49 BOLT (1/4-20X1.375-IN) | 1 | |
| 9S8750 | NUT-FULL (1/4-20-THD) | 1 | |
| 6D0475 | 50 LINK AS-SPRING | 1 | |
| 6G4443 | 51 BRACKET | 1 | |
| 5D0353 | 52 BOLT-LOCKING (3/8-16X1-IN) | 2 | |
| 5M2894 | 53 WASHER-HARD (10.2X18.5X2.5-MM THK) | 7 | |
| 6V6582 | 54 BEARING | 1 | |
| 1B4669 | 55 COLLAR-SET | 1 | |
| 4B3573 | SETSCREW-SQUARE HEAD (3/8-16X0.625-IN) | 1 | |
| 6G4438 | 56 PEDAL | 1 | |
| 1B8706 | 57 KEY-WOODRUFF | 2 | |
| 2J3118 | 58 BOLT-LOCKING (3/8-16X1.25-IN) | 1 | |
| 8J4916 | 59 BOSS (3/8-16-THD) | 1 | |
| 0308535 | 60 BOLT-LOCKING (3/8-16X0.875-IN) | 5 | |
| 9H4361 | 61 ROD | 1 | |
| 5B9079 | 62 NUT-JAM (3/8-24-THD) | 2 | |
| 4J8922 | 63 ROD END (3/8-24-THD) | 2 | |
| 4J2701 | 64 ROD END | 1 | |
| 6D4397 | 65 ROTOCHAMBER GP | 1 | |
| 5K9235 | 66 ELBOW-FLARED | 1 | |
| 6G5174 | 67 TUBE AS | 1 | |
| 1B0676 | 68 PIN | 1 | |
| 3B4615 | PIN-COTTER | 1 | |
| 0308537 | 69 BOLT-LOCKING (3/8-16X1.5-IN) | 1 | |
| 9S8752 | NUT-FULL (3/8-16-THD) | 1 | |
| 5D1849 | 70 LEVER | 1 | |
| 1B8704 | 71 KEY-WOODRUFF | 1 | |
| 9S8006 | 72 PLUG (7/8-14-THD) | 2 | |
| 6G4661 | 73 HOUSING AS | 1 | |
| 6D3787 | BEARING-ROLLER | 1 | |
| 5P7661 | BEARING AS-NEEDLE | 1 | |
| 6G8909 | 74 SHAFT | 1 | |
| 6G4448 | 75 LEVER | 1 | |
| 4B3388 | 76 BOLT (5/16-18X1.125-IN) | 1 | |
| 8L5202 | 77 BOLT | 1 | |
| 1B2578 | 78 NUT (3/8-16-THD) | 2 |
