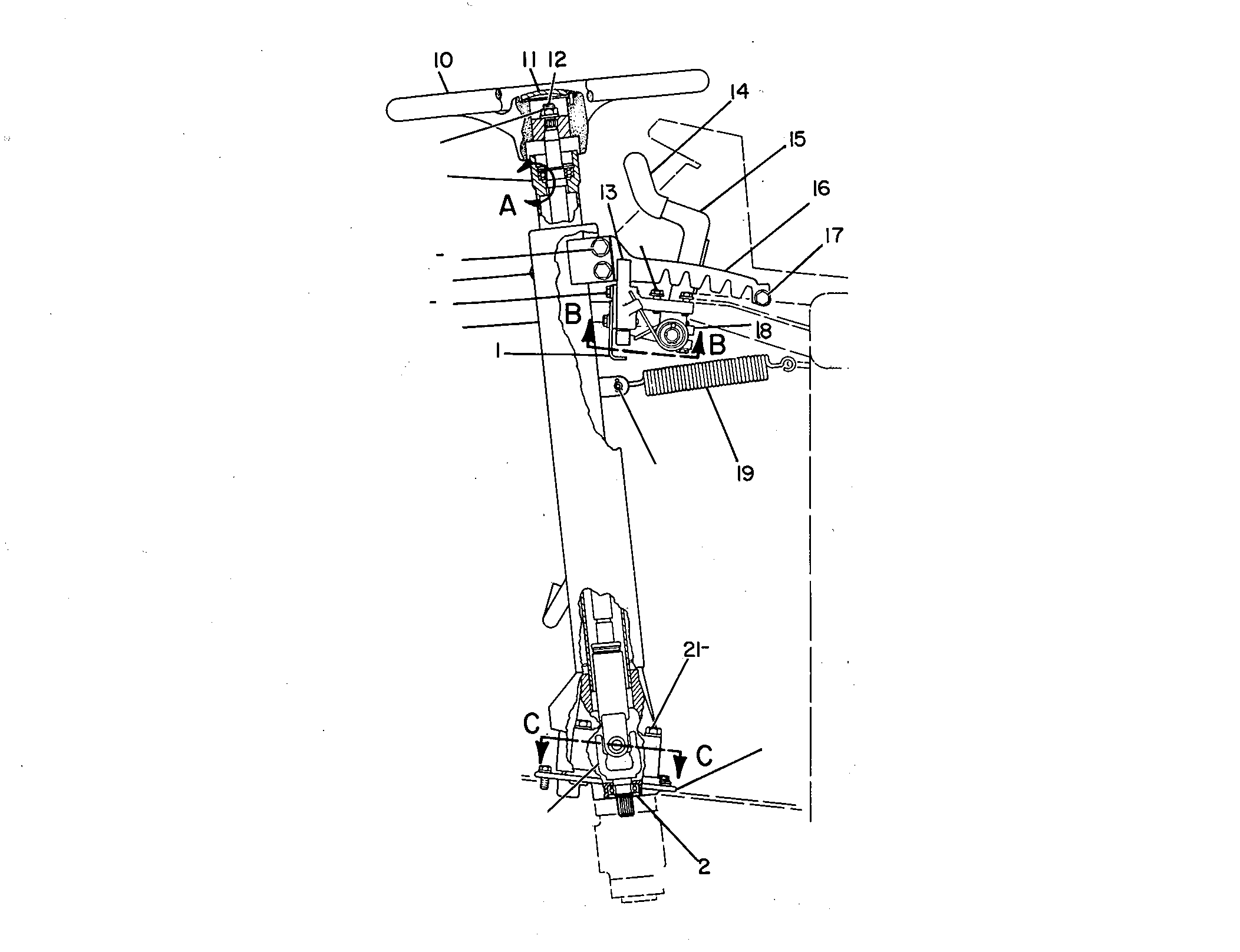

Assembly
100%

6G-2870 CONTROL GP-STEERINGS/N 89Z88-115

Group No: 6G-2870
Part NumberPart NameQty
6G83641 PLATE AS1
6G78792 COVER1
5D03533 BOLT-LOCKING (3/8-16X1-IN)8
5M2894WASHER-HARD (10.2X18.5X2.5-MM THK)8
6G77844 PLATE1
4V69815 SCREW-BUTTON HEAD (1/4-20X0.75-IN)5
4L6457WASHER (7.9X19.0X1.5-MM THK)5
03096206 BOLT (1/2-13X1.45-IN)2
5P82457 WASHER-HARD (13.5X25.5X3-MM THK)6
5T78148 COLUMN AS1
2K48219 LOCKNUT (5/8-18-THD)1
5P8247WASHER-HARD (17X32X3.5-MM THK)1
6G435910 WHEEL1
9M736211 COVER1
7D9719GASKET1
2R0620SCREW3
5T781512 SHAFT-STEERING1
6G782813 SUPPORT1
6G7818PLUNGER1
5T6153SHIM14
5T406914 GRIP1
6G883515 LEVER AS1
6G758716 SUPPORT1
2J311817 BOLT-LOCKING (3/8-16X1.25-IN)1
4N0205SPACER (0.42X0.75X0.6-IN THK)1
6G835118 LEVER1
5H262319 SPRING1
1B067620 PIN1
3B4617PIN-COTTER1
0L132921 BOLT (1/2-13X3-IN)4
6G747322 SUPPORT1
6V891423 BALL BEARING1
4L8017RING-RETAINING1
5T070024 UNIVERSAL JOINT GP-STEERING1
8H432025 BALL BEARING2
6G000926 BRACKET2
031021527 BOLT-LOCKING (1/4-20X0.625-IN)3
5P0537WASHER-HARD (7.2X14.5X2-MM THK)3
2B588628 BUSHING1
3B530129 PIN-COTTER1
3S411130 BUSHING-TERMINAL2
6F925431 WASHER-THRUST2
4L933732 BOLT (3/8-16X1.5-IN)1
8T489633 WASHER-HARD (10.2X18.5X2.5-MM THK)8
6G835234 SPRING1
3P902935 KEY1
6G827836 SEAL AS1
9D386837 SCREW (BUTTON HEAD)4
6G780238 PLATE1
4L645439 BOLT (3/8-16X1-IN)7
6K816240 RING-RETAINING1
5H648041 RING-RETAINING1
6V381242 BEARING AS-BALL1
