System And Components

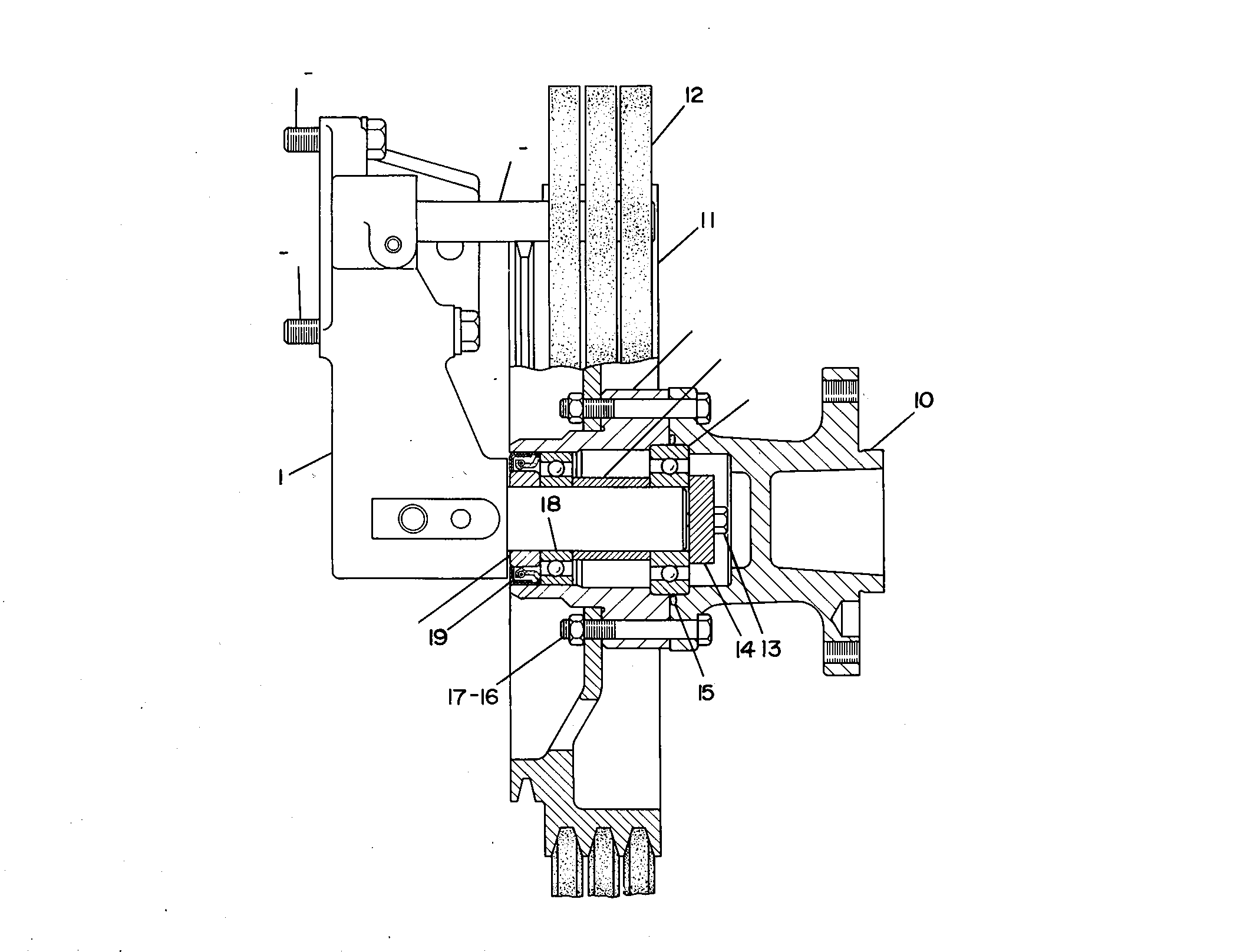

8N-3309 DRIVE GP-FANS/N 86Z1-88; 86Z93-102; 87Z1-179; 87Z183-183
Group No: 8N-3309
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8N3306 | 1 BRACKET AS-FAN | 1 | |
| 1S9209 | 2 SHAFT-TIGHTENER | 1 | |
| 4N0955 | 3 DOWEL | 1 | |
| 1B2886 | 4 BOLT (1/2-13X3.75-IN) | 2 | |
| 5P8245 | 5 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 0S1587 | 6 BOLT (1/2-13X1.75-IN) | 2 | |
| 2P1757 | 7 HUB-FAN PULLEY | 1 | |
| 8N5305 | 8 SPACER (35.6X47.62X43.74-MM THK) | 1 | |
| 3L1425 | 9 BALL BEARING | 1 | |
| 8N3305 | 10 ADAPTER-FAN | 1 | |
| 4N8596 | 11 PULLEY-FAN DRIVE | 1 | |
| 8N3443 | 12 V-BELT SET (FAN)(INCLUDES 3 BELTS) | 1 | |
| 7F0938 | 13 BOLT (5/16-24X3.25-IN) | 2 | |
| 7N2900 | 14 RETAINER | 1 | |
| 9F4446 | 15 SEAL-O-RING | 1 | |
| 0T0573 | 16 BOLT (3/8-16X2.75-IN) | 6 | |
| 1D4717 | 17 NUT (3/8-16-THD) | 6 | |
| 8H9789 | 18 BALL BEARING | 1 | |
| 5S2106 | 19 SEAL-LIP TYPE | 1 | |
| 5S9062 | 20 SPACER (35.032X50.8X15.88-MM THK) | 1 |
