System And Components

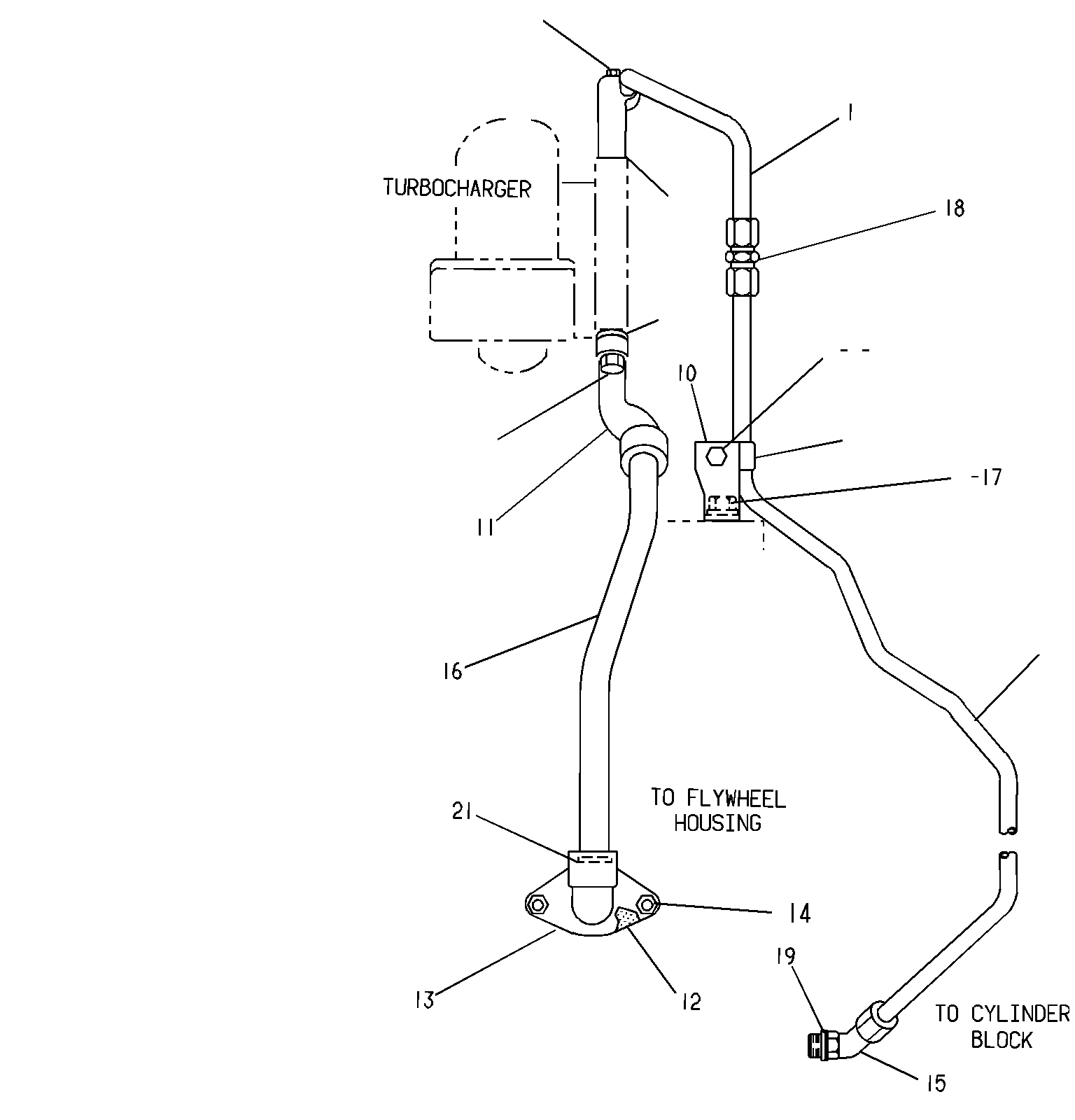

8N-2405 LINES GP-TURBOCHARGER OILS/N 48W23263-25598
Group No: 8N-2405
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4W7197 | 1 TUBE AS-OIL | 1 | |
| 0S1608 | 2 BOLT (3/8-16X3.75-IN) | 2 | |
| 4H9541 | 3 GASKET | 1 | |
| 7N7559 | 4 GASKET | 1 | |
| 1N4734 | 5 CLAMP | 2 | |
| 0L1143 | 6 BOLT (3/8-16X2.5-IN) | 1 | |
| 5M2894 | 7 WASHER-HARD (10.2X18.5X2.5-MM THK) | 3 | |
| 1D4717 | 8 NUT (3/8-16-THD) | 1 | |
| 1A2029 | 9 BOLT (3/8-16X1.125-IN) | 2 | |
| 1W7999 | 10 BRACKET | 1 | |
| 1W5378 | 11 ELBOW-DRAIN | 1 | |
| 9M9647 | 12 SEAL-O-RING | 1 | |
| 7C3631 | 13 ELBOW | 1 | |
| 3B1915 | 14 BOLT (3/8-16X1.375-IN) | 2 | |
| 6M7476 | 15 ELBOW | 1 | |
| 7C3551 | 16 TUBE | 1 | |
| 0S1590 | 17 BOLT (3/8-16X2-IN) | 1 | |
| 0618248 | 18 UNION-FLARED | 1 | |
| 2M9780 | 19 SEAL-O-RING | 1 | |
| 4W7195 | 20 TUBE AS | 1 | |
| 9M4849 | 21 SEAL-O-RING | 2 |
