System And Components
Assembly
100%

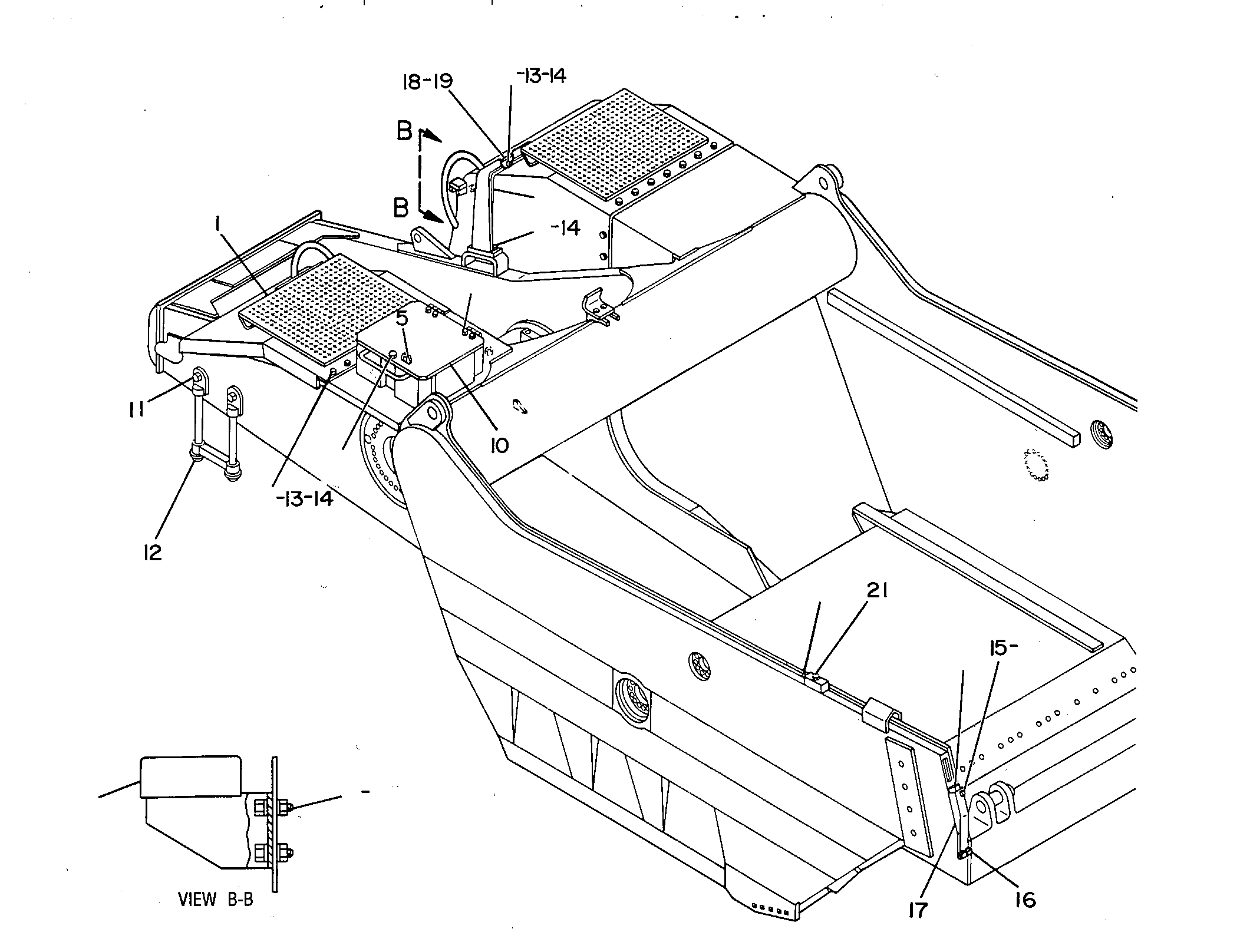

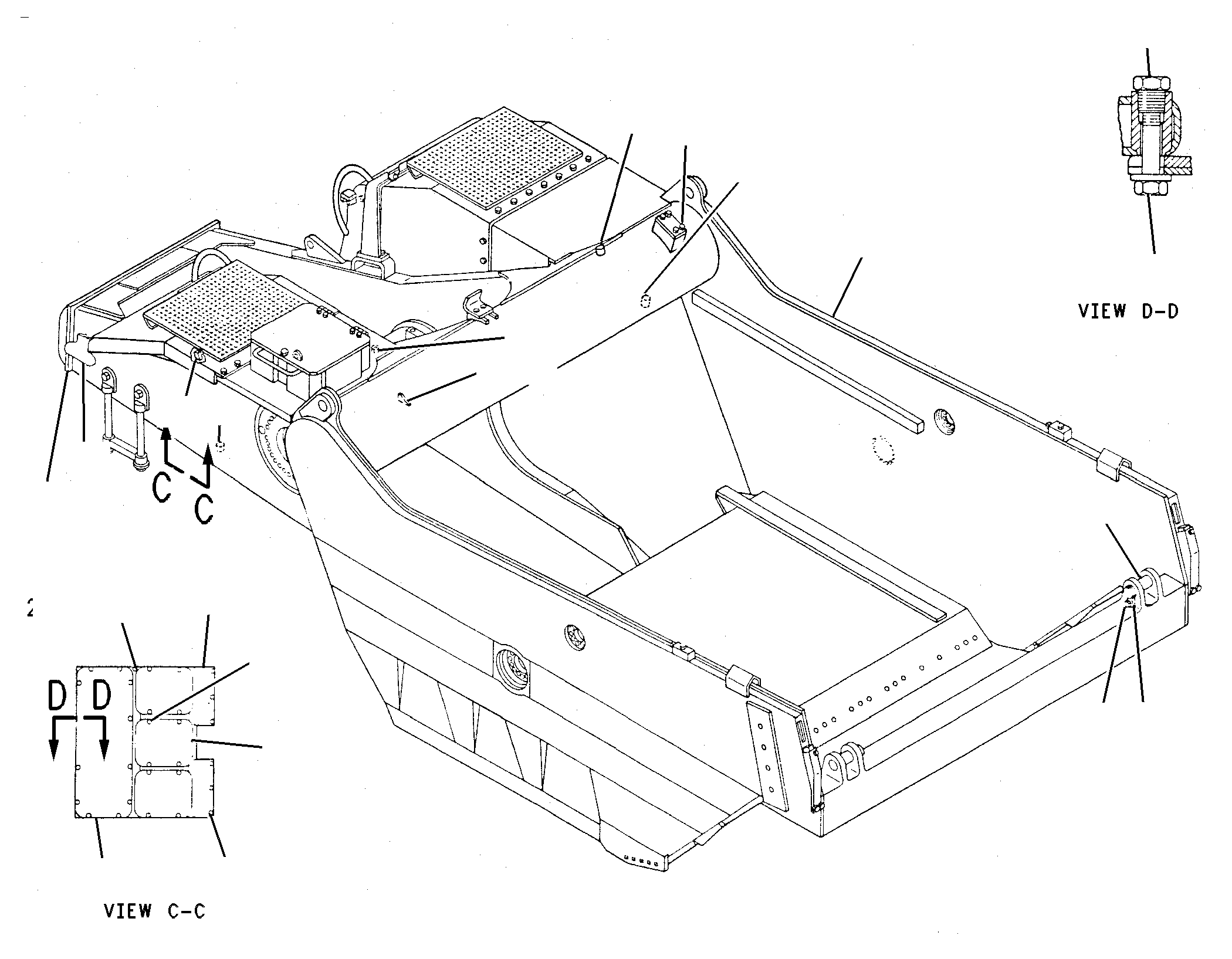

3G-9243 BOWL GP-SCRAPERS/N 86Z102-221; 87Z189-UP

Group No: 3G-9243
Part NumberPart NameQty
4T71151 FENDER AS (RH)1
4T7116FENDER AS (LH)1
2A15382 BOLT (3/4-10X2.25-IN)36
5P82453 WASHER-HARD (13.5X25.5X3-MM THK)18
4D60824 BOLT (1/2-13X1.5-IN)1
9S0201WASHER (13.5X22X2.5-MM THK)1
3B46105 PIN-COTTER1
4T71126 BRACKET AS2
9D69557 STEP AS2
7B32358 BOLT (1/2-13X1.375-IN)8
1K6872LOCKNUT (1/2-13-THD)8
5K91079 BOLT-LOCKING (3/8-16X0.75-IN)4
5M2894WASHER-HARD (10.2X18.5X2.5-MM THK)4
1U450810 COVER AS1
031022411 BOLT-LOCKING (3/4-10X1.75-IN)4
4T953212 CABLE AS2
2J350613 NUT-FULL (3/4-10-THD)28
5P824814 WASHER-HARD (20X36.5X3.5-MM THK)64
1D456915 BOLT (1/2-13X4.25-IN)2
7S937216 BOLT (5/8-11X1.125-IN)2
5P8247WASHER-HARD (17X32X3.5-MM THK)2
4T657017 GUARD2
4T711918 BRACKET (RH)1
4T712019 BRACKET (LH)1
7J541420 PIN AS1
3J2910SPACER (46X73X15-MM THK)1
0L132921 BOLT (1/2-13X3-IN)1
4T147322 CLAMP (LARGE HOLE)1
4T1474CLAMP (SMALL HOLE)1
6J595323 PIN2
4J519324 PIN2
0L117825 BOLT (3/4-10X2-IN)2
4T371926 ADAPTER26
1D458527 BOLT (5/8-11X3.25-IN)26
8P664028 WASHER-HARD (17X54X3-MM THK)(3MM THK)24
1U002629 PLATE1
1U009730 COVER AS1
4T389131 PLATE3
1A427332 BOLT (5/8-18X1.25-IN)6
3G995133 BOWL AS1
6B4112FITTING-PLUG2
1F0748NUT-WELD (1/2-13-THD)7
8J757434 LUG (50MM LG)1
4J3818BLOCK-TAPPED1
6M4263BOSS (11MM ID)2
9D120535 BLOCK (LH)1
8D7729BOSS (3/8-16X0.81-IN)(8.21MM ID)1
2G7492LUG (89MM LG)1
8F983636 BOSS (3/8-16-THD)16
5B198337 BOSS (3/8-16-THD)5
4D752938 BOSS (3/8-16-THD)6
1U421739 PLATE1
0S162140 BOLT (1/2-13X1-IN)4
5P8245WASHER-HARD (13.5X25.5X3-MM THK)4
1P3708SEAL-RECTANGULAR1
3D236541 CLIP10
9F297842 NUT-WELD (3/8-16-THD)1
1U410043 HOOK-RETRIEVAL2
5K845444 BOLT (1/2-13X1.12-IN)4
5P8245WASHER-HARD (13.5X25.5X3-MM THK)4
5P719745 WASHER (17X45X6-MM THK)(6MM THK)8
4T071246 PLATE (LH)1
4T0711PLATE (RH)1
