System And Components

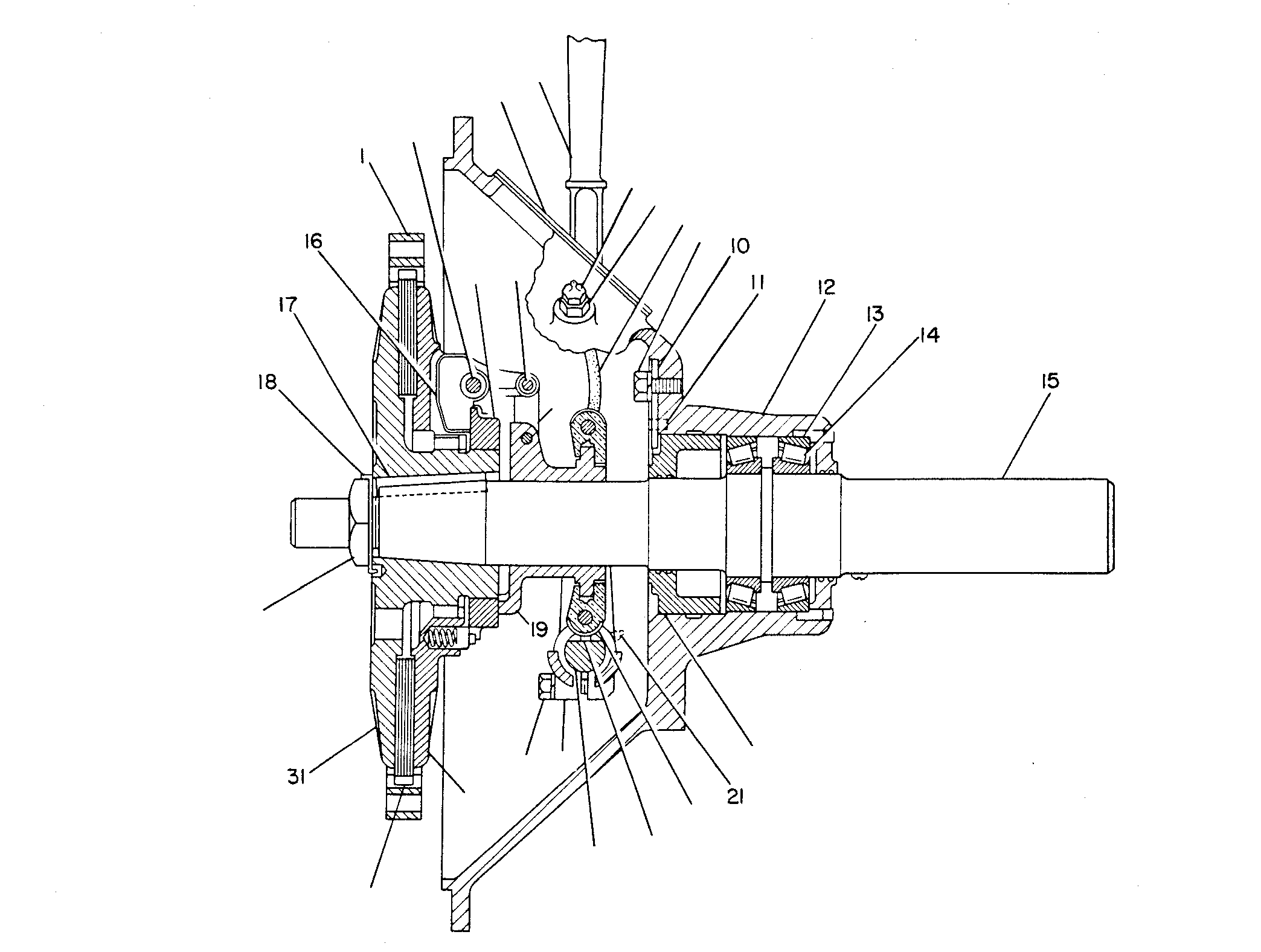

4W-2650 CLUTCH GPPART OF 4W-2651 POWER TAKE-OFF GP
Group No: 4W-2650
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5N9315 | 1 RING-DRIVE (72-TEETH) | 1 | |
| 6L3966 | 2 PIN | 3 | |
| 6L3964 | PIN-COTTER | 3 | |
| 5D2751 | WASHER-SPRING (0.406X0.687X0.125-IN THK) | 6 | |
| 2L8262 | 3 RING-ADJUSTMENT | 1 | |
| 1083561 | 4 PLATE-INSTRUCTION (POWER TAKE-OFF) | 1 | |
| 1083560 | PLATE-WARNING (POWER TAKE-OFF) | 1 | |
| 1L6931 | SCREW AS-MACHINE (1/4-20X0.5-IN) | 2 | |
| 4W2652 | 5 LEVER AS-HAND | 1 | |
| 0S1587 | BOLT (1/2-13X1.75-IN) | 1 | |
| 3B8489 | 6 FITTING-GREASE (1/8-27 PTF)(CLUTCH) | 2 | |
| 9S1354 | 7 NUT (5/8-18-THD) | 1 | |
| 6F0253 | LOCKWASHER | 1 | |
| 4B4775 | 8 HOSE AS | 1 | |
| 2H3755 | 9 BOLT (5/16-18X0.43-IN) | 1 | |
| 3F9556 | LOCKWASHER | 1 | |
| 7L0116 | 10 LOCK | 1 | |
| 5B6159 | 11 SETSCREW-POINT | 1 | |
| 5L4202 | 12 HOUSING-CLUTCH | 1 | |
| 6B3224 | 13 CUP-BEARING (TAPERED ROLLER) | 2 | |
| 4B7255 | 14 CONE-BEARING | 2 | |
| 4W2649 | 15 SHAFT-CLUTCH | 1 | |
| 2L8259 | 16 LEVER | 3 | |
| 1L9087 | 17 KEY | 1 | |
| 4923073 | 18 WASHER-LOCK | 1 | |
| 2L8260 | 19 SLEEVE-SLIDING | 1 | |
| 2N9363 | 20 RETAINER-BEARING | 1 | |
| 8B7121 | 21 FITTING-HYDRAULIC (CLUTCH) | 2 | |
| 4B4715 | 22 COLLAR AS | 1 | |
| 0L0639 | BOLT (3/8-24X2.25-IN) | 2 | |
| 2L6267 | LOCKNUT (3/8-24-THD) | 2 | |
| 4B4722 | SHIM | 2 | |
| 6L5151 | 23 KEY-WOODRUFF | 2 | |
| 4B4756 | 24 SHAFT | 1 | |
| 4B4725 | 25 YOKE | 1 | |
| 0S1591 | 26 BOLT (3/8-16X1.5-IN) | 2 | |
| 9F5644 | LOCKWASHER | 2 | |
| 6L3965 | 27 PIN | 6 | |
| 6L3960 | PIN-COTTER | 6 | |
| 5B5251 | 28 LINK | 6 | |
| 3N7953 | 29 PLATE AS | 1 | |
| 3N7954 | LOCK PIN | 1 | |
| 3N7955 | SPRING | 1 | |
| 3N7952 | 30 PLATE-DRIVE | 1 | |
| 2L8256 | 31 PLATE-HUB & BACK | 1 | |
| 2L8257 | 32 NUT-HUB | 1 | |
| 5N3789 | CLUTCH AS | 1 |
