System And Components

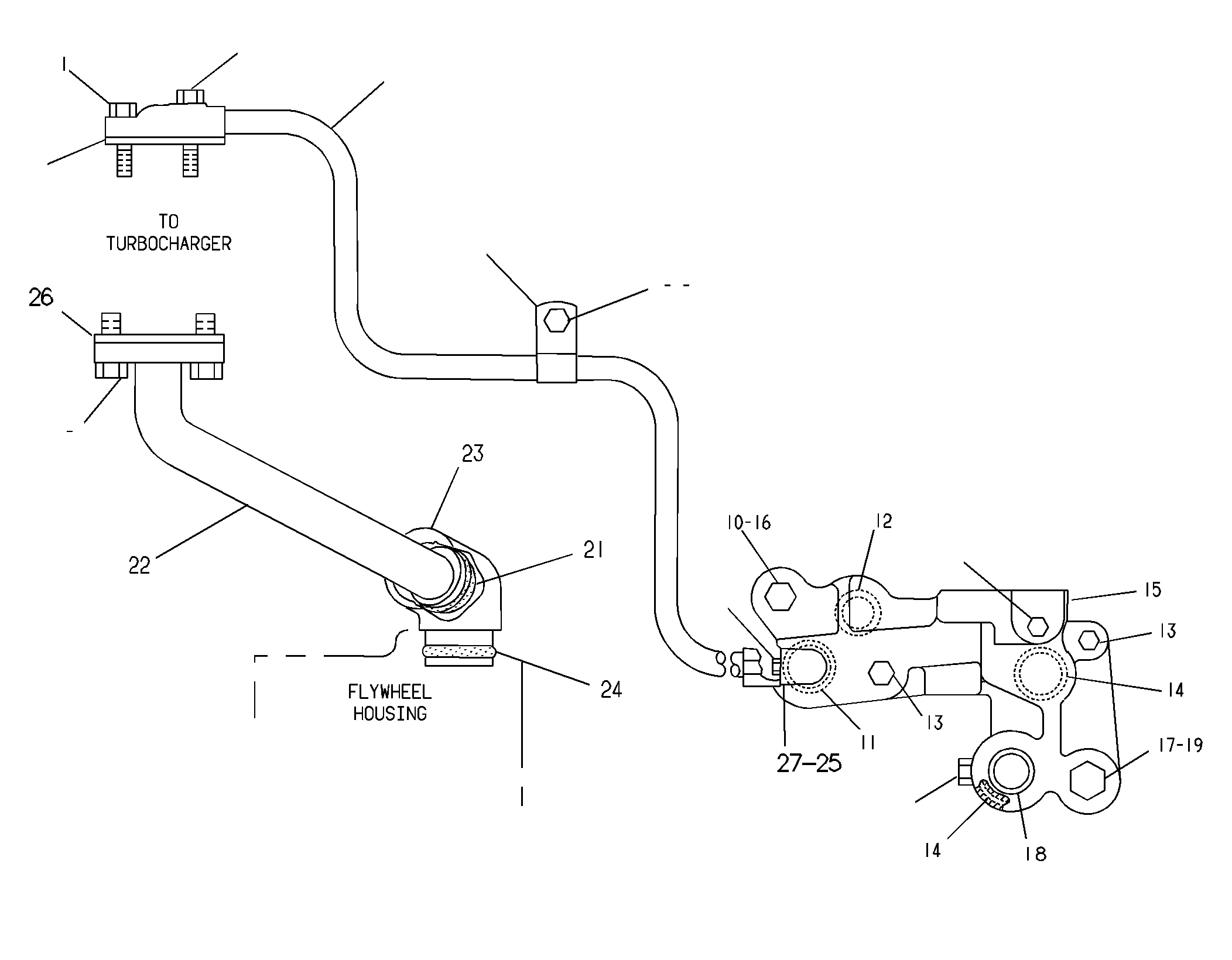

7W-2228 LINES GP-TURBOCHARGER OILS/N 10E1797-UP
Group No: 7W-2228
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4B3388 | 1 BOLT (5/16-18X1.125-IN) | 1 | |
| 8H9788 | 2 GASKET | 1 | |
| 1B2790 | 3 BOLT (5/16-18X1.375-IN) | 1 | |
| 8N3205 | 4 TUBE AS-OIL | 1 | |
| 1B3057 | 5 CLIP | 1 | |
| 1A2029 | 6 BOLT (3/8-16X1.125-IN) | 3 | |
| 5M2894 | 7 WASHER-HARD (10.2X18.5X2.5-MM THK) | 3 | |
| 8M9124 | 8 WASHER (10X22.5X8-MM THK) | 1 | |
| 5M6213 | 9 PLUG-PIPE (1/4-18-THD) | 2 | |
| 0S1585 | 10 BOLT (1/2-13X1.5-IN) | 1 | |
| 8M4438 | 11 SEAL-O-RING | 1 | |
| 8M4446 | 12 SEAL-O-RING | 1 | |
| 0S1619 | 13 BOLT (3/8-16X3-IN) | 2 | |
| 8M5248 | 14 SEAL-O-RING | 2 | |
| 4W9655 | 15 SUPPORT | 1 | |
| 5P8245 | 16 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 1B4367 | 17 BOLT (5/8-11X3-IN) | 1 | |
| 3S8313 | 18 PLUG-CUP | 1 | |
| 5P8247 | 19 WASHER-HARD (17X32X3.5-MM THK) | 1 | |
| 3J5390 | 20 PLUG (3/8-18-THD) | 1 | |
| 9M4849 | 21 SEAL-O-RING | 1 | |
| 9Y2128 | 22 TUBE AS | 1 | |
| 8L5079 | 23 ELBOW-OIL DRAIN | 1 | |
| 8M4991 | 24 SEAL-O-RING | 1 | |
| 3K0360 | 25 SEAL-O-RING | 1 | |
| 1P1255 | 26 GASKET-OIL DRAIN | 1 | |
| 0307948 | 27 ELBOW | 1 |
