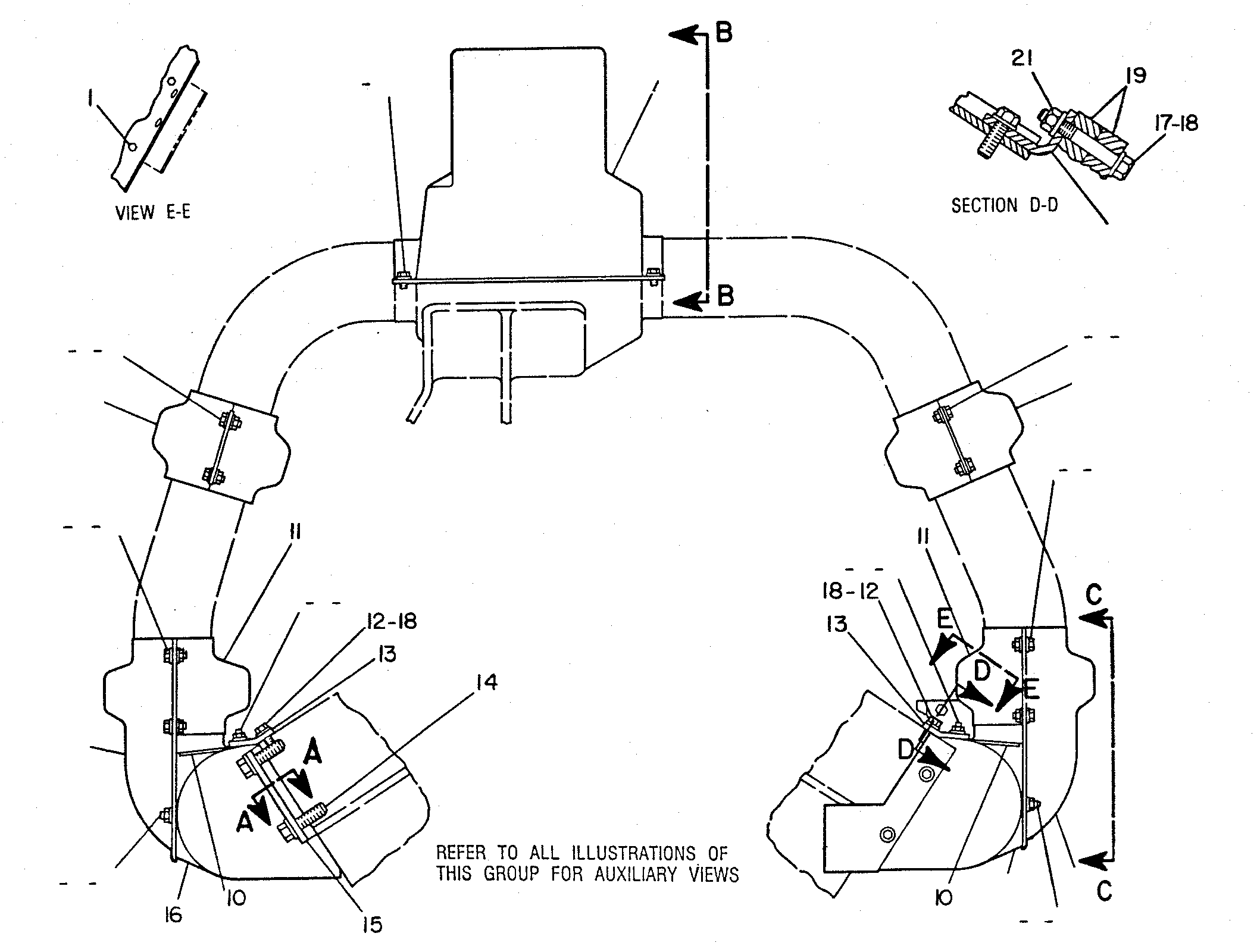

Assembly
100%

7N-7032 SHIELD GP-MANIFOLDS/N 6MB61-90

Group No: 7N-7032
Part NumberPart NameQty
0S15711 BOLT (3/8-16X1.75-IN)2
9M19742 WASHER-HARD (8.8X16X2-MM THK)51
8N23683 SHIELD AS1
2H37554 BOLT (5/16-18X0.43-IN)23
1B53545 NUT-FULL (5/16-18-THD)28
1N33006 SHIELD AS4
8N15947 SHIELD AS2
6V27128 STUD12
8N16229 SHIELD AS-MANIFOLD (RH)1
8N161610 SHIELD AS2
8N161911 SHIELD AS2
0S159412 BOLT (3/8-16X1-IN)6
8N161413 PLATE2
0S158714 BOLT (1/2-13X1.75-IN)2
5P8245WASHER-HARD (13.5X25.5X3-MM THK)2
8N795315 PLATE1
8N162016 SHIELD AS-MANIFOLD (LH)1
0L114317 BOLT (3/8-16X2.5-IN)1
5M289418 WASHER-HARD (10.2X18.5X2.5-MM THK)8
1N473419 CLAMP2
2P091120 ANGLE1
1D471721 NUT (3/8-16-THD)1
5P995922 BOLT (5/16-18X0.5-IN)6
4B427723 WASHER (8.8X17.5X1.6-MM THK)4
8N795424 PLATE2
1W618525 SHIELD AS1
9M197426 WASHER-HARD (8.8X16X2-MM THK)2
0S158727 BOLT (1/2-13X1.75-IN)2
5P8245WASHER-HARD (13.5X25.5X3-MM THK)2
8N795328 PLATE1
