System And Components

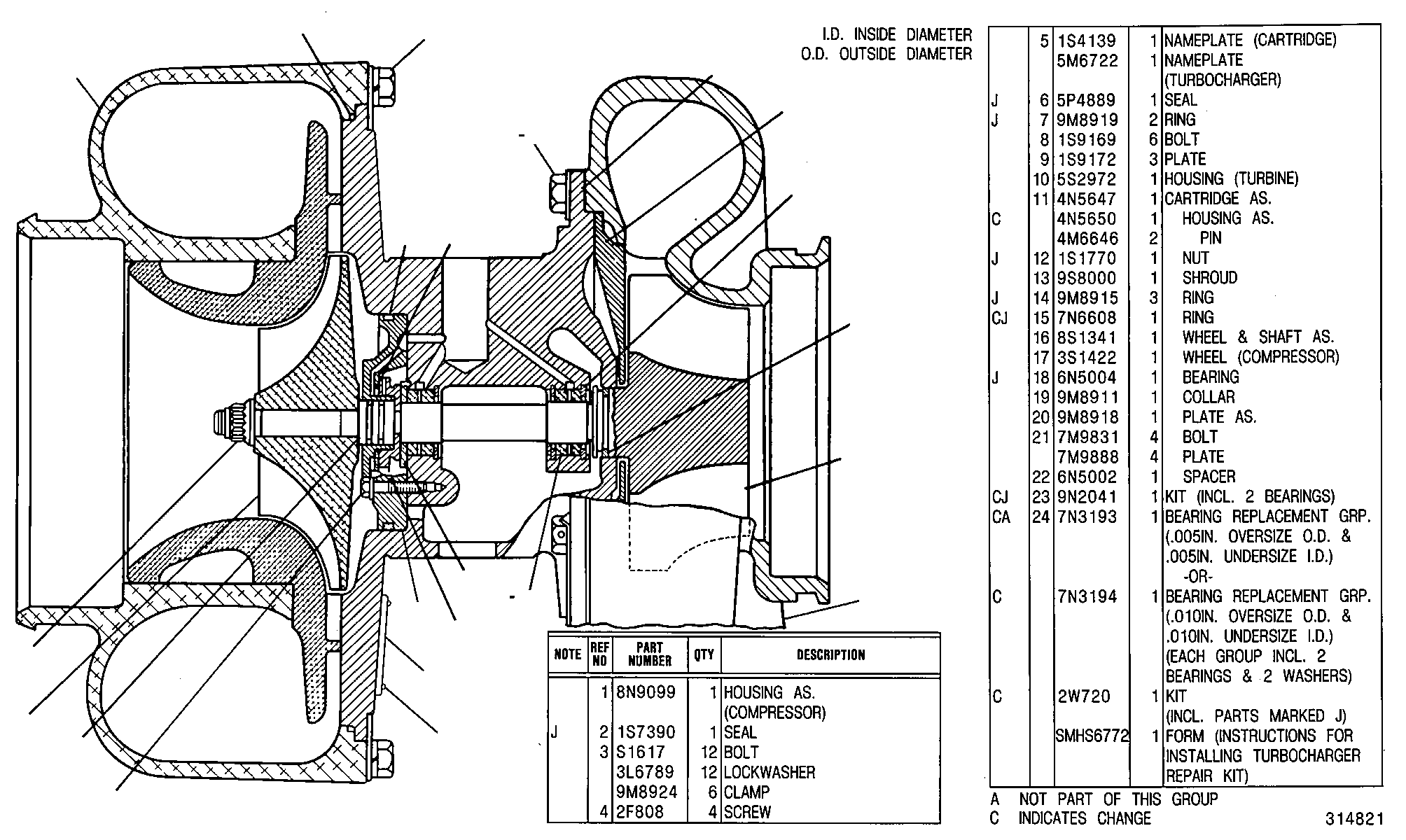

8N9133 TURBOCHARGER GROUP-L.H.*RPART OF 4N7070 TURBOCHARGER GROUP SHOWN ON PAGE 62
Group No: 8N9133
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8N9099 | 1 HOUSING AS-COMPRESSOR | 1 | |
| 1S7390 | 2 SEAL-O-RING | 1 | |
| 0S1617 | 3 BOLT | 12 | |
| 3L6789 | LOCKWASHER | 12 | |
| 9M8924 | CLAMP | 6 | |
| 2F0808 | 4 SCREW | 4 | |
| 1S4139 | 5 NAMEPLATE (CARTRIDGE) | 1 | |
| 5M6722 | NAMEPLATE | 1 | |
| 5P4889 | 6 SEAL-O-RING | 1 | |
| 9M8919 | 7 RING-SEAL | 2 | |
| 1S9169 | 8 BOLT-HIGH TEMP | 6 | |
| 1S9172 | 9 PLATE-LOCK | 3 | |
| 5S2972 | 10 HOUSING-TURBINE (TURBINE) | 1 | |
| 4N5647 | 11 CARTRIDGE AS | 1 | |
| 4N5650 | HOUSING AS | 1 | |
| 4M6646 | PIN-GROOVE | 2 | |
| 1S1770 | 12 LOCKNUT-TURBOCHARGER | 1 | |
| 9S8000 | 13 SHROUD-WHEEL | 1 | |
| 9M8915 | 14 RING-RETAINING | 3 | |
| 7N6608 | 15 RING-PISTON | 1 | |
| 8S1341 | 16 SHAFT & WHEEL AS | 1 | |
| 3S1422 | 17 WHEEL-COMPRESSOR (COMPRESSOR) | 1 | |
| 6N5004 | 18 BEARING-THRUST | 1 | |
| 9M8911 | 19 COLLAR-THRUST | 1 | |
| 9M8918 | 20 PLATE AS | 1 | |
| 7M9831 | 21 SCREW-MACHINE | 4 | |
| 7M9888 | PLATE-LOCK | 4 | |
| 6N5002 | 22 SPACER-THRUST | 1 | |
| 9N2041 | 23 KIT-BEARING (INCL. 2 BEARINGS) | 1 | |
| 7N3193 | 24 KIT-BEARING | 1 | |
| 7N3194 | KIT-BEARING | 1 | |
| 2W0720 | KIT-CARTRIDGE | 1 |
