System And Components

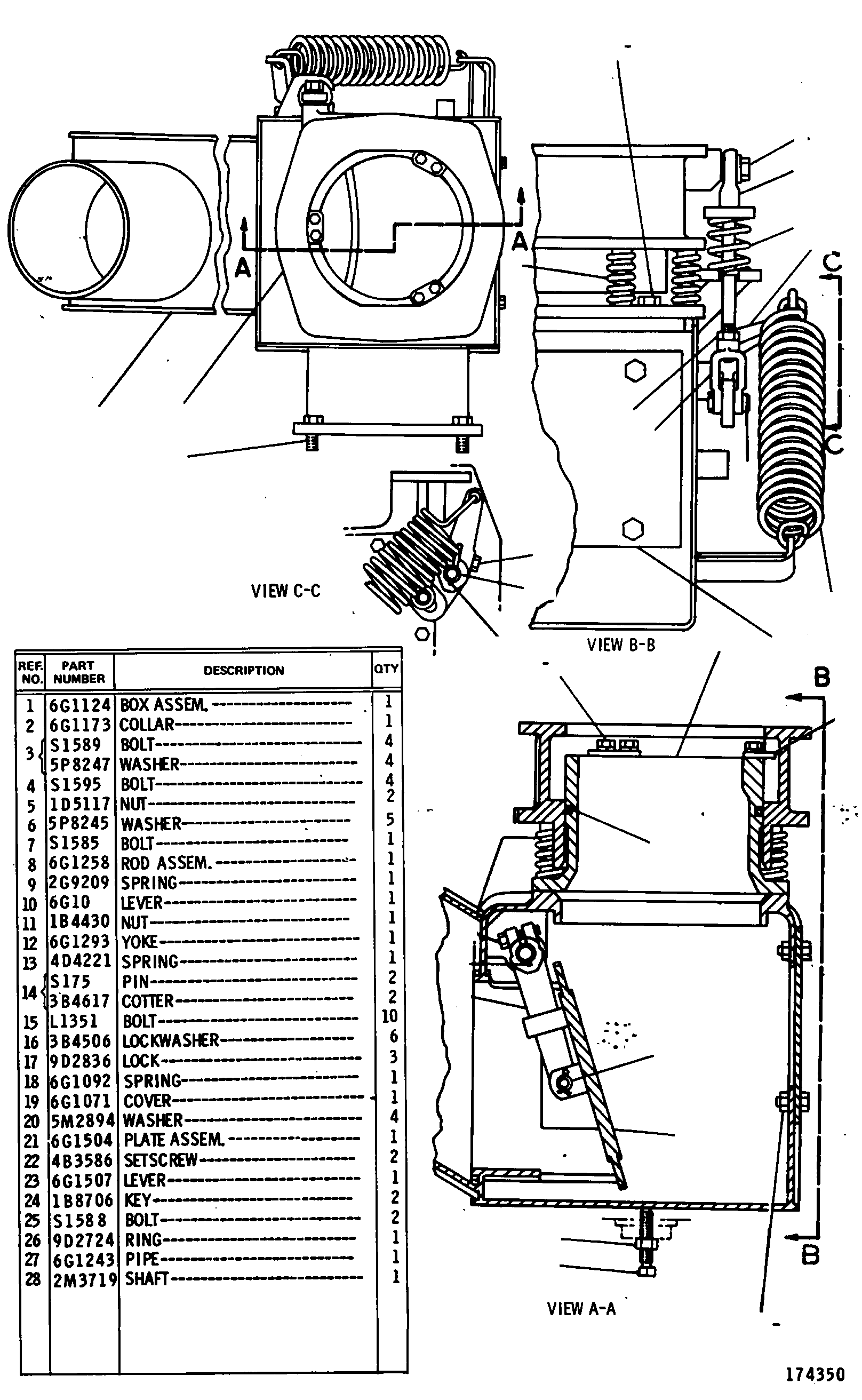

6G1280 EXHAUST PIPING GROUPAN ATTACHMENT
Group No: 6G1280
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6G1124 | 1 BOX ASSEM. | 1 | |
| 6G1173 | 2 COLLAR | 1 | |
| 0S1589 | 3 BOLT | 4 | |
| 5P8247 | WASHER | 4 | |
| 0S1595 | 4 BOLT | 4 | |
| 1D5117 | 5 NUT | 2 | |
| 5P8245 | 6 WASHER | 5 | |
| 0S1585 | 7 BOLT | 1 | |
| 6G1258 | 8 ROD ASSEM. | 1 | |
| 2G9209 | 9 SPRING | 1 | |
| 6G0010 | 10 LEVER | 1 | |
| 1B4430 | 11 NUT | 1 | |
| 6G1293 | 12 YOKE | 1 | |
| 4D4221 | 13 SPRING | 1 | |
| 0S0175 | 14 PIN | 2 | |
| 3B4617 | COTTER | 2 | |
| 0L1351 | 15 BOLT | 10 | |
| 3B4506 | 16 LOCKWASHER | 6 | |
| 9D2836 | 17 LOCK | 3 | |
| 6G1092 | 18 SPRING | 1 | |
| 6G1071 | 19 COVER | 1 | |
| 5M2894 | 20 WASHER | 4 | |
| 6G1504 | 21 PLATE ASSEM. | 1 | |
| 4B3586 | 22 SETSCREW | 2 | |
| 6G1507 | 23 LEVER | 1 | |
| 1B8706 | 24 KEY | 2 | |
| 0S1588 | 25 BOLT | 2 | |
| 9D2724 | 26 RING | 1 | |
| 6G1243 | 27 PIPE | 1 | |
| 2M3719 | 28 SHAFT | 1 |
