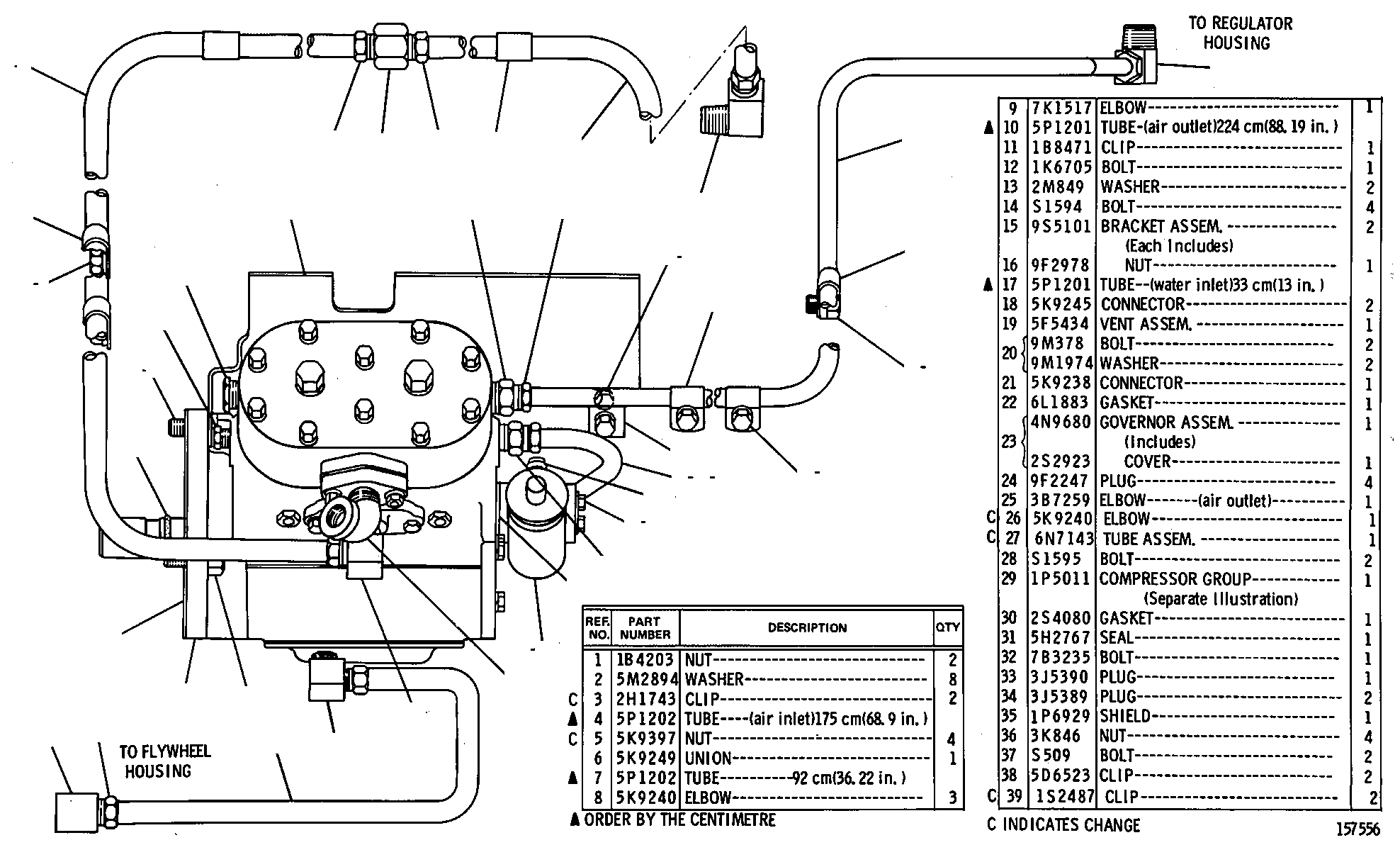

4N4433 AIR COMPRESSOR GROUP1P5011-PAGE 57

Group No: 4N4433
Part NumberPart NameQty
1B42031 NUT2
5M28942 WASHER8
2H17433 CLIP2
5P12024 TUBE (air inlet)175 cm(68.9 in.)NULL
5K93975 NUT4
5K92496 UNION1
5P12027 TUBE 92 cm(36.22 in.)NULL
5K92408 ELBOW3
7K15179 ELBOW1
5P120110 TUBE (air outlet)224 cm(88.19 in.)NULL
1B847111 CLIP1
1K670512 BOLT1
2M084913 WASHER2
0S159414 BOLT4
9S510115 BRACKET ASSEM.2
9F297816 NUT1
5P120117 TUBE (water inlet)33 cm(13 in.)NULL
5K924518 CONNECTOR2
5F543419 VENT ASSEM.1
9M037820 BOLT2
9M1974WASHER2
5K923821 CONNECTOR1
6L188322 GASKET1
4N968023 GOVERNOR ASSEM.1
2S2923COVER1
9F224724 PLUG4
3B725925 ELBOW (air outlet)1
5K924026 ELBOW1
6N714327 TUBE ASSEM.1
0S159528 BOLT2
1P501129 COMPRESSOR GROUP1
2S408030 GASKET1
5H276731 SEAL1
7B323532 BOLT1
3J539033 PLUG1
3J538934 PLUG2
1P692935 SHIELD1
3K084636 NUT4
0S050937 BOLT2
5D652338 CLIP2
1S248739 CLIP2
