System And Components

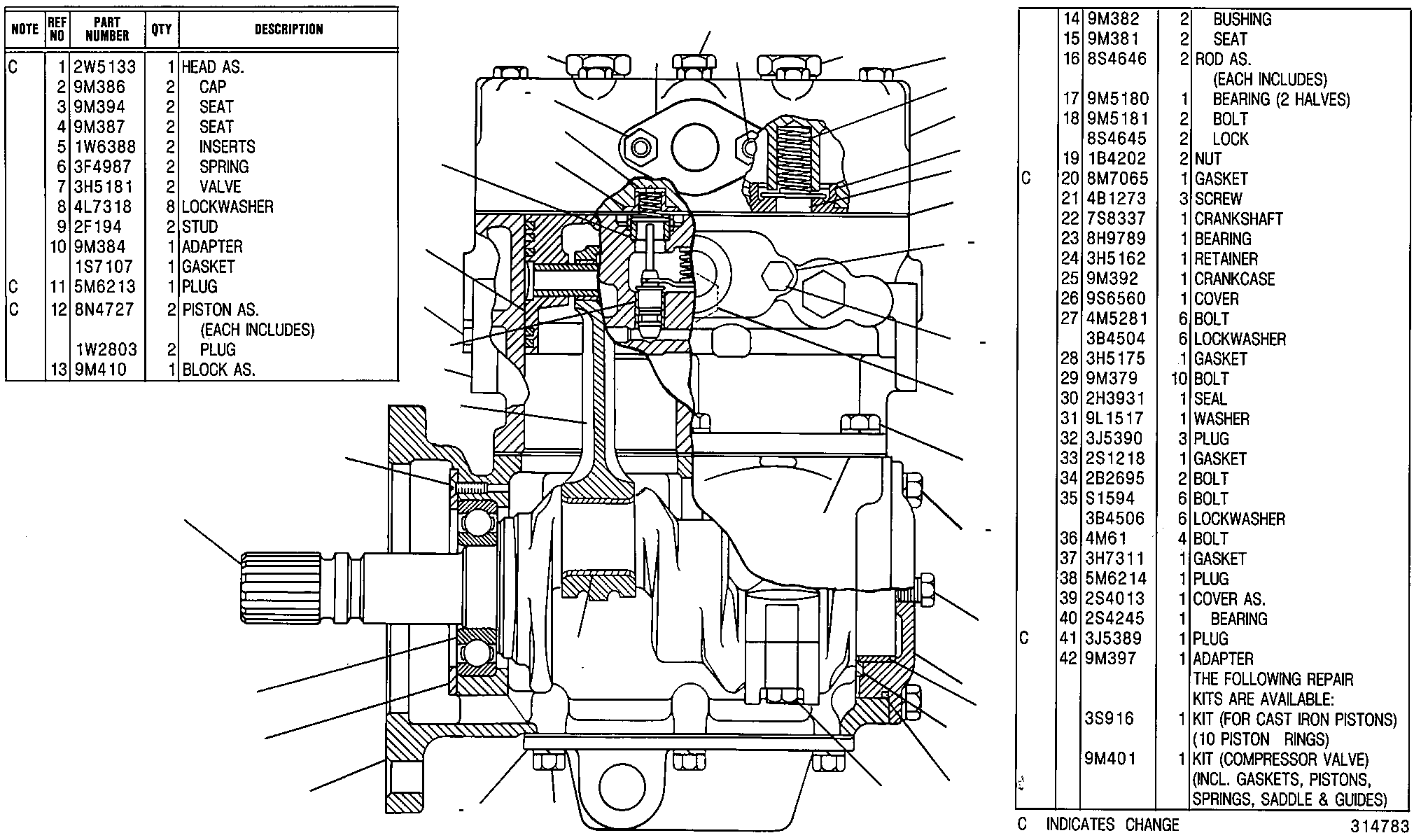

1P5011 AIR COMPRESSOR GROUPPART OF 4N4433 AIR COMPRESSOR
Group No: 1P5011
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2W5133 | 1 HEAD AS. | 1 | |
| 9M0386 | 2 CAP | 2 | |
| 9M0394 | 3 SEAT | 2 | |
| 9M0387 | 4 SEAT | 2 | |
| 1W6388 | 5 INSERTS | 2 | |
| 3F4987 | 6 SPRING | 2 | |
| 3H5181 | 7 VALVE | 2 | |
| 4L7318 | 8 LOCKWASHER | 8 | |
| 2F0194 | 9 STUD | 2 | |
| 9M0384 | 10 ADAPTER | 1 | |
| 1S7107 | GASKET | 1 | |
| 5M6213 | 11 PLUG | 1 | |
| 8N4727 | 12 PISTON AS. | 2 | |
| 1W2803 | PLUG | 2 | |
| 9M0410 | 13 BLOCK AS. | 1 | |
| 9M0382 | 14 BUSHING | 2 | |
| 9M0381 | 15 SEAT | 2 | |
| 8S4646 | 16 ROD AS. | 2 | |
| 9M5180 | 17 BEARING (2 HALVES) | 1 | |
| 9M5181 | 18 BOLT | 2 | |
| 8S4645 | LOCK | 2 | |
| 1B4202 | 19 NUT | 2 | |
| 8M7065 | 20 GASKET | 1 | |
| 4B1273 | 21 SCREW | 3 | |
| 7S8337 | 22 CRANKSHAFT | 1 | |
| 8H9789 | 23 BEARING | 1 | |
| 3H5162 | 24 RETAINER | 1 | |
| 9M0392 | 25 CRANKCASE | 1 | |
| 9S6560 | 26 COVER | 1 | |
| 4M5281 | 27 BOLT | 6 | |
| 3B4504 | LOCKWASHER | 6 | |
| 3H5175 | 28 GASKET | 1 | |
| 9M0379 | 29 BOLT | 10 | |
| 2H3931 | 30 SEAL | 1 | |
| 9L1517 | 31 WASHER | 1 | |
| 3J5390 | 32 PLUG | 3 | |
| 2S1218 | 33 GASKET | 1 | |
| 2B2695 | 34 BOLT | 2 | |
| 0S1594 | 35 BOLT | 6 | |
| 3B4506 | LOCKWASHER | 6 | |
| 4M0061 | 36 BOLT | 4 | |
| 3H7311 | 37 GASKET | 1 | |
| 5M6214 | 38 PLUG | 1 | |
| 2S4013 | 39 COVER AS. | 1 | |
| 2S4245 | 40 BEARING | 1 | |
| 3J5389 | 41 PLUG | 1 | |
| 9M0397 | 42 ADAPTER | 1 | |
| 3S0916 | KIT (FOR CAST IRON PISTONS) | 1 | |
| 9M0401 | KIT (COMPRESSOR VALVE) | 1 |
