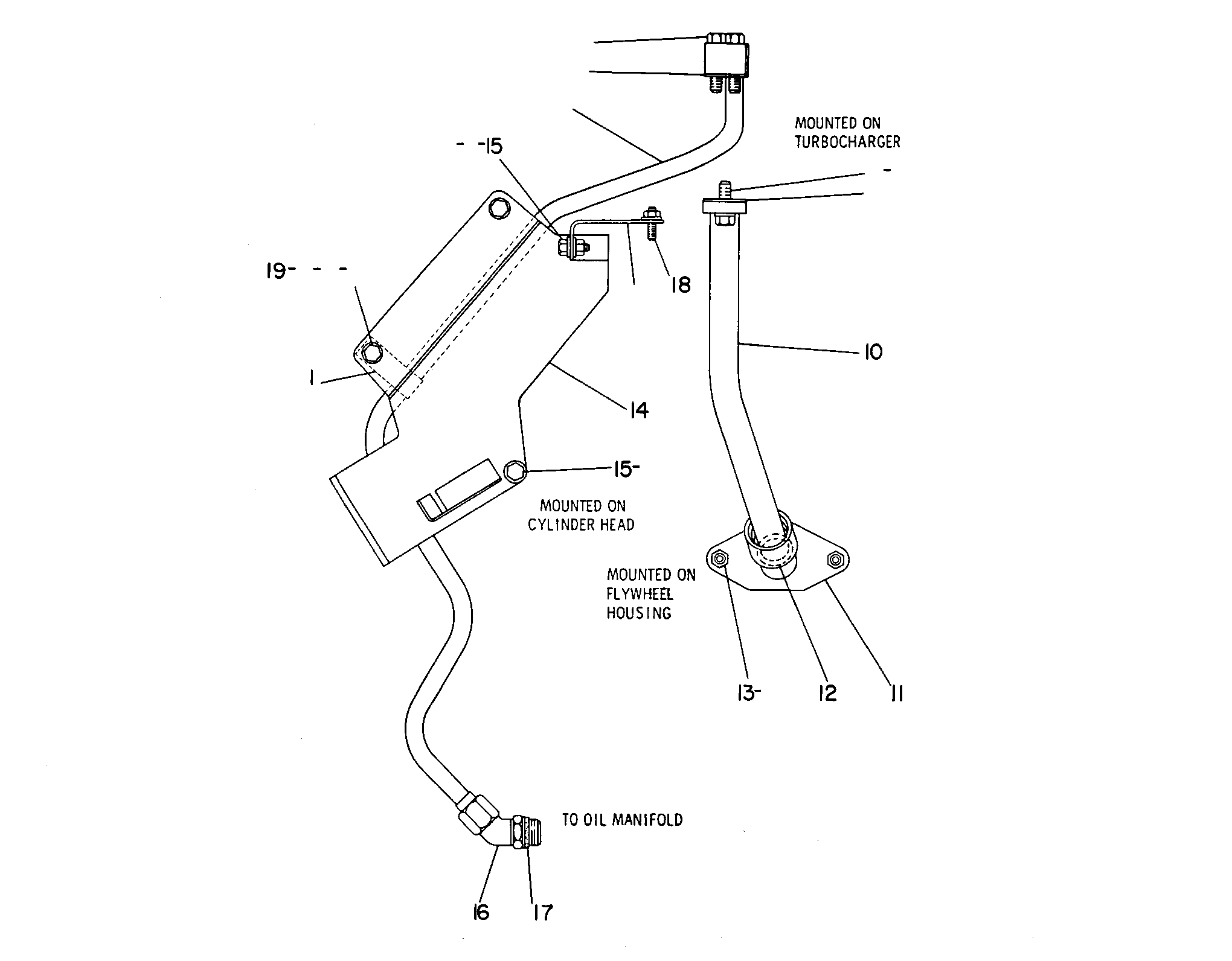

1N-3141 LINES GP-TURBOCHARGER OILS/N 78Z1178-1646

Group No: 1N-3141
Part NumberPart NameQty
2B32431 CLIP2
0L13512 BOLT (3/8-16X0.875-IN)2
1D47173 NUT (3/8-16-THD)5
5M28944 WASHER-HARD (10.2X18.5X2.5-MM THK)9
8N09635 TUBE AS-OIL1
1S65956 GASKET-OIL SUPPLY1
0S15717 BOLT (3/8-16X1.75-IN)2
1A20298 BOLT (3/8-16X1.125-IN)2
1S48109 GASKET-OIL DRAIN1
8N634210 TUBE AS1
4N614611 ELBOW1
9L6924GASKET1
9M484912 SEAL-O-RING1
6F701213 STUD-TAPERLOCK (3/8-16X1.57-IN)2
8N210214 SHIELD AS-HEAT1
0S050915 BOLT (3/8-16X0.75-IN)2
6M747616 ELBOW1
2M978017 SEAL-O-RING1
9L132118 STUD-TAPERLOCK (3/8-16X1.18-IN)1
2N2766LOCKNUT (3/8-16-THD)1
3L968919 WASHER (10.5X25.4X5-MM THK)(4.5MM THK)2
8N839020 BRACKET1
