System And Components
9L-6415 LINES GP-ENGINE OILS/N 28V4750-4912
Group No: 9L-6415
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0L1351 | 1 BOLT (3/8-16X0.875-IN) | 1 | |
| 5M2894 | 2 WASHER-HARD (10.2X18.5X2.5-MM THK) | 5 | |
| 8M9024 | 3 WASHER-HARD (10.2X22.5X5-MM THK) | 1 | |
| 0S1587 | 4 BOLT (1/2-13X1.75-IN) | 4 | |
| 2M0849 | WASHER-HARD (13.5X25.5X5-MM THK) | 4 | |
| 9L6904 | 5 CONNECTOR | 1 | |
| 0S1588 | 6 BOLT (3/8-16X1.25-IN) | 2 | |
| 6N6143 | 7 SUPPORT-LINES | 1 | |
| 5H5138 | 8 CLIP | 1 | |
| 0S1590 | 9 BOLT (3/8-16X2-IN) | 1 | |
| 0S1595 | 10 BOLT (1/2-13X1.25-IN) | 2 | |
| 1P3707 | 11 SEAL-RECTANGULAR | 1 | |
| 1A5822 | 12 BOLT (1/2-13X2.75-IN) | 2 | |
| 8M9024 | 13 WASHER-HARD (10.2X22.5X5-MM THK) | 1 | |
| 8M7145 | 14 WASHER (10.2X28.5X5-MM THK) | 1 | |
| 9L6703 | 15 BRACKET | 1 | |
| 0S1594 | 16 BOLT (3/8-16X1-IN) | 1 | |
| 1D4717 | NUT (3/8-16-THD) | 1 | |
| 9N5919 | 17 TUBE AS | 1 | |
| 9N5103 | 18 BELL AS-SUCTION | 1 | |
| 9F2978 | NUT-WELD (3/8-16-THD) | 2 | |
| 4N0913 | 19 SCREEN-STRAINER | 1 | |
| 4N0914 | 20 CLIP | 1 | |
| 0S1594 | 21 BOLT (3/8-16X1-IN) | 1 | |
| 2S6160 | WASHER-HARD (10.2X32X5-MM THK) | 1 | |
| 9M9647 | 22 SEAL-O-RING | 2 | |
| 1W2641 | 23 TUBE-OIL | 2 | |
| 6L1651 | SEAL-O-RING | 4 | |

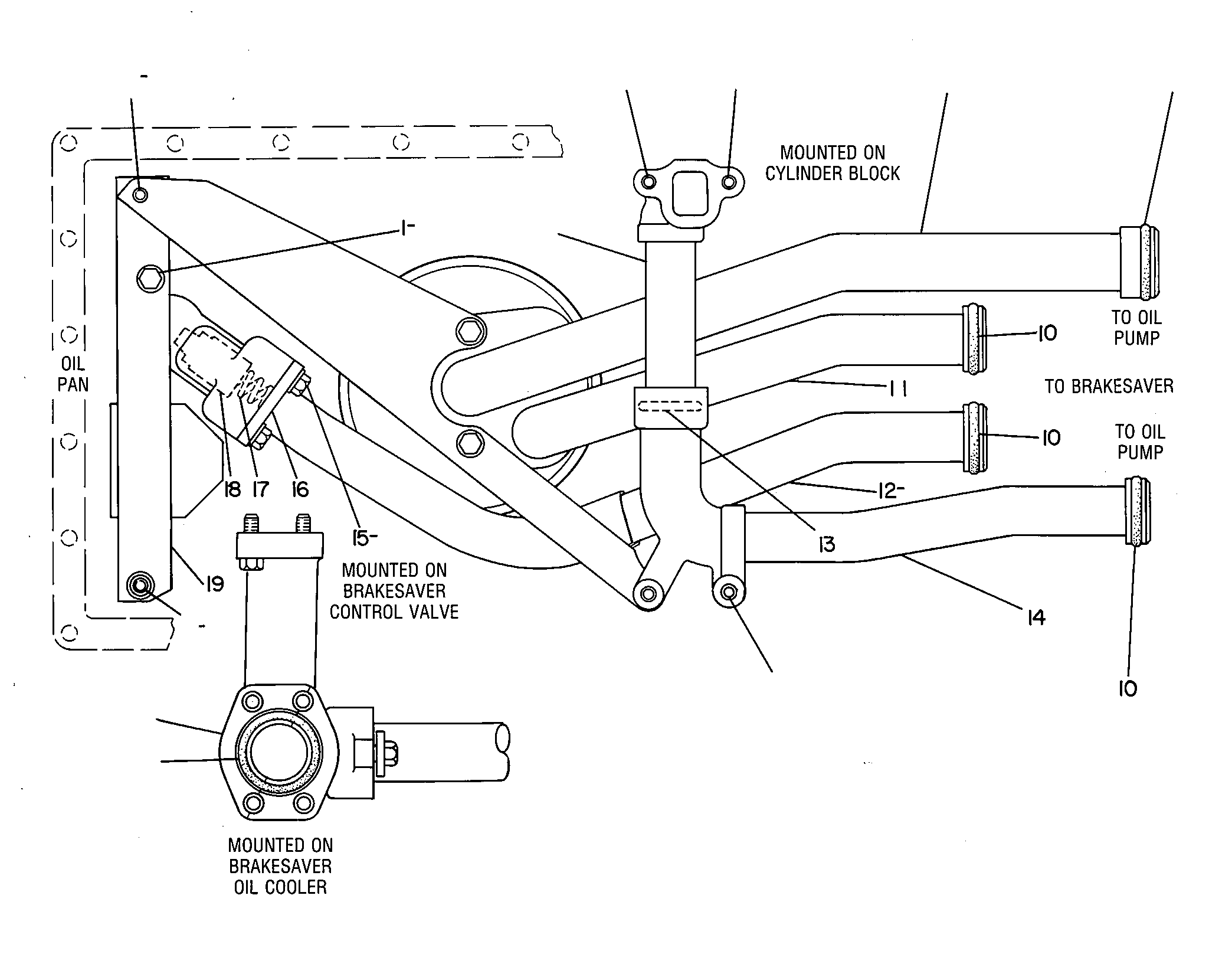

| 0L1351 | 1 BOLT (3/8-16X0.875-IN) | 1 | |
| 5M2894 | 2 WASHER-HARD (10.2X18.5X2.5-MM THK) | 5 | |
| 9M7002 | 3 SEAL-O-RING | 1 | |
| 8M5661 | 4 SEAL-O-RING | 1 | |
| 9L6842 | 5 TUBE AS | 1 | |
| 0L2070 | 6 BOLT (3/8-16X2.25-IN) | 1 | |
| 0S1591 | 7 BOLT (3/8-16X1.5-IN) | 4 | |
| 9N5917 | 8 TUBE AS-PUMP SUCTION | 1 | |
| 5P5846 | 9 SEAL-O-RING | 1 | |
| 5L2727 | 10 SEAL-O-RING | 3 | |
| 9L6731 | 11 TUBE AS-SUCTION | 1 | |
| 9L6726 | 12 TUBE AS-PUMP | 1 | |
| 5P5316 | 13 SEAL-O-RING | 1 | |
| 9N2341 | 14 TUBE AS | 1 | |
| 1A2029 | 15 BOLT (3/8-16X1.125-IN) | 2 | |
| 2P3761 | 16 COVER | 1 | |
| 3K7346 | 17 SPRING | 1 | |
| 1P1367 | 18 PLUNGER (RELIEF VALVE) | 1 | |
| 9N5758 | 19 BRACKET AS-RELIEF VALVE | 1 | |
| 0347035 | SPACER (0.438X1.0X0.188-IN THK) | 1 | |
| 1P4579 | 20 FLANGE-HALF | 1 | |

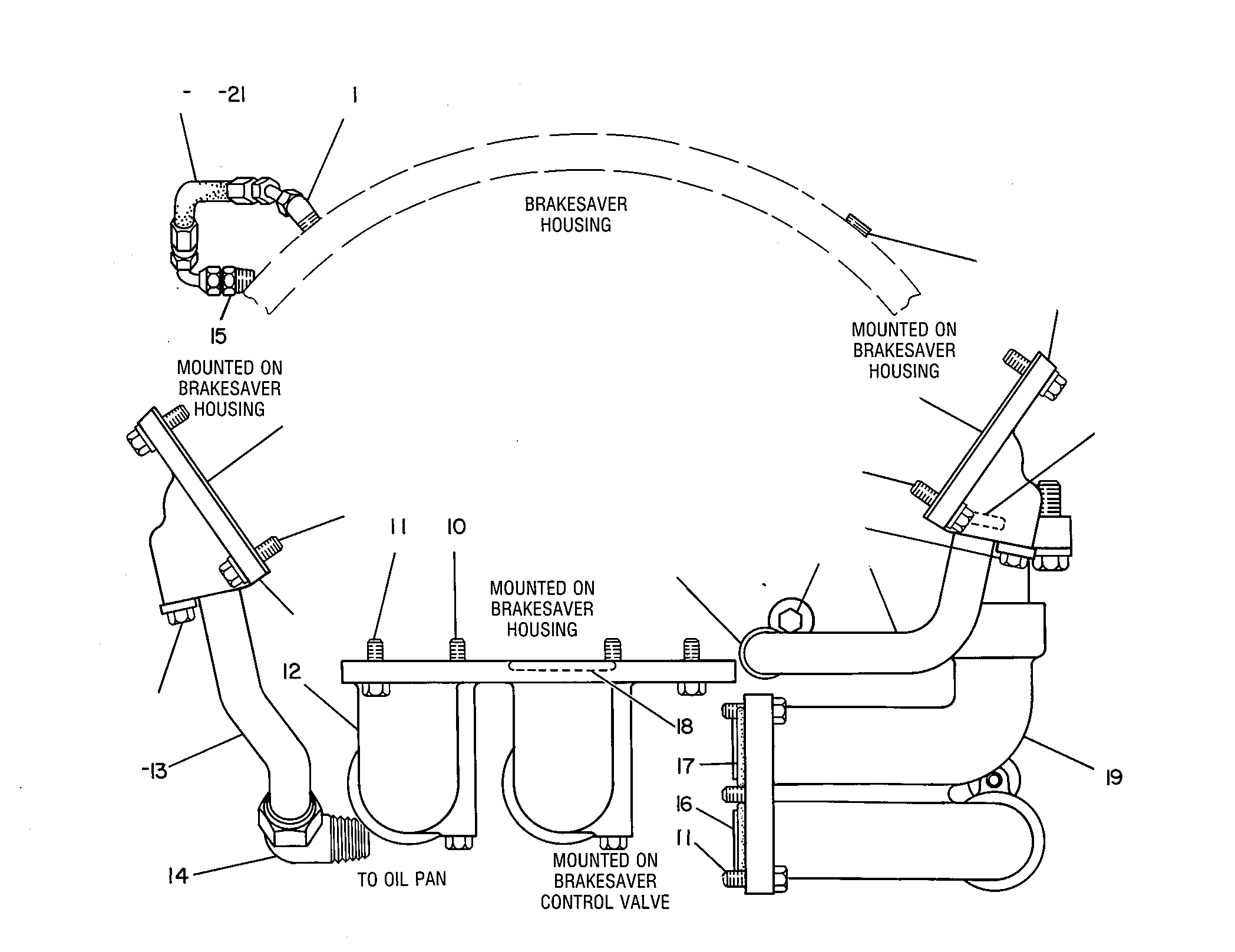

| 5J7303 | 1 ELBOW | 1 | |
| 9N5978 | 2 HOSE AS (76CM) | 1 | |
| 7H3171 | 3 PLUG-PIPE | 1 | |
| 9N0321 | 4 ELBOW-DRAIN | 2 | |
| 9M4849 | 5 SEAL-O-RING | 3 | |
| 9L6910 | 6 GASKET | 2 | |
| 3B1915 | 7 BOLT (3/8-16X1.375-IN) | 8 | |
| 5M2894 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 | |
| 0L1351 | 8 BOLT (3/8-16X0.875-IN) | 3 | |
| 9M6527 | WASHER-HARD (10.2X25.5X5-MM THK) | 3 | |
| 9N1270 | 9 TUBE-DRAIN | 1 | |
| 5B9603 | 10 BOLT (3/8-16X5-IN) | 2 | |
| 0S1588 | 11 BOLT (3/8-16X1.25-IN) | 4 | |
| 9N5679 | 12 MANIFOLD-BRAKESAVER | 1 | |
| 9N2048 | 13 TUBE AS | 1 | |
| 9S7296 | 14 ELBOW-FLARED | 1 | |
| 0016449 | 15 CONNECTOR | 1 | |
| 9N0643 | 16 SLEEVE | 2 | |
| 4L7711 | 17 SEAL-O-RING | 2 | |
| 8M4395 | 18 SEAL-O-RING | 2 | |
| 9L6906 | 19 ELBOW | 1 | |
| 5P9085 | 20 CLIP (LOOP) | 1 | |
| 1S9593 | 21 STRAP-CABLE | 1 |
