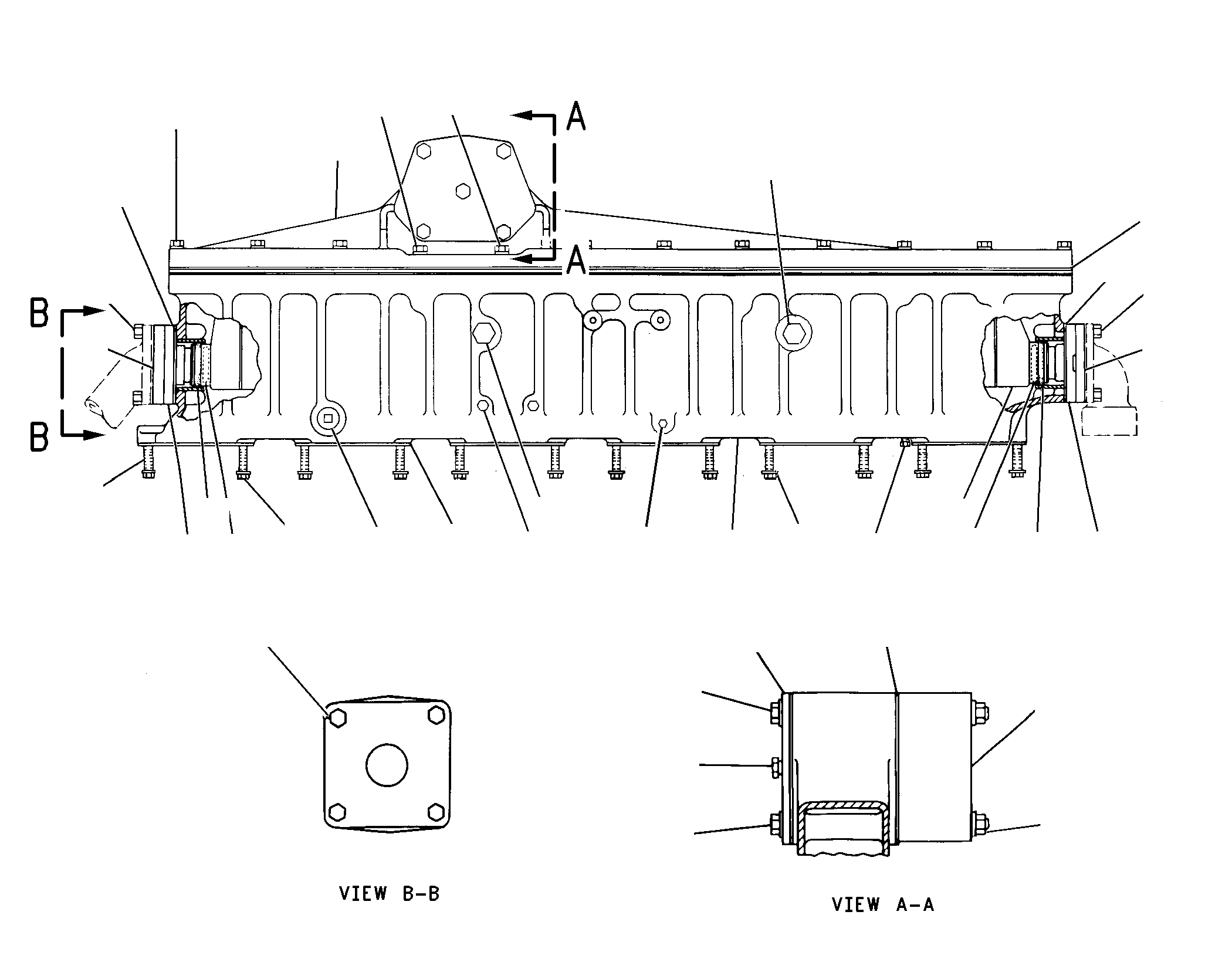

1W-8347 AFTERCOOLER GP-WATERS/N 6EB1-99999; 6GB1-99999; 70V22151-99999

Group No: 1W-8347
Part NumberPart NameQty
1B95751 BOLT (5/16-18X1.56-IN)11
9M19742 WASHER-HARD (8.8X16X2-MM THK)26
8N80993 COVER1
8T67654 PLUG-PIPE (1/4-18-THD)1
9F89995 BOLT (3/8-16X7-IN)4
5M28946 WASHER-HARD (10.2X18.5X2.5-MM THK)20
1W05127 COVER1
7W06888 GASKET2
8N81009 ADAPTER1
8T676410 PLUG-PIPE (1/8-27-THD)4
153548411 GASKET2
6L958912 GASKET2
5D984413 BOLT-LOCKING (3/8-16X2-IN)1
4W477514 ADAPTER2
4N419315 ADAPTER2
109007816 SEAL-O-RING2
5P720417 SEAL-O-RING2
1W487918 CORE AS-AFTERCOOLER1
8N809819 HOUSING1
7W649220 PLUG-PIPE (1/2-14-THD)1
2N820421 GASKET6
3E743022 PLUG-PIPE (3/4-14-THD)1
031021923 BOLT-LOCKING (3/8-16X1.75-IN)11
5B562024 BOLT (5/16-18X2.125-IN)21
8T676225 PLUG-PIPE (1/2-14-THD)1
1B957526 BOLT (5/16-18X1.56-IN)1
5B5620BOLT (5/16-18X2.125-IN)1
9S875227 NUT-FULL (3/8-16-THD)4
