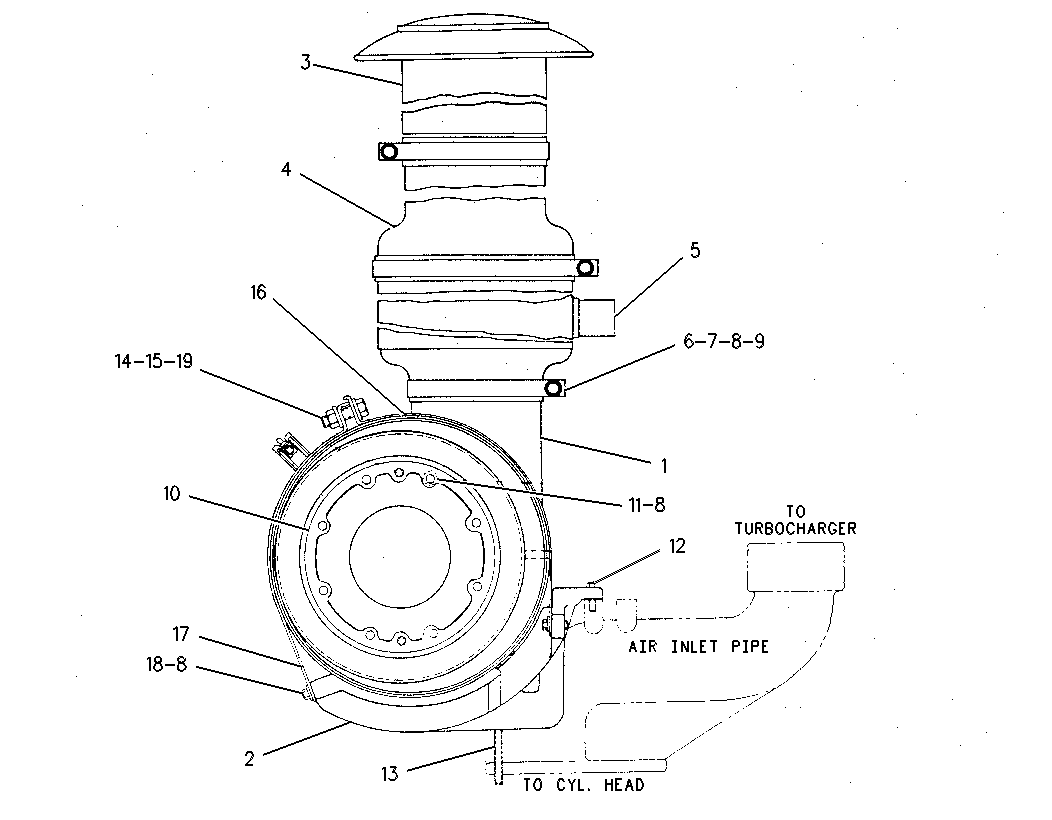

1W-3226 AIR CLEANER GPS/N 6FB1-99999; 6HB1-99999

Group No: 1W-3226
Part NumberPart NameQty
6I25731 AIR CLEANER GP1
7W80802 SUPPORT-AIR CLEANER1
7S63403 PRESCREEN AS1
2D2285BOLT (3/8-16X1.75-IN)1
1D4717NUT (3/8-16-THD)1
9S23784 PIPE AS-INLET1
7F0192BOLT (3/8-16X2-IN)1
1D4717NUT (3/8-16-THD)1
4S84735 BODY AS1
7S76806 CLAMP1
8T25017 BOLT (3/8-16X2-IN)1
8T48968 WASHER-HARD (10.2X18.5X2.5-MM THK)14
1D47179 NUT (3/8-16-THD)1
9S127410 GASKET1
2K497311 LOCKNUT (3/8-16-THD)8
8T250212 BOLT (3/8-16X1.125-IN)2
1A596413 BOLT (3/8-16X4.5-IN)2
6V818815 NUT (1/2-13-THD)2
7S577116 STRAP-AIR CLEANER2
7S577217 STRAP-AIR CLEANER2
0S050918 BOLT (3/8-16X0.75-IN)4
5P824519 WASHER-HARD (13.5X25.5X3-MM THK)4
