System And Components

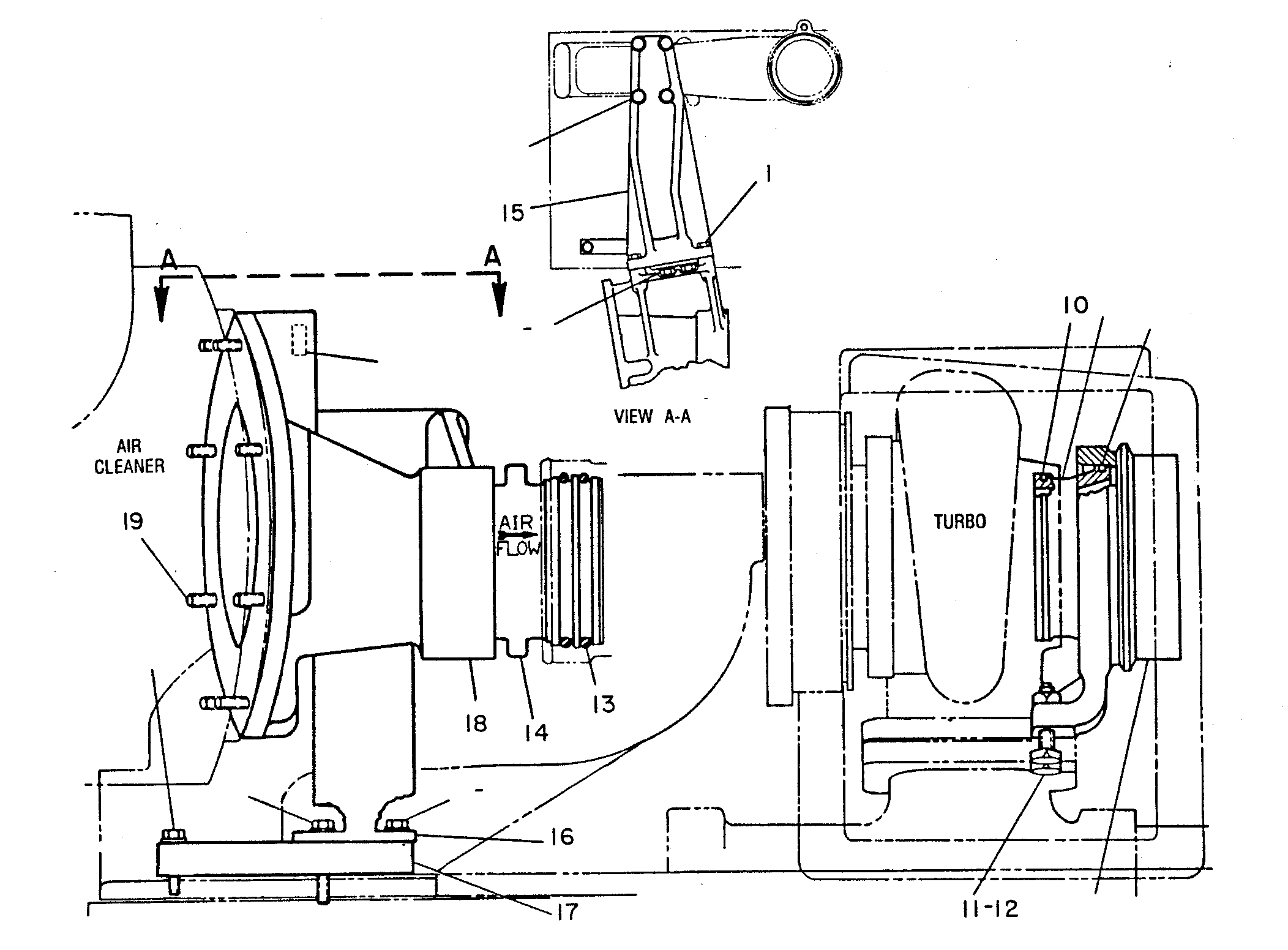

1W-3215 LINES GP-AIRS/N 6EB1-99999; 6GB1-99999
Group No: 1W-3215
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T2502 | 1 BOLT (3/8-16X1.125-IN) | 4 | |
| 5S7379 | 2 BOLT (3/8-16X0.875-IN) | 3 | |
| 5P1075 | 3 WASHER-HARD (10.2X22.5X3-MM THK) | 3 | |
| 7X0440 | 4 BOLT (5/16-18X1.75-IN) | 1 | |
| 8C3121 | 5 BOLT (5/16-18X1.5-IN) | 1 | |
| 8T9378 | 6 BOLT (3/8-16X4-IN) | 4 | |
| 1W3089 | 7 SUPPORT-EXHAUST PIPE | 1 | |
| 5L8854 | 8 RING-SEALING | 1 | |
| 6N5978 | 9 COUPLING-EXHAUST | 1 | |
| 5L8855 | 10 RING-METAL SEAL | 1 | |
| 2N2765 | 11 BOLT-HIGH TEMPERATURE (3/8-16X1.75-IN) | 2 | |
| 2N2766 | 12 LOCKNUT (3/8-16-THD) | 2 | |
| 5H7704 | 13 SEAL-O-RING | 4 | |
| 3S0558 | 14 PIPE-AIR TRANSFER | 1 | |
| 8N8909 | 15 SUPPORT | 1 | |
| 7W8199 | 16 BRACKET | 1 | |
| 7W8197 | 17 BAR | 1 | |
| 8N8907 | 18 PIPE AS-OUTLET (AIR CLEANER) | 1 | |
| 9M2151 | 19 STUD-TAPERLOCK (3/8-16X1.378-IN) | 8 | |
| 7M1674 | 20 SCREEN-AIR CLEANER INLET | 1 |
