System And Components

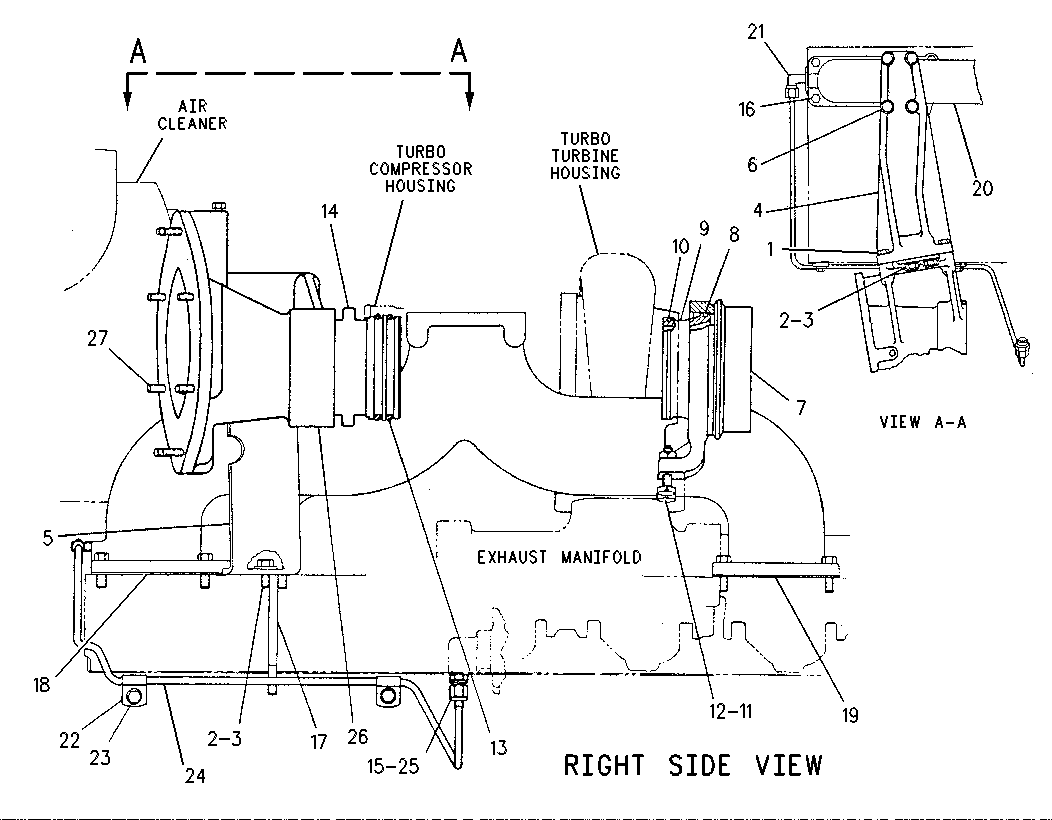

7W7507 LINES GP-AIR
Group No: 7W7507
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1A2029 | 1 BOLT | 4 | |
| 0L1351 | 2 BOLT | 3 | |
| 5P1075 | 3 WASHER-HARD | 3 | |
| 8N8909 | 4 SUPPORT | 1 | |
| 9Y7470 | 5 BRACKET | 1 | |
| 8S9191 | 6 BOLT | 4 | |
| 1W3089 | 7 SUPPORT-EXHAUST PIPE | 1 | |
| 5L8854 | 8 RING-SEALING | 1 | |
| 6N5978 | 9 COUPLING-EXHAUST | 1 | |
| 5L8855 | 10 RING-METAL SEAL | 1 | |
| 2N2765 | 11 BOLT-HIGH TEMPERATURE | 2 | |
| 2N2766 | 12 LOCKNUT | 2 | |
| 5H7704 | 13 SEAL-O-RING | 4 | |
| 3S0558 | 14 PIPE-AIR TRANSFER | 1 | |
| 3J7354 | 15 SEAL-O-RING | 1 | |
| 8T2502 | 16 BOLT | 9 | |
| 5F4899 | 17 BOLT | 1 | |
| 9S7083 | 18 GASKET-INLET | 1 | |
| 5S6735 | 19 GASKET | 1 | |
| 7W6670 | 20 MANIFOLD-INLET | 1 | |
| 2N1287 | 21 ELBOW-FLARED | 1 | |
| 2B2404 | 22 CLIP | 2 | |
| 2H3755 | 23 BOLT | 2 | |
| 9M1974 | WASHER-HARD | 2 | |
| 1104903 | 24 TUBE AS | 1 | |
| 3J7352 | 25 CONNECTOR | 1 | |
| 8N8907 | 26 PIPE AS-OUTLET | 1 | |
| 7M1674 | ELEMENT-FILTER | 1 | |
| 9M2151 | 27 STUD-TAPERLOCK | 8 |
