System And Components

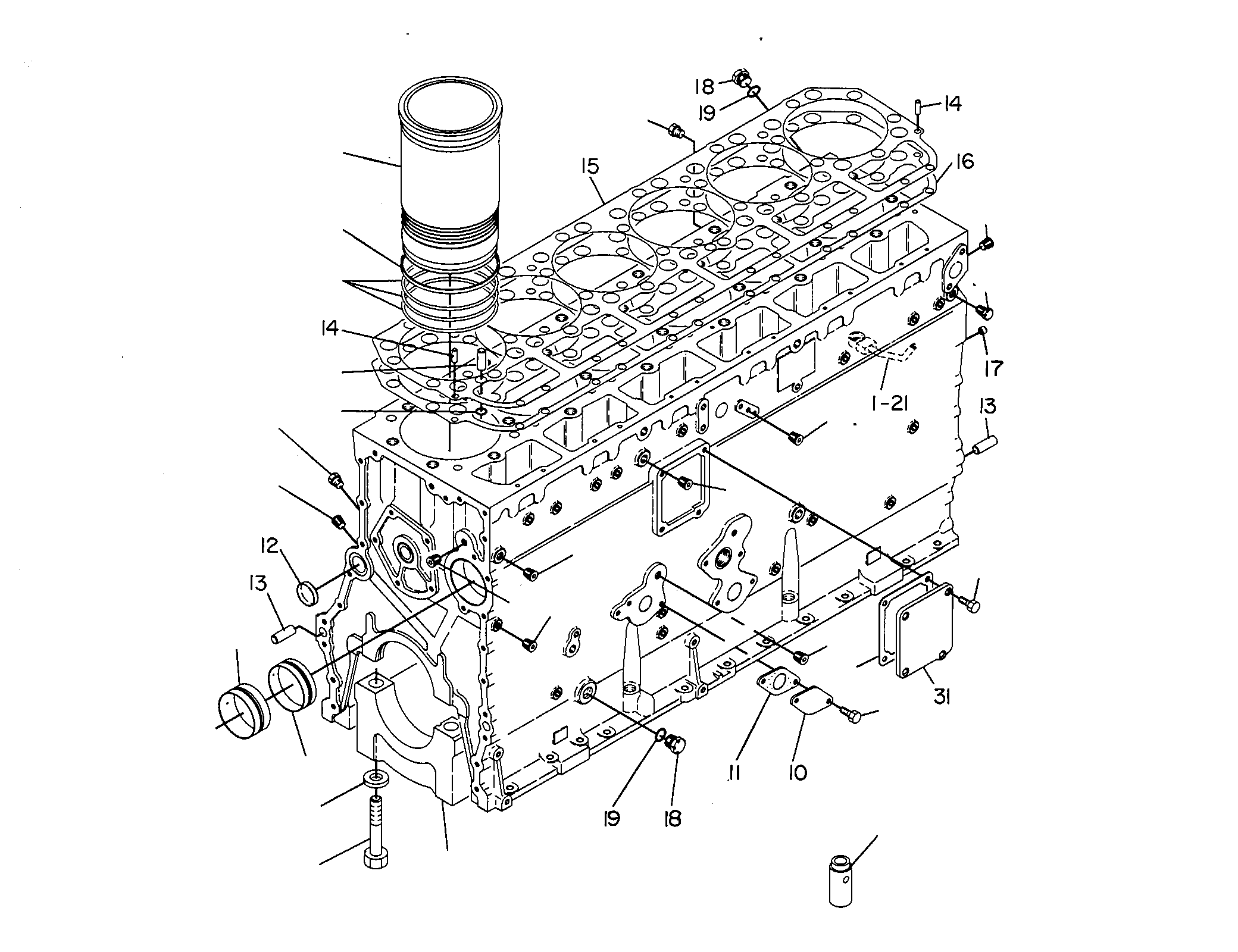

4N-2257 CYLINDER BLOCK GPS/N 90U19731-19913
Group No: 4N-2257
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7W4990 | 1 JET AS-PISTON COOLING | 6 | |
| 9F2247 | 2 PLUG-PIPE (1/8-27-THD) | 3 | |
| 3J5390 | 3 PLUG (3/8-18-THD) | 6 | |
| 7W3550 | 4 LINER-CYLINDER BLOCK | 6 | |
| 7H3171 | 5 PLUG-PIPE | 3 | |
| 1S9540 | 6 DOWEL | 2 | |
| 3S5496 | 7 SEAL-O-RING | 2 | |
| 3J5389 | 8 PLUG (EXTERNAL) | 1 | |
| 0307571 | 9 BOLT (3/8-16X1-IN) | 6 | |
| 2W7041 | 10 COVER | 1 | |
| 4N0790 | 11 GASKET | 1 | |
| 2M6471 | 12 PLUG-CUP | 2 | |
| 4N0683 | 13 DOWEL | 4 | |
| 4N1650 | 14 DOWEL | 2 | |
| 2W8601 | 15 PLATE-SPACER | 1 | |
| 7C3037 | 16 GASKET-PLATE | 1 | |
| 8S9094 | 17 PLUG-ORIFICE | 1 | |
| 9S4190 | 18 PLUG-O-RING (7/8-14-THD) | 2 | |
| 2M9780 | 19 SEAL-O-RING | 2 | |
| 3J5390 | 20 PLUG (3/8-18-THD) | 5 | |
| 7E6479 | 21 BOLT-SPECIAL (OIL JET) | 6 | |
| 4N0685 | 22 BUSHING (1-IN WIDE) | 6 | |
| 4N6658 | 23 BUSHING (1.3-IN WIDE) | 1 | |
| 5M6214 | 24 PLUG (1/8-27 PTF) | 1 | |
| 9L5854 | 25 BAND-FILLER (130.2-MM ID) | 6 | |
| 4W4588 | 26 SLEEVE-LIFTER BORE | ||
| 6V5121 | 27 SEAL-O-RING | 18 | |
| 3P1323 | 28 BOLT-BEARING CAP (7/8-14X7.75-IN) | 14 | |
| 9H1031 | 29 WASHER-HARD (24X41.5X6-MM THK) | 14 | |
| 4N0795 | 30 CAP-CRANKSHAFT BEARING | 7 | |
| 4W8585 | 31 COVER | 1 | |
| 7W6081 | 32 GASKET | 1 | |
| 5N0093 | INSERT-LINER SEAT (2.71-MM THK)(2.7MM) | ||
| 2W3815 | INSERT-LINER SEAT (1.605-MM THK)(1.59MM) | ||
| 4W6061 | SLEEVE | ||
| 9Y3368 | INSERT-LINER SEAT (0.822-MM THK)(.834MM) |
