System And Components

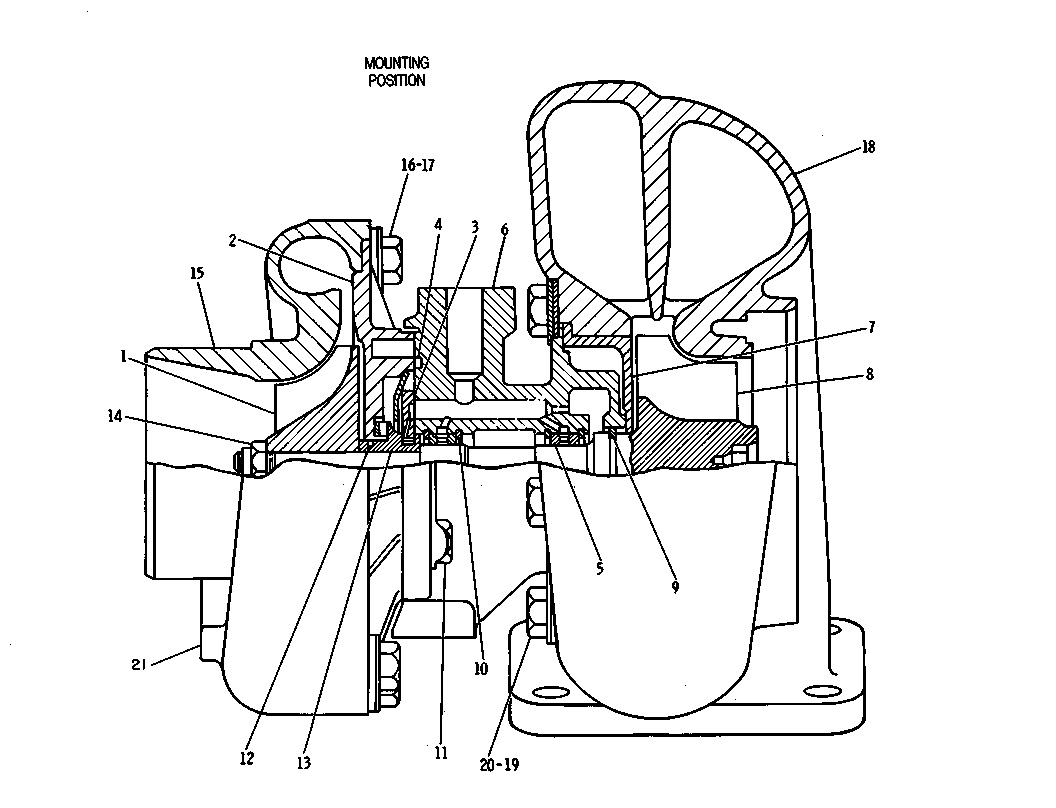

7E2601 TURBOCHARGER GPPART OF 7E2602-TURBOCHARGER
Group No: 7E2601
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4N6860 | 1 CARTRIDGE GP-TURBOCHARGER | 1 | |
| 4N6861 | WHEEL-COMPRESSOR | 1 | |
| 4N6863 | 2 BACKPLATE AS | 1 | |
| 1P1111 | 3 BEARING-THRUST | 1 | |
| 1P1120 | 4 RING-SEAL | 1 | |
| 1P1114 | 5 BEARING-TURBOCHARGER | 2 | |
| 2P9635 | 6 HOUSING AS-CENTER | 1 | |
| 4M6646 | PIN-GROOVE | 2 | |
| 7N0012 | 7 SHROUD-TURBINE WHEEL | 1 | |
| 1P1116 | 8 SHAFT & WHEEL AS | 1 | |
| 7N6609 | 9 RING-PISTON | 1 | |
| 2P9607 | 10 RING-RETAINING | 4 | |
| 2A0762 | 11 BOLT | 4 | |
| 1P1117 | PLATE-LOCK | 2 | |
| 1P1124 | 12 RING-PISTON | 1 | |
| 1P1123 | 13 COLLAR-THRUST | 1 | |
| 1P1125 | 14 LOCKNUT-TURBOCHARGER | 1 | |
| 4N6862 | 15 HOUSING-COMPRESSOR | 1 | |
| 1C0569 | 16 BOLT | 6 | |
| 4N6864 | 17 CLAMP | 3 | |
| 4N6865 | LOCK-PLATE | 3 | |
| 8N4782 | 18 HOUSING-TURBINE | 1 | |
| 1P1112 | 19 CLAMP | 3 | |
| 1P1113 | LOCK-PLATE | 3 | |
| 6V2489 | 20 BOLT-HIGH TEMP | 6 | |
| 1W4795 | 21 NAMEPLATE | 1 | |
| 2W0716 | KIT-TURBOCHARGER CARTRIDGE | 1 |
