System And Components

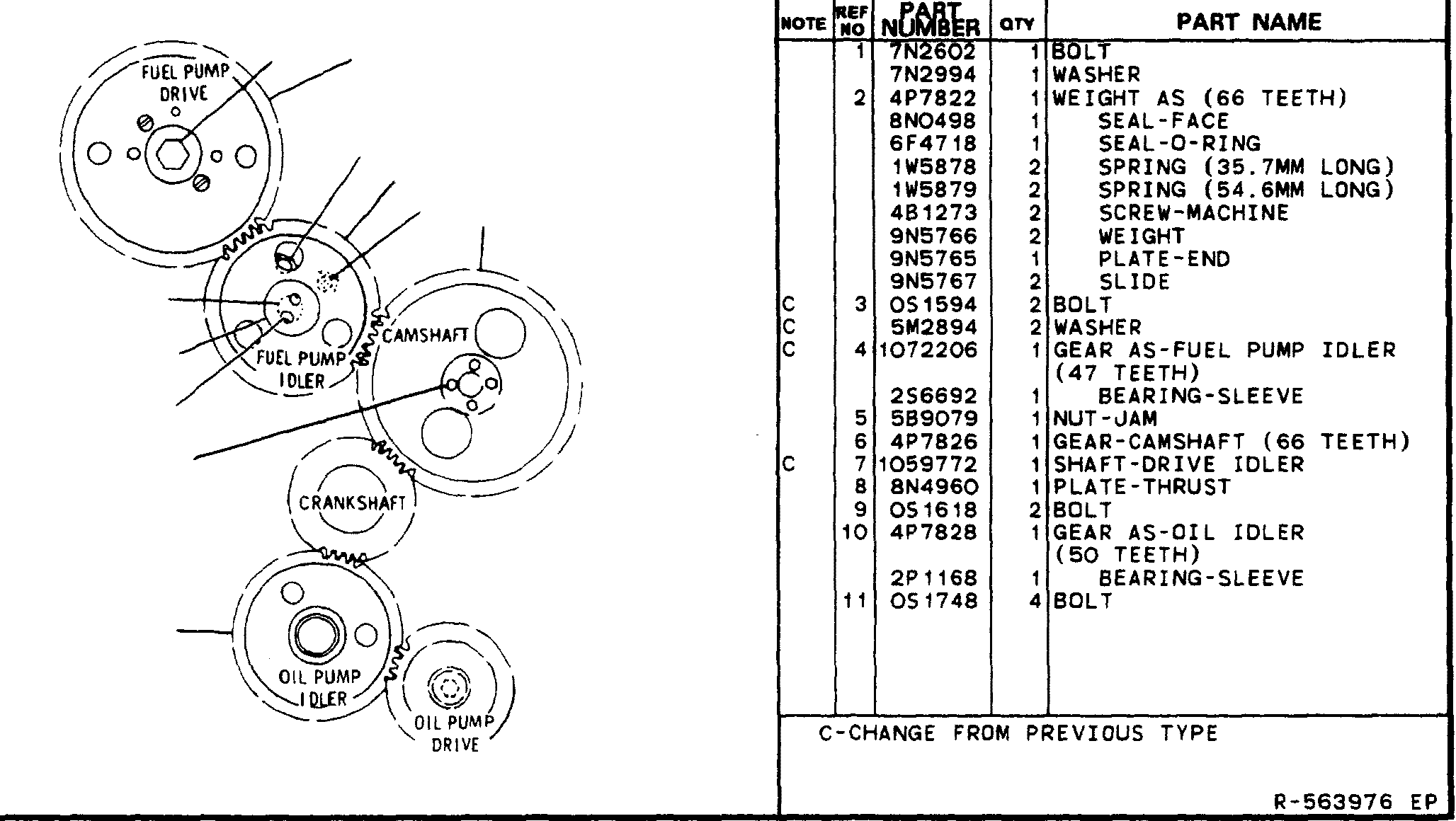

4P9858 GEAR GP-FRONTTIMING
Group No: 4P9858
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7N2602 | 1 BOLT | 1 | |
| 7N2994 | WASHER | 1 | |
| 4P7822 | 2 WEIGHT AS-5 DEGREE (66 TEETH) | 1 | |
| 8N0498 | SEAL-FACE | 1 | |
| 6F4718 | SEAL-O-RING | 1 | |
| 1W5878 | SPRING (35.7MM LONG) | 2 | |
| 1W5879 | SPRING (54.6MM LONG) | 2 | |
| 4B1273 | SCREW-MACHINE | 2 | |
| 9N5766 | WEIGHT | 2 | |
| 9N5765 | PLATE-END | 1 | |
| 9N5767 | SLIDE | 2 | |
| 0S1594 | 3 BOLT | 2 | |
| 5M2894 | WASHER | 2 | |
| 1072206 | 4 GEAR AS-FUEL PUMP IDLER (47 TEETH) | 1 | |
| 2S6692 | BEARING-SLEEVE | 1 | |
| 5B9079 | 5 NUT-JAM | 1 | |
| 4P7826 | 6 GEAR-CAMSHAFT (66 TEETH) | 1 | |
| 1059772 | 7 SHAFT-DRIVE IDLER | 1 | |
| 8N4960 | 8 PLATE-THRUST | 1 | |
| 0S1618 | 9 BOLT | 2 | |
| 4P7828 | 10 GEAR AS-OIL IDLER (50 TEETH) | 1 | |
| 2P1168 | BEARING-SLEEVE | 1 | |
| 0S1748 | 11 BOLT | 4 |
