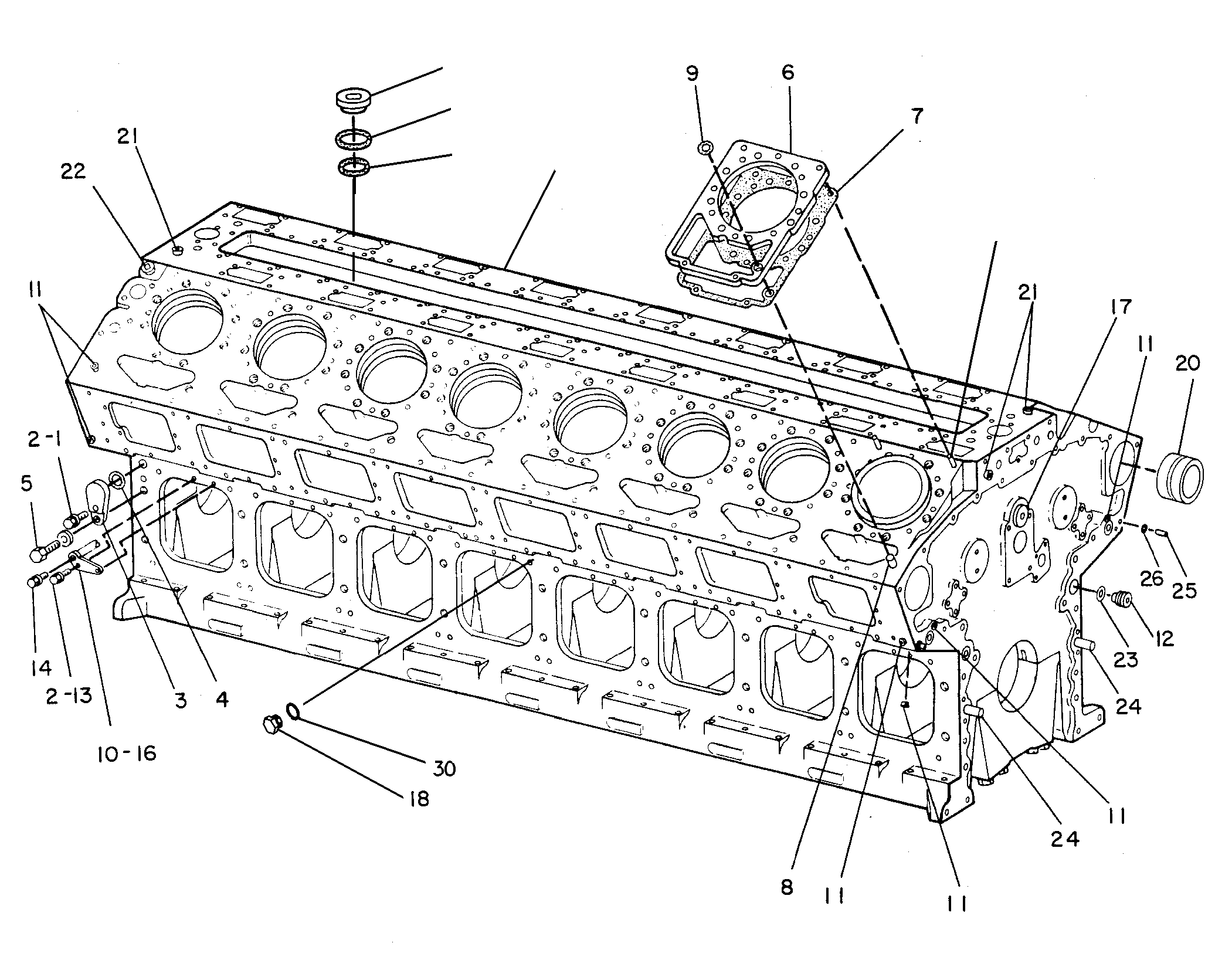

7C-8147 CYLINDER BLOCK GPS/N 54Z486-821

Group No: 7C-8147

Part Number	Part Name	Qty
1A2029	1 BOLT (3/8-16X1.125-IN)	2
5M2894	2 WASHER-HARD (10.2X18.5X2.5-MM THK)	18
8N8056	3 COVER	2
5P8210	4 SEAL-O-RING	2
0S1595	5 BOLT (1/2-13X1.25-IN)	2
5P8245	WASHER-HARD (13.5X25.5X3-MM THK)	2
9Y1485	6 PLATE-SPACER	16
1007886	7 GASKET-PLATE	16
7N2049	8 DOWEL	16
5P0840	9 SEAL-O-RING	32
7C3722	10 RETAINER AS (FOR USE WITH 2-PC PISTON ONLY)	16
6V3537	DOWEL	1
8T6763	11 PLUG-PIPE (1/4-18-THD)	26
2W2940	12 PLUG	8
0T0102	13 BOLT (3/8-16X0.625-IN)	16
1B2790	14 BOLT (5/16-18X1.375-IN)	16
9M1974	WASHER-HARD (8.8X16X2-MM THK)	16
8T0099	15 DOWEL	32
7E4069	16 JET AS-PISTON COOLING	16
4D0514	PLUG-PIPE	1
7N5641	17 PLUG-MANIFOLD	2
5F9657	SEAL-O-RING	4
9S4191	18 PLUG (9/16-18-THD)	6
7E4937	19 CYLINDER BLOCK AS	1
7N2048	20 BEARING-CAMSHAFT	18
8T6762	21 PLUG-PIPE (1/2-14-THD)	3
7X7731	22 PLUG-PIPE (3/4-14-THD)	2
6V3348	23 SEAL-O-RING	8
7N2044	24 DOWEL (FRONT OF BLOCK)	2
4N0683	DOWEL (REAR OF BLOCK)	2
7N2047	25 DOWEL	3
7X4805	26 SEAL-O-RING	3
4W4813	27 PLUG	2
8T2928	28 SEAL-O-RING	2
8T2929	29 SEAL-O-RING	2
0336042	30 SEAL-O-RING	6
