System And Components

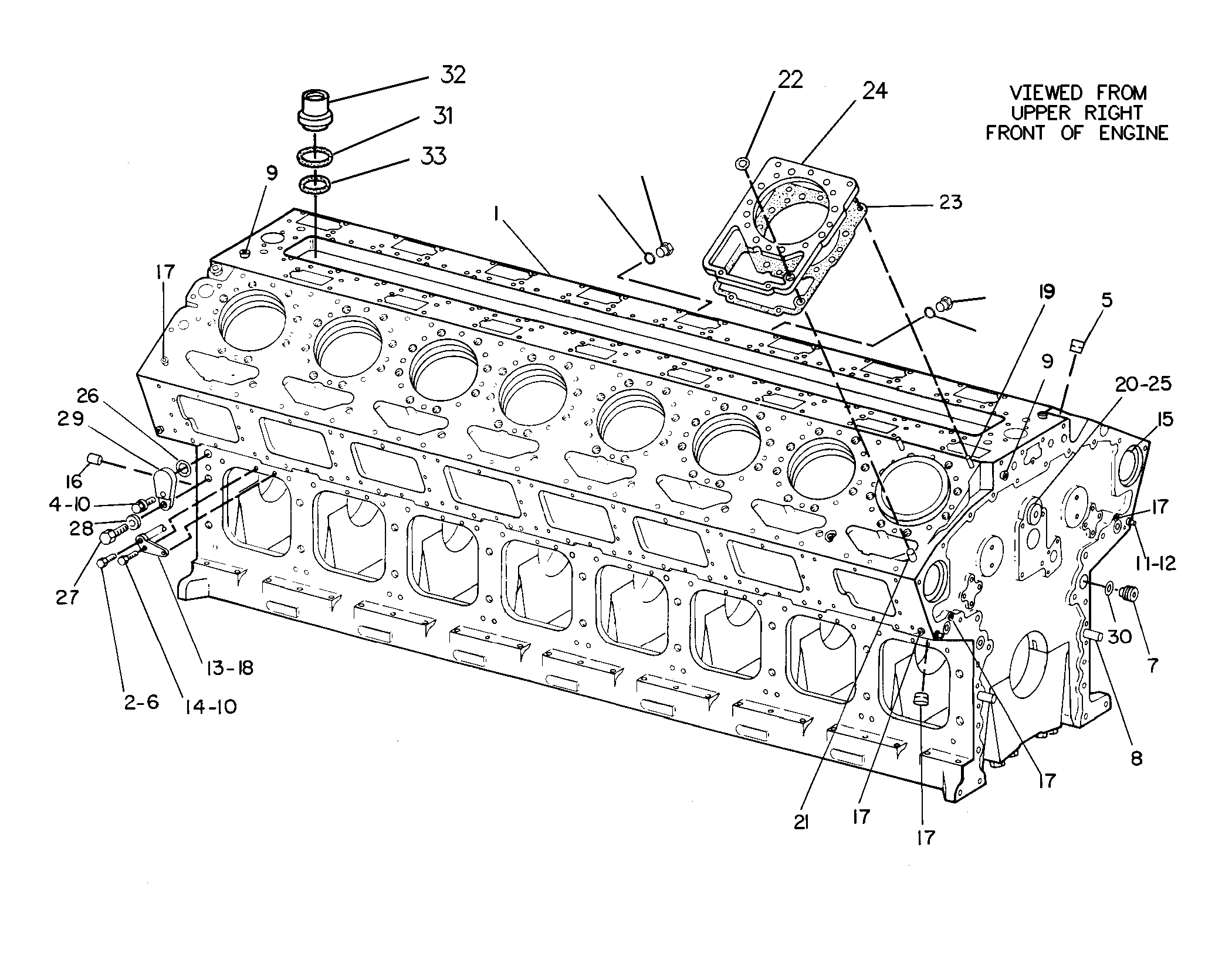

7E-8420 CYLINDER BLOCK GPS/N 54Z822-960
Group No: 7E-8420
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7E4937 | 1 CYLINDER BLOCK AS | 1 | |
| 9M1974 | 2 WASHER-HARD (8.8X16X2-MM THK) | 16 | |
| 9S4191 | 3 PLUG (9/16-18-THD) | 5 | |
| 1A2029 | 4 BOLT (3/8-16X1.125-IN) | 2 | |
| 7X7731 | 5 PLUG-PIPE (3/4-14-THD) | 2 | |
| 1B2790 | 6 BOLT (5/16-18X1.375-IN) | 16 | |
| 2W2940 | 7 PLUG | 8 | |
| 7N2044 | 8 DOWEL | 2 | |
| 8T6762 | 9 PLUG-PIPE (1/2-14-THD) | 3 | |
| 5M2894 | 10 WASHER-HARD (10.2X18.5X2.5-MM THK) | 18 | |
| 7N2047 | 11 DOWEL | 3 | |
| 7X4805 | 12 SEAL-O-RING | 3 | |
| 7E4069 | 13 JET AS-PISTON COOLING | 16 | |
| 7E4068 | JET AS-PISTON COOLING | 1 | |
| 7H3171 | PLUG-PIPE | 1 | |
| 0T0102 | 14 BOLT (3/8-16X0.625-IN) | 16 | |
| 7N2048 | 15 BEARING-CAMSHAFT | 18 | |
| 4N0683 | 16 DOWEL | 2 | |
| 8T6763 | 17 PLUG-PIPE (1/4-18-THD) | 28 | |
| 7C3722 | 18 RETAINER AS (FOR USE WITH 2-PC PISTON ONLY) | 16 | |
| 7C3711 | RETAINER | 1 | |
| 6V3537 | DOWEL | 1 | |
| 8T0099 | 19 DOWEL | 32 | |
| 7N5641 | 20 PLUG-MANIFOLD | 2 | |
| 7N2049 | 21 DOWEL | 16 | |
| 5P0840 | 22 SEAL-O-RING | 32 | |
| 1007886 | 23 GASKET-PLATE | 16 | |
| 9Y1485 | 24 PLATE-SPACER | 16 | |
| 5F9657 | 25 SEAL-O-RING | 4 | |
| 5P8210 | 26 SEAL-O-RING | 2 | |
| 0S1595 | 27 BOLT (1/2-13X1.25-IN) | 2 | |
| 5P8245 | 28 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8N8056 | 29 COVER | 2 | |
| 6V3348 | 30 SEAL-O-RING | 8 | |
| 8T2929 | 31 SEAL-O-RING | 2 | |
| 4W4814 | 32 ADAPTER | 2 | |
| 8T2928 | 33 SEAL-O-RING | 2 | |
| 0336042 | 34 SEAL-O-RING | 5 | |
| 9S4191 | 35 PLUG (9/16-18-THD) | 1 | |
| 0336042 | 36 SEAL-O-RING | 1 |
