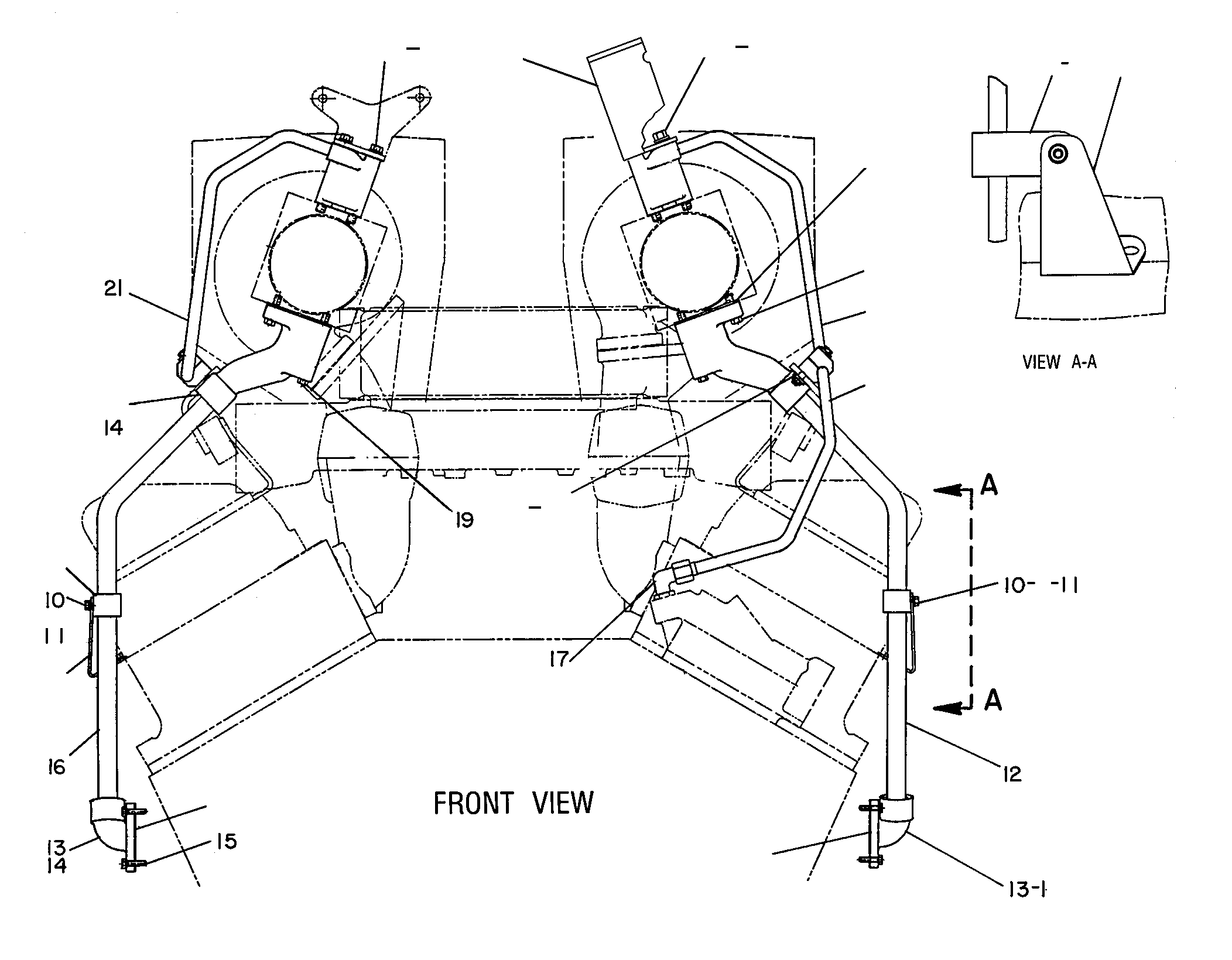

7E-9413 LINES GP-TURBOCHARGER OILS/N 54Z486-870; 54Z872-872; 54Z874-877

Group No: 7E-9413
Part NumberPart NameQty
5M28941 WASHER-HARD (10.2X18.5X2.5-MM THK)4
9L91322 WASHER-HARD (10.2X25.5X2.5-MM THK)4
7N75593 GASKET2
3B19154 BOLT (3/8-16X1.375-IN)2
6K55355 CLIP (SLOT)2
6K55366 CLIP (TAB)2
1W79887 BRACKET2
7E09518 TUBE AS1
7E09509 TUBE AS1
0S159410 BOLT (3/8-16X1-IN)2
9S875211 NUT-FULL (3/8-16-THD)8
1W799012 TUBE1
7N509413 ELBOW-DRAIN2
5P989014 SEAL-O-RING4
0S158815 BOLT (3/8-16X1.25-IN)8
2W656616 TUBE1
030794917 ELBOW1
6V4589SEAL-O-RING1
8M902418 WASHER-HARD (10.2X22.5X5-MM THK)6
0S160819 BOLT (3/8-16X3.75-IN)2
9Y581420 ELBOW-DRAIN2
7E095221 TUBE AS1
0T005522 BOLT (3/8-16X4.25-IN)4
2W075223 GASKET2
7E671824 BRACKET1
0T005525 BOLT (3/8-16X4.25-IN)4
5M289426 WASHER-HARD (10.2X18.5X2.5-MM THK)16
4P069227 CLAMP AS24
0T057328 BOLT (3/8-16X2.75-IN)12
003858129 TEE-UNION2
7N755930 GASKET2
7E095131 TUBE AS1
7E094932 TUBE AS1
0S159433 BOLT (3/8-16X1-IN)2
9S875234 NUT-FULL (3/8-16-THD)8
9M458435 CONNECTOR1
6V4589SEAL-O-RING1
1W799036 TUBE1
7N509437 ELBOW-DRAIN2
5P989038 SEAL-O-RING4
2W075239 GASKET2
0S158840 BOLT (3/8-16X1.25-IN)8
2W656641 TUBE1
1W798842 BRACKET2
6K553543 CLIP (SLOT)2
6K553644 CLIP (TAB)2
9Y581445 ELBOW-DRAIN2
3B191546 BOLT (3/8-16X1.375-IN)2
7E095247 TUBE AS1
4P446048 GASKET4
9L913249 WASHER-HARD (10.2X25.5X2.5-MM THK)4
0S160850 BOLT (3/8-16X3.75-IN)2
8M902451 WASHER-HARD (10.2X22.5X5-MM THK)6
7E671852 BRACKET1
