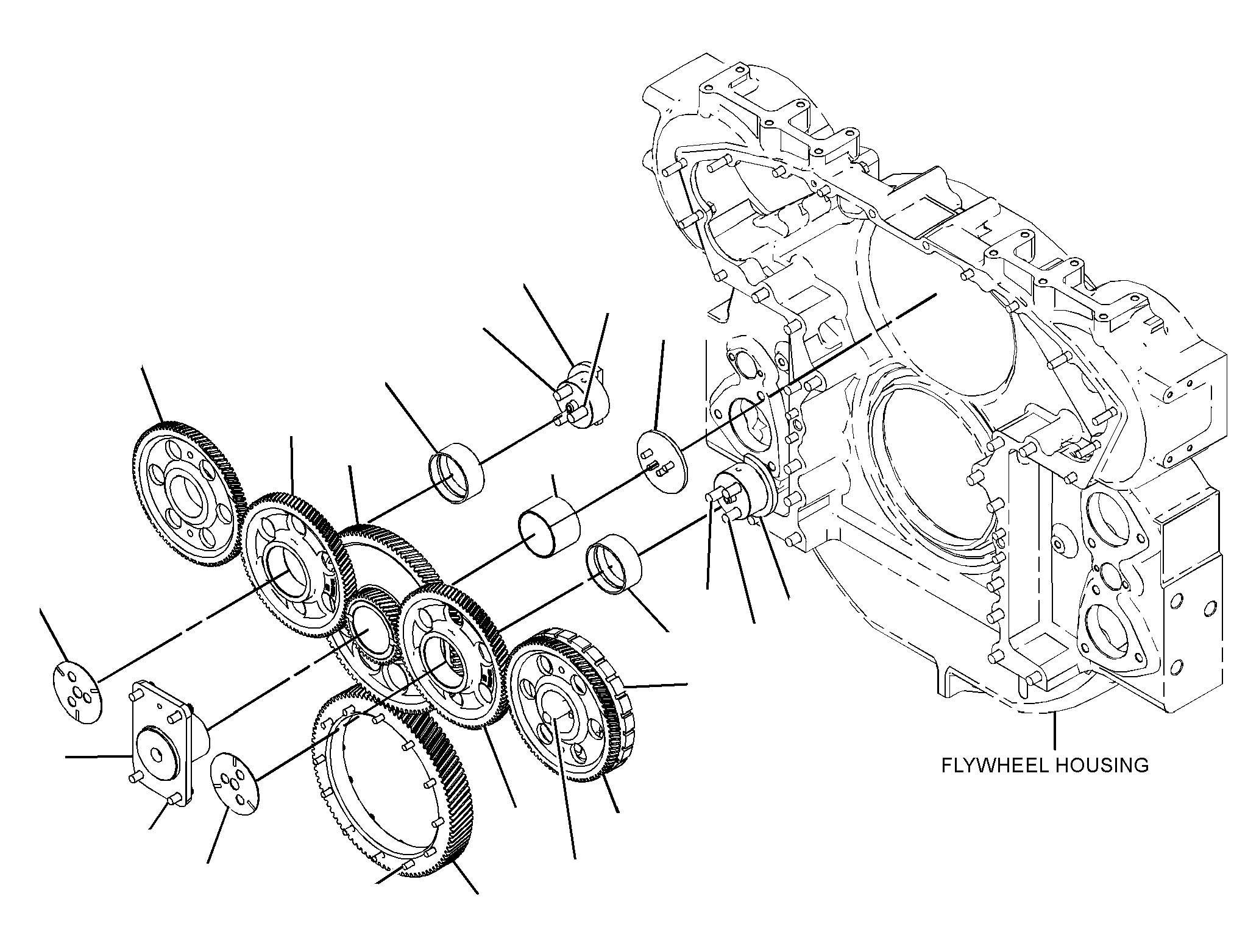

382-4494 GEAR GP-REAR -CAM DRIVES/N 7YG2257-UP; C8X130-UP

Group No: 382-4494
Part NumberPart NameQty
2W28951 GEAR-CRANKSHAFT (92-TEETH)1
4P54372 SHAFT-GEAR (CLUSTER)1
4P54593 GEAR AS-BALANCER (136-TEETH)1
4P54383A BUSHING1
7E38974 GEAR-CAMSHAFT DRIVE (88-TEETH)2
10113655 PLATE-THRUST1
10113686 WASHER-THRUST (19.5X106X1.9-MM THK)2
11215527 SHAFT-IDLER2
11215548 GEAR AS-IDLER (88-TEETH)2
12597518A BUSHING1
0L13519 BOLT (3/8-16X0.875-IN)4
1B436710 BOLT (5/8-11X3-IN)4
3S130711 BOLT-12 POINT HEAD (3/8-16X2-IN)12
8M253012 BOLT-12 POINT HEAD (1/2-13X1.25-IN)4
8S233113 BOLT-12 POINT HEAD (5/8-11X2-IN)2
7E532414 RING1
5P824815 WASHER-HARD (20X36.5X3.5-MM THK)1
9X888716 BOLT (3/4-10X3-IN)1
