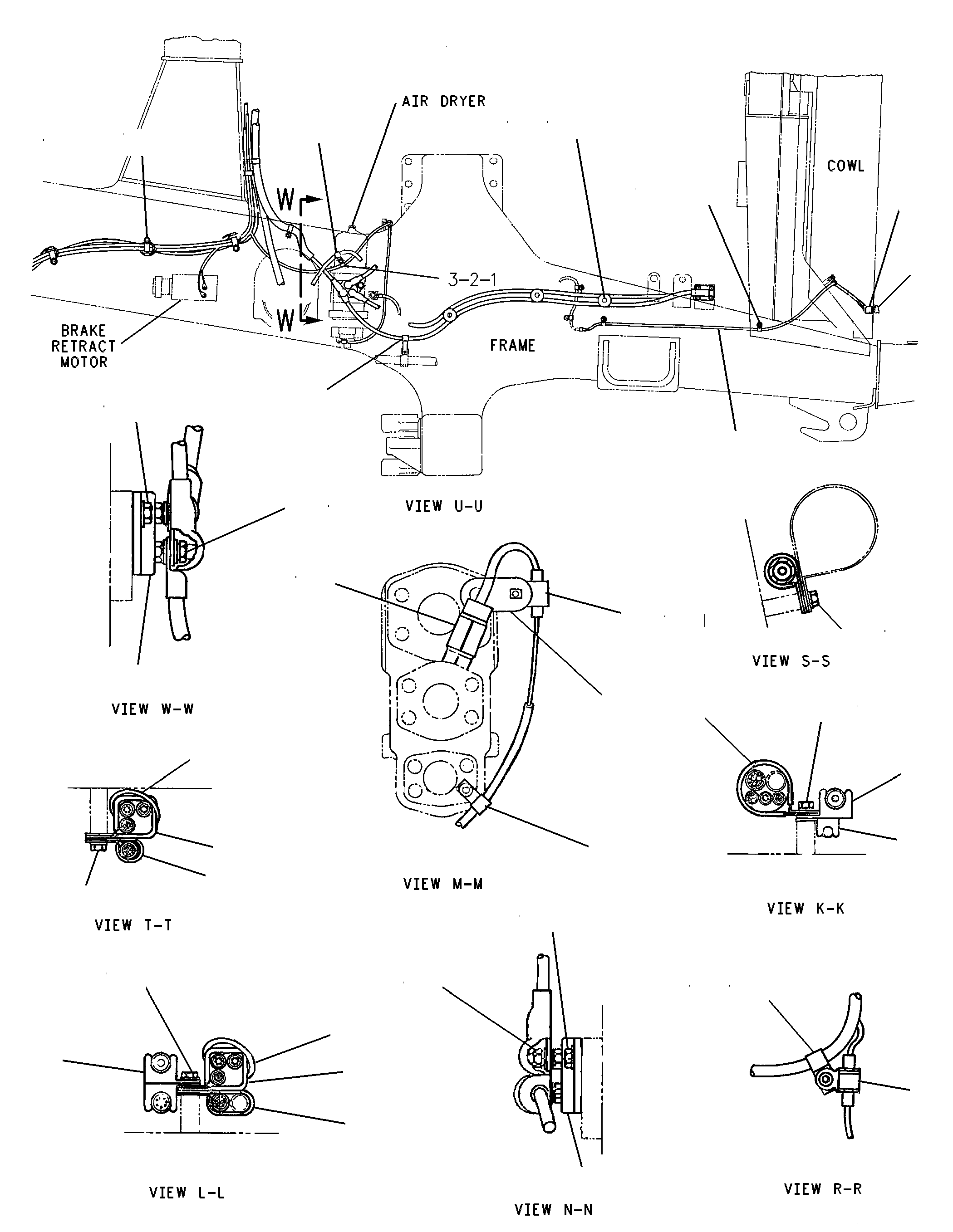

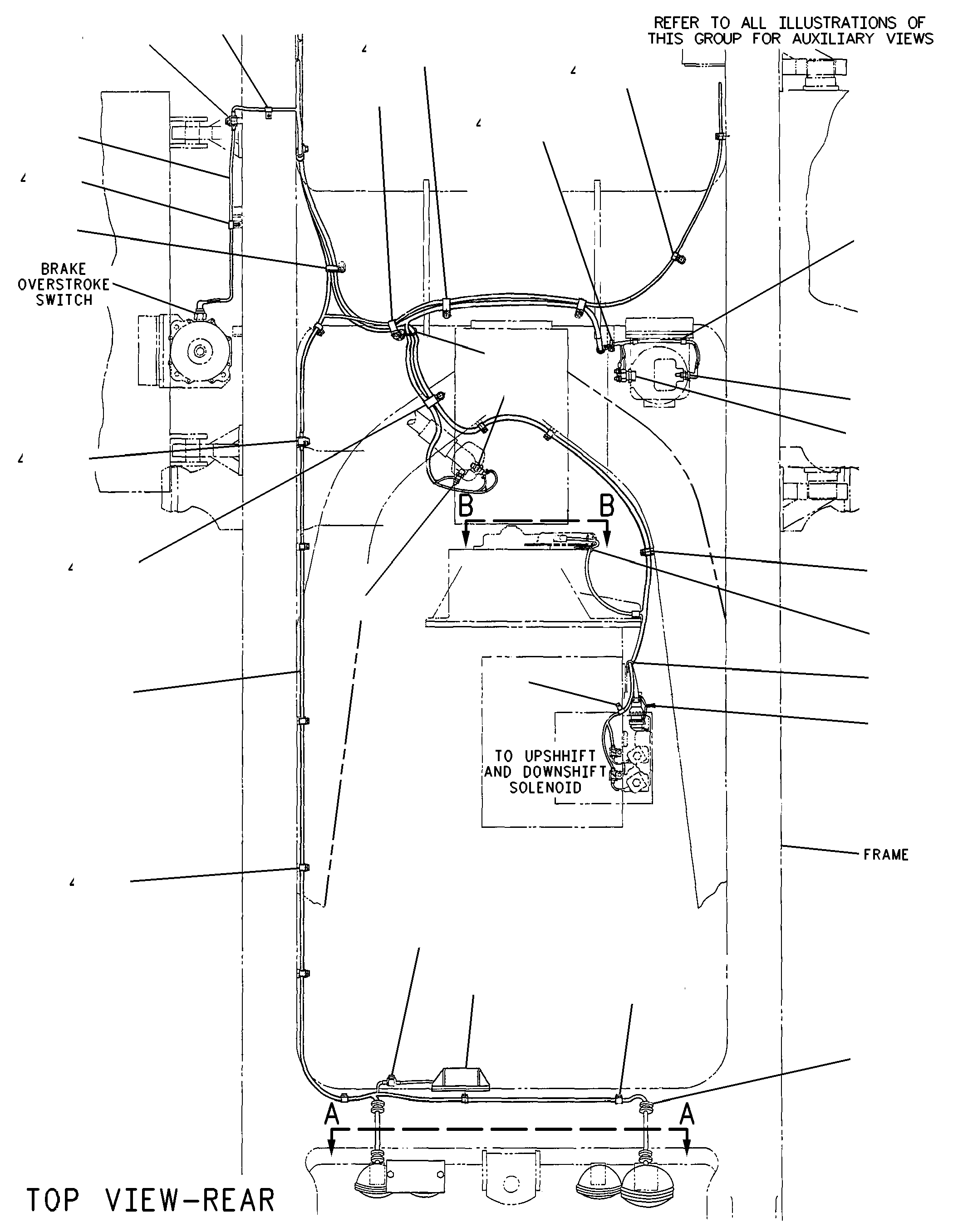

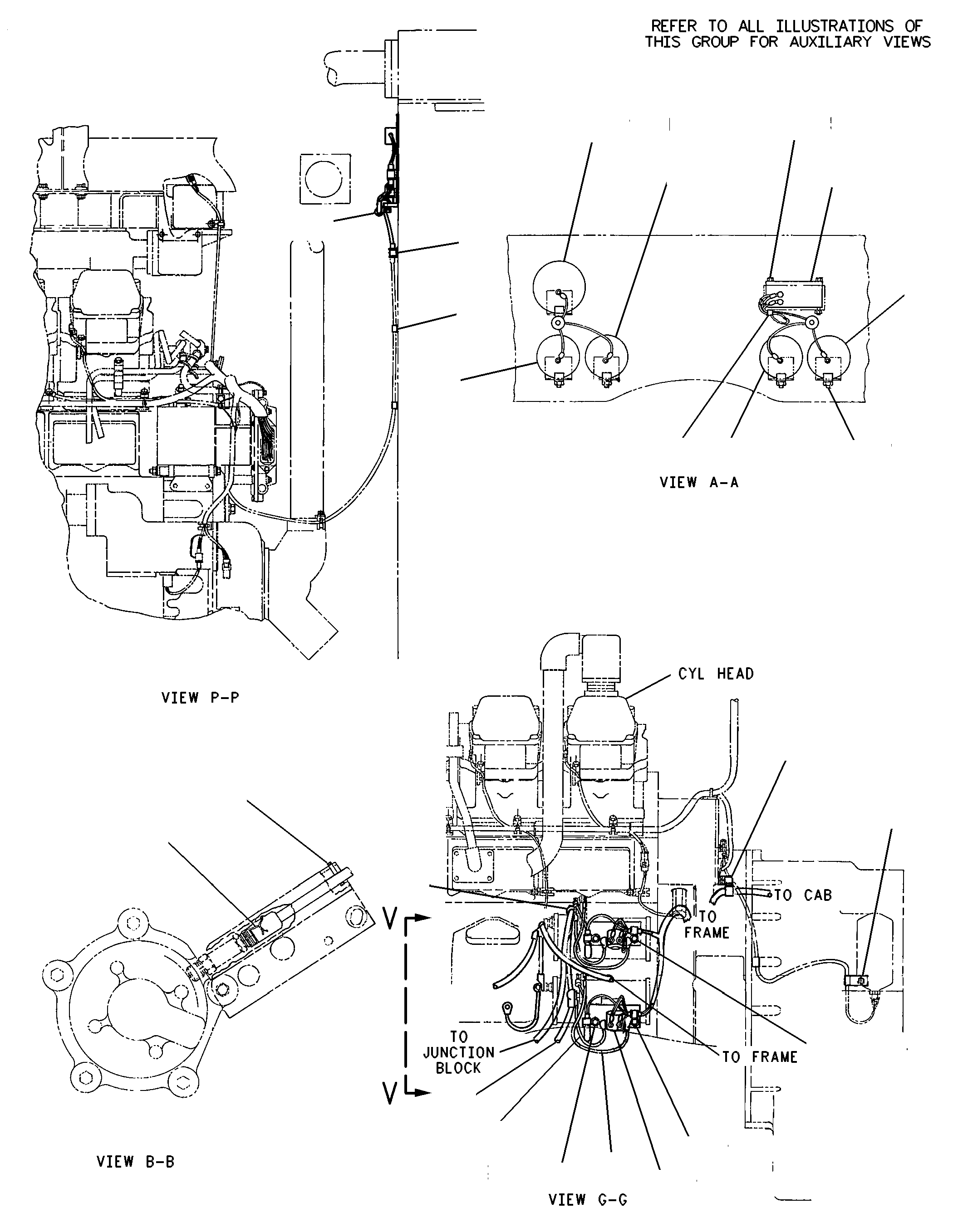

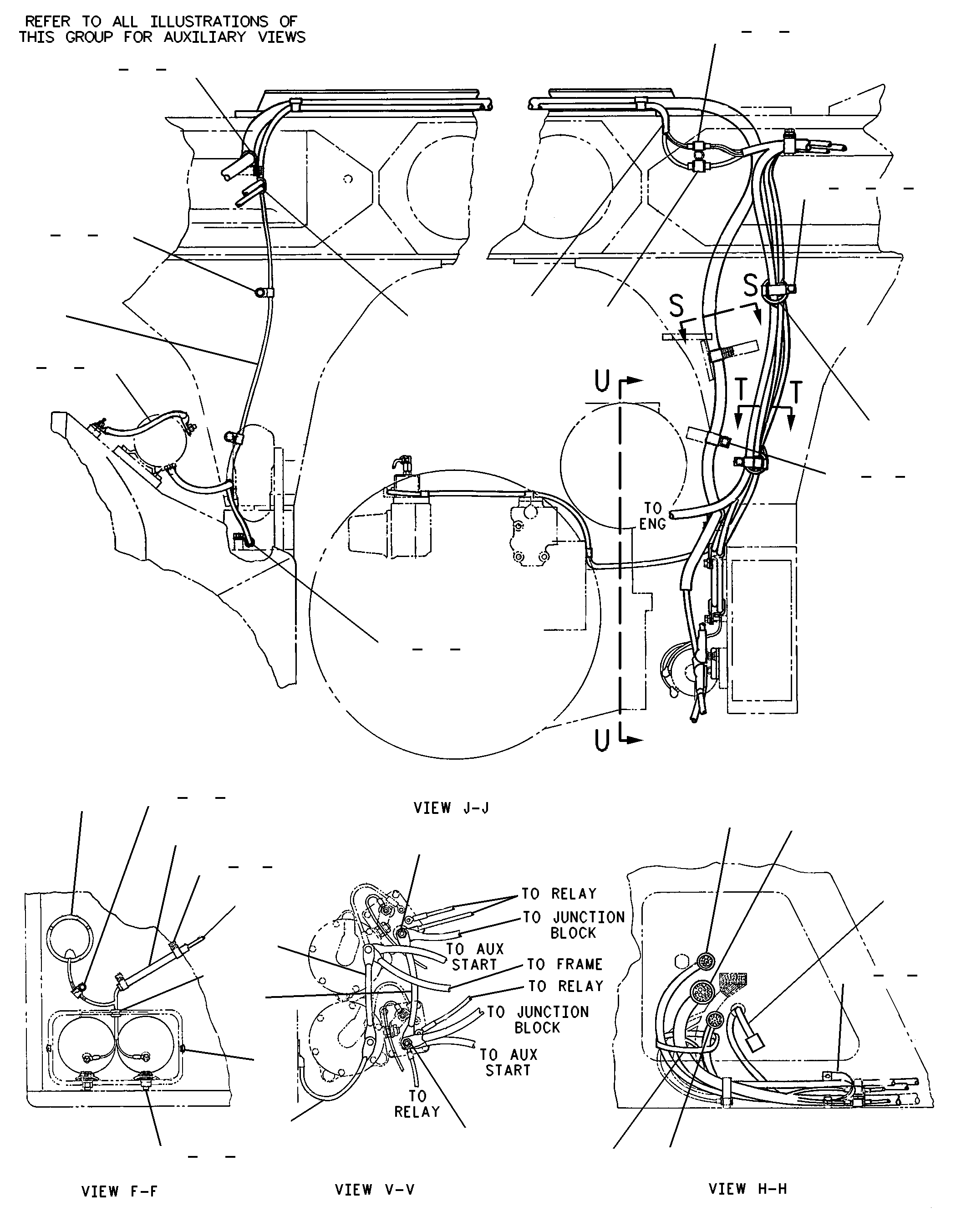

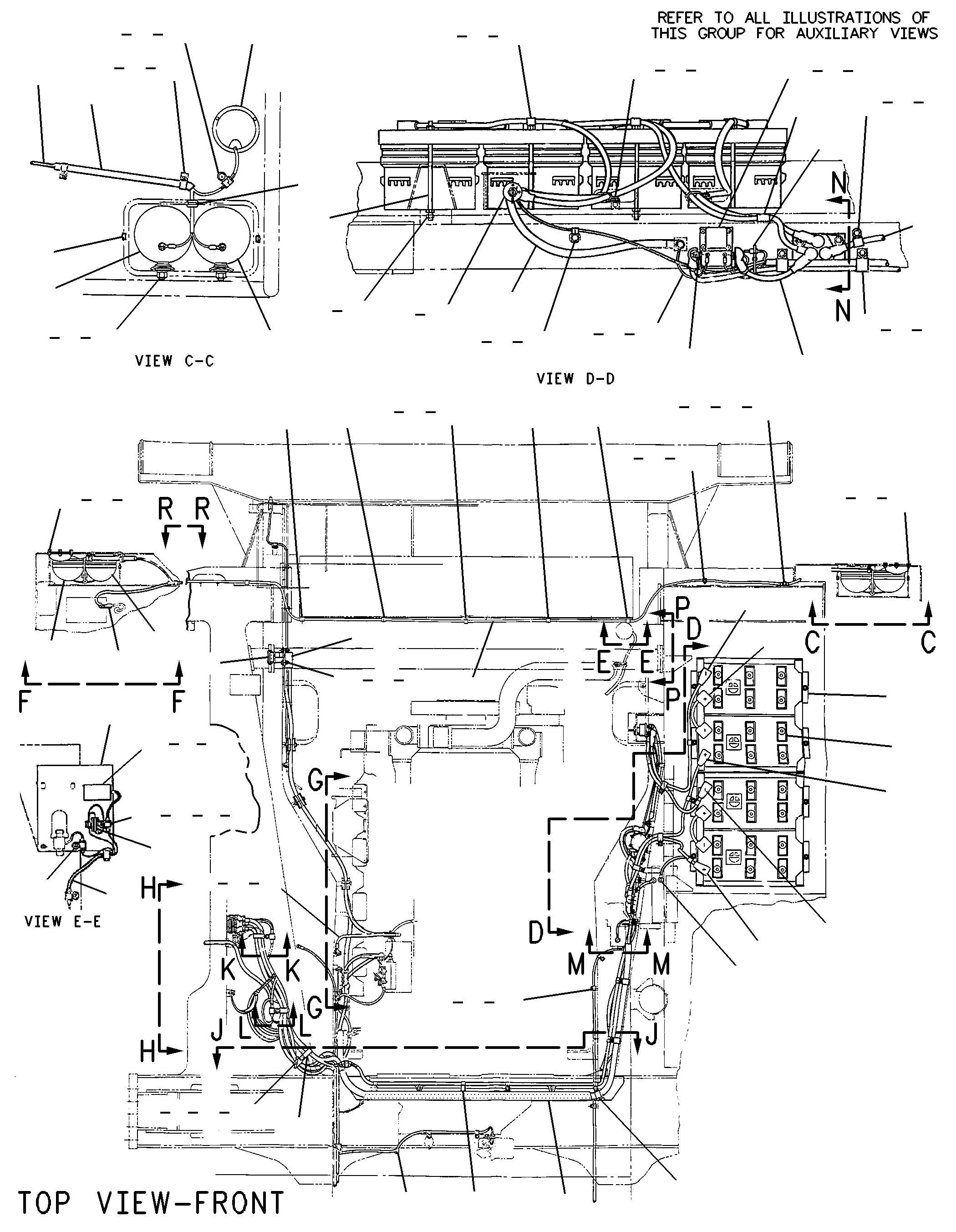

8X-0354 WIRING GP-MACHINES/N 4XJ1-393; 2TK1-78

Group No: 8X-0354

Part Number	Part Name	Qty
0L1407	1 GROMMET	4
4D7794	2 CLIP	7
5M3062	3 BOLT (3/8-16X0.75-IN)	25
8T4896	4 WASHER-HARD (10.2X18.5X2.5-MM THK)	25
5P6627	5 LOCKWIRE (.13M)
8M2770	6 CLIP (LOOP)	6
7N3718	7 CLIP	3
3E7868	8 SWITCH GP-BYPASS (XMSN FILTER)	1
3T9549	9 ADAPTER	1
2S4078	10 SEAL-O-RING	1
5P9085	11 CLIP (LOOP)	2
9M8406	12 CLIP (LOOP)	3
3K0360	13 SEAL-O-RING	2
9G3341	14 SWITCH AS-TEMPERATURE (XMSN OIL)	1
9G9150	15 CLIP	1
8N3844	16 SENDER-TEMPERATURE (BRAKE)	1
3J1907	17 SEAL-O-RING	1
7N7854	18 SWITCH AS-TEMPERATURE (BRAKE)	1
2A7072	19 HARNESS AS-CHASSIS	1
9G9152	20 CLIP	1
4S4456	21 CLIP	2
8X1209	22 HARNESS AS	1
9G9154	23 CLIP	1
7X1670	24 CONTROL GP-ELECTRONIC	1
4K8864	25 CLIP (LOOP)	1
4K6177	26 CLIP	4
4D7794	27 CLIP	11
5M3062	28 BOLT (3/8-16X0.75-IN)	19
8T4896	29 WASHER-HARD (10.2X18.5X2.5-MM THK)	48
5K3546	30 PLUG-BUTTON	2
3S2093	31 STRAP-CABLE	1
5P9085	32 CLIP (LOOP)	4
9G9150	33 CLIP	2
5K8451	34 CLIP (LOOP)	5
5S7379	35 BOLT (3/8-16X0.875-IN)	2
6V8801	36 NUT (3/8-16-THD)	24
2A7095	37 CABLE AS	1
5P0761	CABLE (00-GA, RED)(91CM)
8N0869	COVER-TERMINAL (RED)(TERMINAL)	1
8N1725	COVER AS-TERMINAL (RED)(TERMINAL)	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
3S6049	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
2A7097	38 CABLE AS	1
5P0747	CABLE (00-GA, BLACK)(93CM)
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
7N5274	COVER AS-TERMINAL (BLACK)	1
3S6050	TERMINAL AS-BATTERY (NEGATIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
8W9127	39 GUARD	1
7K1181	40 STRAP-CABLE	1
2G5786	41 CABLE AS	1
5P0744	CABLE (00-GA, BLACK)(48CM)
5P2600	RING-TERMINAL (000-GA, 1/2-IN SCREW)	1
0350425	RING-TERMINAL (000-GA, 3/8-IN SCREW)	1
8T2502	42 BOLT (3/8-16X1.125-IN)	4
8S2634	43 COVER AS	1
2P2975	SEAL-O-RING	2
4N6580	44 RECEPTACLE AS	1
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	2
5P0747	CABLE (00-GA, BLACK)(183CM)
5P0761	CABLE (00-GA, RED)(183CM)
2A7093	45 CABLE AS	1
5P0761	CABLE (00-GA, RED)(40CM)
8N0869	COVER-TERMINAL (RED)	2
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
8T9043	46 BOLT (5/16-18X0.875-IN)	3
6G9747	47 HARNESS AS	1
2A7099	48 CABLE AS	1
8T5357	CABLE (00-GA, RED)(383CM)
5P1276	CONDUIT (26.5-MM ID)(343CM)
8N0869	COVER-TERMINAL (RED)	2
5P2600	RING-TERMINAL (000-GA, 1/2-IN SCREW)	2
3S2093	STRAP-CABLE	2
2A7235	LINER	2
2A7236	BOOT	2
2A7096	49 CABLE AS	1
5P0747	CABLE (00-GA, BLACK)(106CM)
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
7N5274	COVER AS-TERMINAL (BLACK)(TERMINAL)	1
9G8909	COVER-TERMINAL (BLACK)(TERMINAL)	1
3S6050	TERMINAL AS-BATTERY (NEGATIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
9G0549	50 CABLE AS	2
5P0747	CABLE (00-GA, BLACK)(20CM)
1M6119	BOLT (5/16-18X1.375-IN)	2
1M6120	NUT (5/16-18-THD)	2
8T9757	TERMINAL AS-BATTERY (NEGATIVE)	1
9G0004	COVER AS-TERMINAL (RED)	1
9G0003	COVER AS-TERMINAL (BLACK)	1
8C5917	TERMINAL AS-BATTERY (POSITIVE)	1
9G4231	51 BATTERY (12-VOLT)	4
7N0060	VENT AS	6
2A7094	52 CABLE AS	1
5P0761	CABLE (00-GA, RED)(107CM)
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
8N0869	COVER-TERMINAL (RED)(TERMINAL)	1
8N1725	COVER AS-TERMINAL (RED)(TERMINAL)	1
3S6049	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
6D3432	53 HOLD-DOWN AS	2
8C5373	54 LAMP GP-HEAD	2
5P7162	55 SCREW-MACHINE (10-32X0.5-IN)	6
9F5599	56 LOCKWASHER	12
9W0052	57 LAMP GP-HEAD	2
3T3967	58 LAMP GP-SIGNAL (PARKING, TURN)	1
2B8352	59 WASHER (CONICAL)	4
0138502	60 LOCKWASHER	2
6D4247	61 CLIP	1
8X8317	62 HARNESS AS	1
8K1433	63 GROMMET	1
9G9152	64 CLIP	2
5S7349	65 BOLT (1/4-20X0.5-IN)	4
8T4205	66 WASHER-HARD (7.2X14.5X2-MM THK)	4
4S4455	67 CLIP	4
2G6522	68 CLIP	1
6D4246	69 CLIP (LOOP)	1
3E8320	70 PLATE-INSTRUCTION (BATTERY)	1
7N0718	71 SWITCH GP-DISCONNECT (BATTERY)	1
9X9584	72 RESISTOR AS	1
3T3270	WIRE AS (16-GA)	1
5P6008	TUBE-HEAT SHRINK (6.35-MM DIA)(10CM)
4K3094	73 STUD (3/8-16X10.49-IN)	8
8D8999	74 WIRE AS	1
3E0154	75 SWITCH GP-MAGNETIC (STEERING RELAY)	1
4D1326	76 LOCKWASHER	4
2A7162	77 PLATE AS	1
2B9828	BLOCK (35-20X12-MM)	1
8X1212	PLATE	1
8X1211	78 HARNESS AS (STARTING AID)	1
8W3713	79 CABLE AS	1
5P0747	CABLE (00-GA, BLACK)(55CM)
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
4D1248	TERMINAL (00-GA, 3/8-IN SCREW)	1
4B2049	80 NUT (10-32-THD)	6
8T4224	81 WASHER-HARD (8.8X16X2-MM THK)	4
6V8181	82 NUT-FULL (5/8-18-THD)	2
6V8189	83 NUT (5/16-18-THD)	1
5P1506	84 HOSE (70CM)
7D4092	85 CLIP	2
4K8864	86 CLIP (LOOP)	8
3T3047	87 CLIP AS	1
9X3207	88 TIMER GP	1
4D7794	89 CLIP	5
5M3062	90 BOLT (3/8-16X0.75-IN)	5
8T4896	91 WASHER-HARD (10.2X18.5X2.5-MM THK)	9
5P6627	92 LOCKWIRE (.13M)
8M2770	93 CLIP (LOOP)	1
7N3718	94 CLIP	2
3S2093	95 STRAP-CABLE	1
9G9150	96 CLIP	3
9L1775	97 BRACKET	1
5S7379	98 BOLT (3/8-16X0.875-IN)	1
6V8801	99 NUT (3/8-16-THD)	3
0138502	100 LOCKWASHER	1
6T2217	101 RESISTOR AS	2
3E0256	102 SWITCH AS-MAGNETIC (START RELAY)	2
3B4501	LOCKWASHER	2
3F9556	LOCKWASHER	2
6V8186	NUT-FULL (5/16-24-THD)	2
6V8377	NUT (8-32-THD)	2
5S7349	103 BOLT (1/4-20X0.5-IN)	8
8T4205	104 WASHER-HARD (7.2X14.5X2-MM THK)	8
2P9081	105 WIRE AS	2
2P9082	106 WIRE AS	2
5T9121	107 BRACKET AS	2
9F6445	NUT-WELD (1/4-20-THD)	2
9F2978	NUT-WELD (3/8-16-THD)	2
5T9182	108 HARNESS AS	2
2A7098	109 CABLE AS	2
5P0761	CABLE (00-GA, RED)(40CM)
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	2
8N0869	COVER-TERMINAL (RED)	2
9G9154	110 CLIP	2
6D4246	111 CLIP (LOOP)	1
8C5582	112 LAMP GP-FLOOD	1
3J4818	113 LOCKWASHER	4
8T4122	114 WASHER-HARD (17X32X3.5-MM THK)	1
3T1815	115 ALARM GP	1
8T9379	116 BOLT (3/8-16X4.25-IN)	2
6V8188	117 NUT (1/2-13-THD)	4
3T3968	118 LAMP GP-SIGNAL (REAR)	2
7X6219	119 LAMP GP-SIGNAL	2
6V8181	120 NUT-FULL (5/8-18-THD)	1
5M3062	121 BOLT (3/8-16X0.75-IN)	11
8T4896	122 WASHER-HARD (10.2X18.5X2.5-MM THK)	14
3S2093	123 STRAP-CABLE	1
9M8406	124 CLIP (LOOP)	4
9G9150	125 CLIP	2
5K8451	126 CLIP (LOOP)	2
8X8318	127 HARNESS AS	1
5S7379	128 BOLT (3/8-16X0.875-IN)	2
2G4177	129 CABLE AS	1
5P0747	CABLE (00-GA, BLACK)(46CM)
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
7K1181	130 STRAP-CABLE	1
8T2502	131 BOLT (3/8-16X1.125-IN)	1
2A7114	132 HARNESS AS-CHASSIS	1
3T3967	133 LAMP GP-SIGNAL (PARKING, TURN)	1
2B8352	134 WASHER (CONICAL)	4
0138502	135 LOCKWASHER	2
6D4247	136 CLIP	1
8K1433	137 GROMMET	1
4S4455	138 CLIP	3
2G6522	139 CLIP	1
7G1060	140 STRAP AS-GROUND	1
9G9154	141 CLIP	1
8X8319	142 HARNESS AS	1
8W6007	143 CABLE AS	1
5P0761	CABLE (00-GA, RED)(318CM)
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	2
8N0869	COVER-TERMINAL (RED)	1
2A7115	144 HARNESS AS-CHASSIS	1
2A7016	145 HARNESS AS-ENGINE	1
8X1203	146 HARNESS AS-CHASSIS	1
6S1061	147 CABLE AS-BATTERY	1
5P0747	CABLE (00-GA, BLACK)(213CM)
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	2
6S1060	148 CABLE AS-BATTERY	1
5P0761	CABLE (00-GA, RED)(254CM)
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	2
7I4731	149 WIRE AS (4-GA)	1
3H3680	150 NUT-JAM (1/2-13-THD)	2
6V8181	151 NUT-FULL (5/8-18-THD)	5
5P1506	152 HOSE (40CM)
7D4092	153 CLIP	2
5K3546	154 PLUG-BUTTON	2
4D7794	155 CLIP	6
5M3062	156 BOLT (3/8-16X0.75-IN)	13
8T4896	157 WASHER-HARD (10.2X18.5X2.5-MM THK)	17
8M2770	158 CLIP (LOOP)	3
3S2093	159 STRAP-CABLE	5
3K0360	160 SEAL-O-RING	1
9G9150	161 CLIP	2
5S7379	162 BOLT (3/8-16X0.875-IN)	2
8D0689	163 CLIP	3
8T2502	164 BOLT (3/8-16X1.125-IN)	1
6G2256	165 CLAMP	3
1P7009	166 CLIP	1
8T2510	167 STRIP-FILM	3
2G8767	168 WASHER (10.5X60X3-MM THK)	6
2A7015	169 HARNESS AS-CHASSIS	1
9X1159	170 SWITCH AS-FLOW (STEERING)	1
7N7779	SOCKET-CONNECTOR (14-GA TO 18-GA)	1
7N7780	PIN-CONNECTOR (14-GA TO 18-GA)	1
7N9738	HOUSING-RECEPTACLE (14-GA TO 18-GA)	1
6V2235	171 CLIP	1
6D4247	172 CLIP	1
9G9152	173 CLIP	1
4S4455	174 CLIP	2
2G6522	175 CLIP	2
9G9154	176 CLIP	3
8C6358	177 BLOCK AS-JUNCTION (BATTERY)	2
8C6921	NUT-SPACER (1/2-13-THD)	3
4D1836	178 SWITCH-TOGGLE (ENGINE SHUTDOWN)	1
6V8188	179 NUT (1/2-13-THD)	12
5P2228	180 BOLT (1/2-13X1-IN)	4
3E5169	181 GUARD-SWITCH	1
8W3635	182 PLATE AS	1
9F2978	NUT-WELD (3/8-16-THD)	1
8T4223	183 WASHER-HARD (13.5X25.5X3-MM THK)	16
4L6454	184 BOLT (3/8-16X1-IN)	1
