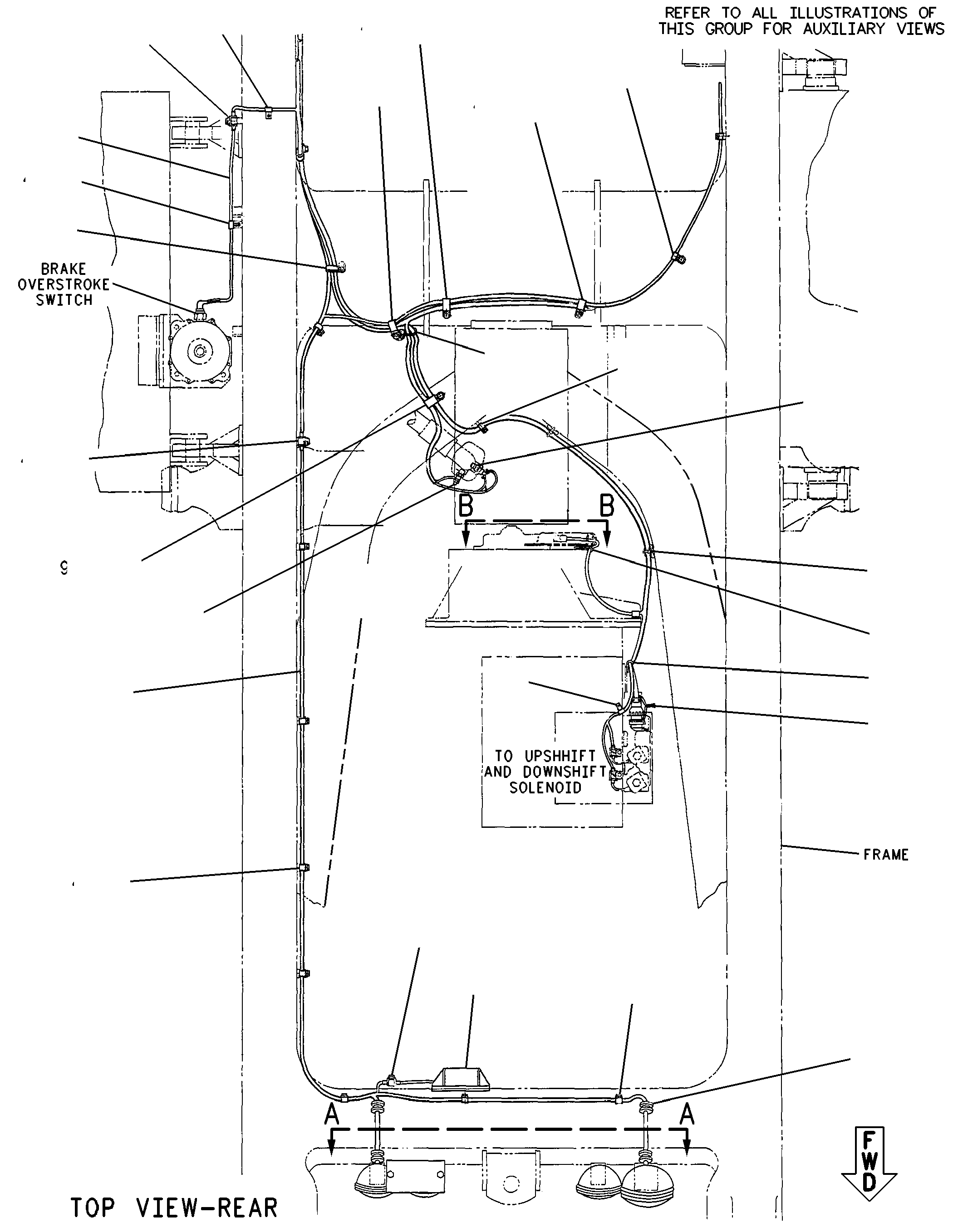

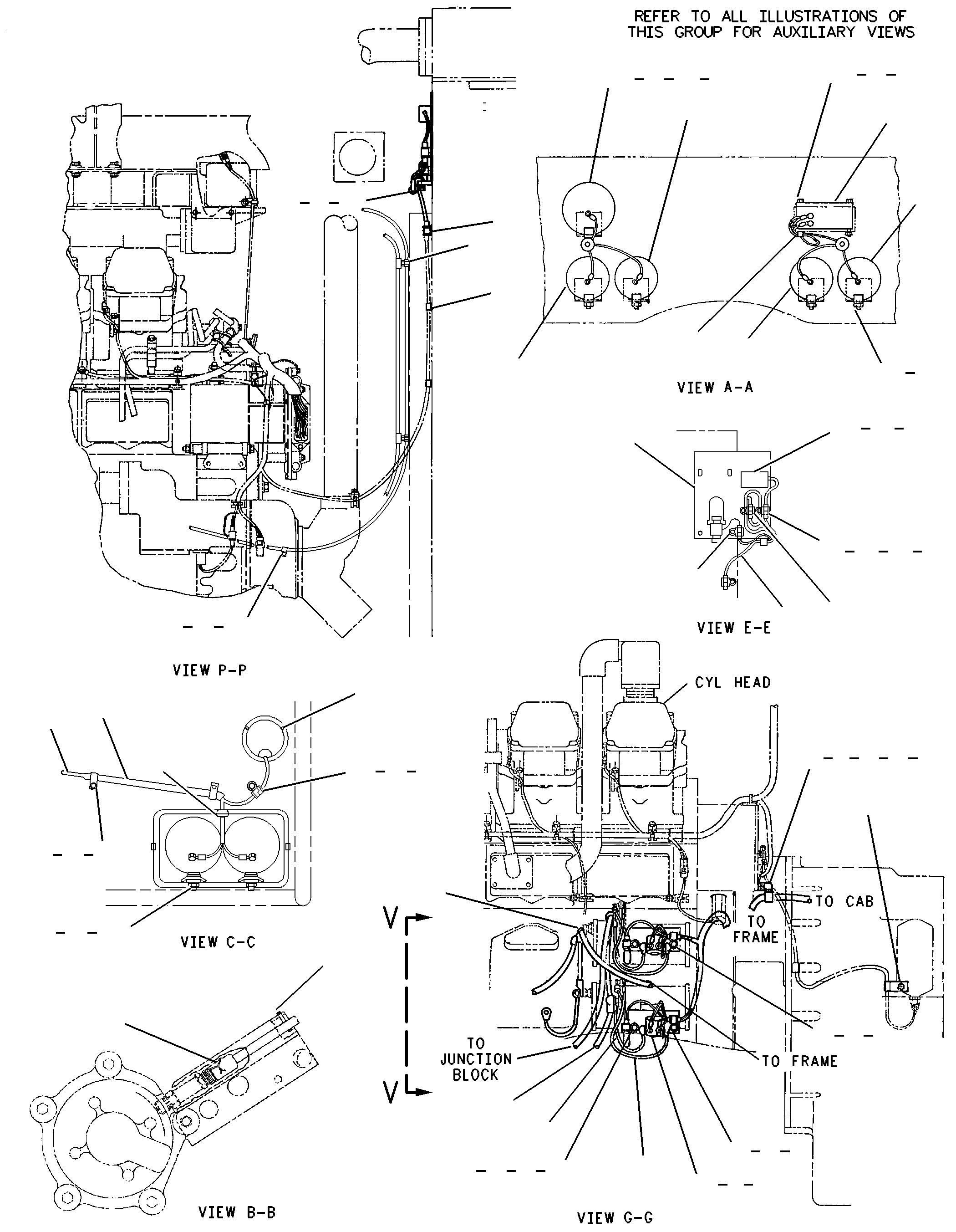

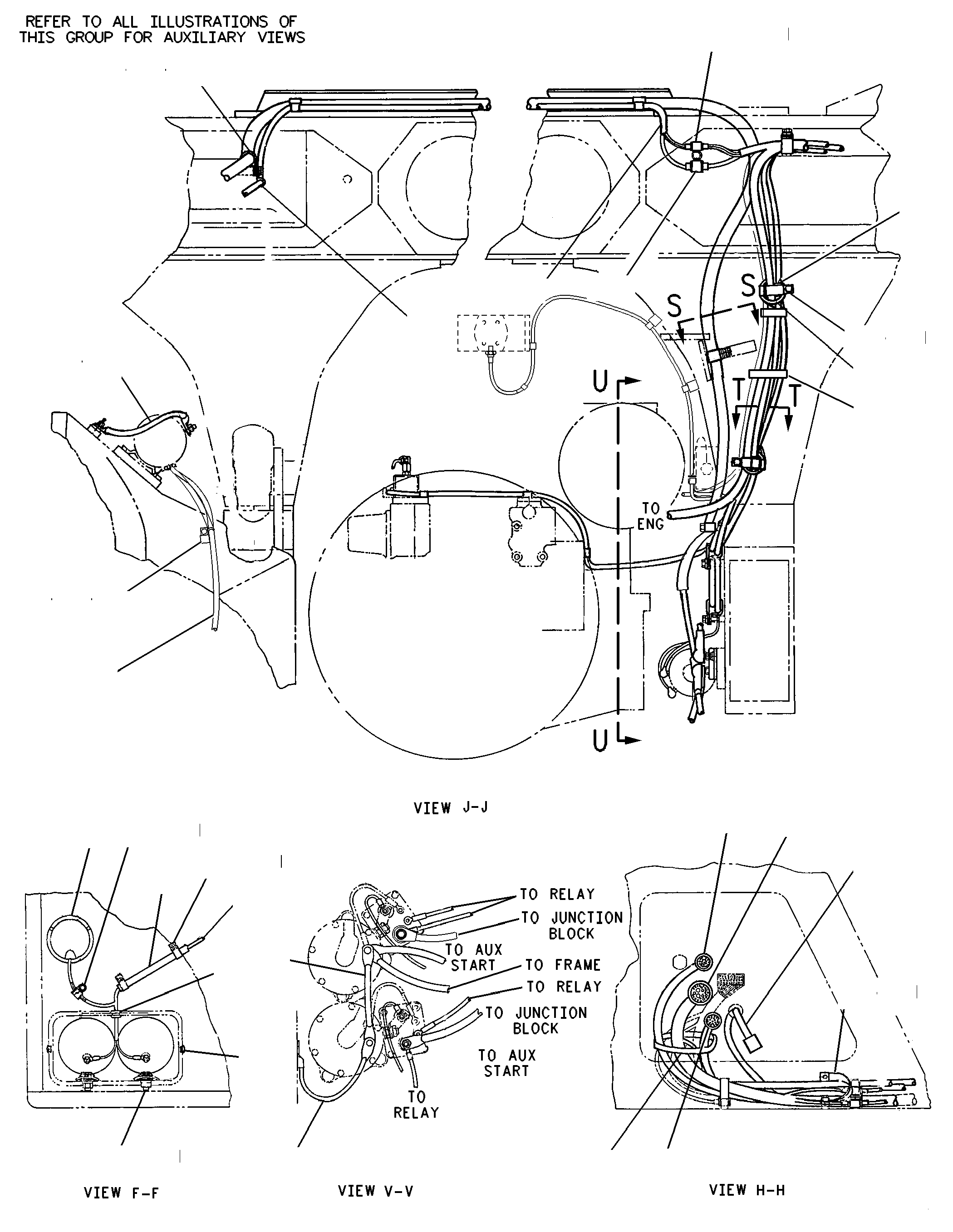

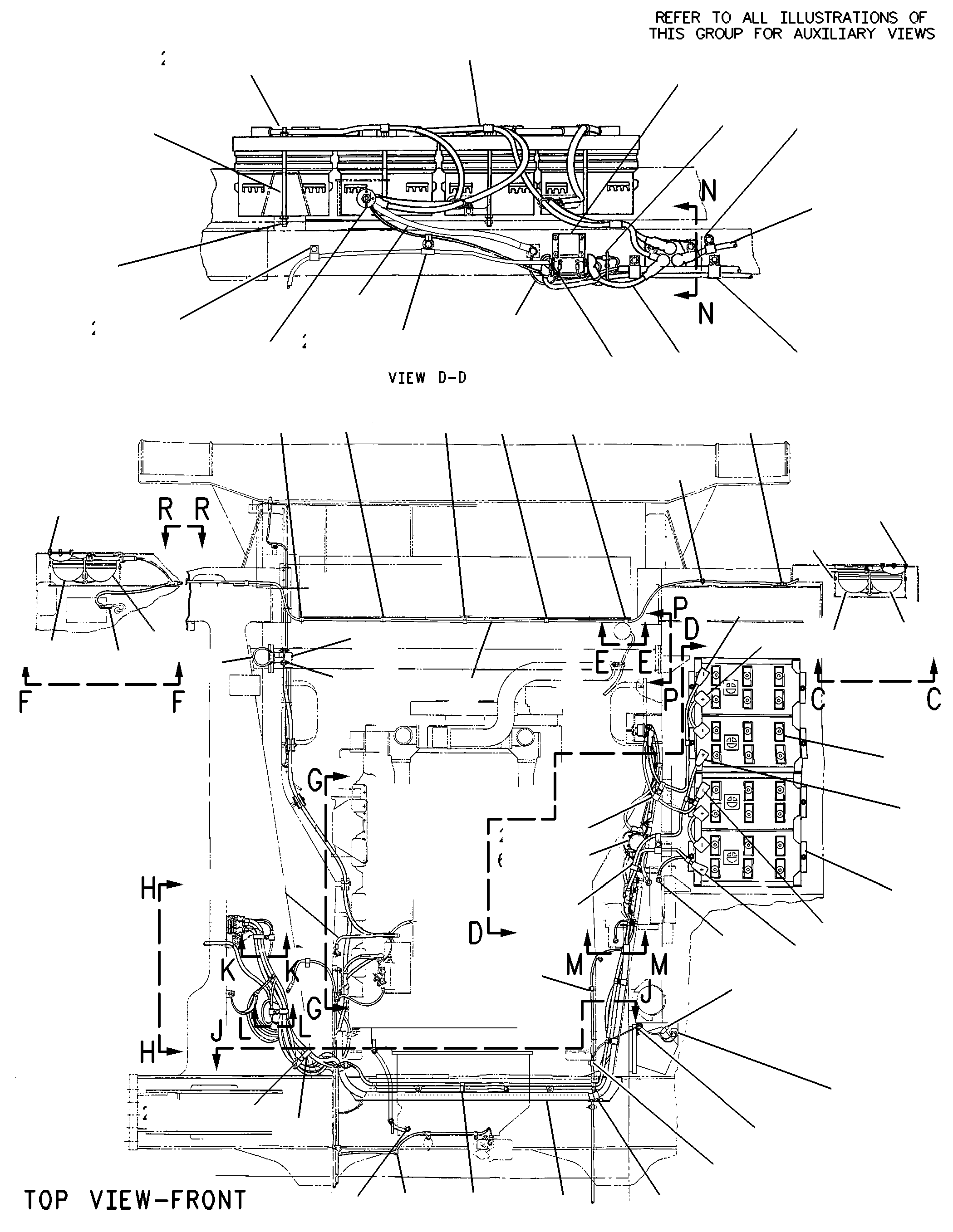

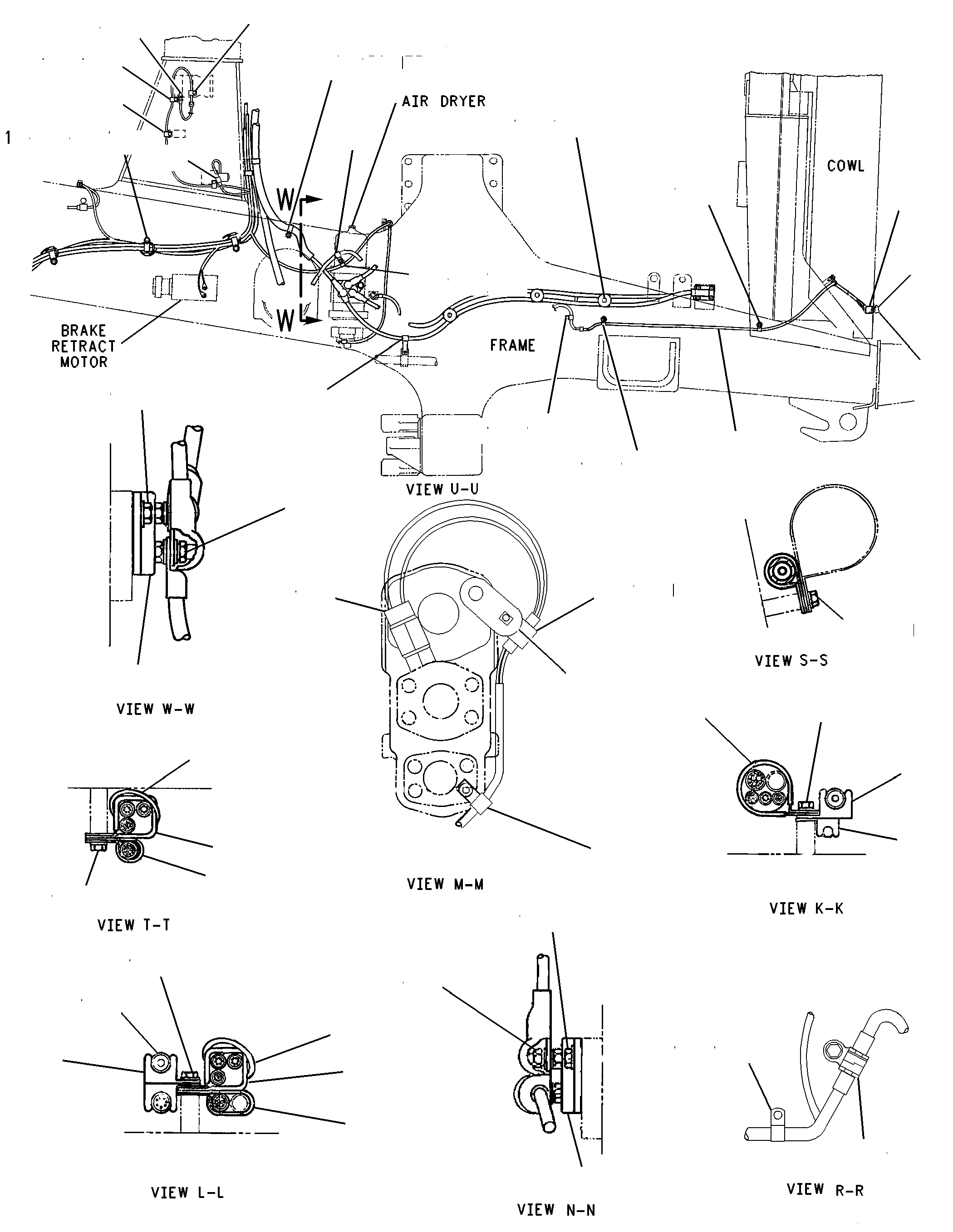

8X-0354 WIRING GP-MACHINES/N 4XJ1000-UP; 2TK97-UP

Group No: 8X-0354
Part NumberPart NameQty
0L14071 GROMMET4
4D77942 CLIP5
5S73793 BOLT (3/8-16X0.875-IN)22
8T48964 WASHER-HARD (10.2X18.5X2.5-MM THK)22
5P66275 LOCKWIRE (.13M)
8M27706 CLIP (LOOP)6
7N37187 CLIP3
5K84518 CLIP (LOOP)2
3S20939 STRAP-CABLE4
4K617710 CLIP4
4D643411 CLIP1
9M840612 CLIP (LOOP)1
3K036013 SEAL-O-RING1
7X167014 CONTROL GP-ELECTRONIC (LAMP MODULE)1
9G915015 CLIP1
8N384416 SENDER-TEMPERATURE (BRAKE)1
3J190717 SEAL-O-RING1
7N785418 SWITCH AS-TEMPERATURE (BRAKE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
2A707219 HARNESS AS-CHASSIS1
9G915220 CLIP1
4S445621 CLIP1
8X120922 HARNESS AS1
9G915423 CLIP1
7N785424 SWITCH AS-TEMPERATURE (TORQUE CONVERTER)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
5S737925 BOLT (3/8-16X0.875-IN)18
8T489626 WASHER-HARD (10.2X18.5X2.5-MM THK)44
3E295427 PLUG-DOMED HEAD2
3S209328 STRAP-CABLE1
5P908529 CLIP (LOOP)4
4K886430 CLIP (LOOP)10
5K845131 CLIP (LOOP)1
4M274332 STUD-TAPERLOCK (3/8-16-THD)1
6V880133 NUT (3/8-16-THD)25
2A709534 CABLE AS1
5P0761CABLE (00-GA, RED)(91CM)
8N0869COVER-TERMINAL (RED)1
8N1725COVER AS-TERMINAL (RED)1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
3S6049TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
2A709735 CABLE AS1
5P0747CABLE (00-GA, BLACK)(93CM)
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
7N5274COVER AS-TERMINAL (BLACK)1
3S6050TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
8W912736 GUARD1
7K118137 STRAP-CABLE1
2G578638 CABLE AS1
5P0744CABLE (00-GA, BLACK)(48CM)
5P2600RING-TERMINAL (000-GA, 1/2-IN SCREW)1
0350425RING-TERMINAL (000-GA, 3/8-IN SCREW)1
8T250239 BOLT (3/8-16X1.125-IN)4
126413340 COVER AS1
3T304741 CLIP AS1
2A709342 CABLE AS1
5P0761CABLE (00-GA, RED)(40CM)
8N0869COVER-TERMINAL (RED)2
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
4N658043 RECEPTACLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
5P0747CABLE (00-GA, BLACK)(183CM)1
5P0761CABLE (00-GA, RED)(183CM)1
6G974744 HARNESS AS1
2A709945 CABLE AS1
8T5357CABLE (00-GA, RED)(383CM)
5P1276CONDUIT (26.5-MM ID)(343CM)
8N0869COVER-TERMINAL (RED)2
5P2600RING-TERMINAL (000-GA, 1/2-IN SCREW)2
3S2093STRAP-CABLE2
2A7235LINER2
2A7236BOOT2
9G334146 SWITCH AS-TEMPERATURE (XMSN OIL)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
9G054947 CABLE AS2
5P0747CABLE (00-GA, BLACK)(20CM)
1M6119BOLT (5/16-18X1.375-IN)2
1M6120NUT (5/16-18-THD)2
8T9757TERMINAL AS-BATTERY (NEGATIVE)1
9G0004COVER AS-TERMINAL (RED)1
9G0003COVER AS-TERMINAL (BLACK)1
8C5917TERMINAL AS-BATTERY (POSITIVE)1
101400048 BATTERY GP (12-VOLT)4
7N0060VENT AS6
2A709449 CABLE AS1
5P0761CABLE (00-GA, RED)(107CM)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
8N0869COVER-TERMINAL (RED)1
8N1725COVER AS-TERMINAL (RED)1
3S6049TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
6D343250 HOLD-DOWN AS2
8C537351 LAMP GP-HEAD2
5P716252 SCREW-MACHINE (10-32X0.5-IN)6
9F559953 LOCKWASHER12
9W005254 LAMP GP-HEAD2
4D779455 CLIP10
3K036056 SEAL-O-RING2
2A709657 CABLE AS1
5P0747CABLE (00-GA, BLACK)(106CM)
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
7N5274COVER AS-TERMINAL (BLACK)1
9G8909COVER-TERMINAL (BLACK)1
3S6050TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
6D424758 CLIP1
9M840659 CLIP (LOOP)6
3E786860 SWITCH GP-BYPASS (XMSN FILTER)1
9G915261 CLIP1
5S734962 BOLT (1/4-20X0.5-IN)4
8T420563 WASHER-HARD (7.2X14.5X2-MM THK)4
4S445564 CLIP4
2G652265 CLIP1
6D424666 CLIP (LOOP)1
3E832067 PLATE-INSTRUCTION (BATTERY)1
7N071868 SWITCH GP-DISCONNECT (BATTERY)1
033824869 CLIP (LOOP)1
4K309470 STUD (3/8-16X10.49-IN)8
8D899971 WIRE AS1
3E015472 SWITCH GP-MAGNETIC (STEERING RELAY)1
4D132673 LOCKWASHER4
2S407874 SEAL-O-RING1
4K617775 CLIP2
8W371376 CABLE AS1
5P0747CABLE (00-GA, BLACK)(55CM)
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
4D1248TERMINAL (00-GA, 3/8-IN SCREW)1
4D779477 CLIP3
9M840678 CLIP (LOOP)3
8T489679 WASHER-HARD (10.2X18.5X2.5-MM THK)15
5P662780 LOCKWIRE (.13M)
8M277081 CLIP (LOOP)1
7N371882 CLIP2
3S209383 STRAP-CABLE1
9G915084 CLIP5
9L177585 BRACKET1
5S737986 BOLT (3/8-16X0.875-IN)8
6V880187 NUT (3/8-16-THD)3
013850288 LOCKWASHER3
6T221789 RESISTOR AS2
9F309990 SWITCH GP-MAGNETIC (24-VOLT)(START RELAY)2
3B4501LOCKWASHER2
3F9556LOCKWASHER2
6V8186NUT-FULL (5/16-24-THD)2
6V8377NUT (8-32-THD)2
5S734991 BOLT (1/4-20X0.5-IN)8
8T420592 WASHER-HARD (7.2X14.5X2-MM THK)8
2P908193 WIRE AS2
2P908294 WIRE AS2
5T912195 BRACKET AS2
9F6445NUT-WELD (1/4-20-THD)2
9F2978NUT-WELD (3/8-16-THD)2
5T918296 HARNESS AS2
2A709897 CABLE AS2
5P0761CABLE (00-GA, RED)(40CM)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
9G915498 CLIP2
5P8167BOLT (3/8-16X0.625-IN)2
6D424699 CLIP (LOOP)1
8C5582100 LAMP GP-FLOOD1
3J4818101 LOCKWASHER4
8T4122102 WASHER-HARD (17X32X3.5-MM THK)1
3T1815103 ALARM GP1
8T9379104 BOLT (3/8-16X4.25-IN)2
6V8188105 NUT (1/2-13-THD)4
3T3968106 LAMP GP-SIGNAL (REAR)2
7X6219107 LAMP GP-SIGNAL2
6V8181108 NUT-FULL (5/8-18-THD)3
8X1211109 HARNESS AS (STARTING AID)1
2A7162110 PLATE AS1
2B9828BLOCK (35-20X12-MM)1
9X9584111 RESISTOR AS1
3T3270WIRE AS (16-GA)1
5P6008TUBE-HEAT SHRINK (6.35-MM DIA)(10CM)
9X3207112 TIMER GP1
7D4092113 CLIP2
5P1506114 HOSE
6V8189115 NUT (5/16-18-THD)1
8T4224116 WASHER-HARD (8.8X16X2-MM THK)4
9G9152117 CLIP1
8K1433118 GROMMET1
8X8317119 HARNESS AS1
2B8352120 WASHER (CONICAL)4
3T3967121 LAMP GP-SIGNAL (PARKING, TURN)1
8T9043122 BOLT (5/16-18X0.875-IN)3
4D5371123 CLIP2
8T4896124 WASHER-HARD (10.2X18.5X2.5-MM THK)11
3S2093125 STRAP-CABLE1
9M8406126 CLIP (LOOP)1
9G9150127 CLIP2
4K8864128 CLIP (LOOP)2
8X8318129 HARNESS AS1
5S7379130 BOLT (3/8-16X0.875-IN)11
2G4177131 CABLE AS1
5P0747CABLE (00-GA, BLACK)(46CM)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
7K1181132 STRAP-CABLE1
7D4092133 CLIP2
2A7114134 HARNESS AS-CHASSIS1
3T3967135 LAMP GP-SIGNAL (PARKING, TURN)1
2B8352136 WASHER (CONICAL)4
0138502137 LOCKWASHER2
5P1506138 HOSE
8K1433139 GROMMET1
4S4455140 CLIP2
8M2770141 CLIP (LOOP)1
7G1060142 STRAP AS-GROUND1
9G9154143 CLIP1
8X8319144 HARNESS AS1
1094394145 CABLE AS1
5P0761CABLE (00-GA, RED)(00 GA 358)1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)2
8N0869COVER-TERMINAL (RED)1
2A7115146 HARNESS AS-CHASSIS (TRANSMISSION)1
2A7016147 HARNESS AS-ENGINE1
1341007148 HARNESS AS-CHASSIS1
6S1061149 CABLE AS-BATTERY1
5P0747CABLE (00-GA, BLACK)(22CM)
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
3E2954150 PLUG-DOMED HEAD2
7I4731151 WIRE AS (4-GA)1
6V8181152 NUT-FULL (5/8-18-THD)2
2G6522153 CLIP1
4D7794154 CLIP10
9X3495155 CLIP AS1
8T4896156 WASHER-HARD (10.2X18.5X2.5-MM THK)18
8M2770157 CLIP (LOOP)3
3S2093158 STRAP-CABLE5
3K0360159 SEAL-O-RING2
9G9150160 CLIP3
5S7379161 BOLT (3/8-16X0.875-IN)15
4M2743162 STUD-TAPERLOCK (3/8-16-THD)2
6V8801NUT (3/8-16-THD)2
8T2502163 BOLT (3/8-16X1.125-IN)1
6G2256164 CLAMP3
1P7009165 CLIP1
8T2501166 BOLT (3/8-16X2-IN)3
2G8767167 WASHER (10.5X60X3-MM THK)6
2A7015168 HARNESS AS-CHASSIS1
1346547169 SWITCH AS-FLOW (STEERING)1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
7N7780PIN-CONNECTOR (14-GA TO 18-GA)1
7N9738HOUSING-RECEPTACLE (14-GA TO 18-GA)1
6V2235170 CLIP1
6D4247171 CLIP1
9G9152172 CLIP1
4S4455173 CLIP2
2G6522174 CLIP5
9G9154175 CLIP3
8C6358176 BLOCK AS-JUNCTION (BATTERY)2
8C6921NUT-SPACER (1/2-13-THD)3
4D1836177 SWITCH-TOGGLE (ENGINE SHUTDOWN)1
6V8188178 NUT (1/2-13-THD)12
5P2228179 BOLT (1/2-13X1-IN)4
3E5169180 GUARD-SWITCH1
8W3635181 PLATE AS1
9F2978NUT-WELD (3/8-16-THD)1
8T4223182 WASHER-HARD (13.5X25.5X3-MM THK)16
3E9759183 FILM-INSTRUCTION (ENGINE SHUTDOWN)1
3E6449184 SWITCH AS-TEMPERATURE1
7G7919185 PLUG-SEAL1
9G4352186 HOUSING-RECEPTACLE (8-GA TO 10-GA)1
