System And Components

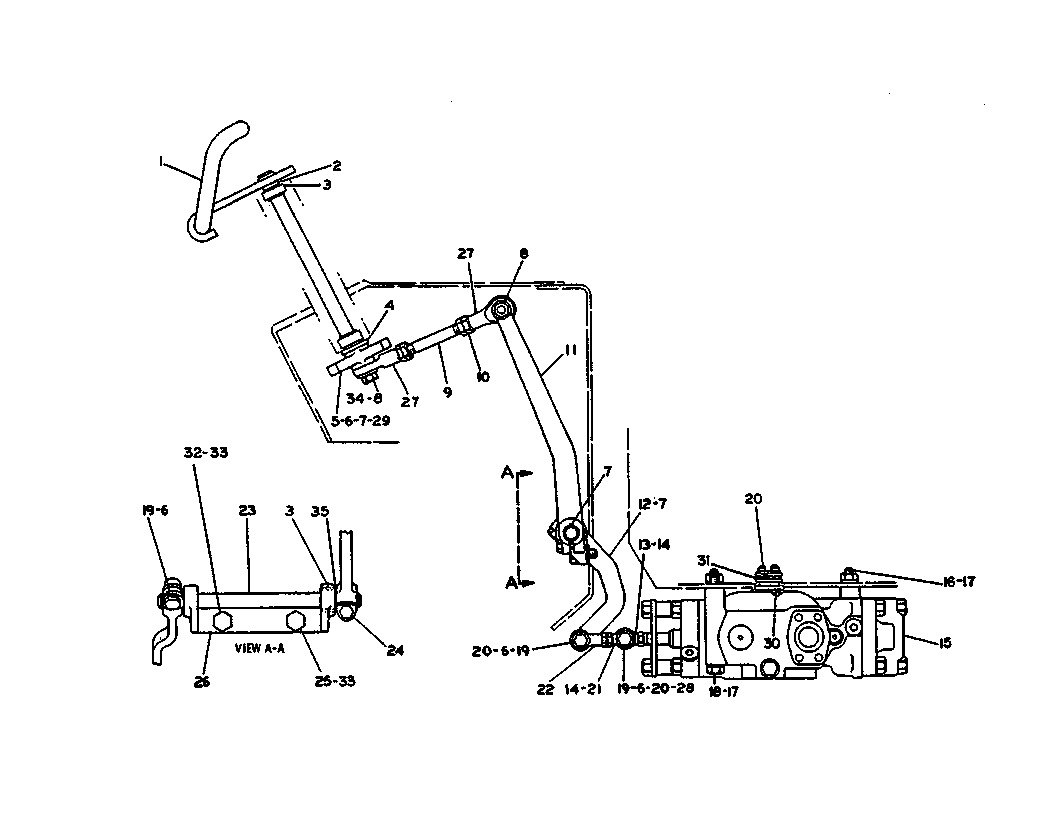

5V7290 CONTROL GP-STEERING1U1614-PAGE 171
Group No: 5V7290
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8K8487 | 1 WHEEL AS-STEERING | 1 | |
| 9H4557 | 2 SEAL-O-RING | 1 | |
| 5K2294 | 3 BEARING | 4 | |
| 4B4283 | 4 WASHER | 1 | |
| 8K0014 | 5 LEVER | 1 | |
| 5S7383 | BOLT (3/8-16X1.75IN) | 1 | |
| 6V8801 | 6 NUT (3/8-16 THD) | 4 | |
| 1B8706 | 7 KEY-WOODRUFF | 3 | |
| 7X3194 | 8 BOLT | 2 | |
| 4K8341 | NUT-SELF LOCKING | 2 | |
| 5D0047 | 9 ROD-CONTROL | 1 | |
| 7X3374 | 10 NUT-FULL (1/2-20 THD) | 2 | |
| 8K5473 | 11 LEVER | 1 | |
| 8K5471 | 12 LEVER | 1 | |
| 4M0494 | 13 ROD END-BEARING | 1 | |
| 8M2296 | 14 NUT-FULL | 2 | |
| 1U1614 | 15 VALVE GP-STEERING | 1 | |
| 4B7220 | 16 BOLT (7/16-14X4.5IN) | 2 | |
| 7X0447 | NUT (7/16-14 THD) | 2 | |
| 8T5360 | 17 WASHER (2.5MM THK) | 3 | |
| 7H3472 | 18 BOLT (7/16-14X4.75IN) | 1 | |
| 4L9337 | 19 BOLT (3/8-16X1.50IN) | 3 | |
| 1U1595 | 20 ADAPTER | 1 | |
| 2M1660 | 21 BOLT-EYE | 1 | |
| 4M0495 | 22 ROD END-BEARING | 1 | |
| 8K5468 | 23 SHAFT | 1 | |
| 4L6454 | 24 BOLT (3/8-16 X 1.0IN) | 1 | |
| 8T8919 | 25 BOLT (1/2-13X1.50IN) | 1 | |
| 8K5472 | 26 BRACKET | 1 | |
| 4D4065 | 27 ROD END-BEARING | 2 | |
| 1S1150 | 28 SPACER | 1 | |
| 3B4629 | 29 PIN-COTTER | 1 | |
| 3D2824 | 30 SEAL-O-RING (23.47MM ID) | 1 | |
| 4J5267 | 31 SEAL (24.99MM ID) | 1 | |
| 8T8917 | 32 BOLT (1/2-13X1.25IN) | 1 | |
| 8T4223 | 33 WASHER-HARD (25.5MM OD) | 2 | |
| 5P8245 | 34 WASHER (3MM THK) | 1 | |
| 8T4994 | 35 WASHER (3.5MM THK) | 1 |
