System And Components

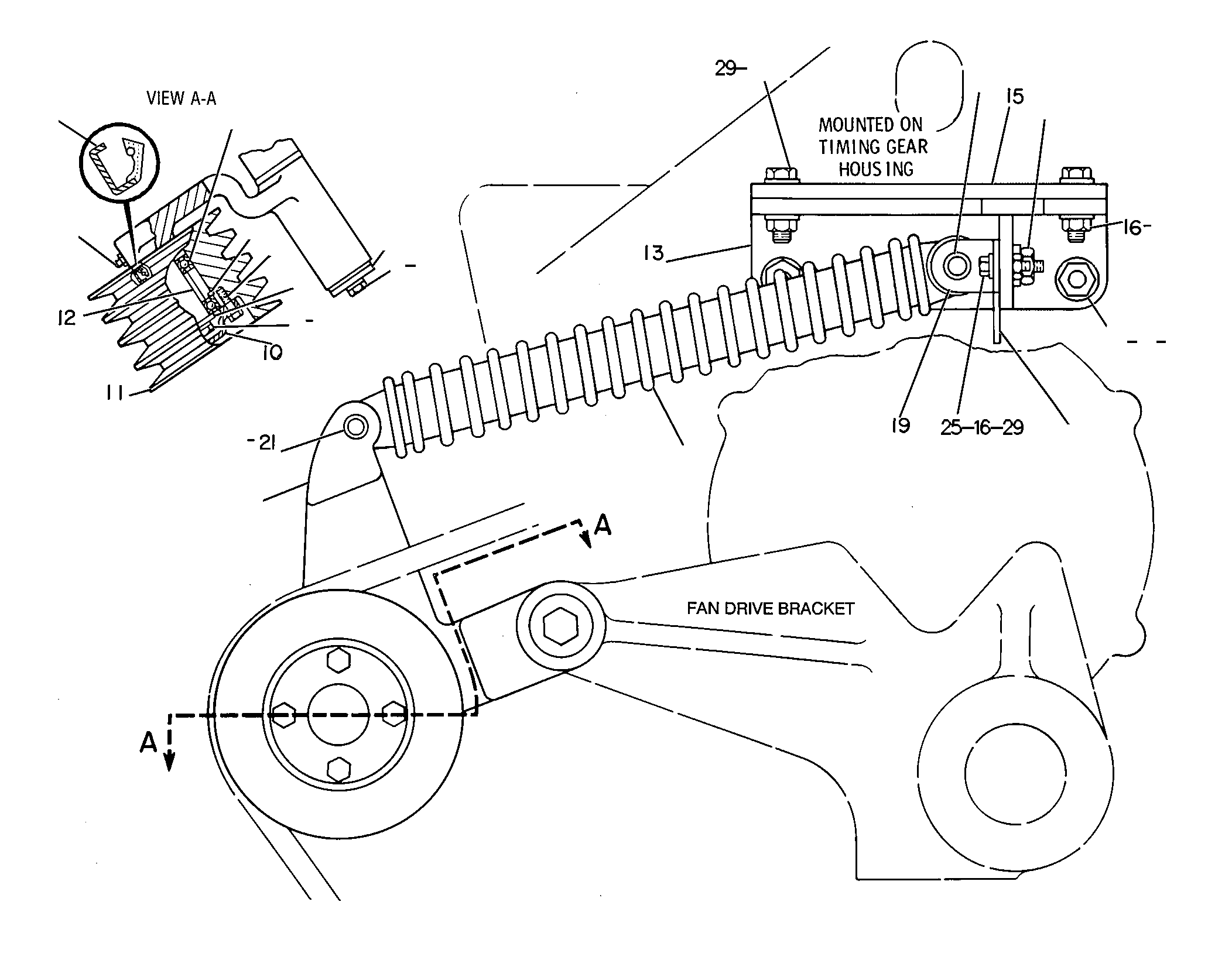

6N-6636 BELT TENSIONER GPS/N 7MJ1-99999
Group No: 6N-6636
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5M9735 | 1 SEAL-LIP TYPE | 1 | |
| 6B1124 | 2 BALL BEARING | 2 | |
| 2M2742 | 3 PLATE-RETAINER | 1 | |
| 4L6454 | 4 BOLT (3/8-16X1-IN) | 1 | |
| 5M2894 | 5 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 8B2327 | 6 RING-RETAINING | 1 | |
| 0S1618 | 7 BOLT (5/16-18X1-IN) | 4 | |
| 2S6160 | 8 WASHER-HARD (10.2X32X5-MM THK) | 1 | |
| 0S0509 | 9 BOLT (3/8-16X0.75-IN) | 1 | |
| 2S6150 | 10 COVER-PULLEY | 1 | |
| 2S6151 | GASKET | 1 | |
| 6N1186 | 11 PULLEY | 1 | |
| 1S8687 | 12 SPACER (25.5X33.4X31.75-MM THK) | 1 | |
| 8N3816 | 13 BRACKET AS | 1 | |
| 4L9337 | 14 BOLT (3/8-16X1.5-IN) | 2 | |
| 6N8313 | 15 BRACKET-ANCHOR | 1 | |
| 6V8801 | 16 NUT (3/8-16-THD) | 1 | |
| 7X0336 | 17 BOLT (1/2-13X5.5-IN) | 2 | |
| 6V8188 | 18 NUT (1/2-13-THD) | 1 | |
| 8N5580 | 19 RETAINER | 1 | |
| 2010357 | 20 ABSORBER AS-SHOCK | 1 | |
| 6S6308 | 21 PIN | 1 | |
| 8N6097 | 22 ARM AS-TIGHTENER | 1 | |
| 4S5367 | BUSHING AS (MOUNT) | 1 | |
| 2S9006 | SHAFT-PULLEY | 1 | |
| 3B8489 | 23 FITTING-GREASE (1/8-27 PTF) | 1 | |
| 8N4326 | 24 BRACE | 1 | |
| 0S1588 | 25 BOLT (3/8-16X1.25-IN) | 1 | |
| 3B4617 | 26 PIN-COTTER | 2 | |
| 9S1315 | 27 PIN-CLEVIS | 1 | |
| 8T4223 | 28 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4896 | 29 WASHER-HARD (10.2X18.5X2.5-MM THK) | 7 | |
| 1D4719 | 30 NUT-FULL (1/2-13-THD) | 1 | |
| 2M0849 | WASHER-HARD (13.5X25.5X5-MM THK) | 1 |
