System And Components

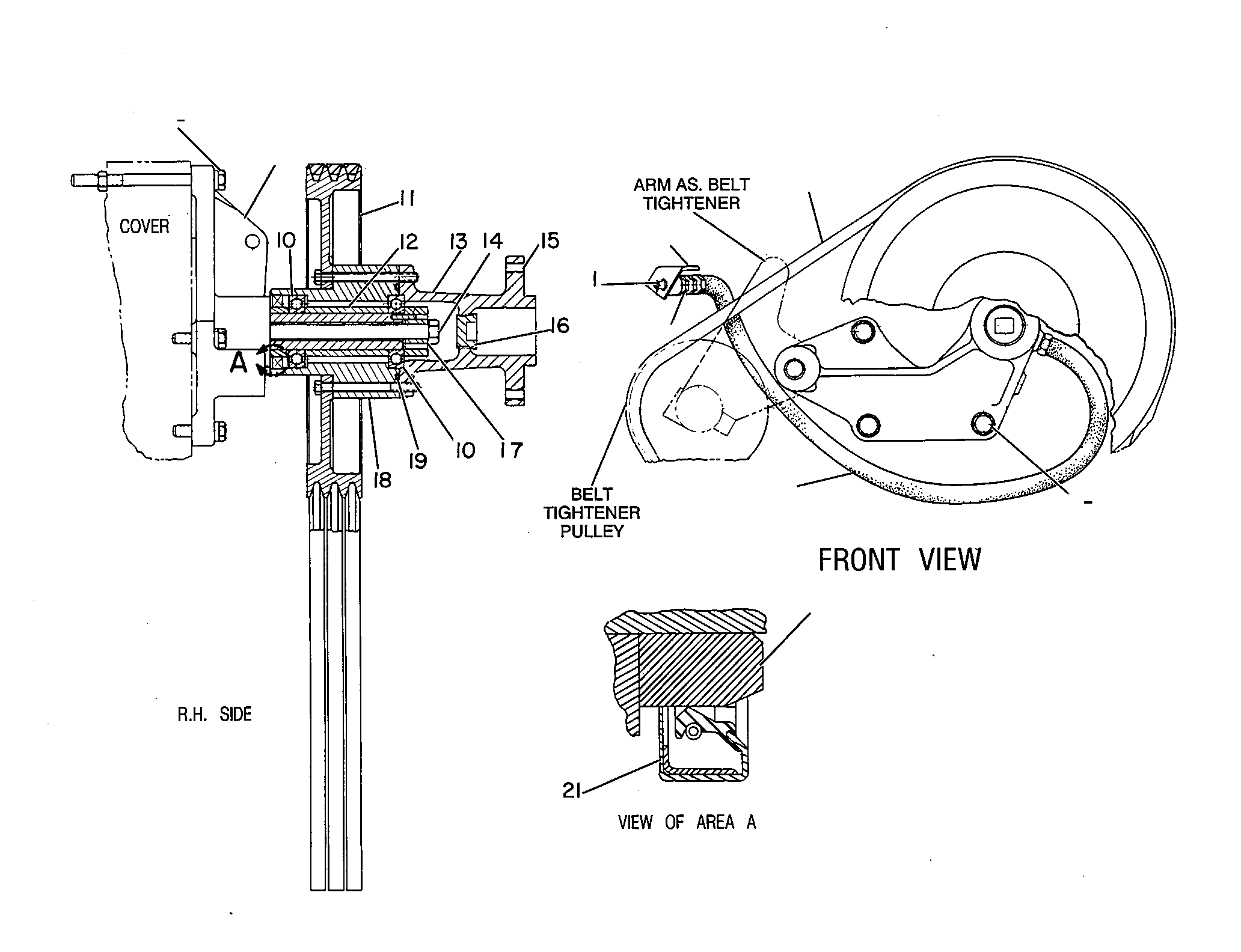

4W-4311 DRIVE GP-FANS/N 3ND523-99999
Group No: 4W-4311
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3B8485 | 1 ELBOW | 1 | |
| 6N4111 | 2 BRACKET AS | 1 | |
| 8L6557 | 3 CONNECTOR | 1 | |
| 7N3455 | 4 HOSE AS | 1 | |
| 1A1460 | 5 BOLT (1/2-13X2-IN) | 3 | |
| 5P8245 | 6 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 6N5337 | 7 V-BELT SET (INCLUDES 3-BELTS) | 1 | |
| 1D4572 | 8 BOLT (1/2-13X5.5-IN) | 1 | |
| 1D4719 | NUT-FULL (1/2-13-THD) | 1 | |
| 4W4072 | 9 BRACKET AS | 1 | |
| 1S9209 | SHAFT-TIGHTENER (SMALL) | 1 | |
| 4N0955 | DOWEL | 1 | |
| 8N8980 | SHAFT-FAN (LARGE) | 1 | |
| 6H3957 | 10 BALL BEARING | 2 | |
| 7N1275 | 11 PULLEY-FAN DRIVE | 1 | |
| 8N8979 | 12 SPACER (42X54X90-MM THK) | 1 | |
| 6H3956 | 13 PIN | 1 | |
| 1D4602 | 14 BOLT (5/8-11X9.5-IN) | 1 | |
| 4W4182 | 15 ADAPTER-FAN | 1 | |
| 5H8624 | SEAL-O-RING | 1 | |
| 1B5170 | 16 PLUG-PIPE | 1 | |
| 1W4564 | 17 WASHER-RETAINING (17X54X25-MM THK) | 1 | |
| 4W4183 | 18 HUB | 1 | |
| 8S9191 | 19 BOLT (3/8-16X4-IN) | 6 | |
| 8N8978 | 20 SPACER (40X53.98X20-MM THK) | 1 | |
| 8B8255 | 21 SEAL-LIP TYPE | 1 |
