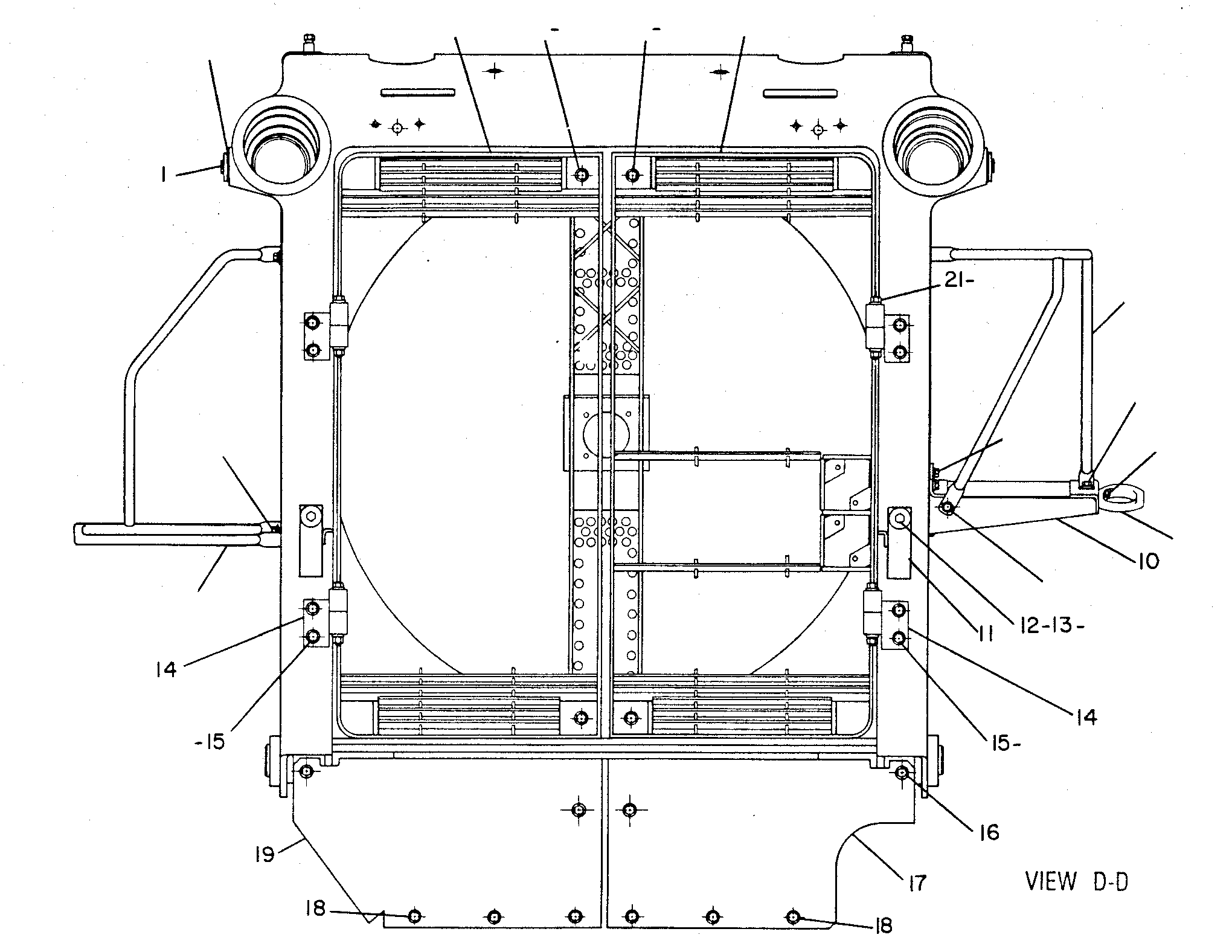

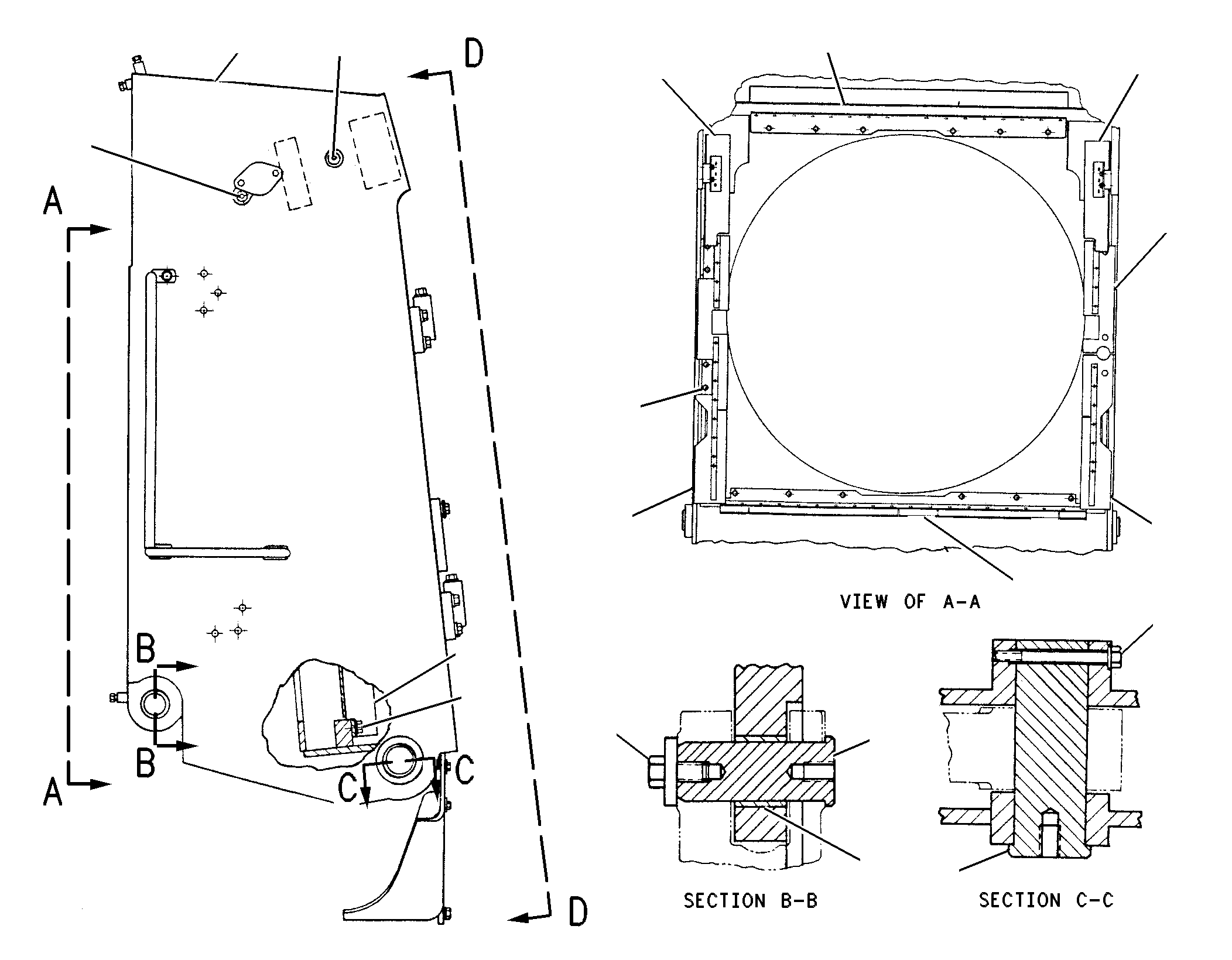

3T-0424 GUARD GP-RADIATORS/N 4HK1-UP

Group No: 3T-0424
Part NumberPart NameQty
6H17171 BOLT (1/2-13X1.125-IN)4
7K64132 FLANGE2
4J7083GASKET2
3T03233 DOOR AS1
0L11784 BOLT (3/4-10X2-IN)4
5P82485 WASHER-HARD (20X36.5X3.5-MM THK)20
8E28366 DOOR AS1
7G39797 HANDRAIL AS1
0S15958 BOLT (1/2-13X1.25-IN)12
5P8245WASHER-HARD (13.5X25.5X3-MM THK)12
7G39789 HANDHOLD1
7G397710 STEP AS1
1F0748NUT-WELD (1/2-13-THD)4
9W604111 PLATE2
8S909212 BOLT (5/8-11X2.25-IN)2
8P664013 WASHER-HARD (17X54X3-MM THK)2
9G969814 HINGE AS4
1D460915 BOLT (3/4-10X3-IN)8
0S158916 BOLT (5/8-11X1.75-IN)4
7P1579SPACER (28X40X19-MM THK)4
6T044617 PLATE AS1
0S159218 BOLT (5/8-11X1.25-IN)6
5P8247WASHER-HARD (17X32X3.5-MM THK)6
6T044919 PLATE AS1
7G398020 HANDRAIL AS1
1D461621 BOLT (3/4-10X6-IN)4
1K6870LOCKNUT (3/4-10-THD)4
9K244922 SPACER2
8E283023 GUARD AS1
9J2606BUSHING (SLEEVE)2
9J2607BUSHING (SLEEVE)2
3P643124 BUSHING2
5M621425 PLUG (1/8-27 PTF)4
9W675926 SUPPORT AS1
5B2649STUD4
0L117827 BOLT (3/4-10X2-IN)4
5P8248WASHER-HARD (20X36.5X3.5-MM THK)4
7G048128 PIN2
1D457429 BOLT (1/2-13X6-IN)2
5P8245WASHER-HARD (13.5X25.5X3-MM THK)2
1A045830 BOLT (3/4-10X1.75-IN)2
5S9948WASHER2
8P817531 PIN2
7T682432 BAFFLE AS (LH)1
9S208733 SCREW-FORMING (3/8-16X1-IN)24
6T242434 BAFFLE AS1
3T042735 BAFFLE AS1
7T682336 BAFFLE AS (LH)1
6Y124137 BAFFLE AS (RH)1
3T043738 BAFFLE AS1
6Y123739 BAFFLE AS (RH)1
