System And Components

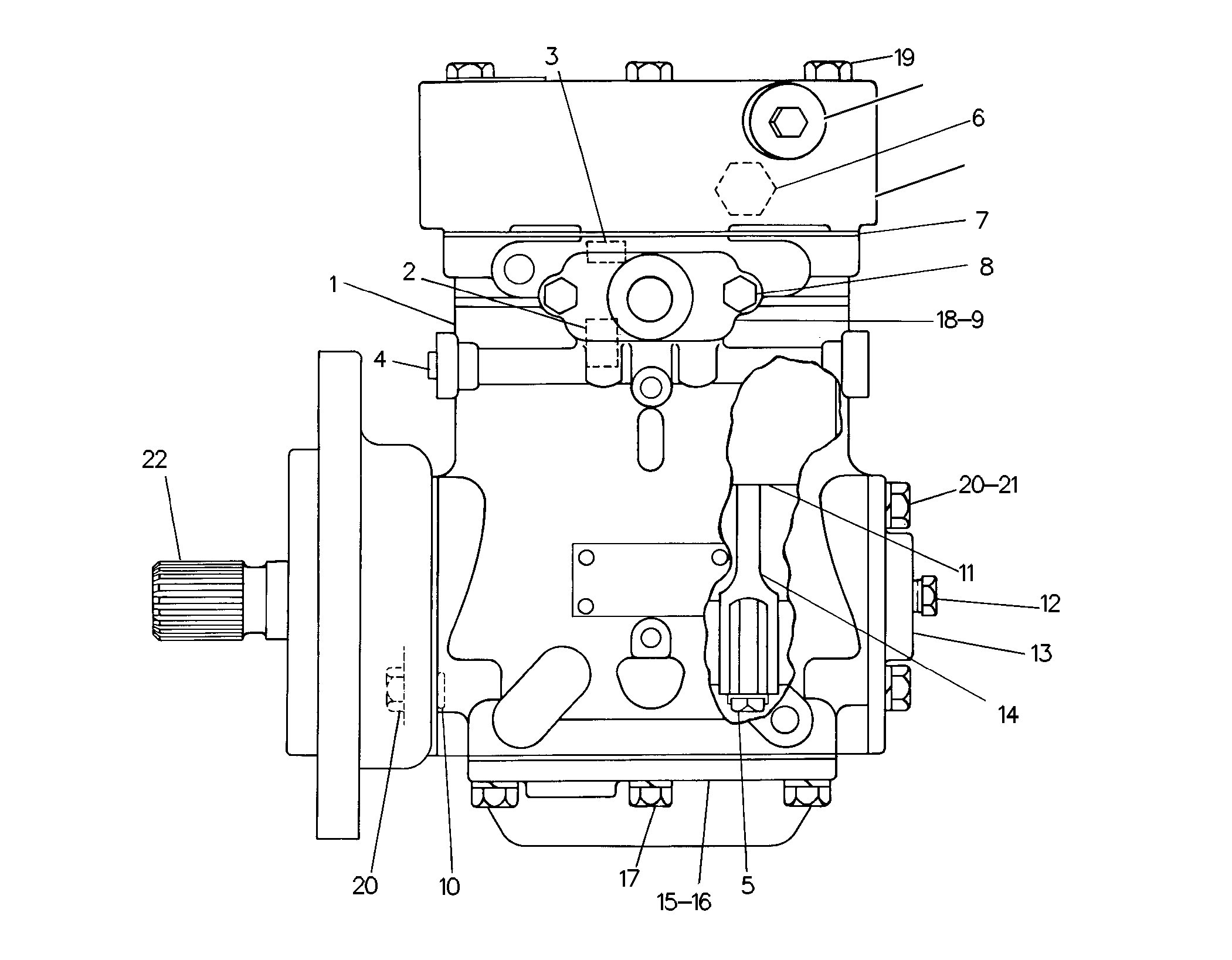

2W-0582 AIR COMPRESSOR GPS/N 4WJ1-512
Group No: 2W-0582
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6N2099 | 1 CRANKCASE AS-AIR COMPRESSOR | 1 | |
| 7N6172 | 2 BUSHING-COMPRESSOR | 2 | |
| 9M0381 | 3 INSERT-INLET VALVE | 2 | |
| 8T6757 | 4 PLUG-PIPE | 1 | |
| 7N0243 | 5 LOCK-ROD BOLT | 2 | |
| 7W6492 | 6 PLUG-PIPE (1/2-14-THD) | 2 | |
| 6N2098 | 7 GASKET-CYLINDER HEAD | 1 | |
| 2B2695 | 8 BOLT (5/16-18X0.875-IN) | 2 | |
| 3B4505 | LOCKWASHER | 2 | |
| 8M7065 | 9 GASKET (AIR INLET) | 1 | |
| 5M6509 | 10 SEAL-O-RING | 2 | |
| 7N4837 | 11 PISTON AS-COMPRESSOR | 2 | |
| 1W2803 | PLUG | 2 | |
| 8T6764 | 12 PLUG-PIPE (1/8-27-THD) | 2 | |
| 6N2100 | 13 COVER AS-REAR | 1 | |
| 6N2106 | 14 ROD AS-CONNECTING | 2 | |
| 6N0634 | 15 GASKET-COVER | 1 | |
| 1W1030 | 16 PAN | 1 | |
| 0L1351 | 17 BOLT (3/8-16X0.875-IN) | 6 | |
| 3B4506 | LOCKWASHER | 6 | |
| 9M0397 | 18 ADAPTER | 1 | |
| 0S1619 | 19 BOLT (3/8-16X3-IN) | 6 | |
| 5P0060 | 20 BOLT (7/16-14X0.75-IN) | 8 | |
| 3B4507 | 21 LOCKWASHER | 4 | |
| 4P7727 | 22 CRANKSHAFT-AIR COMPRESSOR | 1 | |
| 8T6767 | 23 PLUG-PIPE (3/8-18-THD) | 1 | |
| 6N2097 | 24 HEAD AS-COMPRESSOR | 1 | |
| 8N3666 | KIT-AIR COMPRESSOR | 1 | |
| 6N2109 | KIT-PISTON RING (AIR COMPRESSOR) | 1 |
