System And Components

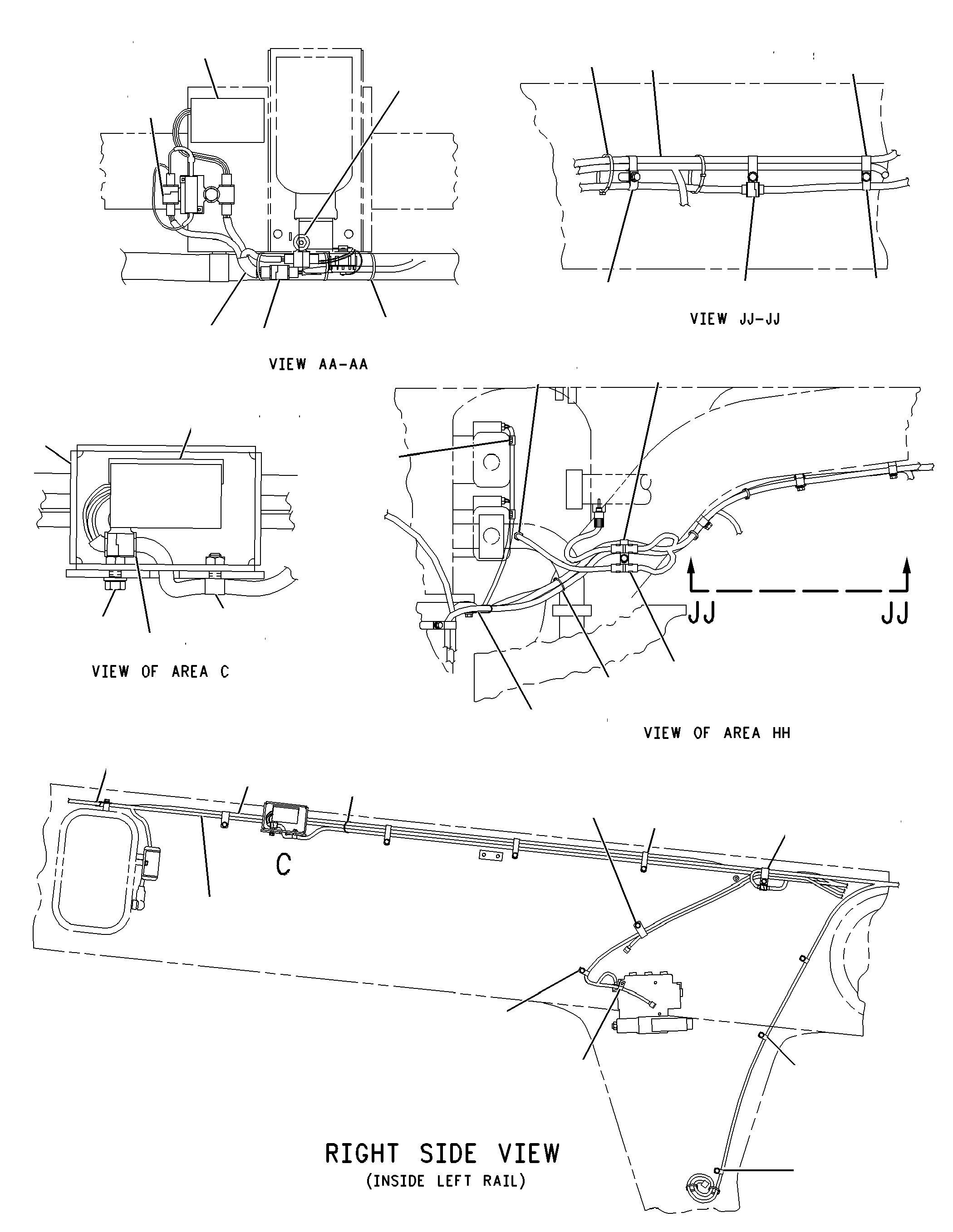

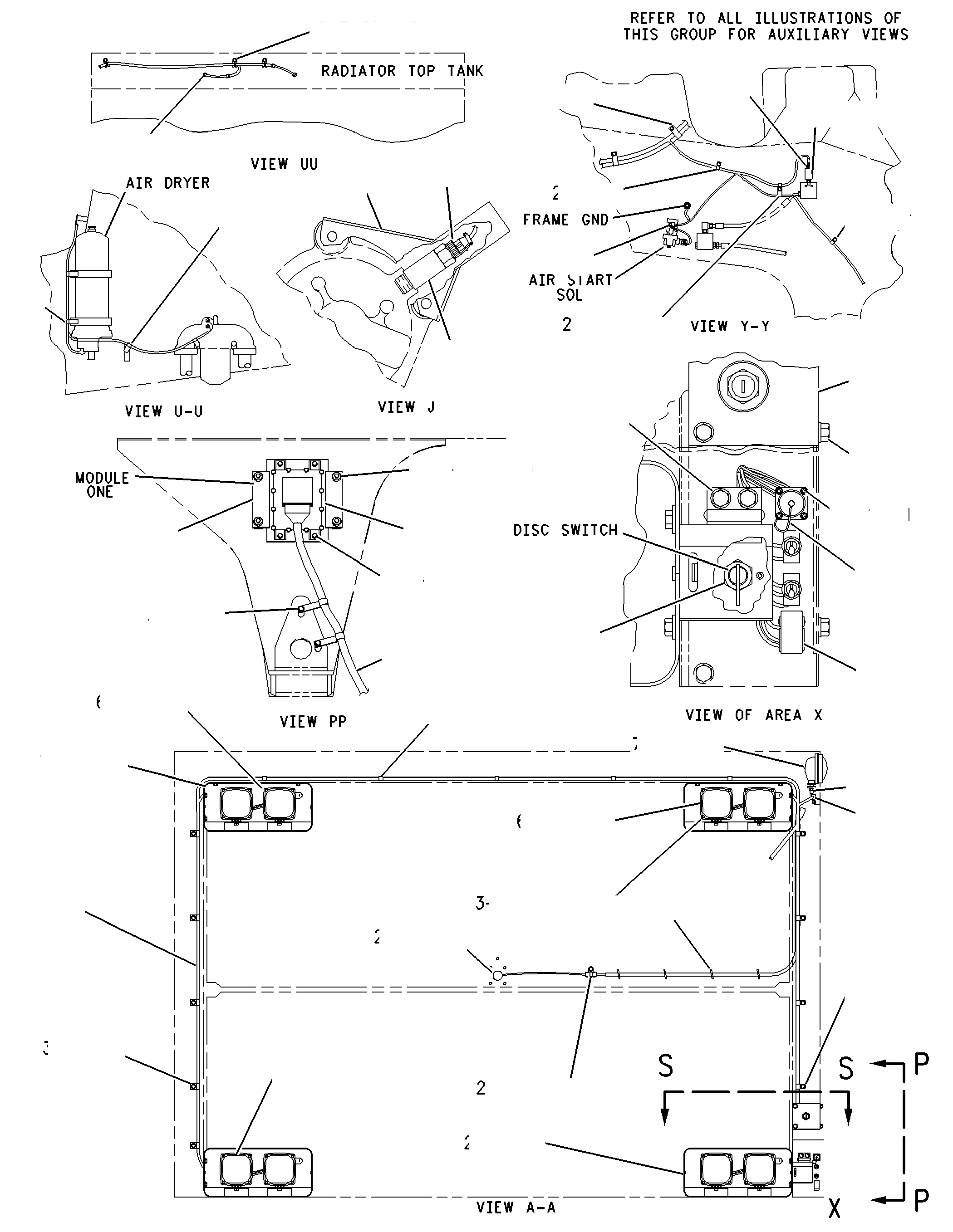

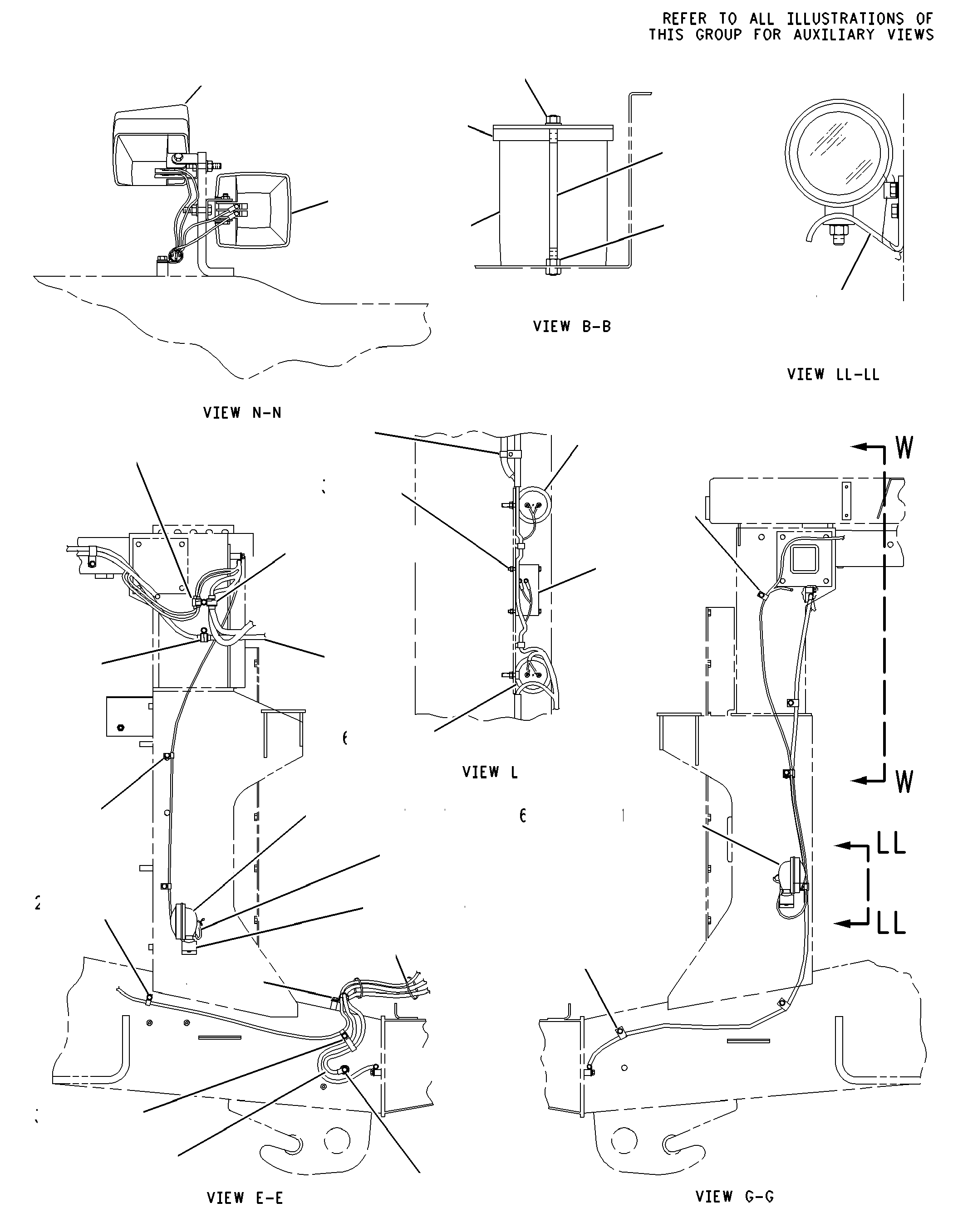

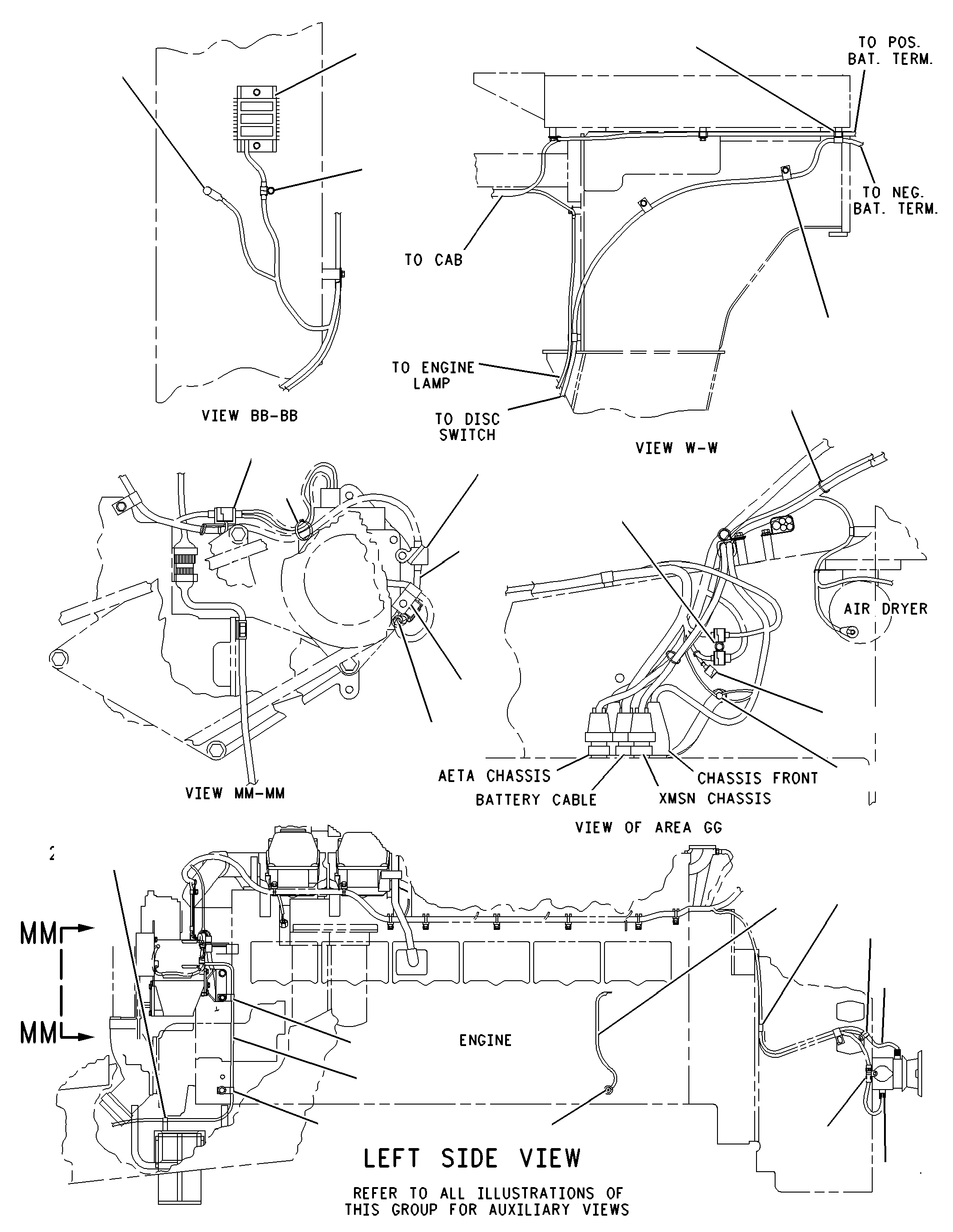

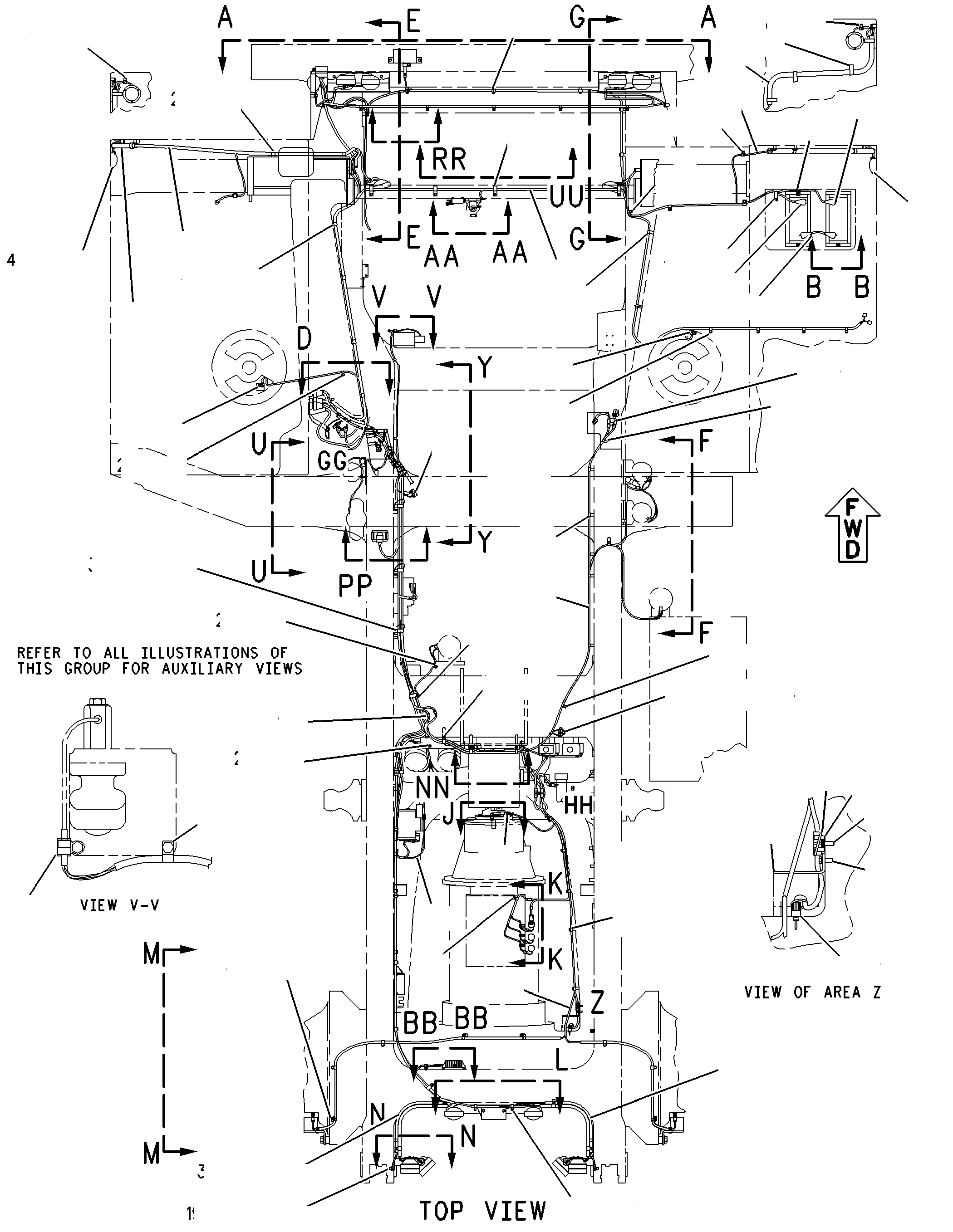

115-6476 WIRING GP-CHASSIS -CHASSISS/N 5RK16-21
Group No: 115-6476
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9G9150 | 1 CLIP | 11 | |
| 5M3062 | 2 BOLT (3/8-16X0.75-IN) | 78 | |
| 8T4896 | 3 WASHER-HARD (10.2X18.5X2.5-MM THK) | 163 | |
| 3T3967 | 4 LAMP GP-SIGNAL (PARKING, TURN) | 4 | |
| 7S4346 | 5 SCREW-MACHINE (10-32X0.5-IN) | 12 | |
| 9F5599 | 6 LOCKWASHER | 24 | |
| 4B2049 | 7 NUT (10-32-THD) | 12 | |
| 1175883 | 8 CABLE AS | 1 | |
| 1584610 | TERMINAL AS (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 2 | |
| 1M6120 | NUT (5/16-18-THD) | 2 | |
| 7X1591 | TERMINAL AS (POSITIVE) | 1 | |
| 8C3056 | CABLE (2-GA, RED)(30CM) | ||
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 1195848 | 9 CABLE GP-BATTERY (NEGATIVE) | 1 | |
| 1584610 | TERMINAL AS (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8C0596 | CABLE (2-GA)(660CM) | ||
| 0375197 | BOOT | 1 | |
| 0918404 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 1 | |
| 3M7212 | 10 TERMINAL-BATTERY | 1 | |
| 5K3294 | 11 CLIP | 5 | |
| 7D4092 | 12 CLIP | 7 | |
| 5P1506 | 13 HOSE (167CM) | ||
| 8W1801 | 14 HARNESS AS (TURN SIGNAL, RH) | 1 | |
| 9M8406 | 15 CLIP (LOOP) | 19 | |
| 0338248 | 16 CLIP (LOOP) | 7 | |
| 5S7379 | 17 BOLT (3/8-16X0.875-IN) | 49 | |
| 9M4995 | 18 CLIP | 2 | |
| 9G9152 | 19 CLIP | 11 | |
| 3J1907 | 21 SEAL-O-RING | 8 | |
| 7K1181 | 22 STRAP-CABLE | 16 | |
| 4K6177 | 23 CLIP | 7 | |
| 1196390 | 24 HARNESS AS (BATTERY CABLE) | 1 | |
| 4S4456 | 25 CLIP | 11 | |
| 4D7794 | 26 CLIP | 16 | |
| 9X3495 | 27 CLIP AS | 7 | |
| 3T3047 | 28 CLIP AS | 3 | |
| 3S8665 | 29 CLIP (LOOP) | 6 | |
| 1196386 | 30 HARNESS AS (LADDER, LH) | 1 | |
| 4D1544 | 31 CLIP | 4 | |
| 3S2093 | 32 STRAP-CABLE | 31 | |
| 4S4455 | 33 CLIP | 5 | |
| 6D2834 | 34 CLIP | 1 | |
| 1196393 | 35 HARNESS AS (CHASSIS, REAR) | 1 | |
| 1114610 | 36 HARNESS AS-MONITOR (VIMS, CAT DATA LINK JUMPER) | 1 | |
| 1179077 | 37 PLATE | 1 | |
| 8T2502 | 38 BOLT (3/8-16X1.125-IN) | 3 | |
| 7N3718 | 39 CLIP | 4 | |
| 1196387 | 40 HARNESS AS | 1 | |
| 1196388 | 41 HARNESS AS (AETA, CHASSIS) | 1 | |
| 8M2770 | 42 CLIP (LOOP) | 12 | |
| 4L6454 | 43 BOLT (3/8-16X1-IN) | 11 | |
| 1S0994 | 44 CLIP (LOOP) | 8 | |
| 8W1087 | 45 TUBE | 2 | |
| 1159175 | 46 HARNESS AS (REAR PAYLOAD) | 1 | |
| 1134339 | 47 SPACER (10.5X18X21-MM THK) | 2 | |
| 5P1075 | 48 WASHER-HARD (10.2X22.5X3-MM THK) | 11 | |
| 5S7383 | 49 BOLT (3/8-16X1.75-IN) | 2 | |
| 9B7237 | 50 BOLT (3/8-16X1.25-IN) | 4 | |
| 6D4636 | 51 CLIP (LOOP) | 3 | |
| 8D0689 | 52 CLIP | 2 | |
| 5P6627 | 53 LOCKWIRE | ||
| 1169933 | 55 SWITCH AS-PRESSURE (T/C INLET FILTER) | 1 | |
| 4D8123 | 56 CLIP (LOOP) | 4 | |
| 3K0360 | 57 SEAL-O-RING | 1 | |
| 3E6955 | 58 SENSOR GP-SPEED (TRANSMISSION) | 1 | |
| 6T4409 | 59 GUARD AS | 1 | |
| 5P6029 | 60 LOCKWIRE | ||
| 5P9085 | 61 CLIP (LOOP) | 9 | |
| 1196391 | 62 HARNESS AS (COOLANT LEVEL)(COOLANT LEVEL) | 1 | |
| 4D8951 | 63 ROD | 4 | |
| 9D6635 | 64 HOLD-DOWN AS-BATTERY | 2 | |
| 6V8188 | 65 NUT (1/2-13-THD) | 13 | |
| 8T4223 | 66 WASHER-HARD (13.5X25.5X3-MM THK) | 7 | |
| 3T5760 | 67 BATTERY GP (12-VOLT, 750-CCA) | 2 | |
| 7I5124 | 68 HARNESS AS-FRONT LIGHTING | 2 | |
| 9X7166 | 69 LAMP GP-HEAD (HIGH BEAM) | 2 | |
| 3T3045 | 70 CLIP AS | 4 | |
| 7I4628 | 71 BRACKET AS | 4 | |
| 7V6063 | 72 BOLT AS | 12 | |
| 8K1433 | 73 GROMMET | 4 | |
| 5P8167 | 74 BOLT (3/8-16X0.625-IN) | 28 | |
| 3T4411 | 75 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS) | 1 | |
| 7D1649 | 76 WASHER-HARD (13.5X32X5-MM THK) | 2 | |
| 3J4818 | 77 LOCKWASHER | 3 | |
| 7N9737 | 78 HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 9G3695 | 79 PLUG-SEAL | 1 | |
| 1196392 | 80 HARNESS AS | 1 | |
| 8E1550 | 81 BRACKET AS | 8 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 8T8911 | 82 BOLT (5/16-18X2-IN) | 10 | |
| 2R0504 | 83 NUT (5/16-18-THD) | 8 | |
| 1183909 | 84 SENSOR GP-TEMPERATURE (AFTERCOOLER) | 1 | |
| 2P1279 | 85 LOCKNUT (9/16-18-THD) | 1 | |
| 6V8801 | 86 NUT (3/8-16-THD) | 9 | |
| 5P9297 | 87 CLIP (LOOP) | 5 | |
| 9X7165 | 88 LAMP GP-HEAD (24-VOLT, LOW BEAM) | 6 | |
| 7I5382 | 89 HARNESS AS | 2 | |
| 9X4381 | 90 LAMP GP-FLOOD (24-VOLT)(BACK-UP) | 2 | |
| 8T4121 | 91 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4133 | 92 NUT (M10X1.5-THD) | 4 | |
| 6V1119 | 93 LAMP GP-SIGNAL (24-VOLT) | 2 | |
| 1081289 | 94 LAMP GP-SIGNAL (STOP, TAIL) | 2 | |
| 3T1815 | 95 ALARM GP | 1 | |
| 8T9379 | 96 BOLT (3/8-16X4.25-IN) | 2 | |
| 3E7812 | 97 SWITCH AS-PRESSURE (STEERING OIL) | 1 | |
| 5P9617 | 98 ADAPTER | 1 | |
| 3J7354 | 99 SEAL-O-RING | 1 | |
| 1182082 | 100 COVER AS | 1 | |
| 8F9836 | BOSS (3/8-16-THD) | 1 | |
| 6V9497 | 101 WASHER-HARD (3.2X6X0.5-MM THK) | 4 | |
| 6B4540 | 102 NUT (4-40-THD) | 4 | |
| 6D3033 | 103 SCREW-SOCKET HEAD (4-40X0.5-IN) | 4 | |
| 8D9537 | 104 CAP-DUST | 1 | |
| 3E5169 | 105 GUARD-SWITCH | 1 | |
| 2A7321 | 106 BOX AS | 1 | |
| 8F8551 | HINGE-BUTT | 1 | |
| 8D2676 | 108 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE LAMP) | 1 | |
| 7N0718 | 109 SWITCH GP-DISCONNECT (BATTERY) | 1 | |
| 9G7641 | 110 SWITCH GP-START (ENGINE, KEY)(ENGINE)(KEY) | 1 | |
| 1106150 | 111 HARNESS AS-SWITCH | 1 | |
| 3T3048 | 112 CLIP AS | 7 | |
| 7I4821 | 113 HARNESS AS (ENGINE SHUTDOWN) | 1 | |
| 8T9383 | 114 BOLT (1/2-13X0.75-IN) | 1 | |
| 1167156 | 115 CABLE AS (ENGINE TO FRAME GROUND) | 2 | |
| 2L0273 | FITTING (RUBBER) | 1 | |
| 6V9023 | TUBE-HEAT SHRINK (12.7-MM DIA)(5CM) | ||
| 8C0596 | CABLE (2-GA)(77CM) | ||
| 0375197 | BOOT | 1 | |
| 0918404 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 2 | |
| 1046387 | 116 SENSOR GP-SPEED (TRANSMISSION INPUT) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 9X1813 | SLEEVE (14CM) | ||
| 1058827 | 117 SUPPRESSOR GP-ELECTRONIC (ARC) | 1 | |
| 6V3265 | 118 CLIP | 1 | |
| 5P9299 | 119 CLIP (LOOP) | 13 | |
| 3T0050 | 120 CLIP | 3 | |
| 9G9154 | 121 CLIP | 5 | |
| 4D1326 | 122 LOCKWASHER | 4 | |
| 8W2686 | 123 BRACKET | 2 | |
| 3D7854 | 124 SPACER | 2 | |
| 6D2256 | 125 SPACER | 2 | |
| 6N7989 | 126 LAMP GP-FLOOD (LADDER ACCESS) | 2 | |
| 7G1060 | 127 STRAP AS-GROUND | 1 | |
| 2T3019 | 128 CLIP (LOOP) | 2 | |
| 1242942 | 129 HARNESS AS-TRANSMISSION (CHASSIS) | 1 | |
| 1028856 | 130 HARNESS AS (REAR LIGHTS) | 1 | |
| 6K2319 | 131 CLIP | 1 | |
| 2R1939 | 132 CLIP (LOOP) | 3 | |
| 6V8189 | 133 NUT (5/16-18-THD) | 1 | |
| 4M0061 | 134 BOLT (5/16-18X0.75-IN) | 9 | |
| 8T4224 | 135 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 4V4760 | 136 COVER | 1 | |
| 4D6466 | 137 CLIP | 3 | |
| 3E0461 | 138 CONTROL GP-ELECTRONIC (BODY POSITIONER) | 1 | |
| 7N7782 | HOUSING-PLUG (14-GA TO 18-GA) | 1 | |
| 9X5617 | FILM-INSTRUCTION (SOLENOID, ELECTRICAL POWER)(BODY UP/DOWN) | 1 | |
| 3V6909 | 139 BLOCK | 1 | |
| 8X1211 | 140 HARNESS AS (STARTING AID) | 1 | |
| 9X9584 | 141 RESISTOR AS | 1 | |
| 3T3270 | WIRE AS (16-GA) | 1 | |
| 8T4136 | 142 BOLT (M10X1.5X25-MM) | 1 | |
| 8T9043 | 143 BOLT (5/16-18X0.875-IN) | 2 | |
| 9X3207 | 144 TIMER GP | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7781 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 8T4191 | 145 BOLT (M10X1.5X16-MM) | 1 | |
| 7X1670 | 146 CONTROL GP-ELECTRONIC (STOP/TAIL) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N8205 | HOUSING-PLUG | 1 | |
| 1113794 | 147 SENSOR GP-COOLANT LEVEL (COOLANT LOSS) | 2 | |
| 4P7581 | 148 CLIP (LADDER) | 3 | |
| 5P4116 | 149 WASHER-HARD (8.8X20.5X2-MM THK) | 8 | |
| 6V6649 | 150 MODULE GP-VIDS/VIMS INTERFACE | 2 | |
| 1178649 | 151 BAR | 2 | |
| 4M5282 | 152 BOLT (1/4-20X1.5-IN) | 4 | |
| 9X6165 | 153 WASHER (6.5X22X2.5-MM THK) | 4 | |
| 8C5608 | 154 SPACER (6.5X9.5X25.4-MM THK) | 4 | |
| 8C5607 | 155 MOUNT-ISOLATION | 8 | |
| 9X8250 | 156 CLIP (LOOP) | 1 | |
| 1178648 | 157 PLATE AS | 1 | |
| 6V1228 | 158 CLIP | 2 | |
| 9N0869 | 159 WASHER-HARD (8.8X25.5X2-MM THK) | 4 | |
| 8T9658 | 160 SPACER (8.2X12.7X25.4-MM THK) | 4 | |
| 8C6561 | 161 BOLT (5/16-18X1.375-IN) | 4 | |
| 8T9655 | 162 MOUNT-ISOLATION | 8 | |
| 1196389 | 163 HARNESS AS (FRONT CHASSIS) | 1 | |
| 7C4354 | 164 CLIP | 1 | |
| 5P5116 | 165 HOSE (18CM) | ||
| 1179079 | 166 PLATE AS | 1 | |
| 1072282 | 167 LAMP GP-SIGNAL (24-VOLT) | 1 | |
| 5C2890 | 168 NUT (M6X1-THD) | 3 | |
| 8T4205 | 169 WASHER-HARD (7.2X14.5X2-MM THK) | 3 | |
| 6K5967 | 170 CLIP | 2 | |
| 9X7781 | 171 SWITCH GP-BYPASS (TRANSMISSION LUBE) | 1 | |
| 9X7781 | 172 SWITCH GP-BYPASS (TRANSMISSION CHARGE) | 1 | |
| 4D1836 | 173 SWITCH-TOGGLE (LADDER LAMP) | 1 | |
| 4D1836 | 174 SWITCH-TOGGLE (ENGINE SHUTDOWN) | 1 | |
| 1003055 | 175 SENSOR GP-TEMPERATURE (BRAKE OIL) | 4 | |
| 1003055 | 176 SENSOR GP-TEMPERATURE (DIFFERENTIAL OIL) | 1 | |
| 1003055 | 177 SENSOR GP-TEMPERATURE (TRANSMISSION OIL) | 1 | |
| 1003055 | 178 SENSOR GP-TEMPERATURE (TORQUE CONVERTER OIL) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 |
