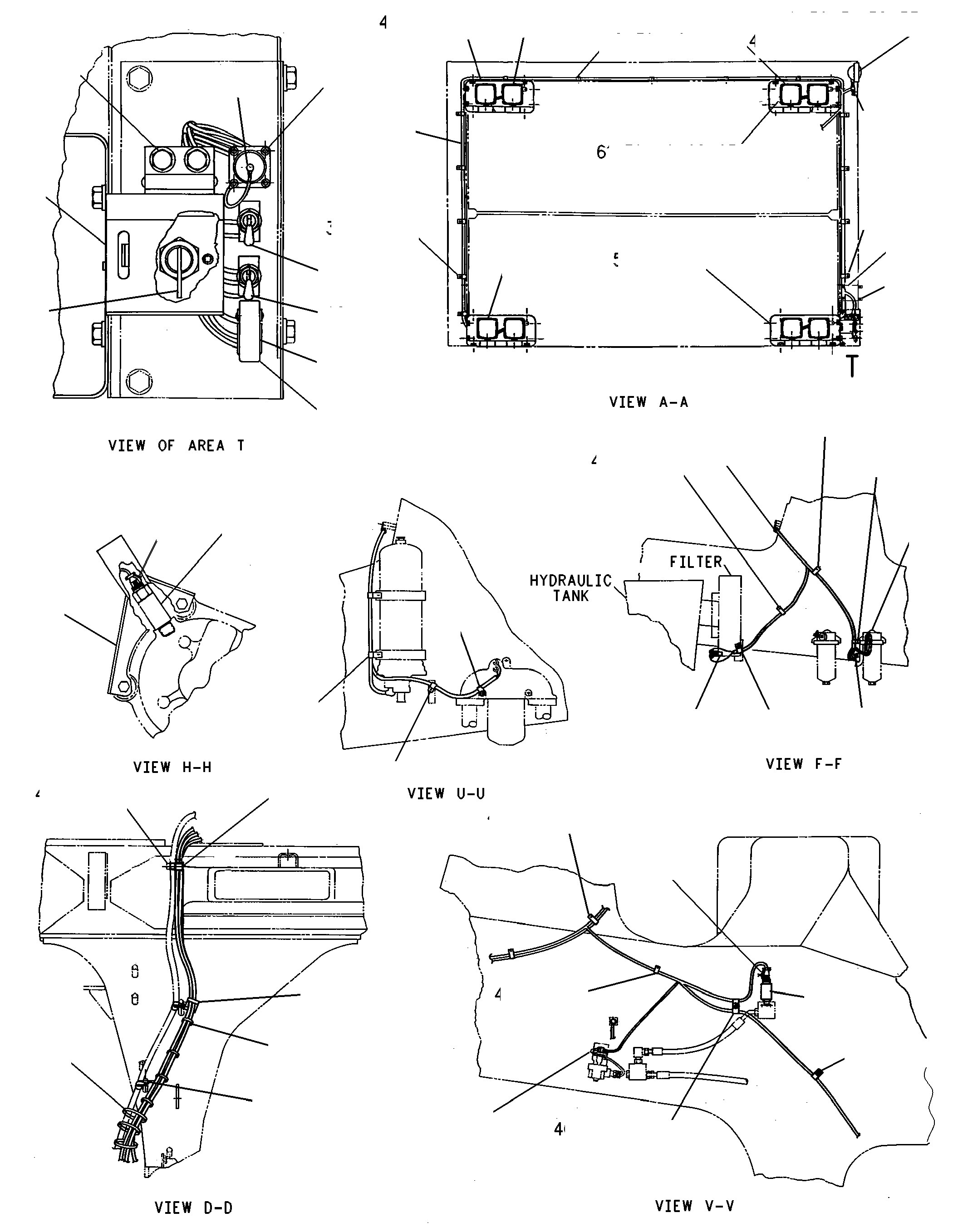

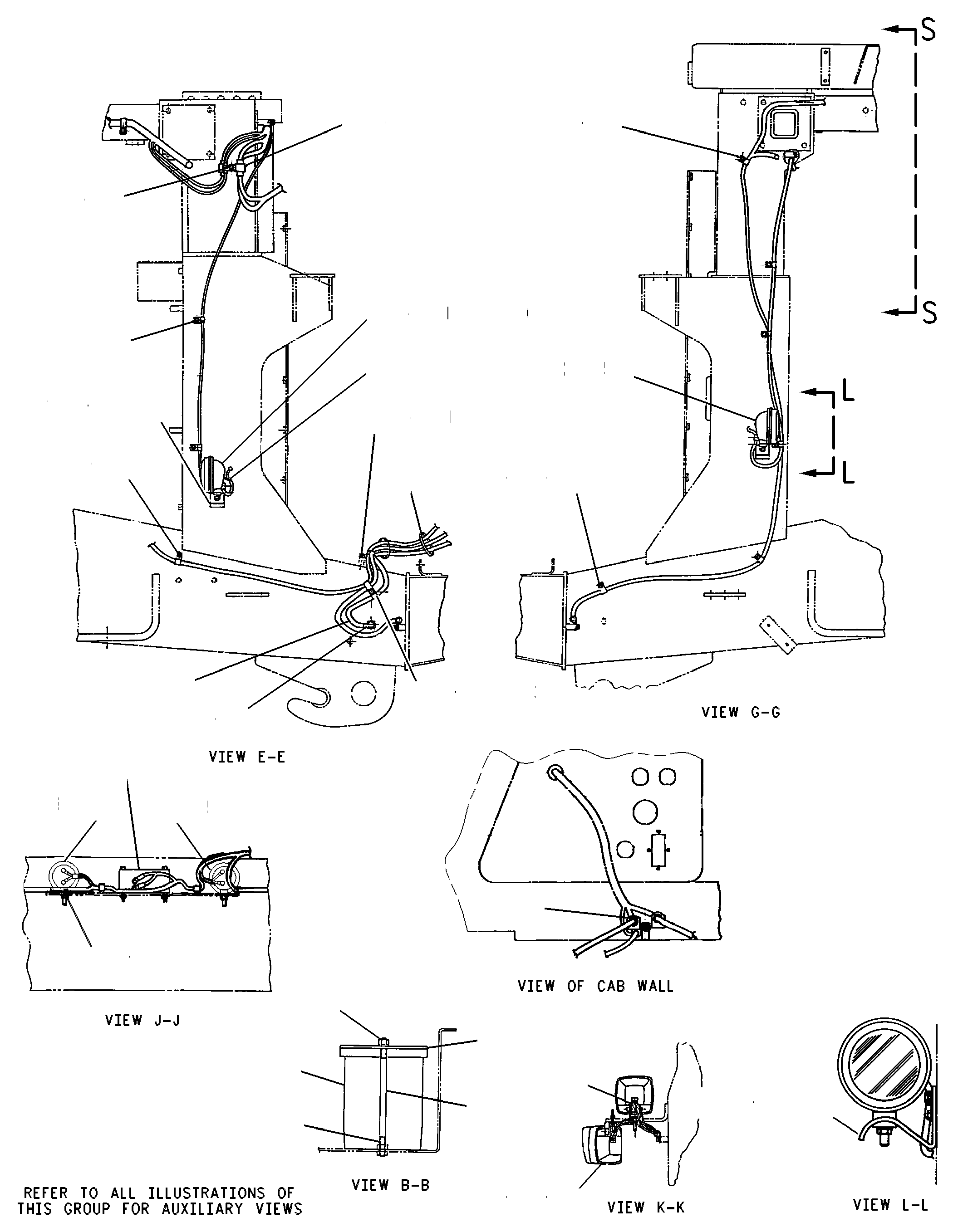

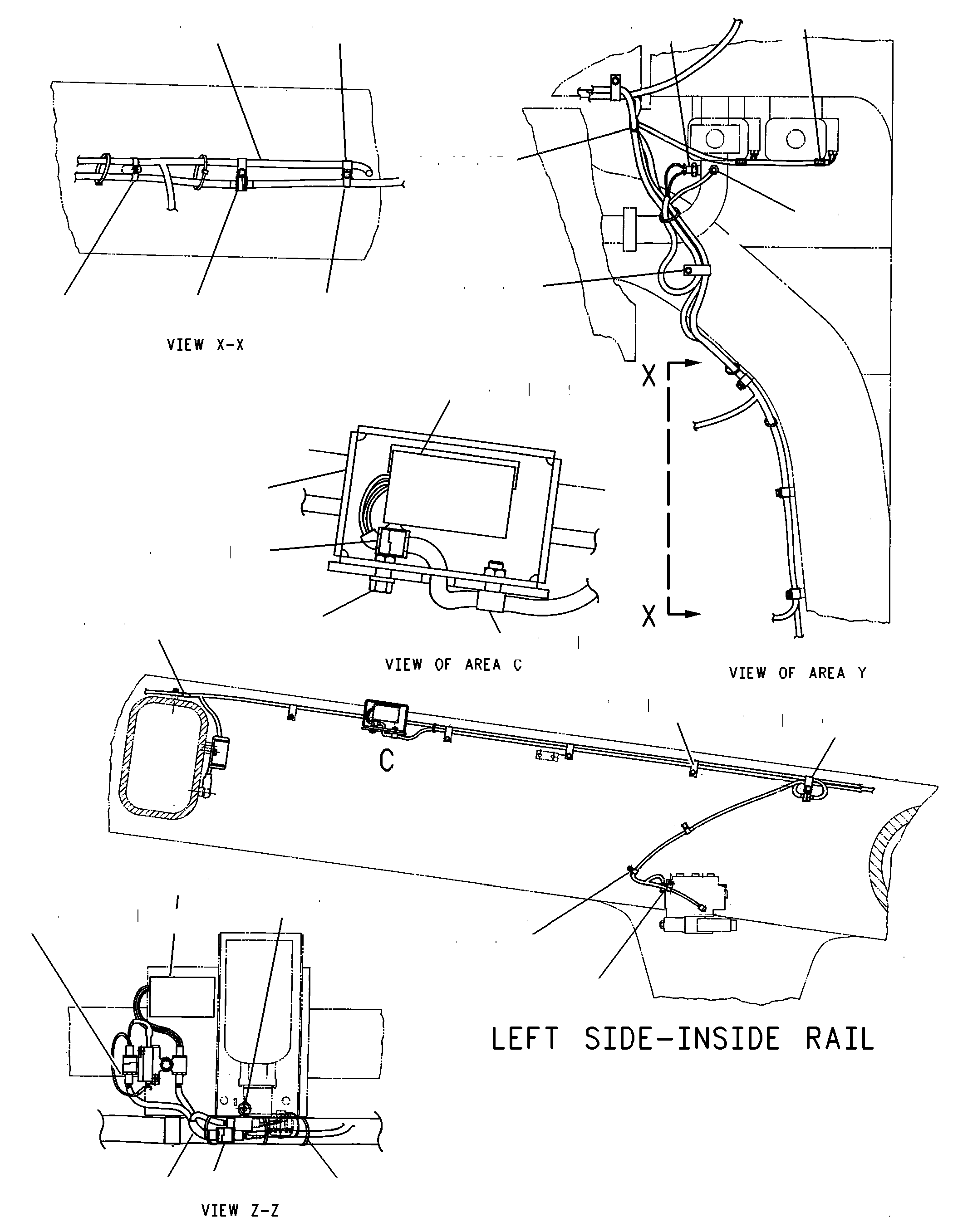

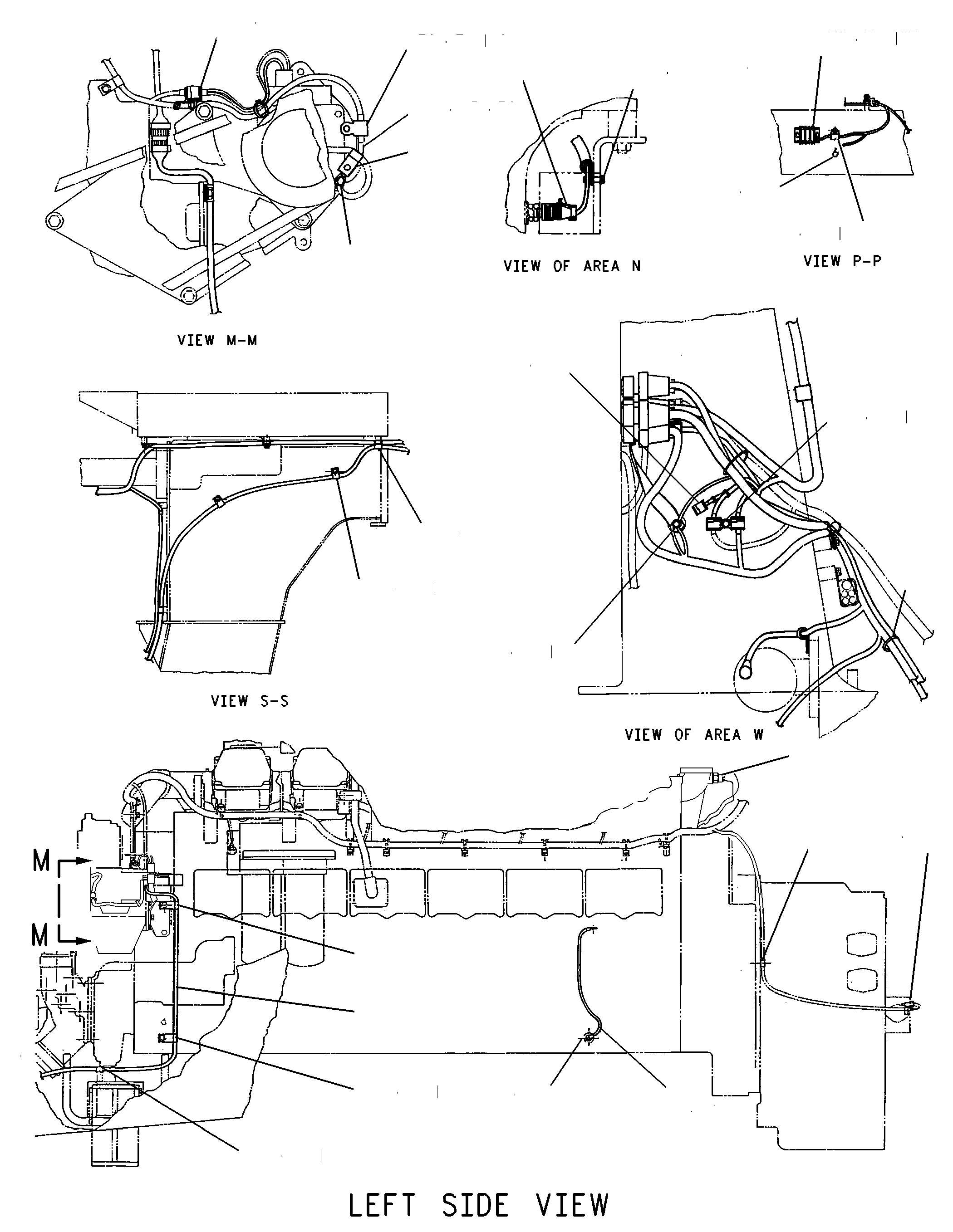

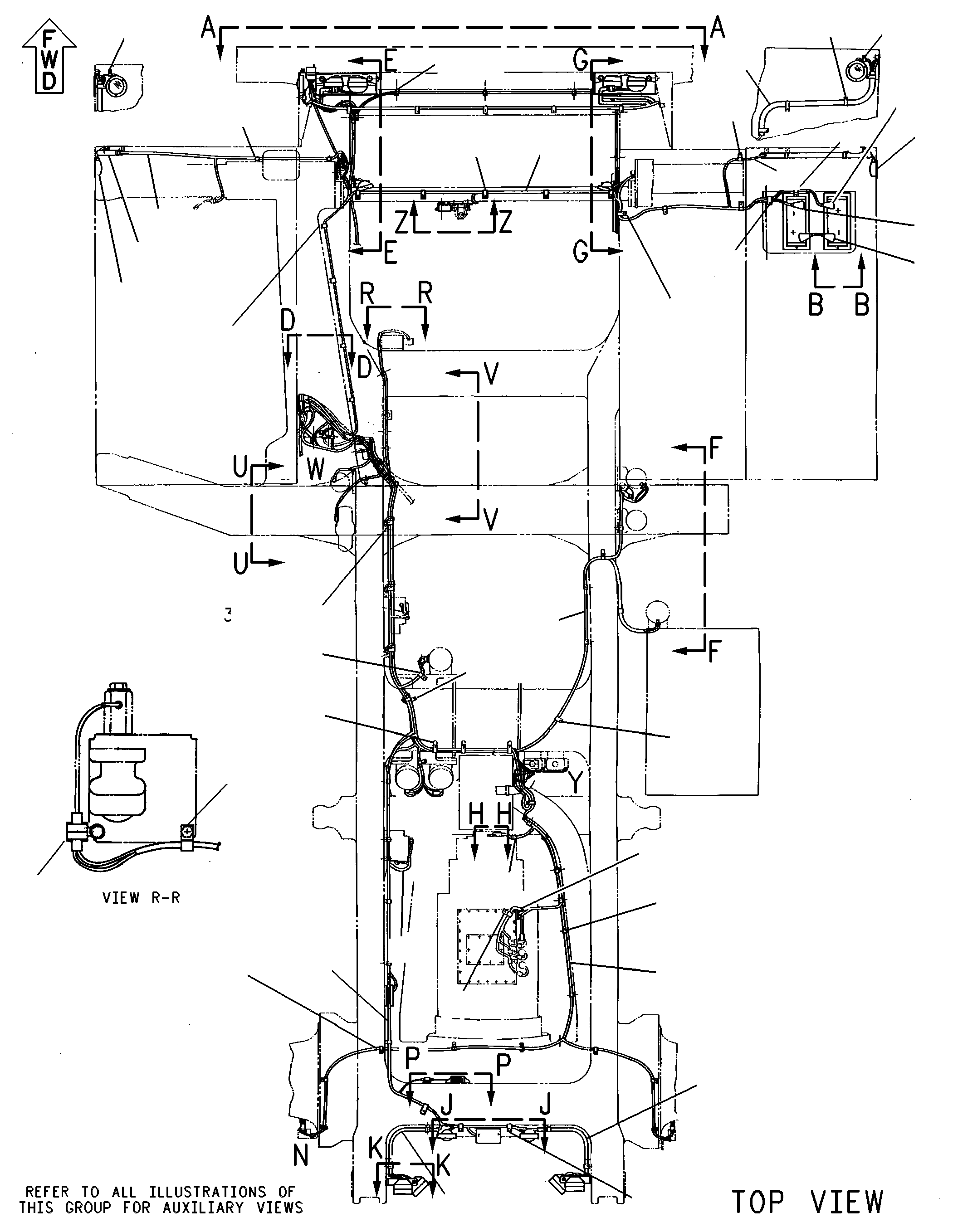

2A-6513 WIRING GP-CHASSIS -CHASSIS (EMS)S/N 5RK16-17
Group No: 2A-6513
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T4896 | 1 WASHER-HARD (10.2X18.5X2.5-MM THK) | 52 | |
| 5S7379 | 2 BOLT (3/8-16X0.875-IN) | 24 | |
| 4D7794 | 3 CLIP | 3 | |
| 9G9150 | 4 CLIP | 6 | |
| 5M3062 | 5 BOLT (3/8-16X0.75-IN) | 25 | |
| 8W1801 | 6 HARNESS AS (TURN SIGNAL, RH) | 1 | |
| 5K3294 | 7 CLIP | 3 | |
| 3T3967 | 8 LAMP GP-SIGNAL (PARKING, TURN) | 4 | |
| 7S4346 | 9 SCREW-MACHINE (10-32X0.5-IN) | 12 | |
| 9F5599 | 10 LOCKWASHER | 24 | |
| 4B2049 | 11 NUT (10-32-THD) | 12 | |
| 1195848 | 12 CABLE GP-BATTERY (NEGATIVE) | 1 | |
| 1584610 | TERMINAL AS (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 0375197 | BOOT | 1 | |
| 0918404 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 1 | |
| 8C0596 | CABLE (2-GA)(660CM) | ||
| 1175883 | 13 CABLE AS | 1 | |
| 1584610 | TERMINAL AS (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 2 | |
| 1M6120 | NUT (5/16-18-THD) | 2 | |
| 7X1591 | TERMINAL AS (POSITIVE) | ||
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 8C0596 | CABLE (2-GA)(30CM) | ||
| 9M4995 | 14 CLIP | 1 | |
| 7D4092 | 15 CLIP | 7 | |
| 5P1506 | 16 HOSE (105CM) | ||
| 0338248 | 17 CLIP (LOOP) | 4 | |
| 1195849 | 18 HARNESS AS (BATTERY CABLE) | 1 | |
| 4S4456 | 19 CLIP | 9 | |
| 5P1506 | 20 HOSE (61CM) | ||
| 2A6818 | 21 HARNESS AS (FRONT CHASSIS, LH) | 1 | |
| 3S8665 | 22 CLIP (LOOP) | 8 | |
| 8M2770 | 23 CLIP (LOOP) | 4 | |
| 4L6454 | 24 BOLT (3/8-16X1-IN) | 3 | |
| 8W1087 | 25 TUBE | 2 | |
| 9M8406 | 26 CLIP (LOOP) | 8 | |
| 1028856 | 27 HARNESS AS (REAR LIGHTS) | 1 | |
| 1196387 | 28 HARNESS AS | 1 | |
| 7N3718 | 29 CLIP | 1 | |
| 1196388 | 30 HARNESS AS (AETA, CHASSIS) | 1 | |
| 4S4455 | 31 CLIP | 3 | |
| 3S2093 | 32 STRAP-CABLE | 4 | |
| 4D1544 | 33 CLIP | 3 | |
| 2A6817 | 34 HARNESS AS (CHASSIS) | 1 | |
| 6D2834 | 35 CLIP | 1 | |
| 3M7212 | 36 TERMINAL-BATTERY | 1 | |
| 5P9299 | 37 CLIP (LOOP) | 3 | |
| 5P9297 | 38 CLIP (LOOP) | 5 | |
| 5P8167 | 39 BOLT (3/8-16X0.625-IN) | 23 | |
| 8T4896 | 40 WASHER-HARD (10.2X18.5X2.5-MM THK) | 41 | |
| 2A6819 | 41 HARNESS AS (HEADLIGHTS) | 1 | |
| 7I4628 | 42 BRACKET AS | 4 | |
| 7V6063 | 43 BOLT AS | 12 | |
| 8K1433 | 44 GROMMET | 4 | |
| 7I5124 | 45 HARNESS AS-FRONT LIGHTING | 2 | |
| 9X7166 | 46 LAMP GP-HEAD (HIGH BEAM) | 2 | |
| 3T3045 | 47 CLIP AS | 4 | |
| 8M2770 | 48 CLIP (LOOP) | 6 | |
| 3T4411 | 49 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS) | 1 | |
| 7D1649 | 50 WASHER-HARD (13.5X32X5-MM THK) | 2 | |
| 3J4818 | 51 LOCKWASHER | 1 | |
| 6V8188 | 52 NUT (1/2-13-THD) | 1 | |
| 7N9737 | 53 HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 9G3695 | PLUG-SEAL | 1 | |
| 9G9150 | 54 CLIP | 2 | |
| 5M3062 | 55 BOLT (3/8-16X0.75-IN) | 18 | |
| 9M8406 | 56 CLIP (LOOP) | 5 | |
| 5P1075 | 57 WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 6V8801 | 58 NUT (3/8-16-THD) | 4 | |
| 9X7165 | 59 LAMP GP-HEAD (24-VOLT, LOW BEAM) | 6 | |
| 7I5382 | 60 HARNESS AS | 2 | |
| 8E1550 | 61 BRACKET AS | 8 | |
| 9F2978 | NUT-WELD (3/8-16-THD) | 1 | |
| 8T8911 | 62 BOLT (5/16-18X2-IN) | 8 | |
| 2R0504 | 63 NUT (5/16-18-THD) | 8 | |
| 7K1181 | 64 STRAP-CABLE | 3 | |
| 8D0689 | 65 CLIP | 2 | |
| 6D4636 | 66 CLIP (LOOP) | 3 | |
| 9B7237 | 67 BOLT (3/8-16X1.25-IN) | 3 | |
| 3S2093 | 68 STRAP-CABLE | 4 | |
| 6T4409 | 69 GUARD AS | 1 | |
| 3E6955 | 70 SENSOR GP-SPEED (TRANSMISSION INPUT) | 1 | |
| 3K0360 | 71 SEAL-O-RING | 2 | |
| 5P6029 | 72 LOCKWIRE | ||
| 4D8123 | 73 CLIP (LOOP) | 4 | |
| 5P9085 | 74 CLIP (LOOP) | 2 | |
| 7N4447 | 75 SWITCH AS-PRESSURE (TC INLET FILTER) | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 3L8187 | LOCKWASHER | 2 | |
| 4D2297 | SEAL-O-RING | 1 | |
| 6V8368 | NUT (6-32-THD) | 2 | |
| 7N3718 | 76 CLIP | 1 | |
| 4D7794 | 77 CLIP | 4 | |
| 0338248 | 78 CLIP (LOOP) | 2 | |
| 9X7781 | 79 SWITCH GP-BYPASS (TRANSMISSION OIL SUPPLY) | 1 | |
| 9G3341 | 80 SWITCH AS-TEMPERATURE (TRANSMISSION FILTER) | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 5S7379 | 81 BOLT (3/8-16X0.875-IN) | 1 | |
| 4D1544 | 82 CLIP | 1 | |
| 3E7812 | 83 SWITCH AS-PRESSURE (STEERING OIL) | 1 | |
| 3J1907 | 84 SEAL-O-RING | 1 | |
| 5P9617 | 85 ADAPTER | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 7N0718 | 86 SWITCH GP-DISCONNECT (BATTERY) | 1 | |
| 6V9497 | 87 WASHER-HARD (3.2X6X0.5-MM THK) | 4 | |
| 6B4540 | NUT (4-40-THD) | 4 | |
| 6D3033 | SCREW-SOCKET HEAD (4-40X0.5-IN) | 4 | |
| 8D9537 | 88 CAP-DUST | 1 | |
| 3E5169 | 89 GUARD-SWITCH | 1 | |
| 8D2676 | 90 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE FLOOD LAMP) | 1 | |
| 3L8187 | LOCKWASHER | 2 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 2 | |
| 2A7321 | 91 BOX AS | 1 | |
| 8F8551 | HINGE-BUTT | 1 | |
| 4D1836 | 92 SWITCH-TOGGLE (LADDER LAMP) | 1 | |
| 4D1836 | 93 SWITCH-TOGGLE (ENGINE SHUTDOWN) | 1 | |
| 1182856 | 94 PLATE | 1 | |
| 6V8188 | 95 NUT (1/2-13-THD) | 12 | |
| 8T4223 | 96 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 9D6635 | 97 HOLD-DOWN AS-BATTERY | 2 | |
| 4D8951 | 98 ROD | 4 | |
| 3T5760 | 99 BATTERY GP (12-VOLT, 750-CCA) | 2 | |
| 9X4381 | 100 LAMP GP-FLOOD (24-VOLT)(BACK-UP) | 2 | |
| 8T4121 | 101 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4133 | 102 NUT (M10X1.5-THD) | 4 | |
| 6V1119 | 103 LAMP GP-SIGNAL (24-VOLT) | 2 | |
| 8T9379 | 104 BOLT (3/8-16X4.25-IN) | 2 | |
| 8T4896 | 105 WASHER-HARD (10.2X18.5X2.5-MM THK) | 14 | |
| 6V8801 | 106 NUT (3/8-16-THD) | 2 | |
| 1081289 | 107 LAMP GP-SIGNAL (STOP, TAIL) | 2 | |
| 5P1075 | 108 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 3T1815 | 109 ALARM GP | 1 | |
| 5M3062 | 110 BOLT (3/8-16X0.75-IN) | 2 | |
| 8M2770 | 111 CLIP (LOOP) | 1 | |
| 4D1326 | 112 LOCKWASHER | 4 | |
| 5P9085 | 113 CLIP (LOOP) | 7 | |
| 5P8167 | 114 BOLT (3/8-16X0.625-IN) | 4 | |
| 8W2686 | 115 BRACKET | 2 | |
| 5S7379 | 116 BOLT (3/8-16X0.875-IN) | 11 | |
| 9G9154 | 117 CLIP | 2 | |
| 9G9152 | 118 CLIP | 1 | |
| 3T0050 | 119 CLIP | 2 | |
| 3D7854 | 120 SPACER (ROUND) | 2 | |
| 6D2256 | 121 SPACER (SQUARE) | 2 | |
| 3J4818 | 122 LOCKWASHER | 2 | |
| 6N7989 | 123 LAMP GP-FLOOD (LADDER ACCESS) | 2 | |
| 3S2093 | 124 STRAP-CABLE | 3 | |
| 4S4455 | 125 CLIP | 1 | |
| 9M4995 | 126 CLIP | 1 | |
| 4D7794 | 127 CLIP | 1 | |
| 1167156 | 128 CABLE AS | 1 | |
| 0375197 | BOOT | 2 | |
| 9G4336 | TERMINAL-RING (4-GA, 3/8-IN SCREW) | 2 | |
| 8C0596 | CABLE (2-GA)(77CM) | ||
| 5P9299 | 129 CLIP (LOOP) | 5 | |
| 8T4896 | 130 WASHER-HARD (10.2X18.5X2.5-MM THK) | 12 | |
| 5M3062 | 131 BOLT (3/8-16X0.75-IN) | 6 | |
| 8M2770 | 132 CLIP (LOOP) | 1 | |
| 7X1670 | 133 CONTROL GP-ELECTRONIC (STOP/TAIL) | 1 | |
| 7N8205 | HOUSING-PLUG | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7I4821 | 134 HARNESS AS (ENGINE SHUTDOWN) | 1 | |
| 8T9383 | 135 BOLT (1/2-13X0.75-IN) | 1 | |
| 7N7849 | 136 SWITCH AS-TEMPERATURE (AFTERCOOLER) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 8T4223 | 137 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 5P1075 | 138 WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 5P8167 | 139 BOLT (3/8-16X0.625-IN) | 1 | |
| 1167156 | 140 CABLE AS | 1 | |
| 0375197 | BOOT | 2 | |
| 0918404 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 2 | |
| 8C0596 | CABLE (2-GA)(77CM) | ||
| 7N3718 | 141 CLIP | 4 | |
| 7N7854 | 142 SWITCH AS-TEMPERATURE (CONV/RETARD) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 4 | |
| 9B7233 | LOCKWASHER | 4 | |
| 3K0360 | 143 SEAL-O-RING | 1 | |
| 3S2093 | 144 STRAP-CABLE | 8 | |
| 3T3048 | 145 CLIP AS | 3 | |
| 9G9150 | 146 CLIP | 1 | |
| 6V3265 | 147 CLIP | 1 | |
| 4L6454 | 148 BOLT (3/8-16X1-IN) | 4 | |
| 5P9299 | 149 CLIP (LOOP) | 5 | |
| 1058827 | 150 SUPPRESSOR GP-ELECTRONIC (ARC) | 1 | |
| 5S7379 | 151 BOLT (3/8-16X0.875-IN) | 5 | |
| 9M8406 | 152 CLIP (LOOP) | 2 | |
| 6V8801 | 153 NUT (3/8-16-THD) | 2 | |
| 5P6627 | 154 LOCKWIRE | ||
| 9G9154 | 155 CLIP | 2 | |
| 4M7146 | 156 STRAP AS-GROUND | 1 | |
| 9G9152 | 157 CLIP | 1 | |
| 2T3019 | 158 CLIP (LOOP) | 2 | |
| 3J1907 | 159 SEAL-O-RING | 1 | |
| 8N3844 | 160 SENDER-TEMPERATURE (BRAKE OIL) | 1 | |
| 8T4896 | 161 WASHER-HARD (10.2X18.5X2.5-MM THK) | 15 | |
| 4L6454 | 162 BOLT (3/8-16X1-IN) | 6 | |
| 4S4456 | 163 CLIP | 3 | |
| 3S2093 | 164 STRAP-CABLE | 7 | |
| 7N7854 | 165 SWITCH AS-TEMPERATURE (BRAKE OIL) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 4 | |
| 9B7233 | LOCKWASHER | 4 | |
| 3K0360 | 166 SEAL-O-RING | 1 | |
| 9G9152 | 167 CLIP | 2 | |
| 9X9584 | 168 RESISTOR AS | 1 | |
| 7N9737 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 5P5623 | WIRE-ELECTRICAL (16-GA, BLACK) | ||
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 8T4136 | 169 BOLT (M10X1.5X25-MM) | 1 | |
| 8T4121 | 170 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T9043 | 171 BOLT (5/16-18X0.875-IN) | 2 | |
| 8T4224 | 172 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 9X3207 | 173 TIMER GP | 1 | |
| 8T4191 | 174 BOLT (M10X1.5X16-MM) | 1 | |
| 9G9150 | 175 CLIP | 1 | |
| 3T3048 | 176 CLIP AS | 1 | |
| 8X1211 | 177 HARNESS AS (STARTING AID) | 1 | |
| 1242942 | 178 HARNESS AS-TRANSMISSION (CHASSIS) | 1 | |
| 5P6029 | 179 LOCKWIRE | ||
| 9M8406 | 180 CLIP (LOOP) | 3 | |
| 8M2770 | 181 CLIP (LOOP) | 4 | |
| 9G9154 | 182 CLIP | 1 | |
| 5S7379 | 183 BOLT (3/8-16X0.875-IN) | 7 | |
| 4K6177 | 184 CLIP | 2 | |
| 2R1939 | 185 CLIP (LOOP) | 3 | |
| 3T0050 | 186 CLIP | 1 | |
| 4M0061 | 187 BOLT (5/16-18X0.75-IN) | 1 | |
| 5M3062 | 188 BOLT (3/8-16X0.75-IN) | 2 | |
| 4D7794 | 189 CLIP | 2 | |
| 4V4760 | 190 COVER | 1 | |
| 8T8911 | 191 BOLT (5/16-18X2-IN) | 2 | |
| 3E0461 | 192 CONTROL GP-ELECTRONIC (BODY POSITION) | 1 | |
| 7N7782 | HOUSING-PLUG (14-GA TO 18-GA) | 1 | |
| 9X5617 | FILM-INSTRUCTION (SOLENOID, ELECTRICAL POWER) | 1 | |
| 3V6909 | 193 BLOCK | 1 | |
| 6V8189 | 194 NUT (5/16-18-THD) | 1 |
