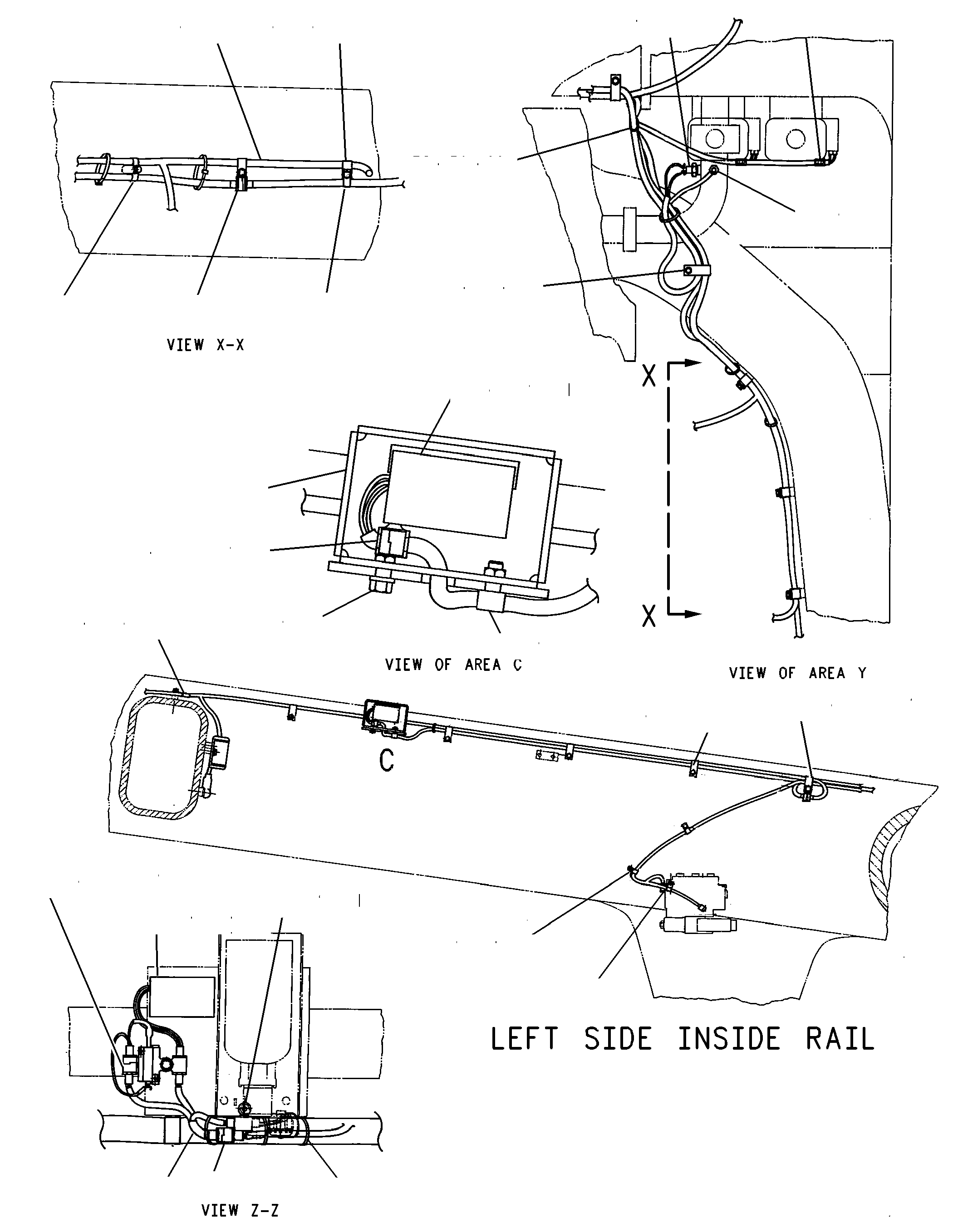

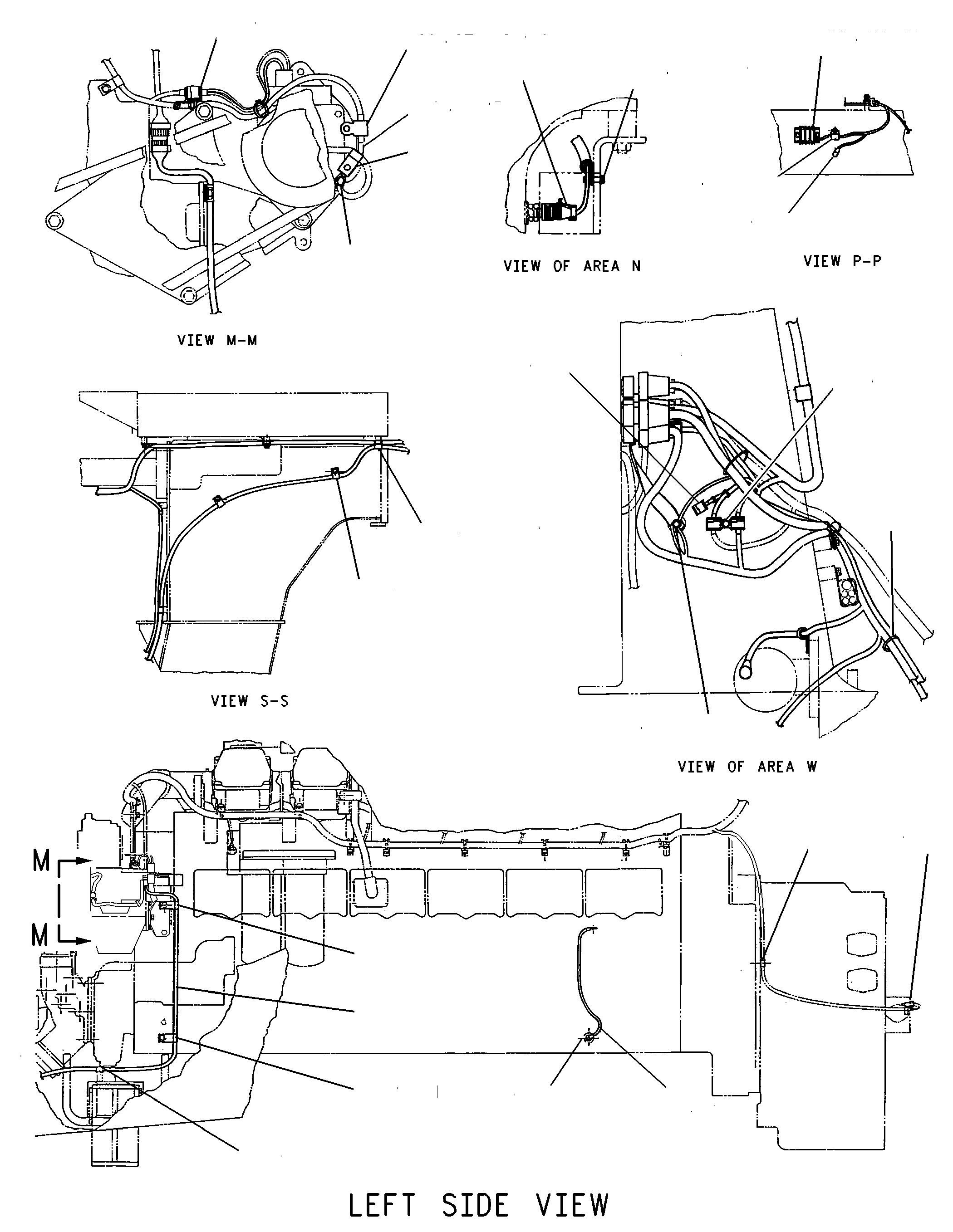

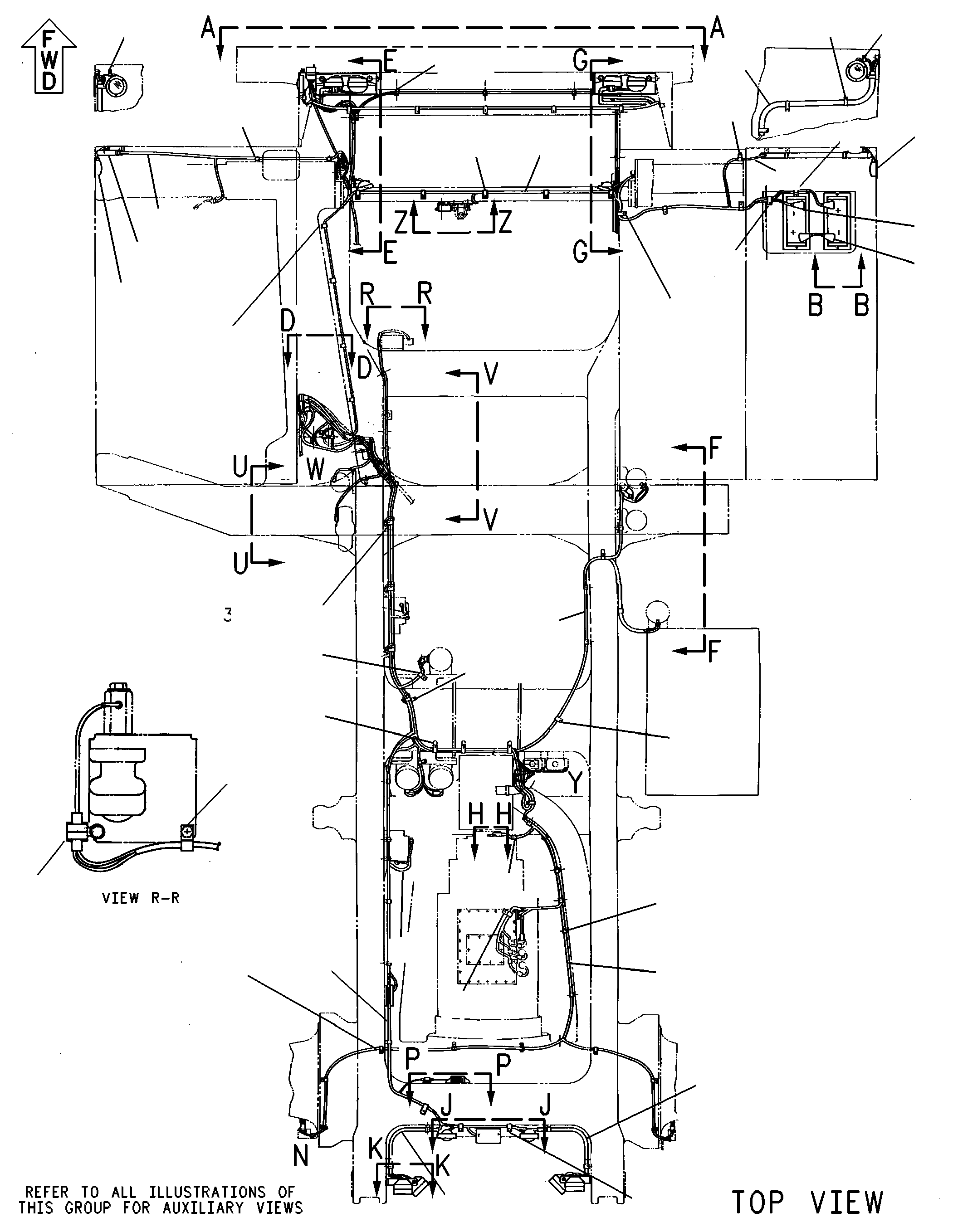

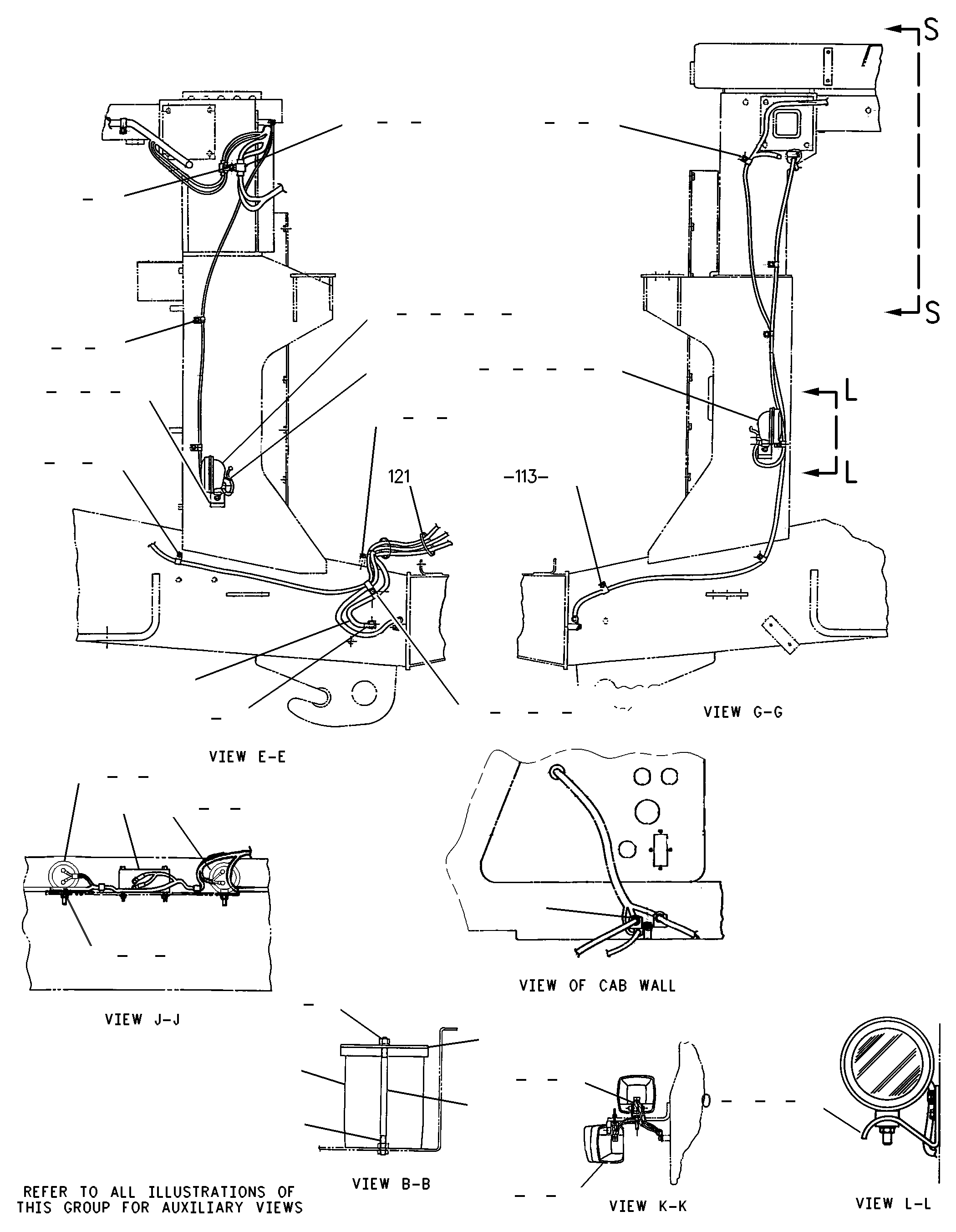

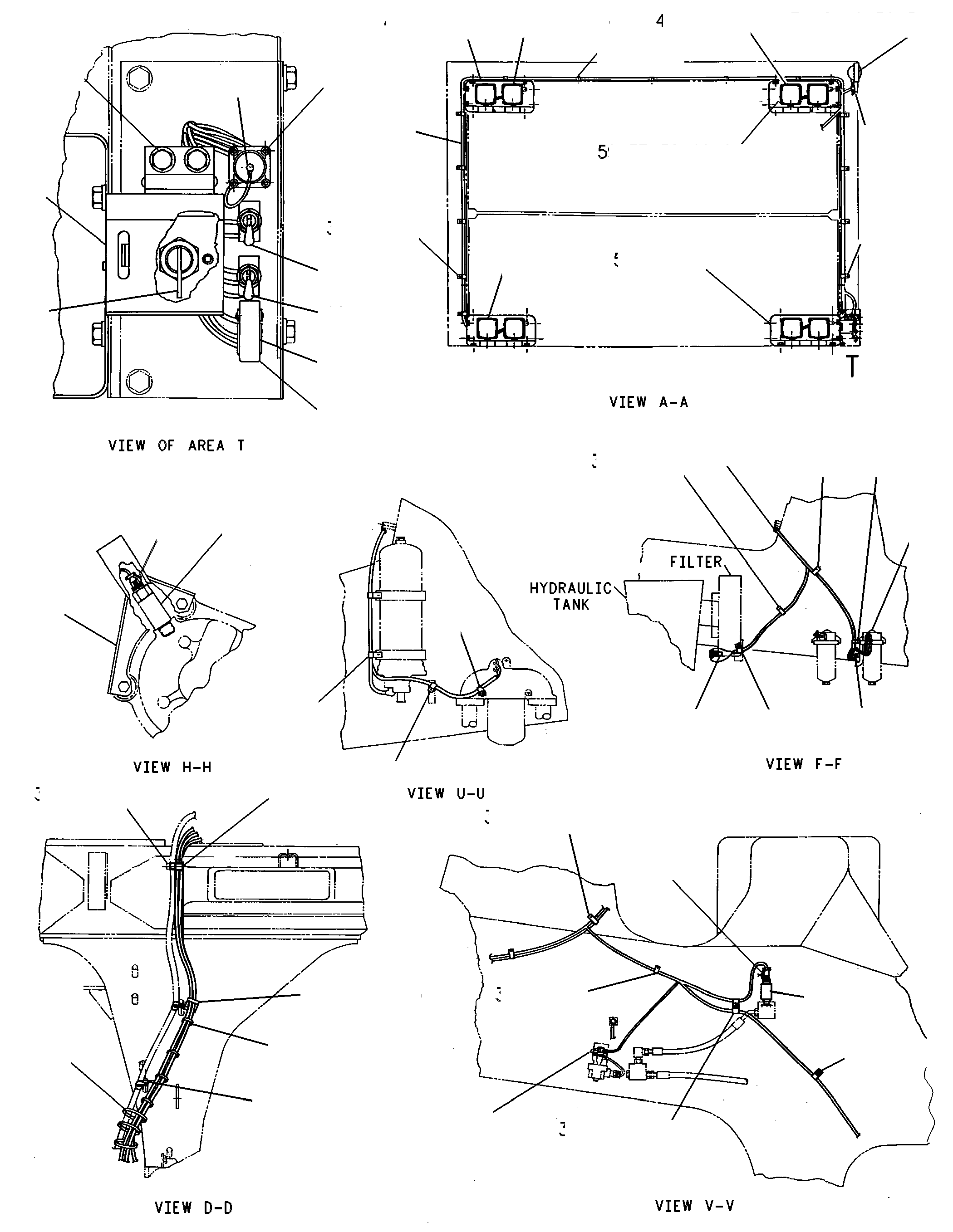

2A-6513 WIRING GP-CHASSIS -CHASSIS (EMS)S/N 6HK161-432

Group No: 2A-6513
Part NumberPart NameQty
8T48961 WASHER-HARD (10.2X18.5X2.5-MM THK)52
5S73792 BOLT (3/8-16X0.875-IN)24
4D77943 CLIP6
9G91504 CLIP6
5M30625 BOLT (3/8-16X0.75-IN)25
8W18016 HARNESS AS (TURN SIGNAL, RH)1
5K32947 CLIP3
3T39678 LAMP GP-SIGNAL (PARKING, TURN)4
7S43469 SCREW-MACHINE (10-32X0.5-IN)12
9F559910 LOCKWASHER24
4B204911 NUT (10-32-THD)12
2A682012 CABLE-BATTERY1
1584610TERMINAL AS (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)1
6V2369CABLE (4-GA, BLACK)(6.6M)
7N5274COVER AS-TERMINAL (BLACK)1
0375197BOOT1
5T466613 CABLE AS1
1584610TERMINAL AS (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)2
1M6120NUT (5/16-18-THD)2
7X1591TERMINAL AS (POSITIVE)1
6V2369CABLE (4-GA, BLACK)(3M)
7N5274COVER AS-TERMINAL (BLACK)1
8N1725COVER AS-TERMINAL (RED)1
9M499514 CLIP1
7D409215 CLIP7
5P150616 HOSE
033824817 CLIP (LOOP)1
2A677718 HARNESS AS (BATTERY CABLE)4
4S445619 CLIP9
5P150620 HOSE
2A681821 HARNESS AS (FRONT CHASSIS, LH)1
3S866522 CLIP (LOOP)8
8M277023 CLIP (LOOP)4
4L645424 BOLT (3/8-16X1-IN)3
8W108725 TUBE2
9M840626 CLIP (LOOP)8
102885627 HARNESS AS (REAR LIGHTS)1
5T888728 HARNESS AS-SENSOR (AETA)1
7N371829 CLIP1
5T888830 HARNESS AS-CHASSIS (TRACTION AID)1
4S445531 CLIP3
3S209332 STRAP-CABLE4
4D154433 CLIP3
2A681734 HARNESS AS (CHASSIS)1
6D283435 CLIP1
5P929736 CLIP (LOOP)5
5P816737 BOLT (3/8-16X0.625-IN)23
8T489638 WASHER-HARD (10.2X18.5X2.5-MM THK)35
2A681939 HARNESS AS (HEADLIGHTS)1
7I462840 BRACKET AS4
7V606341 BOLT AS12
8K143342 GROMMET4
7I512443 HARNESS AS-FRONT LIGHTING2
9X716644 LAMP GP-HEAD (HIGH BEAM)2
3T304545 CLIP AS4
8M277046 CLIP (LOOP)6
3T441147 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS)1
7D164948 WASHER-HARD (13.5X32X5-MM THK)2
3J481849 LOCKWASHER1
6V818850 NUT (1/2-13-THD)1
7N973751 HOUSING-RECEPTACLE (14-GA TO 18-GA)1
9G3695PLUG-SEAL1
9G915052 CLIP2
5M306253 BOLT (3/8-16X0.75-IN)12
9M840654 CLIP (LOOP)5
5P107555 WASHER-HARD (10.2X22.5X3-MM THK)4
6V880156 NUT (3/8-16-THD)4
9X716557 LAMP GP-HEAD (24-VOLT, LOW BEAM)6
7I538258 HARNESS AS2
8E155059 BRACKET AS8
9F2978NUT-WELD (3/8-16-THD)1
8T891160 BOLT (5/16-18X2-IN)8
2R050461 NUT (5/16-18-THD)8
7K118162 STRAP-CABLE3
8D068963 CLIP2
6D463664 CLIP (LOOP)3
9B723765 BOLT (3/8-16X1.25-IN)3
3S209366 STRAP-CABLE4
6T440967 GUARD AS1
3E695568 SENSOR GP-SPEED (TRANSMISSION INPUT)1
3K036069 SEAL-O-RING2
5P602970 LOCKWIRE
4D812371 CLIP (LOOP)4
5P908572 CLIP (LOOP)2
7N444773 SWITCH AS-PRESSURE (TC INLET FILTER)1
2M9780SEAL-O-RING1
3L8187LOCKWASHER2
4D2297SEAL-O-RING1
6V8368NUT (6-32-THD)2
7N371874 CLIP1
4D779475 CLIP4
033824876 CLIP (LOOP)2
9X778177 SWITCH GP-BYPASS (TRANSMISSION OIL SUPPLY)1
9G334178 SWITCH AS-TEMPERATURE (TRANSMISSION FILTER)1
9B7233LOCKWASHER2
6V8376SCREW-MACHINE (8-32X0.25-IN)2
5S737979 BOLT (3/8-16X0.875-IN)1
4D154480 CLIP1
3E781281 SWITCH AS-PRESSURE (STEEERING OIL)1
3J190782 SEAL-O-RING1
5P961783 ADAPTER1
3J7354SEAL-O-RING1
7N071884 SWITCH GP-DISCONNECT1
6V949785 WASHER-HARD (3.2X6X0.5-MM THK)4
6B4540NUT (4-40-THD)4
6D3033SCREW-SOCKET HEAD (4-40X0.5-IN)4
8D953786 CAP-DUST1
3E516987 GUARD-SWITCH1
8D267688 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE FLOOD LAMP)1
3L8187LOCKWASHER2
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
6V8374SCREW-MACHINE (6-32X0.25-IN)2
2A732189 BOX AS1
8F8551HINGE-BUTT1
4D183690 SWITCH-TOGGLE (LADDER LAMP)1
4D183691 SWITCH-TOGGLE (ENGINE SHUT DOWN)1
6V818892 NUT (1/2-13-THD)12
8T422393 WASHER-HARD (13.5X25.5X3-MM THK)6
9D663594 HOLD-DOWN AS-BATTERY2
4D895195 ROD4
3T576096 BATTERY GP (12-VOLT, 750-CCA)2
9X438197 LAMP GP-FLOOD (24-VOLT)(BACK-UP)2
8T412198 WASHER-HARD (11X21X2.5-MM THK)4
8T413399 NUT (M10X1.5-THD)4
6V1119100 LAMP GP-SIGNAL (24-VOLT)2
8T9379101 BOLT (3/8-16X4.25-IN)2
8T4896102 WASHER-HARD (10.2X18.5X2.5-MM THK)14
6V8801103 NUT (3/8-16-THD)2
1081289104 LAMP GP-SIGNAL (STOP, TAIL)2
5P1075105 WASHER-HARD (10.2X22.5X3-MM THK)1
3T1815106 ALARM GP1
5M3062107 BOLT (3/8-16X0.75-IN)2
8M2770108 CLIP (LOOP)1
4D1326109 LOCKWASHER4
5P9085110 CLIP (LOOP)7
5P8167111 BOLT (3/8-16X0.625-IN)4
8W2686112 BRACKET2
5S7379113 BOLT (3/8-16X0.875-IN)11
9G9154114 CLIP2
9G9152115 CLIP1
3T0050116 CLIP2
3D7854117 SPACER (ROUND)2
6D2256118 SPACER (SQUARE)2
3J4818119 LOCKWASHER2
6N7989120 LAMP GP-FLOOD (LADDER ACCESS)2
3S2093121 STRAP-CABLE3
4S4455122 CLIP1
9M4995123 CLIP1
4D7794124 CLIP6
0318761125 CABLE AS1
0375197BOOT2
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)2
6V2369CABLE (4-GA, BLACK)(.8M)
8T4896126 WASHER-HARD (10.2X18.5X2.5-MM THK)14
5M3062127 BOLT (3/8-16X0.75-IN)6
8M2770128 CLIP (LOOP)1
7X1670129 CONTROL GP-ELECTRONIC (STOP/TAIL)1
7N8205HOUSING-PLUG1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)2
7N7780PIN-CONNECTOR (14-GA TO 18-GA)2
7I4821130 HARNESS AS (ENGINE SHUTDOWN)1
8T9383131 BOLT (1/2-13X0.75-IN)1
4D9517132 CLIP1
8T4223133 WASHER-HARD (13.5X25.5X3-MM THK)1
5P1075134 WASHER-HARD (10.2X22.5X3-MM THK)2
5P8167135 BOLT (3/8-16X0.625-IN)1
0318761136 CABLE AS1
0375197BOOT2
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)2
6V2369CABLE (4-GA, BLACK)(.8M)
7N3718137 CLIP3
7N7854138 SWITCH AS-TEMPERATURE (CONV/RETARD)1
6V8376SCREW-MACHINE (8-32X0.25-IN)4
9B7233LOCKWASHER4
3K0360139 SEAL-O-RING1
3S2093140 STRAP-CABLE8
3T3048141 CLIP AS3
9G9150142 CLIP1
6V3265143 CLIP1
4L6454144 BOLT (3/8-16X1-IN)4
5P9299145 CLIP (LOOP)2
5P9297146 CLIP (LOOP)3
5S7379147 BOLT (3/8-16X0.875-IN)5
9M8406148 CLIP (LOOP)2
6V8801149 NUT (3/8-16-THD)2
5P6627150 LOCKWIRE
9G9154151 CLIP2
7G1060152 STRAP AS-GROUND1
9G9152153 CLIP1
1058827154 SUPPRESSOR GP-ELECTRONIC (ARC)1
2T3019155 CLIP (LOOP)2
3J1907156 SEAL-O-RING1
8N3844157 SENDER-TEMPERATURE (BRAKE OIL)1
8T4896158 WASHER-HARD (10.2X18.5X2.5-MM THK)15
4L6454159 BOLT (3/8-16X1-IN)6
4S4456160 CLIP3
3S2093161 STRAP-CABLE7
7N7854162 SWITCH AS-TEMPERATURE (BRAKE OIL)1
6V8376SCREW-MACHINE (8-32X0.25-IN)4
9B7233LOCKWASHER4
3K0360163 SEAL-O-RING1
9G9152164 CLIP2
9X9584165 RESISTOR AS1
7N9737HOUSING-RECEPTACLE (14-GA TO 18-GA)1
5P5623WIRE-ELECTRICAL (16-GA, BLACK)
7N7780PIN-CONNECTOR (14-GA TO 18-GA)1
7N7779SOCKET-CONNECTOR (14-GA TO 18-GA)1
8T4136166 BOLT (M10X1.5X25-MM)1
8T4121167 WASHER-HARD (11X21X2.5-MM THK)2
8T9043168 BOLT (5/16-18X0.875-IN)2
8T4224169 WASHER-HARD (8.8X16X2-MM THK)6
9X3207170 TIMER GP1
8T4191171 BOLT (M10X1.5X16-MM)1
9G9150172 CLIP1
3T3048173 CLIP AS1
8X1211174 HARNESS AS (STARTING AID)1
1029095175 HARNESS AS (TRANSMISSION, CHASSIS)1
5P6029176 LOCKWIRE
9M8406177 CLIP (LOOP)3
8M2770178 CLIP (LOOP)4
9G9154179 CLIP1
5S7379180 BOLT (3/8-16X0.875-IN)7
4K6177181 CLIP2
2R1939182 CLIP (LOOP)3
3T0050183 CLIP1
4M0061184 BOLT (5/16-18X0.75-IN)1
5M3062185 BOLT (3/8-16X0.75-IN)2
4D7794186 CLIP2
4V4760187 COVER1
8T8911188 BOLT (5/16-18X2-IN)2
3E0461189 CONTROL GP-ELECTRONIC (BODY POSITION)1
7N7782HOUSING-PLUG (14-GA TO 18-GA)1
9X5617FILM-INSTRUCTION (SOLENOID, ELECTRICAL POWER)1
3V6909190 BLOCK1
6V8189191 NUT (5/16-18-THD)1
