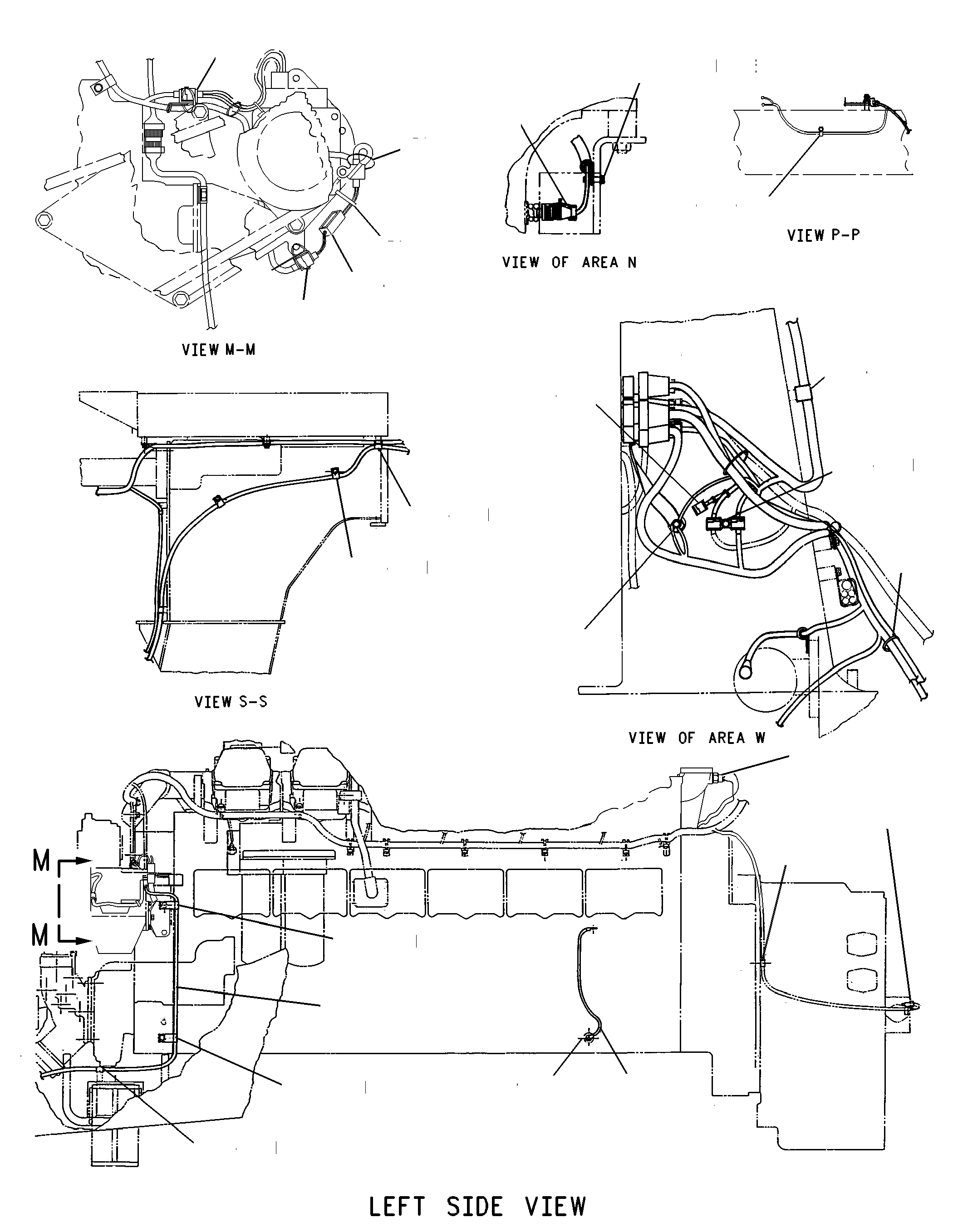

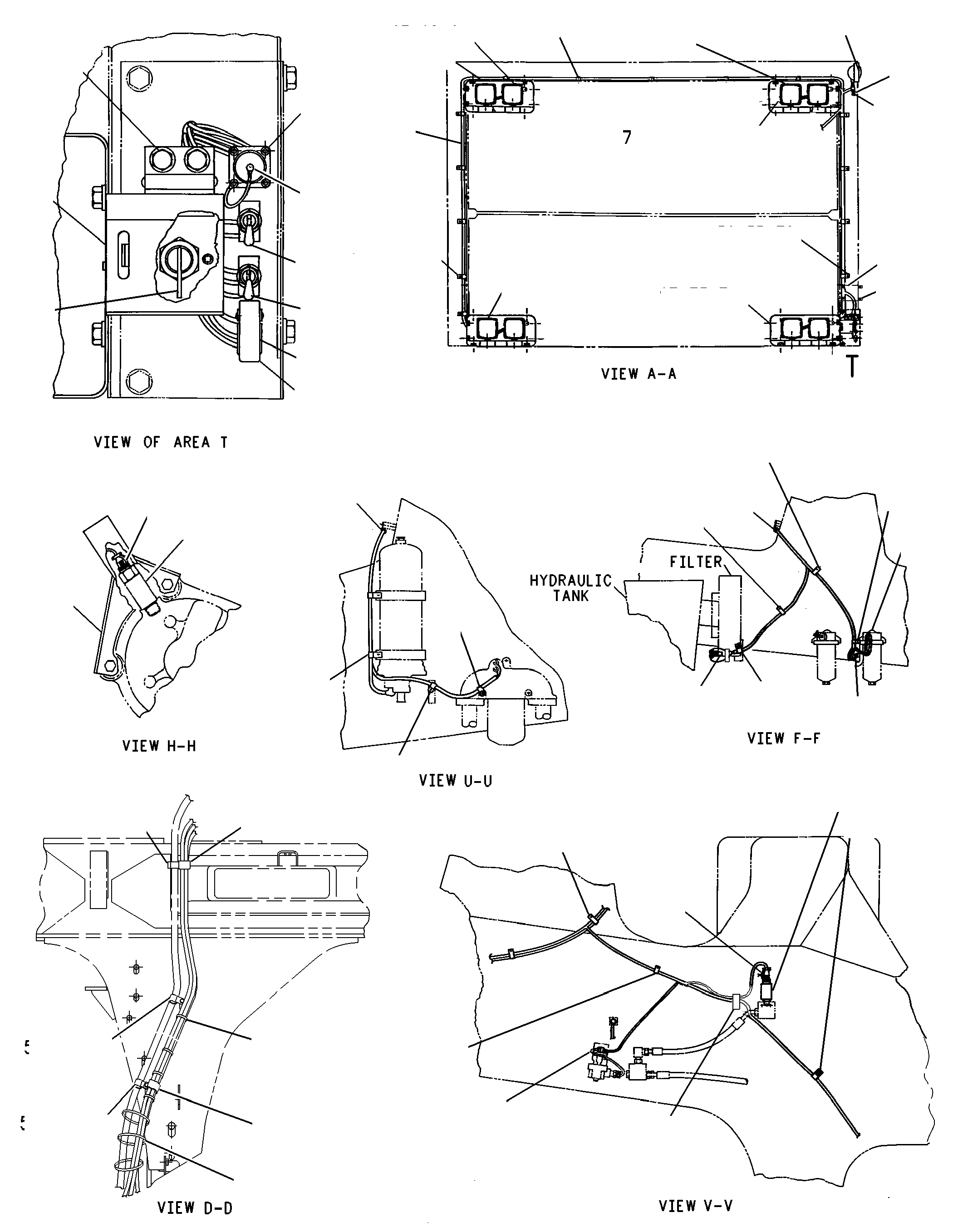

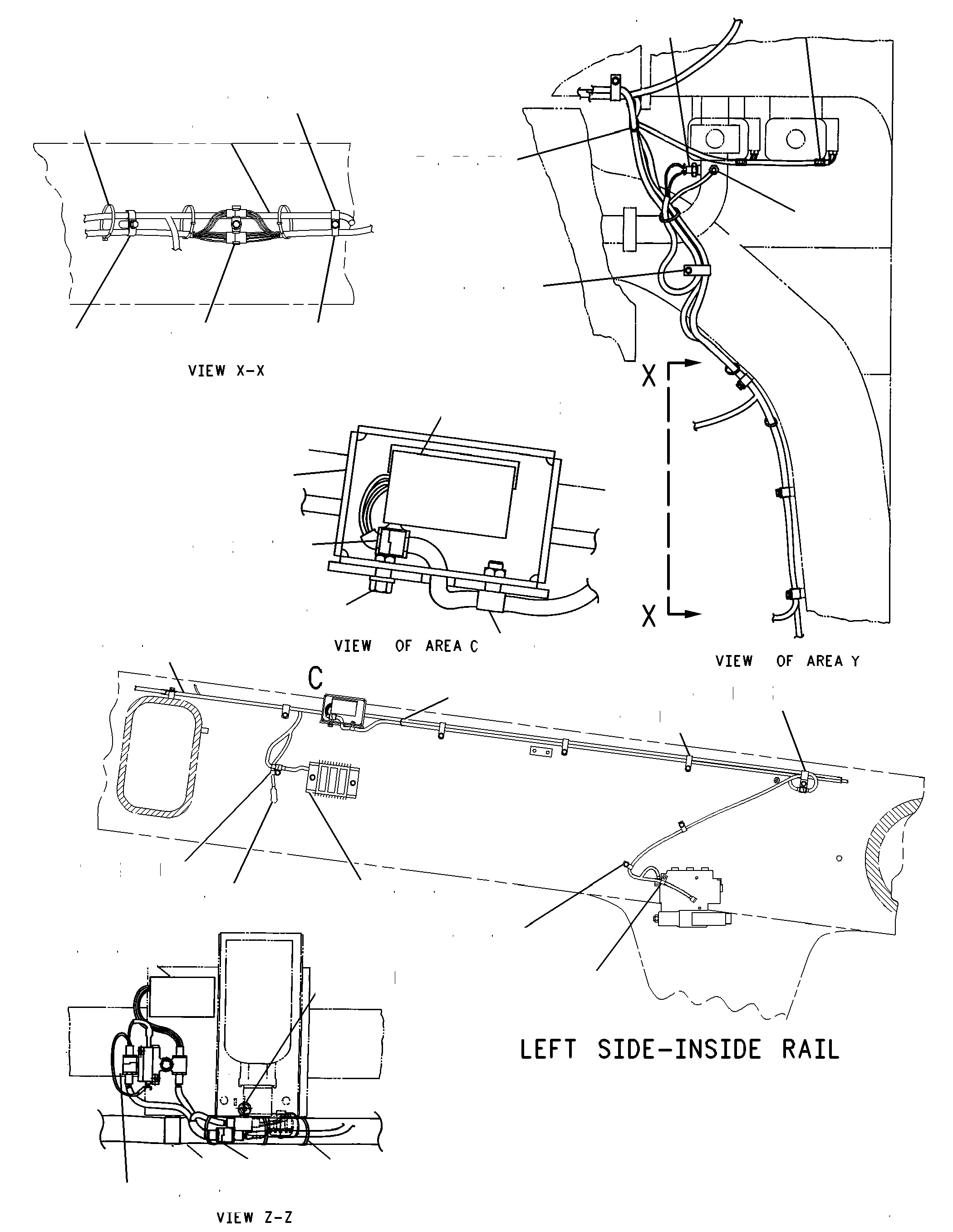

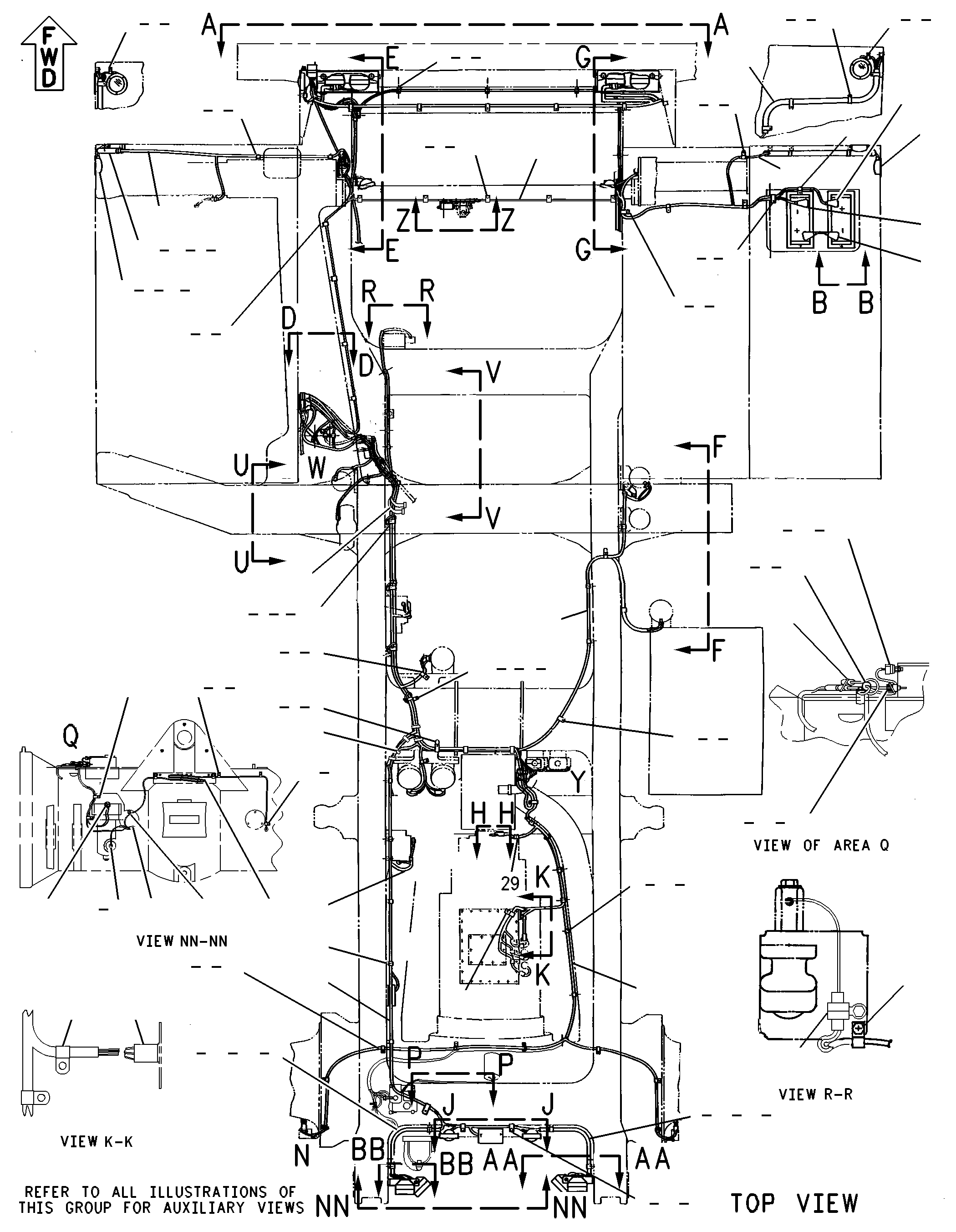

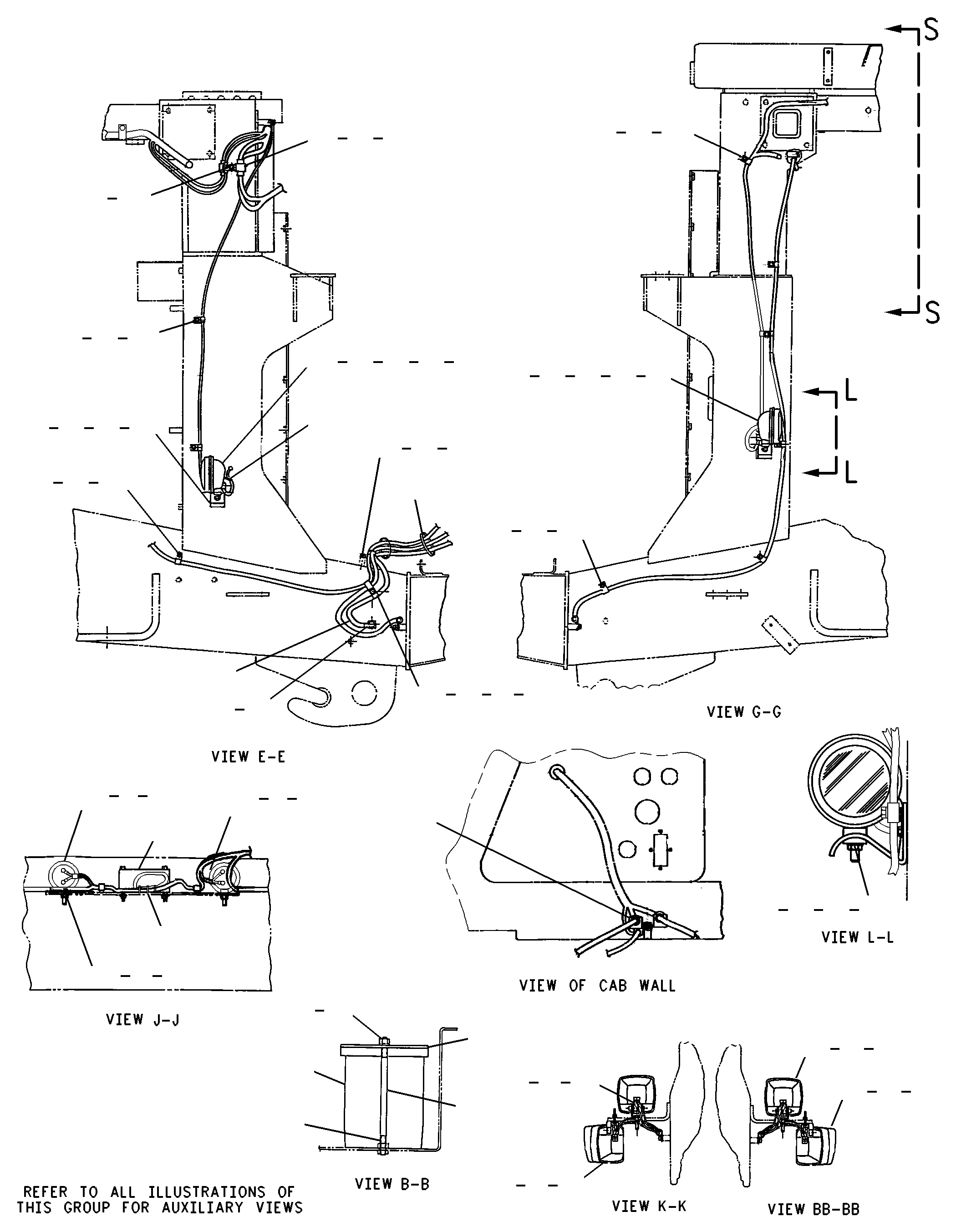

2A-6513 WIRING GP-CHASSIS -CHASSIS (EMS)S/N 6HK523-UP
Group No: 2A-6513
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T4896 | 1 WASHER-HARD (10.2X18.5X2.5-MM THK) | 51 | |
| 5S7379 | 2 BOLT (3/8-16X0.875-IN) | 49 | |
| 4D7794 | 3 CLIP | 2 | |
| 9G9150 | 4 CLIP | 6 | |
| 4D7794 | 5 CLIP | 3 | |
| 8W1801 | 6 HARNESS AS (TURN SIGNAL, RH) | 1 | |
| 5K3294 | 7 CLIP | 3 | |
| 3T3967 | 8 LAMP GP-SIGNAL (PARKING, TURN) | 4 | |
| 7S4346 | 9 SCREW-MACHINE (10-32X0.5-IN) | 12 | |
| 9F5599 | 10 LOCKWASHER | 24 | |
| 4B2049 | 11 NUT (10-32-THD) | 12 | |
| 1195848 | 12 CABLE GP-BATTERY (NEGATIVE) | 1 | |
| 1584610 | TERMINAL AS (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 0375197 | BOOT | 1 | |
| 0918404 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 1 | |
| 8C0596 | CABLE (2-GA)(660CM) | ||
| 1175883 | 13 CABLE AS | 1 | |
| 1584610 | TERMINAL AS (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 2 | |
| 1M6120 | NUT (5/16-18-THD) | 2 | |
| 7X1591 | TERMINAL AS (POSITIVE) | 1 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 8C3056 | CABLE (2-GA, RED)(30CM) | ||
| 9M4995 | 14 CLIP | 1 | |
| 7D4092 | 15 CLIP | 7 | |
| 5P1506 | 16 HOSE (105CM) | ||
| 0338248 | 17 CLIP (LOOP) | 4 | |
| 1195849 | 18 HARNESS AS (BATTERY CABLE) | 1 | |
| 4S4456 | 19 CLIP | 3 | |
| 5P1506 | 20 HOSE (62CM) | ||
| 2A6818 | 21 HARNESS AS (FRONT CHASSIS, LH) | 1 | |
| 3S8665 | 22 CLIP (LOOP) | 8 | |
| 8M2770 | 23 CLIP (LOOP) | 4 | |
| 4L6454 | 24 BOLT (3/8-16X1-IN) | 3 | |
| 8W1087 | 25 TUBE | 2 | |
| 9M8406 | 26 CLIP (LOOP) | 7 | |
| 1306931 | 27 HARNESS AS (REAR LIGHTS) | 1 | |
| 1323676 | 28 HARNESS AS (AETA) | 1 | |
| 7N3718 | 29 CLIP | 1 | |
| 1323685 | 30 HARNESS AS-CHASSIS (AETA, DIFFERENTIAL OIL FILTER) | 1 | |
| 4S4455 | 31 CLIP | 3 | |
| 3S2093 | 32 STRAP-CABLE | 1 | |
| 6D1641 | 33 CLIP (LOOP) | 3 | |
| 1323687 | 34 HARNESS AS (CHASSIS) | 1 | |
| 6D2834 | 35 CLIP | 1 | |
| 3M7212 | 36 TERMINAL-BATTERY | 1 | |
| 5P9299 | 37 CLIP (LOOP) | 3 | |
| 9X7781 | 38 SWITCH GP-BYPASS (DIFFERENTIAL OIL FILTER) | 1 | |
| 3J1907 | 39 SEAL-O-RING | 1 | |
| 7S4244 | 40 CLIP | 3 | |
| 3J7354 | 41 SEAL-O-RING | 2 | |
| 1342492 | 42 HARNESS AS-MONITOR (DIFFERENTIAL OIL LEVEL) | 1 | |
| 9U2277 | 43 CLIP AS | 2 | |
| 1129778 | 44 SENSOR GP-PRESSURE (DIFFERENTIAL FILTER) | 1 | |
| 9X0262 | 45 ADAPTER | 1 | |
| 1232993 | 46 SWITCH GP-LIQUID LEVEL (DIFFERENTIAL OIL) | 2 | |
| 2M9780 | 47 SEAL-O-RING | 2 | |
| 1003055 | 48 SENSOR GP-TEMPERATURE (DIFFERENTIAL OIL) | 1 | |
| 7K1181 | 49 STRAP-CABLE | 13 | |
| 7K1181 | 50 STRAP-CABLE | 30 | |
| 3S2093 | 51 STRAP-CABLE | 10 | |
| 6D4244 | 52 CLIP (LOOP) | 5 | |
| 4P7429 | 53 CLIP (LADDER) | 1 | |
| 5P9297 | 54 CLIP (LOOP) | 5 | |
| 5P8167 | 55 BOLT (3/8-16X0.625-IN) | 23 | |
| 8T4896 | 56 WASHER-HARD (10.2X18.5X2.5-MM THK) | 41 | |
| 2A6819 | 57 HARNESS AS (HEADLIGHTS) | 1 | |
| 7I4628 | 58 BRACKET AS | 4 | |
| 7V6063 | 59 BOLT AS | 12 | |
| 8K1433 | 60 GROMMET | 4 | |
| 7I5124 | 61 HARNESS AS-FRONT LIGHTING | 2 | |
| 9X7166 | 62 LAMP GP-HEAD (HIGH BEAM) | 2 | |
| 3T3045 | 63 CLIP AS | 4 | |
| 8M2770 | 64 CLIP (LOOP) | 6 | |
| 3T4411 | 65 LAMP GP-FLOOD (24-VOLT)(LADDER ACCESS) | 1 | |
| 7D1649 | 66 WASHER-HARD (13.5X32X5-MM THK) | 2 | |
| 3J4818 | 67 LOCKWASHER | 1 | |
| 6V8188 | 68 NUT (1/2-13-THD) | 1 | |
| 7N9737 | 69 HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 9G3695 | PLUG-SEAL | 1 | |
| 9G9150 | 70 CLIP | 2 | |
| 9X8582 | 71 CLIP (LOOP) | 1 | |
| 6D4246 | 72 CLIP (LOOP) | 5 | |
| 5P1075 | 73 WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 6V8801 | 74 NUT (3/8-16-THD) | 4 | |
| 9X7165 | 75 LAMP GP-HEAD (24-VOLT, LOW BEAM) | 6 | |
| 7I5382 | 76 HARNESS AS | 2 | |
| 8E1550 | 77 BRACKET AS | 8 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 8T8911 | 78 BOLT (5/16-18X2-IN) | 8 | |
| 3E9860 | 79 LOCKNUT (5/16-18-THD) | 8 | |
| 7K1181 | 80 STRAP-CABLE | 10 | |
| 8D0689 | 81 CLIP | 2 | |
| 6D4636 | 82 CLIP (LOOP) | 3 | |
| 4L6454 | 83 BOLT (3/8-16X1-IN) | 3 | |
| 3S2093 | 84 STRAP-CABLE | 6 | |
| 6T4409 | 85 GUARD AS | 1 | |
| 1440178 | 86 SENSOR GP-SPEED (TRANSMISSION INPUT) | 1 | |
| 3E6460 | RETAINER | 1 | |
| 4B4277 | WASHER (8.8X17.5X1.6-MM THK) | 1 | |
| 8M8997 | SEAL-O-RING | 1 | |
| 3K0360 | 87 SEAL-O-RING | 2 | |
| 5P6029 | 88 LOCKWIRE | ||
| 4D8123 | 89 CLIP (LOOP) | 2 | |
| 5P9085 | 90 CLIP (LOOP) | 3 | |
| 1445661 | 91 SWITCH AS-PRESSURE (TC INLET FILTER) | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 6V3922 | SEAL-O-RING | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1813 | SLEEVE | ||
| 7N3718 | 92 CLIP | 1 | |
| 4D7794 | 93 CLIP | 3 | |
| 0338248 | 94 CLIP (LOOP) | 2 | |
| 9X7781 | 95 SWITCH GP-BYPASS (TRANSMISSION OIL SUPPLY) | 1 | |
| 9G3341 | 96 SWITCH AS-TEMPERATURE (TRANSMISSION FILTER) | 1 | |
| 9B7233 | LOCKWASHER | 2 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 5S7379 | 97 BOLT (3/8-16X0.875-IN) | 20 | |
| 6D1641 | 98 CLIP (LOOP) | 1 | |
| 3E7812 | 99 SWITCH AS-PRESSURE (STEEERING OIL) | 1 | |
| 3J1907 | 100 SEAL-O-RING | 1 | |
| 5P9617 | 101 ADAPTER | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 7N0718 | 102 SWITCH GP-DISCONNECT | 1 | |
| 6V9497 | 103 WASHER-HARD (3.2X6X0.5-MM THK) | 4 | |
| 6B4540 | NUT (4-40-THD) | 4 | |
| 6D3033 | SCREW-SOCKET HEAD (4-40X0.5-IN) | 4 | |
| 8D9537 | 104 CAP-DUST | 1 | |
| 3E5169 | 105 GUARD-SWITCH | 1 | |
| 8D2676 | 106 SWITCH AS-TOGGLE (SINGLE POLE)(ENGINE FLOOD LAMP) | 1 | |
| 3L8187 | LOCKWASHER | 2 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 2 | |
| 2A7321 | 107 BOX AS | 1 | |
| 8F8551 | HINGE-BUTT | 1 | |
| 4D1836 | 108 SWITCH-TOGGLE (LADDER LAMP) | 1 | |
| 4D1836 | 109 SWITCH-TOGGLE (ENGINE SHUTDOWN) | 1 | |
| 1182856 | 110 PLATE | 1 | |
| 6V8188 | 111 NUT (1/2-13-THD) | 12 | |
| 8T4223 | 112 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 9D6635 | 113 HOLD-DOWN AS-BATTERY | 2 | |
| 4D8951 | 114 ROD | 4 | |
| 3T5760 | 115 BATTERY GP (12-VOLT, 750-CCA) | 2 | |
| 9X4381 | 116 LAMP GP-FLOOD (24-VOLT)(BACK-UP) | 2 | |
| 8T4121 | 117 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4133 | 118 NUT (M10X1.5-THD) | 4 | |
| 6V1119 | 119 LAMP GP-SIGNAL (24-VOLT) | 2 | |
| 8T9379 | 120 BOLT (3/8-16X4.25-IN) | 2 | |
| 8T4896 | 121 WASHER-HARD (10.2X18.5X2.5-MM THK) | 14 | |
| 6V8801 | 122 NUT (3/8-16-THD) | 2 | |
| 1081289 | 123 LAMP GP-SIGNAL (STOP, TAIL) | 2 | |
| 5P1075 | 124 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 1236449 | 125 ALARM GP | 1 | |
| 5P9299 | 126 CLIP (LOOP) | 5 | |
| 8M2770 | 127 CLIP (LOOP) | 1 | |
| 4D1326 | 128 LOCKWASHER | 4 | |
| 5P9085 | 129 CLIP (LOOP) | 7 | |
| 5P8167 | 130 BOLT (3/8-16X0.625-IN) | 4 | |
| 8W2686 | 131 BRACKET | 2 | |
| 5S7379 | 132 BOLT (3/8-16X0.875-IN) | 13 | |
| 9G9154 | 133 CLIP | 2 | |
| 9G9152 | 134 CLIP | 1 | |
| 3T0050 | 135 CLIP | 2 | |
| 3D7854 | 136 SPACER (ROUND) | 2 | |
| 6D2256 | 137 SPACER (SQUARE) | 2 | |
| 3J4818 | 138 LOCKWASHER | 2 | |
| 6N7989 | 139 LAMP GP-FLOOD (LADDER ACCESS) | 2 | |
| 3S2093 | 140 STRAP-CABLE | 6 | |
| 4S4455 | 141 CLIP | 1 | |
| 9M4995 | 142 CLIP | 1 | |
| 4D7794 | 143 CLIP | 1 | |
| 1167156 | 144 CABLE AS | 1 | |
| 2L0273 | FITTING (RUBBER) | 1 | |
| 6V9023 | TUBE-HEAT SHRINK (12.7-MM DIA) | ||
| 0375197 | BOOT | 2 | |
| 9G4336 | TERMINAL-RING (4-GA, 3/8-IN SCREW) | 2 | |
| 8C0596 | CABLE (2-GA)(77CM) | ||
| 8T4896 | 145 WASHER-HARD (10.2X18.5X2.5-MM THK) | 10 | |
| 4S4456 | 146 CLIP | 1 | |
| 8M2770 | 147 CLIP (LOOP) | 1 | |
| 4M7146 | 148 STRAP AS-GROUND | 1 | |
| 7I4821 | 149 HARNESS AS (ENGINE SHUTDOWN) | 1 | |
| 8T9383 | 150 BOLT (1/2-13X0.75-IN) | 1 | |
| 7N7849 | 151 SWITCH AS-TEMPERATURE (AFTERCOOLER) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 8T4223 | 152 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 5P1075 | 153 WASHER-HARD (10.2X22.5X3-MM THK) | 3 | |
| 5P8167 | 154 BOLT (3/8-16X0.625-IN) | 1 | |
| 1167156 | 155 CABLE AS | 1 | |
| 2L0273 | FITTING (RUBBER) | 1 | |
| 6V9023 | TUBE-HEAT SHRINK (12.7-MM DIA) | ||
| 0375197 | BOOT | 2 | |
| 0918404 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 2 | |
| 8C0596 | CABLE (2-GA)(77CM) | ||
| 7N3718 | 156 CLIP | 4 | |
| 7N7854 | 157 SWITCH AS-TEMPERATURE (CONV/RETARD) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 3K0360 | 158 SEAL-O-RING | 1 | |
| 3S2093 | 159 STRAP-CABLE | 11 | |
| 3T3048 | 160 CLIP AS | 2 | |
| 0338248 | 161 CLIP (LOOP) | 1 | |
| 9G9154 | 162 CLIP | 2 | |
| 4L6454 | 163 BOLT (3/8-16X1-IN) | 2 | |
| 5P9299 | 164 CLIP (LOOP) | 5 | |
| 1058827 | 165 SUPPRESSOR GP-ELECTRONIC (ARC) | 1 | |
| 5S7379 | 166 BOLT (3/8-16X0.875-IN) | 10 | |
| 9M8406 | 167 CLIP (LOOP) | 2 | |
| 6V8801 | 168 NUT (3/8-16-THD) | 2 | |
| 5P6029 | 169 LOCKWIRE | ||
| 8T8917 | 170 BOLT (1/2-13X1.25-IN) | 1 | |
| 2T3019 | 171 CLIP (LOOP) | 2 | |
| 3J1907 | 172 SEAL-O-RING | 1 | |
| 1485743 | 173 SENDER-TEMPERATURE (BRAKE OIL) | 1 | |
| 8T4896 | 174 WASHER-HARD (10.2X18.5X2.5-MM THK) | 18 | |
| 4L6454 | 175 BOLT (3/8-16X1-IN) | 5 | |
| 4S4456 | 176 CLIP | 3 | |
| 3S2093 | 177 STRAP-CABLE | 5 | |
| 7N7854 | 178 SWITCH AS-TEMPERATURE (BRAKE OIL) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 3K0360 | 179 SEAL-O-RING | 1 | |
| 9G9152 | 180 CLIP | 3 | |
| 9X9584 | 181 RESISTOR AS | 1 | |
| 5P6008 | TUBE-HEAT SHRINK (6.35-MM DIA) | ||
| 3T3270 | WIRE AS (16-GA) | 1 | |
| 8T4136 | 182 BOLT (M10X1.5X25-MM) | 1 | |
| 8T4121 | 183 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T9043 | 184 BOLT (5/16-18X0.875-IN) | 2 | |
| 8T4224 | 185 WASHER-HARD (8.8X16X2-MM THK) | 6 | |
| 9X3207 | 186 TIMER GP | 1 | |
| 8T4191 | 187 BOLT (M10X1.5X16-MM) | 1 | |
| 9G9150 | 188 CLIP | 1 | |
| 3T3048 | 189 CLIP AS | 1 | |
| 8X1211 | 190 HARNESS AS (STARTING AID) | 1 | |
| 1403617 | 191 HARNESS AS (TRANSMISSION, CHASSIS) | 1 | |
| 5P6029 | 192 LOCKWIRE | ||
| 9M8406 | 193 CLIP (LOOP) | 3 | |
| 8M2770 | 194 CLIP (LOOP) | 4 | |
| 4P7581 | 195 CLIP (LADDER) | 2 | |
| 5S7379 | 196 BOLT (3/8-16X0.875-IN) | 13 | |
| 4K6177 | 197 CLIP | 2 | |
| 3S8665 | 198 CLIP (LOOP) | 3 | |
| 3T0050 | 199 CLIP | 1 | |
| 4M0061 | 200 BOLT (5/16-18X0.75-IN) | 1 | |
| 7K1181 | 201 STRAP-CABLE | 5 | |
| 4D7794 | 202 CLIP | 3 | |
| 4V4760 | 203 COVER | 1 | |
| 8T8911 | 204 BOLT (5/16-18X2-IN) | 2 | |
| 3E0461 | 205 CONTROL GP-ELECTRONIC (BUCKET POSITIONER) | 1 | |
| 7N7782 | HOUSING-PLUG (14-GA TO 18-GA) | 1 | |
| 9X5617 | FILM-INSTRUCTION (SOLENOID, ELECTRICAL POWER) | 1 | |
| 3V6909 | 206 BLOCK | 1 | |
| 6V8189 | 207 NUT (5/16-18-THD) | 1 | |
| 5P1075 | 208 WASHER-HARD (10.2X22.5X3-MM THK) | 1 | |
| 7X1670 | 209 CONTROL GP-ELECTRONIC (STOP/TAIL) | 1 | |
| 7N8205 | HOUSING-PLUG | 2 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 6T0480 | GROMMET | 1 | |
| 5M3062 | 210 BOLT (3/8-16X0.75-IN) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 |
