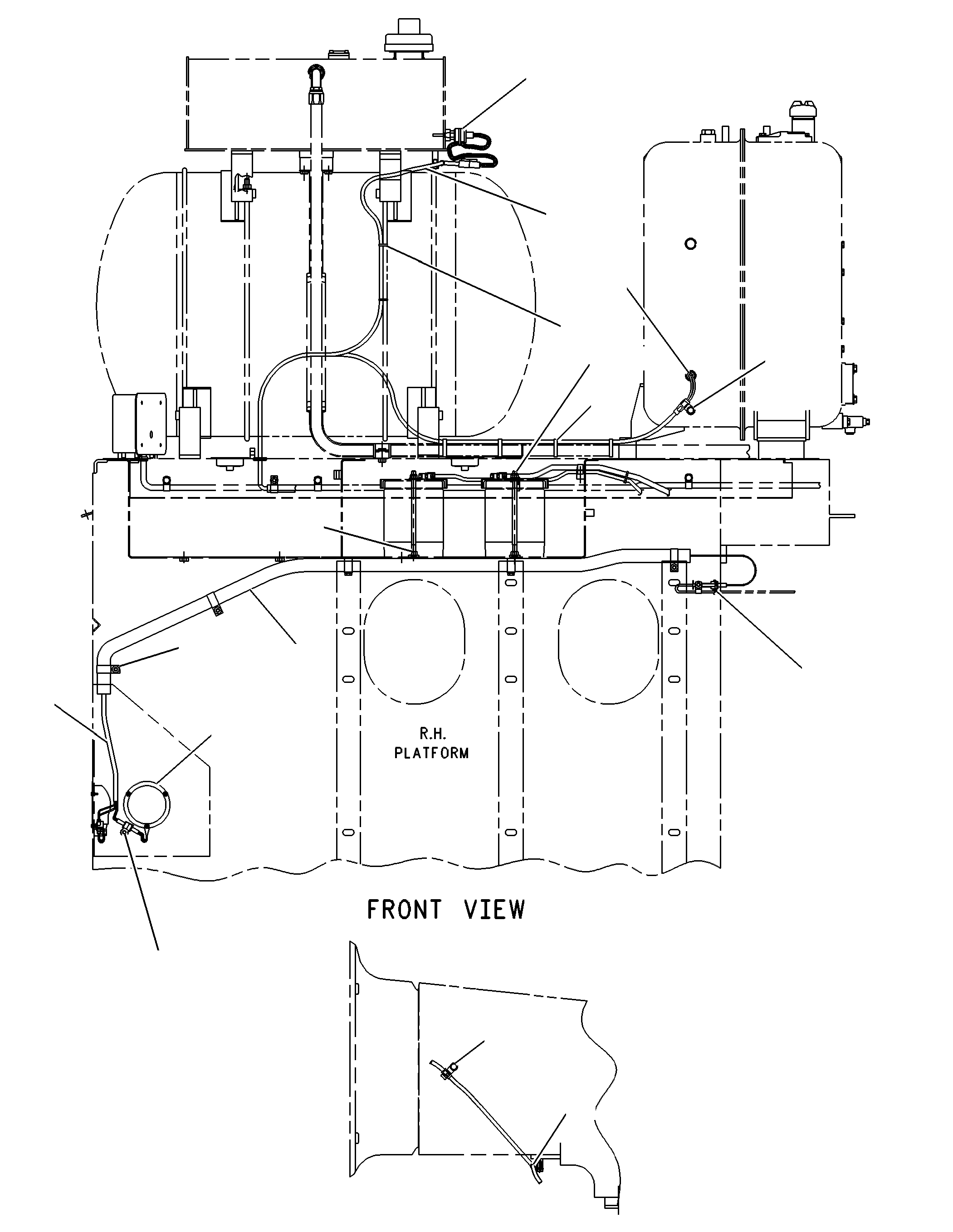

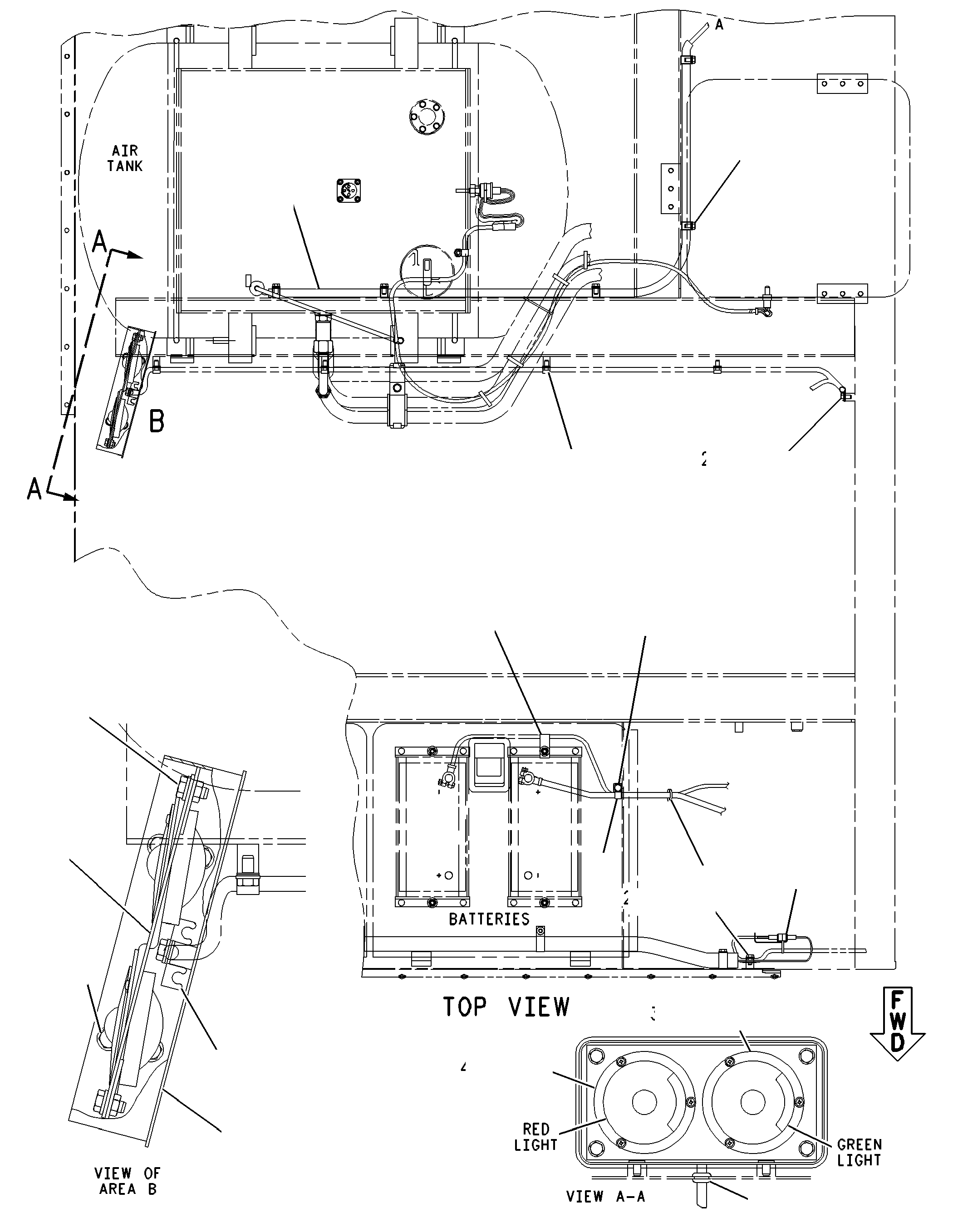

115-9179 WIRING GP-PLATFORM -RH-VIMSS/N 1HL400-UP

Group No: 115-9179
Part NumberPart NameQty
11530711 CLIP AS-CONNECTING (6-PIN)1
8T41372 BOLT (M10X1.5X20-MM)10
8T41213 WASHER-HARD (11X21X2.5-MM THK)10
11137944 SENSOR GP-COOLANT LEVEL (COOLANT LOSS)1
3S20935 STRAP-CABLE4
9G91506 CLIP2
8T42447 NUT (M12X1.75-THD)4
8T42238 WASHER-HARD (13.5X25.5X3-MM THK)4
4D77949 CLIP1
5P107610 WASHER-HARD (13.5X30X4-MM THK)4
6V768711 LOCKNUT (M12X1.75-THD)4
8X784712 ROD4
7D723313 CLIP (LOOP)5
5P150614 HOSE (200CM)
8X586815 HARNESS AS (RH TURN SIGNAL)1
5C831216 NUT (M4X0.7-THD)6
3T396717 LAMP GP-SIGNAL (PARKING, TURN)(PARK & FRONT TURN)(AMBER)2
6V967218 SCREW-MACHINE (M4X0.7X16-MM)6
9F559919 LOCKWASHER12
7K118120 STRAP-CABLE4
131413521 SWITCH AS-TEMPERATURE (STEERING OIL)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
3E3365WEDGE-RECEPTACLE LOCK (2-PIN)1
1028802KIT-RECEPTACLE (2-PIN)1
3K036022 SEAL-O-RING1
8M277023 CLIP (LOOP)1
115557924 CLIP AS-CONNECTING (2-PIN)1
8M277025 CLIP (LOOP)1
8T413726 BOLT (M10X1.5X20-MM)21
8T412127 WASHER-HARD (11X21X2.5-MM THK)21
9M840628 CLIP (LOOP)4
6G702129 BRACKET1
9G915030 CLIP2
8X574131 BRACKET AS1
8T3490NUT-WELD (M10X1.5-THD)8
3S209332 STRAP-CABLE1
4D779433 CLIP2
3T304834 CLIP AS1
4S193635 CLIP1
8K143336 GROMMET1
9F812537 LOCKWASHER6
6V268738 SCREW-PAN HEAD (10-24X1-IN)6
8T968439 LAMP GP-SIGNAL (GREEN)(PAYLOAD MONITORING)1
8T968340 LAMP GP-SIGNAL (RED)(PAYLOAD MONITORING)1
067304541 CLIP (LOOP)5
131441542 HARNESS AS (VIMS)(JACKET WATER & STEERING)1
4K886443 CLIP (LOOP)1
