System And Components

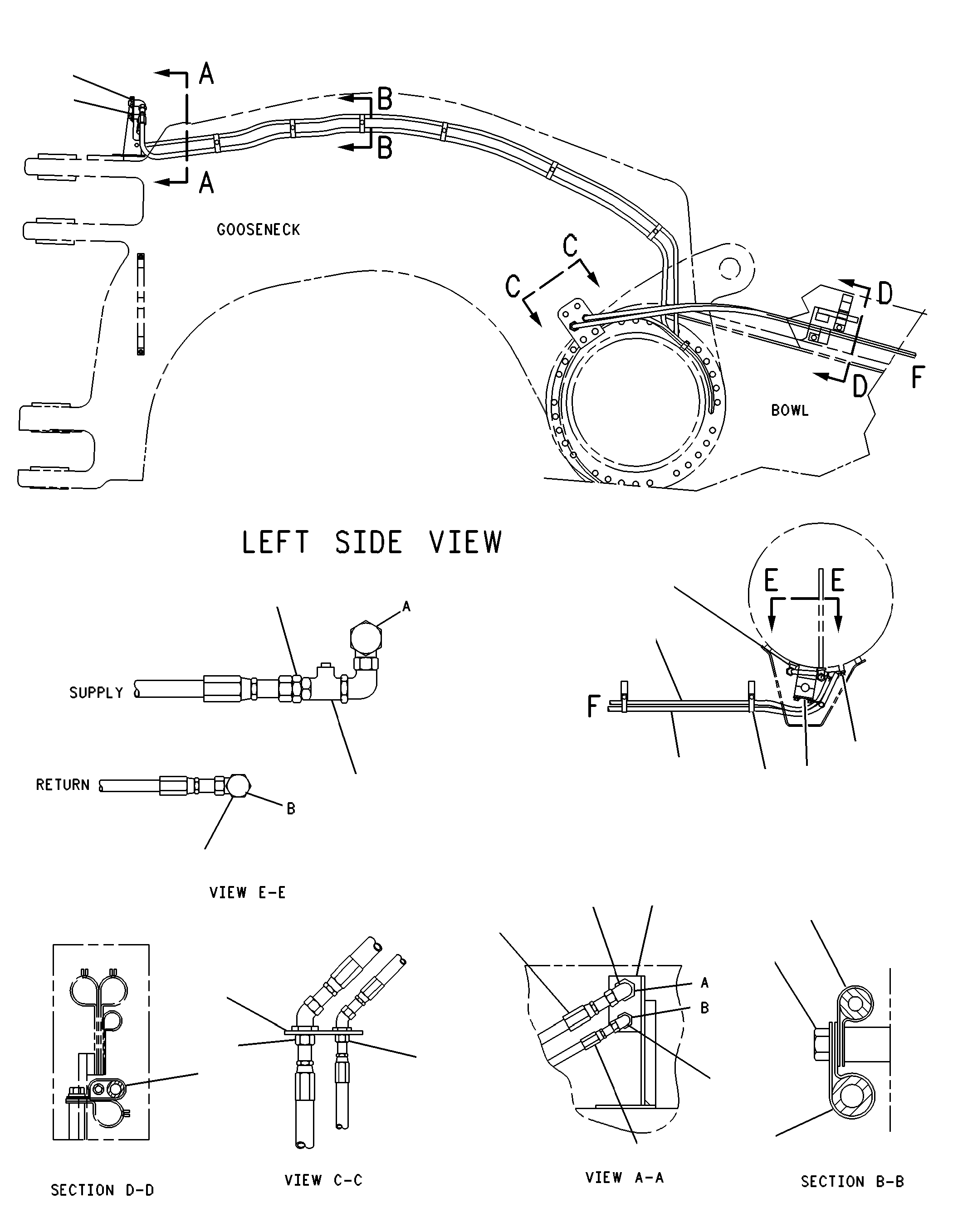

2T-3533 LINES GP-FUELPART OF 2T-3535 SCRAPER AR
Group No: 2T-3533
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8W4713 | 1 HOSE AS (FUEL RETURN) | 1 | |
| 6V8980 | 2 ELBOW | 1 | |
| 6V8982 | 3 ELBOW | 1 | |
| 8M2773 | 4 CLIP | 10 | |
| 8W4712 | 5 HOSE AS (FUEL SUPPLY) | 1 | |
| 6D4244 | 6 CLIP | 10 | |
| 6V9168 | 7 NUT (11/16-16-THD) | 2 | |
| 8W4923 | 8 PLATE | 1 | |
| 7S1912 | 9 CLIP | 8 | |
| 6V9170 | 10 NUT-BULKHEAD (1-14-THD) | 2 | |
| 6V8994 | 11 UNION (STRAIGHT) | 1 | |
| 6V8996 | 12 UNION | 1 | |
| 8W4924 | 13 SUPPORT AS | 1 | |
| 9F2978 | NUT-WELD (3/8-16-THD) | 1 | |
| 6V8397 | 14 SEAL-O-RING | 5 | |
| 6V8724 | 15 ELBOW | 1 | |
| 6V8398 | 16 SEAL-O-RING | 1 | |
| 8W5733 | 17 HOSE AS | 1 | |
| 8I1330 | 18 HOSE AS | 1 | |
| 6V8632 | 19 CONNECTOR | 1 | |
| 3J1907 | 20 SEAL-O-RING | 1 | |
| 3K0360 | 21 SEAL-O-RING | 2 | |
| 8T5464 | 22 VALVE-BALL | 1 | |
| 5P1075 | 23 WASHER-HARD (10.2X22.5X3-MM THK) | 11 | |
| 7J9108 | 24 SEAL-O-RING | 5 | |
| 8T0249 | 25 ELBOW (SWIVEL) | 1 | |
| 5M3062 | 26 BOLT (3/8-16X0.75-IN) | 11 |
