System And Components

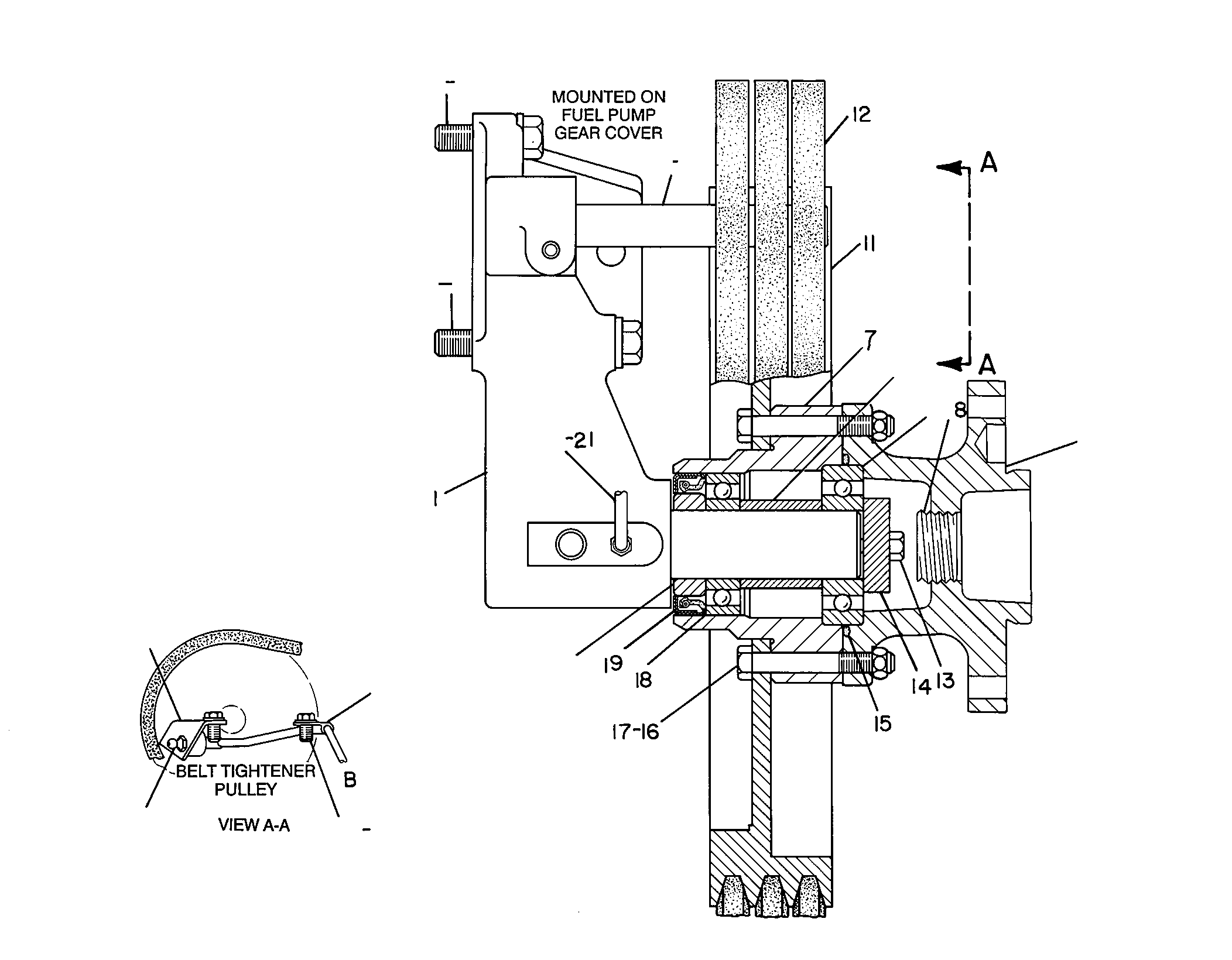

2W-3234 DRIVE GP-FANS/N 63W4200-UP
Group No: 2W-3234
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8N3306 | 1 BRACKET AS-FAN | 1 | |
| 1S9209 | 2 SHAFT-TIGHTENER | 1 | |
| 4N0955 | 3 DOWEL | 1 | |
| 1B2886 | 4 BOLT (1/2-13X3.75-IN) | 2 | |
| 5P8245 | 5 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 0S1587 | 6 BOLT (1/2-13X1.75-IN) | 2 | |
| 2P1757 | 7 HUB-FAN PULLEY | 1 | |
| 8N5305 | 8 SPACER (35.6X47.62X43.74-MM THK) | 1 | |
| 3L1425 | 9 BALL BEARING | 1 | |
| 2W2277 | 10 ADAPTER-FAN | 1 | |
| 7N1275 | 11 PULLEY-FAN DRIVE | 1 | |
| 5N4751 | 12 V-BELT SET (INCLUDES 3-BELTS)(3 BELTS) | 1 | |
| 7F0938 | 13 BOLT (5/16-24X3.25-IN) | 2 | |
| 7N2900 | 14 RETAINER | 1 | |
| 1090079 | 15 SEAL-O-RING | 1 | |
| 0T0573 | 16 BOLT (3/8-16X2.75-IN) | 6 | |
| 9S8752 | 17 NUT-FULL (3/8-16-THD) | 6 | |
| 8H9789 | 18 BALL BEARING | 1 | |
| 5S2106 | 19 SEAL-LIP TYPE | 1 | |
| 5S9062 | 20 SPACER (35.032X50.8X15.88-MM THK) | 1 | |
| 2W0109 | 21 TUBE AS | 1 | |
| 8L6557 | 22 CONNECTOR | 2 | |
| 2B2404 | 23 CLIP | 1 | |
| 0S1588 | 24 BOLT (3/8-16X1.25-IN) | 2 | |
| 5M2894 | 25 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 6N4111 | 26 BRACKET AS | 1 | |
| 3B8485 | 27 ELBOW | 1 | |
| 8T6761 | 28 PLUG-PIPE (1-11-1/2 NPT THD) | 1 |
