System And Components

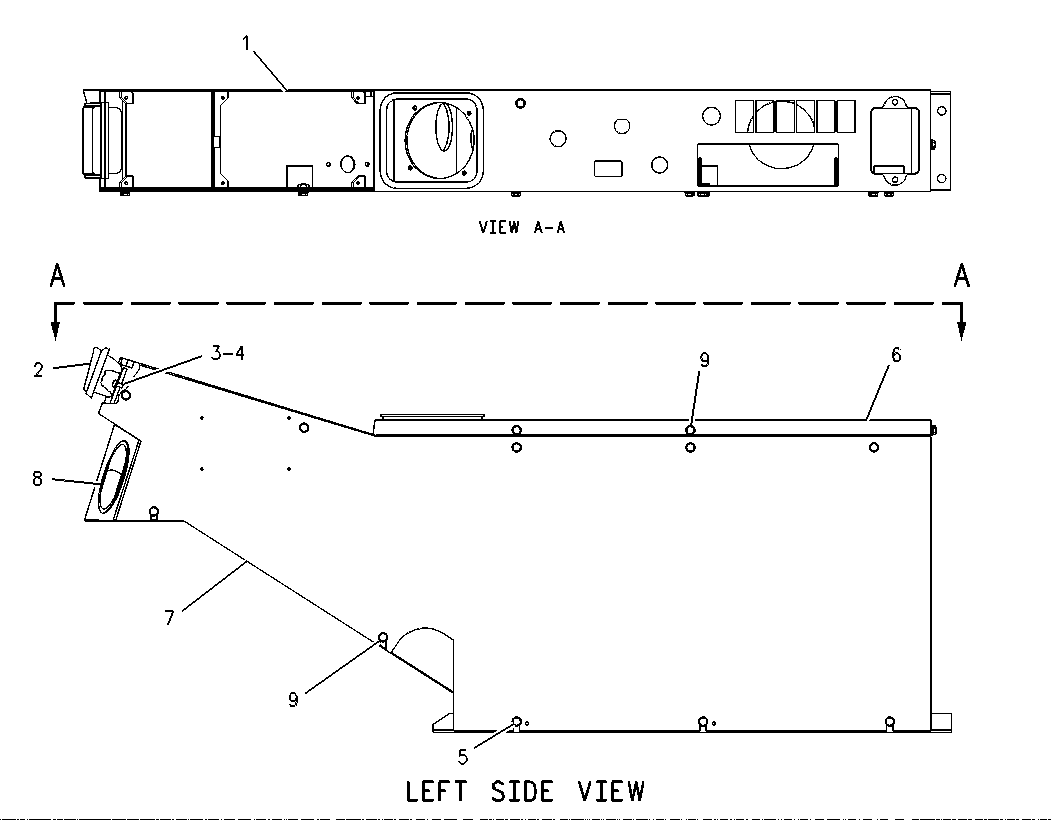

1178879 CONSOLE GPPART OF 1139460 CONSOLE-OPERATOR
Group No: 1178879
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1178898 | 1 SUPPORT AS | 1 | |
| 3T0049 | CLIP (23MM ID) | 2 | |
| 6V9632 | NUT-WELD (M6X1 THD) | 23 | |
| 8T3612 | NUT-WELD (M8X1.25 THD) | 1 | |
| 8T4138 | BOLT (M6X1.0X20MM) | 1 | |
| 8T8874 | NUT-WELD (M5X0.8 THD) | 8 | |
| 9G9153 | CLIP (12MM ID) | 1 | |
| 9G9155 | CLIP (20MM ID) | 2 | |
| 6C9125 | 2 ASHTRAY AS | 1 | |
| 0950736 | 3 SCREW-MACHINE | 2 | |
| 8T0328 | 4 WASHER-HARD (1MM THK) | 2 | |
| 1043203 | 5 BOLT AS | 3 | |
| 8T4171 | BOLT (M6X1.0X12MM) | 1 | |
| 9X8256 | WASHER (2MM THK) | 1 | |
| 1178899 | 6 PANEL AS | 1 | |
| 1190301 | 7 COVER | 1 | |
| 1091254 | 8 NOZZLE-AIR | 1 | |
| 9X2044 | 9 SCREW-TRUSS HEAD (M6X1X16MM) | 11 |
