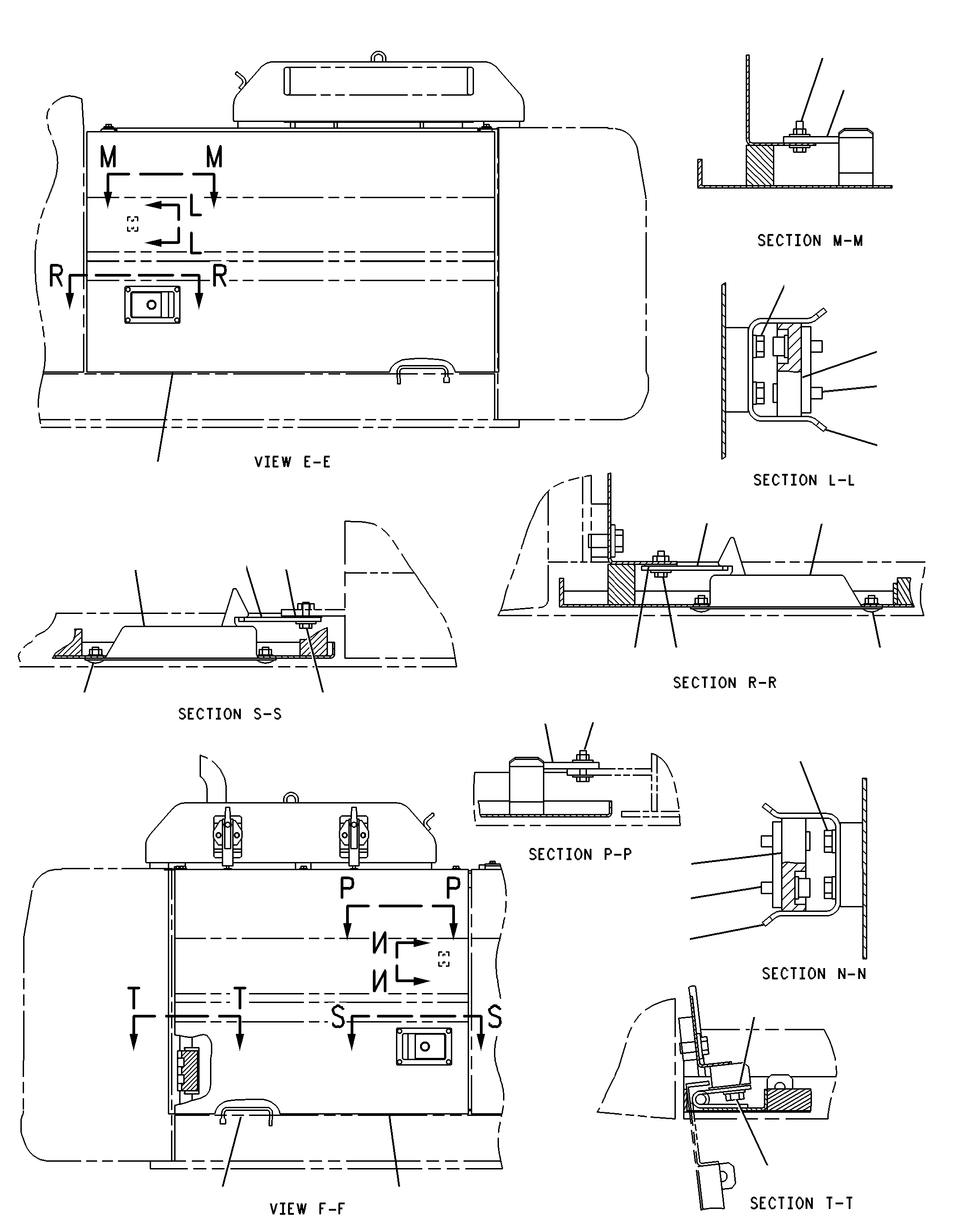

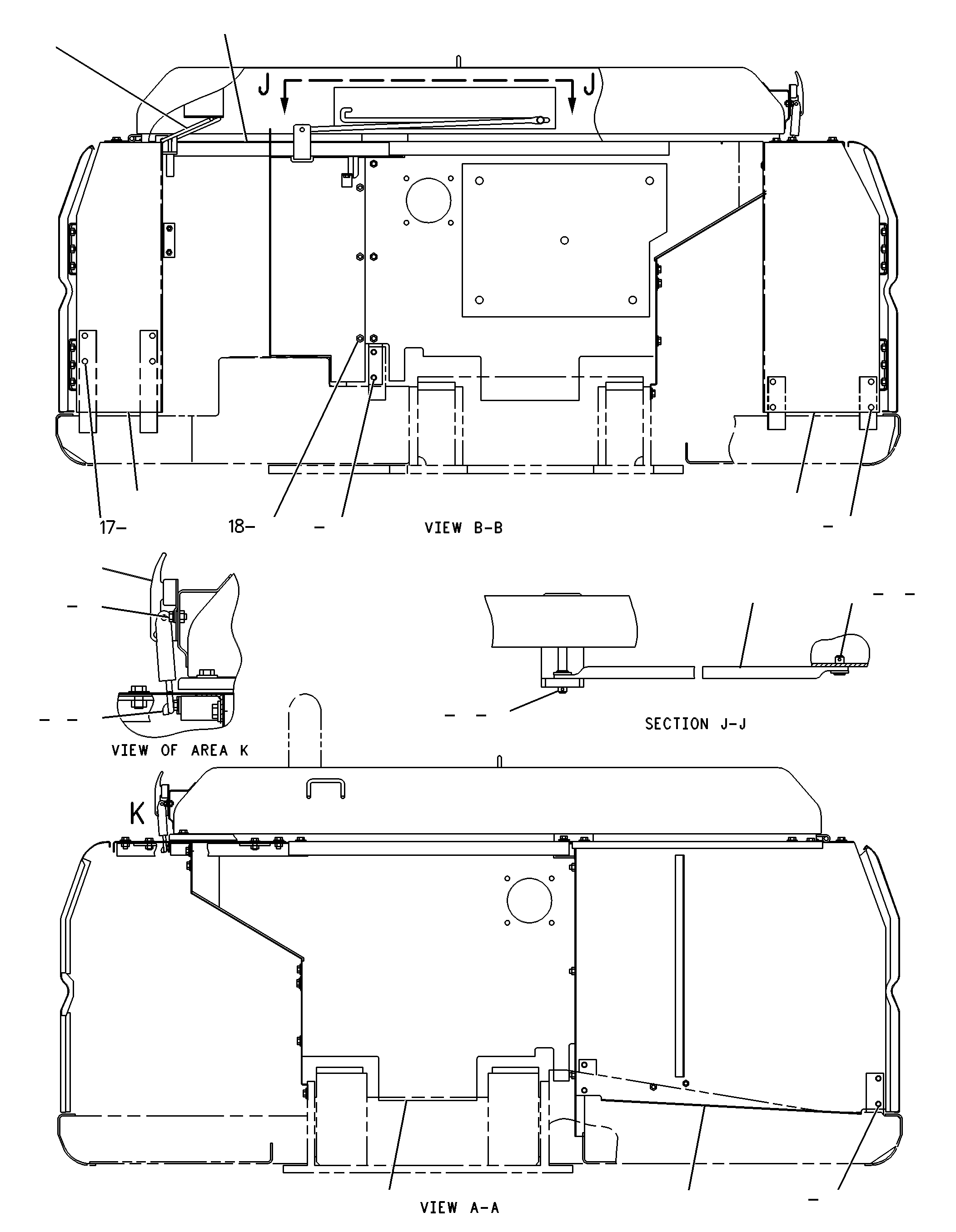

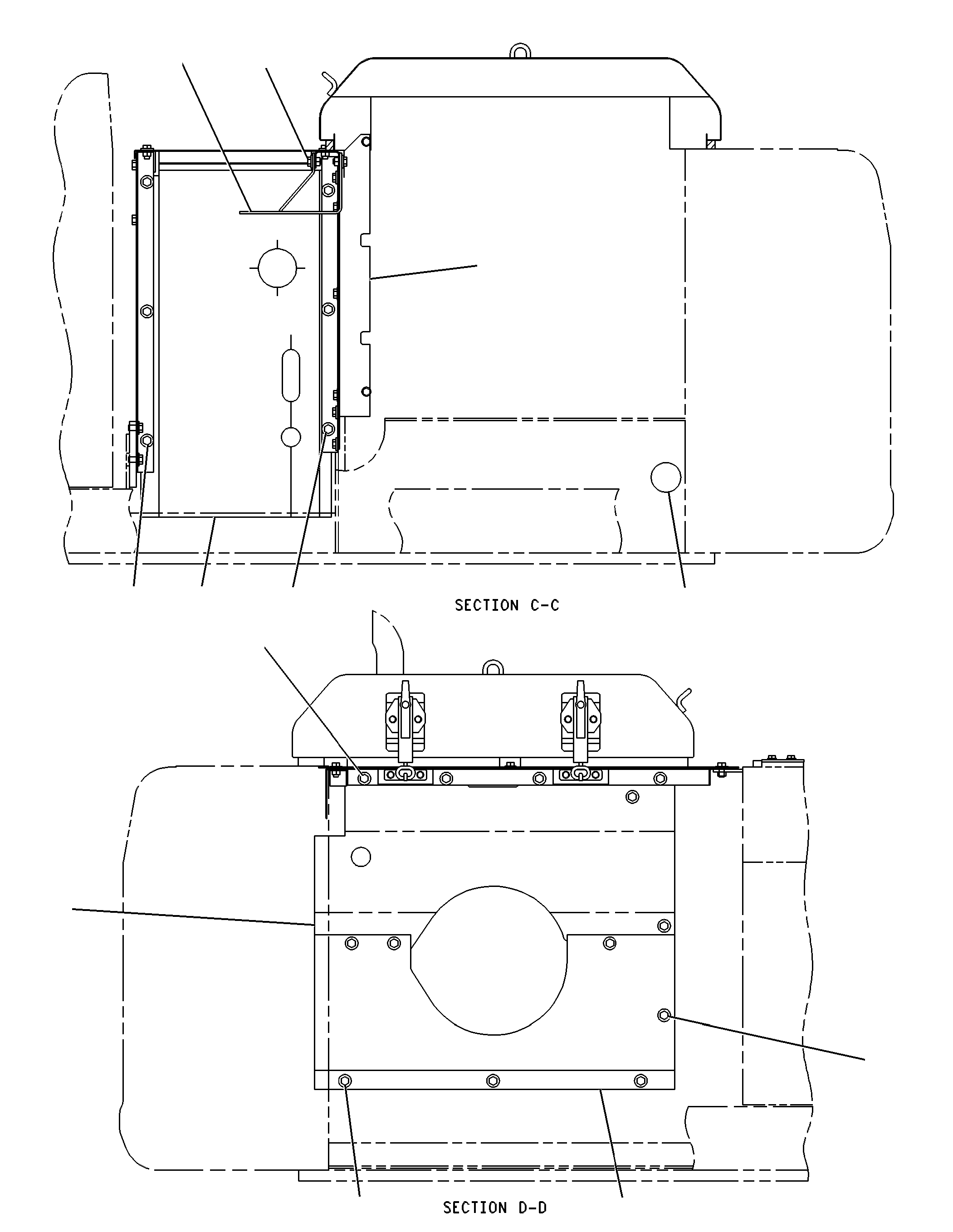

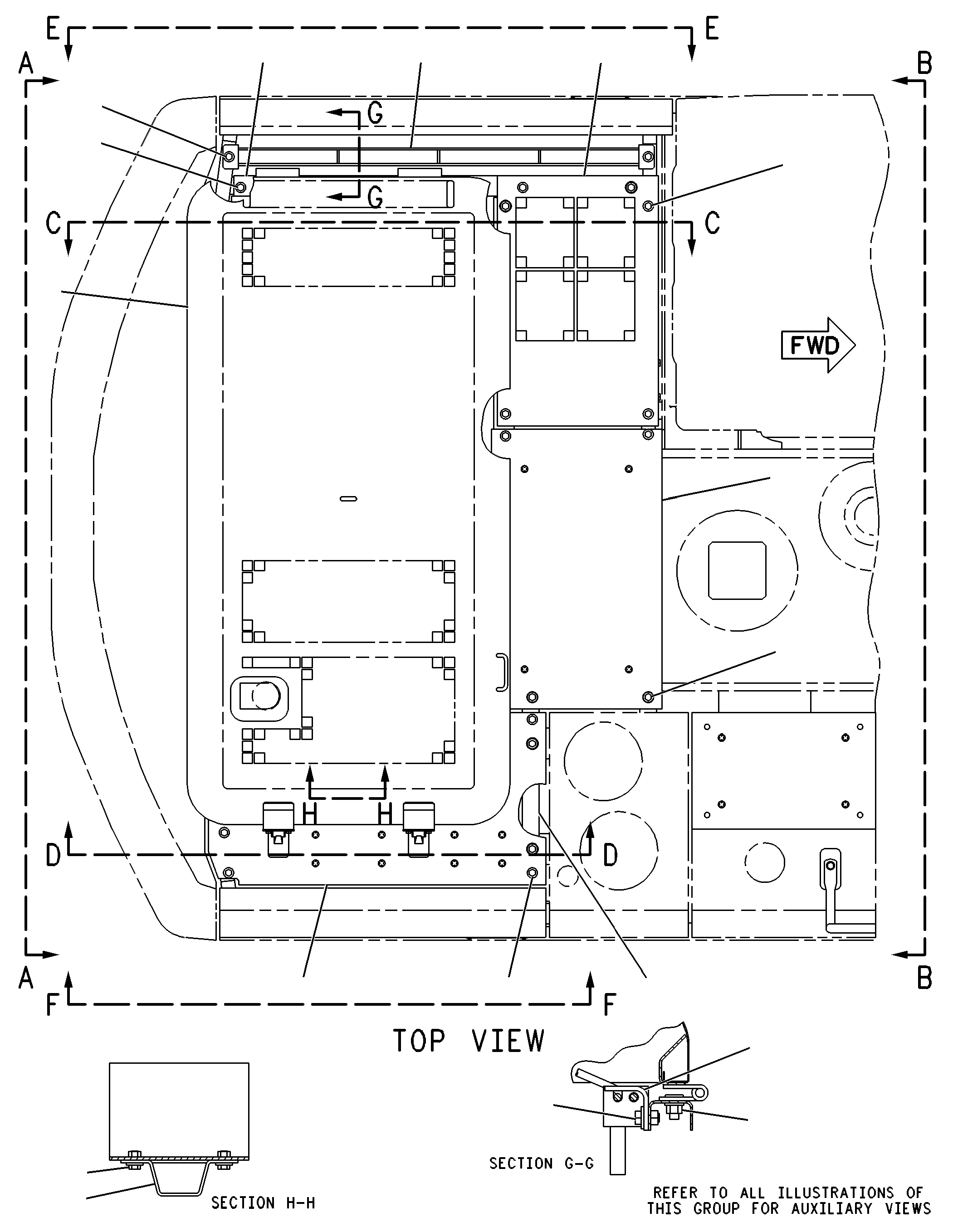

116-1154 HOOD & GUARD GPS/N 4MM1-UP; 9SR1-UP
Group No: 116-1154
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1204423 | 1 HOOD AS-ENGINE | 1 | |
| 1194945 | 2 SUPPORT AS | 1 | |
| 1030444 | 3 COVER AS | 1 | |
| 1030445 | 4 SHEET AS | 1 | |
| 1030446 | 5 COVER AS | 1 | |
| 8T4139 | 6 BOLT (M12X1.75X30-MM) | 4 | |
| 1030423 | 7 SUPPORT AS | 1 | |
| 1092051 | 8 COVER AS | 1 | |
| 0991426 | 9 SPACER (19X32X2-MM THK) | 4 | |
| 5P1076 | 10 WASHER-HARD (13.5X30X4-MM THK) | 25 | |
| 8T4192 | 11 BOLT (M12X1.75X25-MM) | 21 | |
| 8T4223 | 12 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 8T4244 | 13 NUT (M12X1.75-THD) | 6 | |
| 1092041 | 14 GUIDE AS | 1 | |
| 1091985 | 15 ANGLE | 1 | |
| 4I0118 | 16 HOOK AS | 2 | |
| 5P1076 | 17 WASHER-HARD (13.5X30X4-MM THK) | 20 | |
| 8T4192 | 18 BOLT (M12X1.75X25-MM) | 20 | |
| 1027729 | 19 SPRING | 2 | |
| 4I0117 | 20 LATCH AS | 2 | |
| 8T4224 | 21 WASHER-HARD (8.8X16X2-MM THK) | 8 | |
| 3B4618 | 22 PIN-COTTER | 2 | |
| 8T4121 | 23 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 1030416 | 24 SUPPORT AS | 1 | |
| 1190335 | 25 SUPPORT AS | 1 | |
| 1204413 | 26 SUPPORT AS | 1 | |
| 1199414 | 27 SUPPORT AS | 1 | |
| 1178891 | 28 SHEET AS | 1 | |
| 1282596 | SEAL (.3M) | ||
| 6P2216 | CAP (PUSH ON) | 5 | |
| 1204415 | LINER | 1 | |
| 6P2216 | CAP (PUSH ON) | 5 | |
| 1030530 | 29 SUPPORT | 1 | |
| 8T4200 | 30 BOLT (M8X1.25X16-MM) | 8 | |
| 0951319 | 31 PIN-CLEVIS | 1 | |
| 0963781 | 32 PIN-CLEVIS | 1 | |
| 8T4192 | 33 BOLT (M12X1.75X25-MM) | 12 | |
| 0996415 | 34 LOCK AS | 2 | |
| 5P8500 | KEY | 1 | |
| 0873909 | 35 SHIM (2-MM THK) | 2 | |
| 0873908 | SHIM (1-MM THK) | 2 | |
| 8T4138 | 36 BOLT (M6X1X20-MM) | 6 | |
| 1025673 | 37 ROD | 2 | |
| 0996418 | 38 NUT (M6X1-THD) | 8 | |
| 4I8438 | 39 SCREW-MACHINE (M6X1-THD) | 8 | |
| 1025689 | 40 SHIM (2-MM THK) | 4 | |
| 0960684 | SHIM (0.8-MM THK) | 4 | |
| 8T0269 | 41 BOLT-SOCKET HEAD (M6X1X20-MM) | 4 | |
| 5C2890 | 42 NUT (M6X1-THD) | 4 | |
| 5P4115 | 43 WASHER-HARD (7.2X19X2-MM THK) | 12 | |
| 9X8256 | 44 WASHER (6.6X12X2-MM THK) | 8 | |
| 8T4223 | 45 WASHER-HARD (13.5X25.5X3-MM THK) | 12 | |
| 1190306 | 46 DOOR GP-ACCESS (HOOD) | 1 | |
| 1190307 | 47 DOOR GP-ACCESS (HOOD) | 1 | |
| 6I6033 | 48 STOP | 2 | |
| 5C9553 | 49 BOLT (M6X1X16-MM) | 4 | |
| 4I8019 | 50 SUPPORT | 2 | |
| 6V7357 | 51 BOLT (M6X1X25-MM) | 2 | |
| 1025080 | 52 STRIP | 2 | |
| 4I0082 | 53 PLATE | 2 | |
| 8T4179 | 54 BOLT (M12X1.75X20-MM) | 6 | |
| 5P1076 | 55 WASHER-HARD (13.5X30X4-MM THK) | 18 | |
| 8T4192 | 56 BOLT (M12X1.75X25-MM) | 12 | |
| 1227017 | 57 GROMMET | 1 | |
| 8T4133 | 58 NUT (M10X1.5-THD) | 3 | |
| 8T4121 | 59 WASHER-HARD (11X21X2.5-MM THK) | 3 | |
| 1204410 | 60 SHEET AS | 1 | |
| 1204412 | 61 SHEET | 1 | |
| 1204416 | 62 SHEET AS | 1 | |
| 1030577 | LINER | 1 | |
| 1204421 | LINER | 1 | |
| 1194942 | 63 SUPPORT AS | 1 | |
| 1204419 | 64 SHEET AS | 1 | |
| 1030522 | LINER | 1 | |
| 1204420 | LINER | 3 |
