System And Components

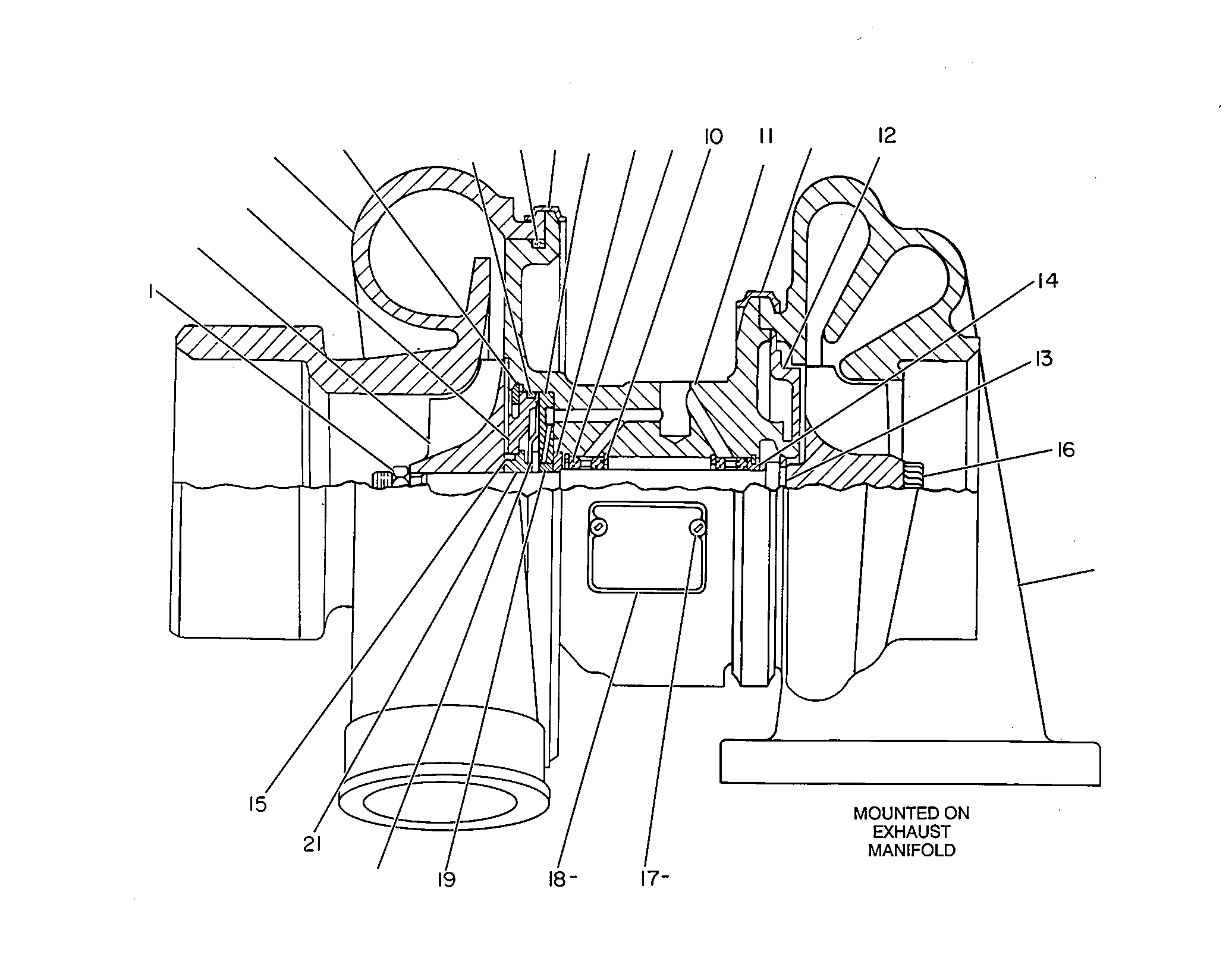

1W-1228 TURBOCHARGER GPS/N 13Z32120-35963
Group No: 1W-1228
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9N0111 | 1 CARTRIDGE GP-TURBOCHARGER | 1 | |
| 7N0239 | NUT-TURBOCHARGER COMPRESSOR | 1 | |
| 9N2378 | 2 WHEEL-COMPRESSOR | 1 | |
| 5S4556 | 3 INSERT | 1 | |
| 5S4546 | 4 RING-RETAINING | 1 | |
| 5P5757 | 5 SEAL-O-RING | 1 | |
| 5S4554 | 6 SEAL-O-RING | 1 | |
| 4N7597 | 7 BEARING AS | 1 | |
| 4N7609 | 8 RING-THRUST | 2 | |
| 5S4557 | 9 BEARING | 2 | |
| 4M6983 | 10 RING-RETAINING | 4 | |
| 4N9540 | 11 HOUSING AS-CENTER | 1 | |
| 5S5199 | PIN-GROOVED | 2 | |
| 4N9556 | 12 SHROUD | 1 | |
| 7N2856 | 13 RING-SEAL | 1 | |
| 5S4551 | 14 SLEEVE-OIL CONTROL | 1 | |
| 4M8013 | 15 RING-PISTON | 2 | |
| 9S8993 | 16 WHEEL AS | 1 | |
| 8H3710 | 17 SCREW-TAPPING (6-32X0.375-IN) | 2 | |
| 9S1180 | 18 PLATE-IDENTIFICATION | 1 | |
| 5S4547 | 19 SLEEVE-SPACER | 1 | |
| 5S4549 | 20 DEFLECTOR-OIL | 1 | |
| 8S9222 | 21 SLEEVE | 1 | |
| 4N8155 | 22 PLATE-TURBOCHARGER INFORMATION | 1 | |
| 5S4517 | 23 CLAMP AS (TURBINE) | 1 | |
| 7M9918 | LOCKNUT (1/4-28-THD) | 1 | |
| 1W1229 | 24 HOUSING | 1 | |
| 5S4558 | 25 CLAMP AS-COMPRESSOR | 1 | |
| 7M9918 | LOCKNUT (1/4-28-THD) | 1 | |
| 4N3755 | 26 COVER-COMPRESSOR | 1 | |
| 8H3710 | 27 SCREW-TAPPING (6-32X0.375-IN) | 1 | |
| 6N7245 | CARTRIDGE GP-TURBOCHARGER | 1 |
