System And Components

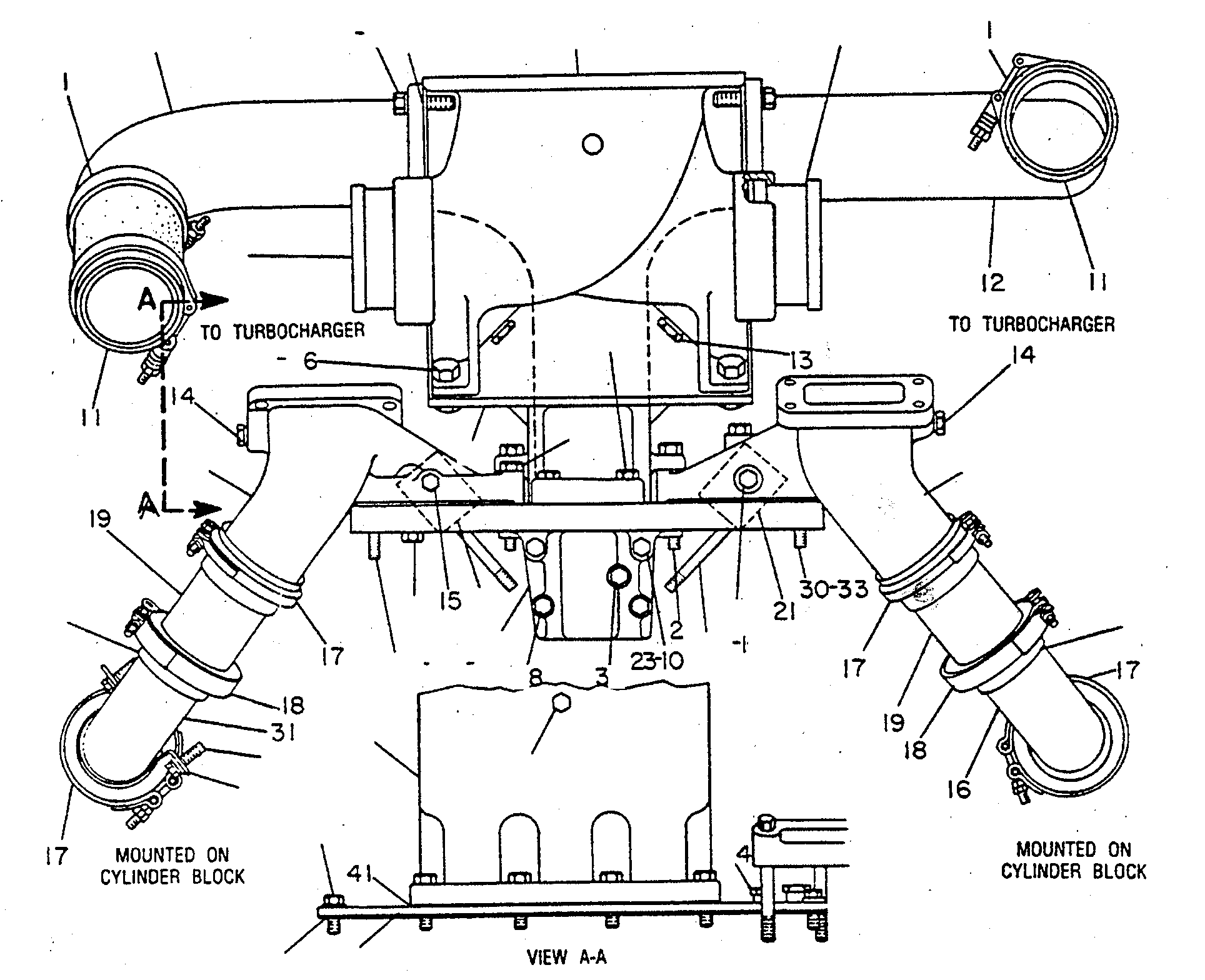

7C-3271 LINES GP-AIRS/N 81Z5000-5040
Group No: 7C-3271
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8N8348 | 1 CLAMP-HOSE | 4 | |
| 1N4474 | 2 TUBE AS-OUTLET | 1 | |
| 3B1915 | 3 BOLT (3/8-16X1.375-IN) | 8 | |
| 5M2894 | 4 WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 | |
| 4N1320 | 5 GASKET (ADAPTER) | 2 | |
| 3N3368 | 6 PIPE-EXHAUST | 1 | |
| 1A2029 | 7 BOLT (3/8-16X1.125-IN) | 2 | |
| 2W0796 | 8 SUPPORT-EXHAUST PIPE | 1 | |
| 1W7515 | 9 COUPLING | 2 | |
| 0S1608 | 10 BOLT (3/8-16X3.75-IN) | 2 | |
| 4W7380 | 11 HOSE | 2 | |
| 1N3180 | 12 TUBE AS-OUTLET | 1 | |
| 3J5389 | 13 PLUG (EXTERNAL) | 2 | |
| 5B7890 | 14 PLUG-PIPE | 2 | |
| 1A5183 | 15 BOLT (3/8-16X4.75-IN)(120MM LG) | 3 | |
| 2W0892 | 16 TUBE-EXHAUST | 1 | |
| 8N0879 | 17 CLAMP | 4 | |
| 8N0878 | 18 CLAMP | 2 | |
| 1069408 | SEAL-EXHAUST | 2 | |
| 7E3901 | 19 TUBE (EXHAUST) | 2 | |
| 1228433 | 20 ELBOW-EXHAUST | 1 | |
| 6N6734 | 21 SUPPORT-HOUSING (RH) | 1 | |
| 0S1619 | 22 BOLT (3/8-16X3-IN) | 4 | |
| 6V8801 | 23 NUT (3/8-16-THD) | 3 | |
| 9F8999 | 24 BOLT (3/8-16X7-IN) | 1 | |
| 5B2638 | 25 BOLT (3/8-16X5.25-IN)(133.35MM LG) | 2 | |
| 6N7152 | 26 SUPPORT-ELBOW | 1 | |
| 5P5855 | 27 BOLT-12 POINT HEAD (1/2-13X1.75-IN) | 2 | |
| 5P8245 | WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 1W0481 | 28 RING-EXHAUST SEAL | 2 | |
| 6N6733 | 29 SUPPORT-HOUSING (LH) | 1 | |
| 0S1591 | 30 BOLT (3/8-16X1.5-IN)(38.1MM LG) | 12 | |
| 2W0893 | 31 TUBE-EXHAUST | 1 | |
| 1228432 | 32 ELBOW-EXHAUST | 1 | |
| 0L1143 | 33 BOLT (3/8-16X2.5-IN)(63.5MM LG) | 4 | |
| 1D4719 | 34 NUT-FULL (1/2-13-THD) | 4 | |
| 6N7149 | 35 SUPPORT-ELBOW | 1 | |
| 0S1587 | 36 BOLT (1/2-13X1.75-IN) | 4 | |
| 2M8411 | 37 STUD-TAPERLOCK | 1 | |
| 0L2070 | 38 BOLT (3/8-16X2.25-IN) | 2 | |
| 1A5964 | 39 BOLT (3/8-16X4.5-IN) | 1 | |
| 7N9667 | 40 ELBOW | 1 | |
| 4N1848 | 41 GASKET | 1 | |
| 6N3543 | 42 PLATE-MANIFOLD | 1 | |
| 4N2564 | 43 GASKET | 1 | |
| 5M6213 | 44 PLUG-PIPE (1/4-18-THD) | 3 | |
| 0S1594 | 45 BOLT (3/8-16X1-IN) | 6 |
