System And Components

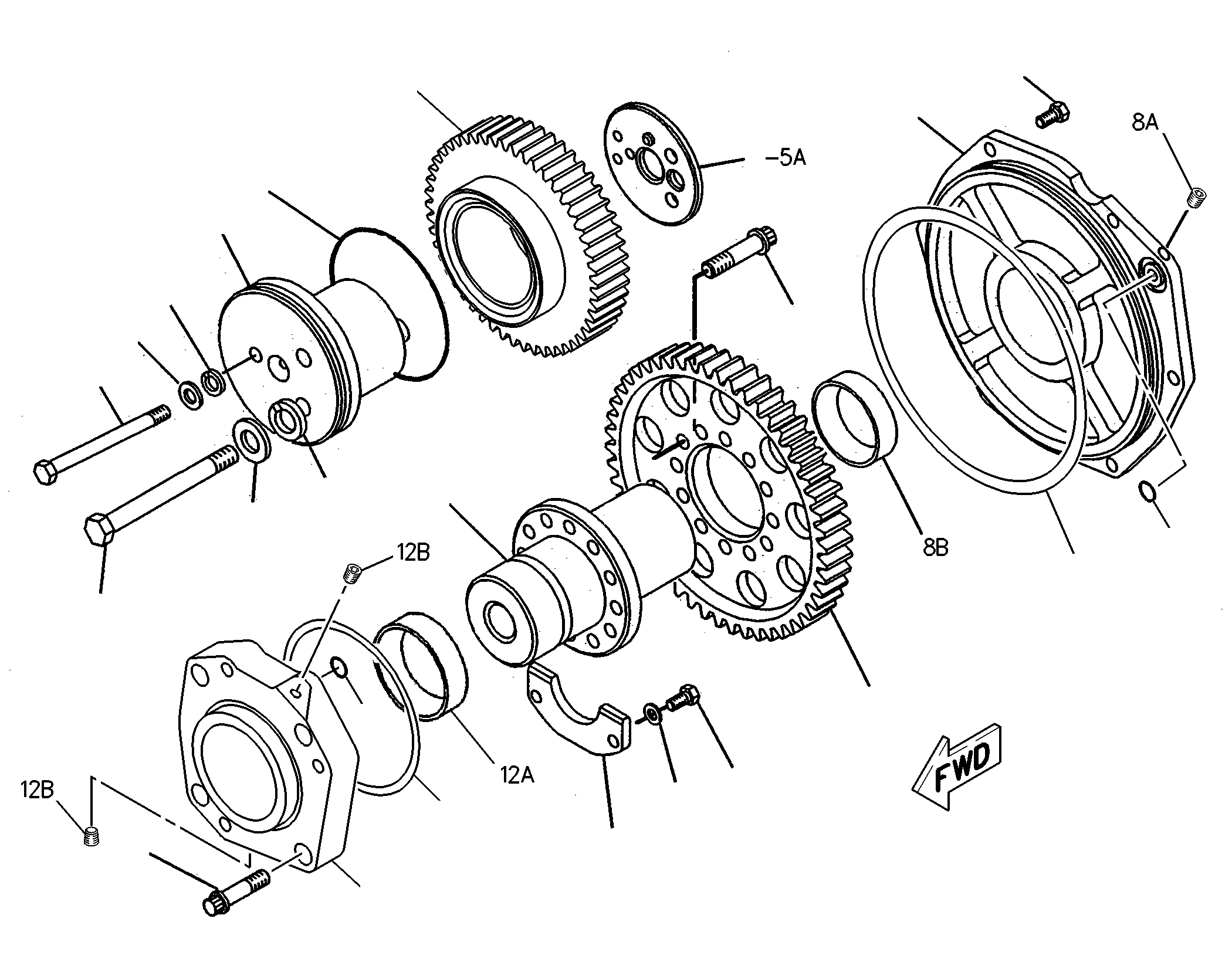

9Y-8895 DRIVE GP-AUXILIARY -AUXILIARY PUMP-LOWER, LHS/N 7TR1-401
Group No: 9Y-8895
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1T0132 | 1 SEAL-O-RING | 1 | |
| 2M4453 | 2 SEAL-O-RING | 1 | |
| 5R7136 | 3 WASHER-SEALING | 1 | |
| 5R7137 | 4 WASHER-SEALING | 2 | |
| 7C3258 | 5 WASHER AS-THRUST | 1 | |
| 7N2047 | 5A DOWEL | 1 | |
| 7C3260 | 6 SHAFT | 1 | |
| 7E0275 | 7 GEAR-WATER PUMP DRIVE (69-TEETH) | 1 | |
| 7E6748 | 8 ADAPTER AS | 1 | |
| 8T6757 | 8A PLUG-PIPE | 1 | |
| 1275400 | 8B BUSHING | 1 | |
| 7N5246 | 9 WASHER-THRUST | 2 | |
| 8M5255 | 10 SEAL-O-RING | 2 | |
| 1070777 | 11 SHAFT AS-PUMP DRIVE | 1 | |
| 1070779 | 12 ADAPTER AS | 1 | |
| 1275400 | 12A BUSHING | 1 | |
| 8T6759 | 12B PLUG-PIPE | 2 | |
| 7E0274 | 13 GEAR AS-IDLER (53-TEETH) | 1 | |
| 7N5243 | BUSHING | 1 | |
| 0S1594 | 14 BOLT (3/8-16X1-IN) | 6 | |
| 0T0055 | 15 BOLT (3/8-16X4.25-IN) | 1 | |
| 1T0720 | 16 BOLT-12 POINT HEAD (3/8-16X1.25-IN) | 4 | |
| 3B8453 | 17 SEAL-O-RING | 1 | |
| 4B3388 | 18 BOLT (5/16-18X1.125-IN) | 4 | |
| 5M2894 | 19 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 5P8245 | 20 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 6K3771 | 21 BOLT-12 POINT HEAD (7/16-14X1.5-IN) | 12 | |
| 9M1974 | 22 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 1D4572 | 23 BOLT (1/2-13X5.5-IN) | 2 |
