System And Components
Assembly
100%

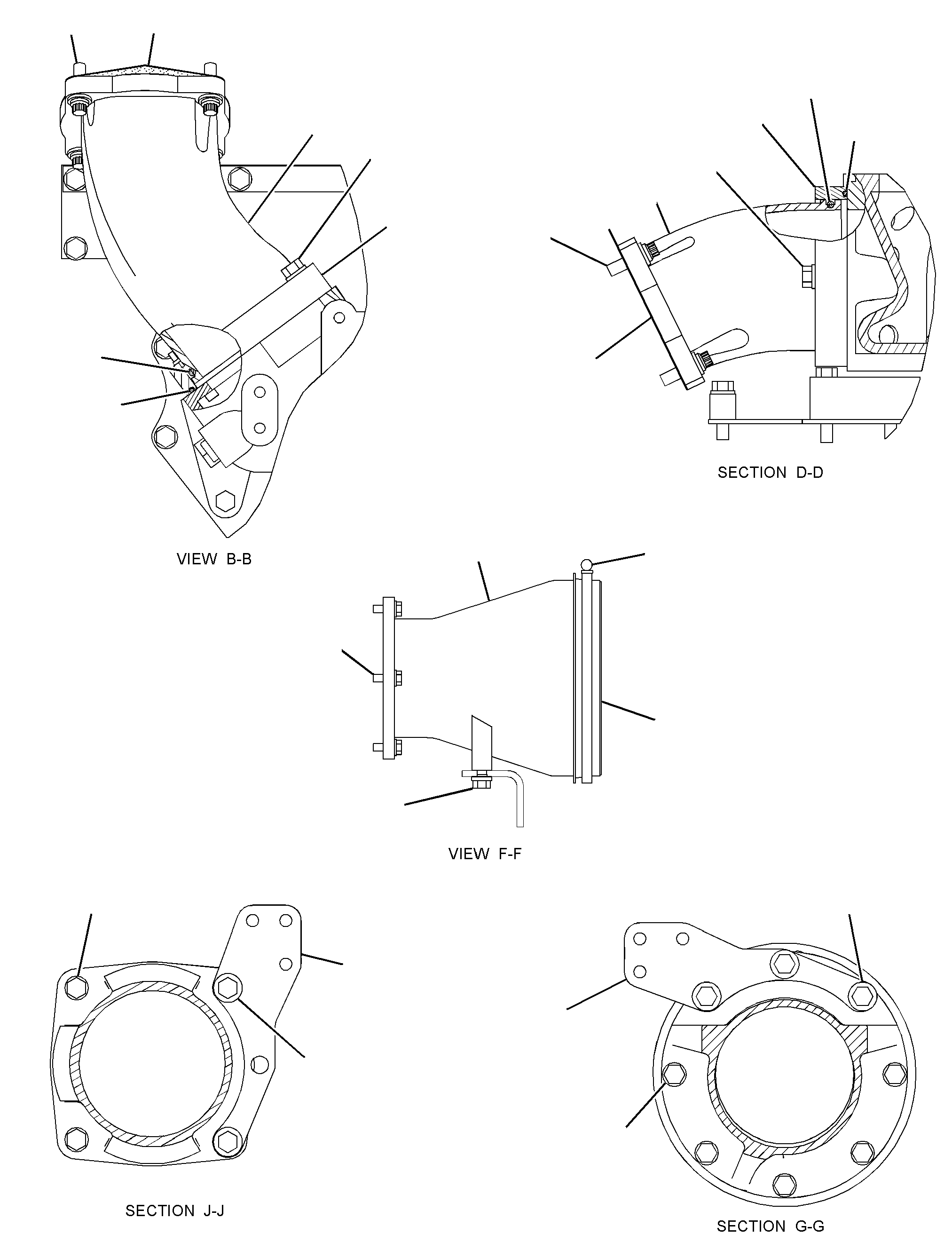

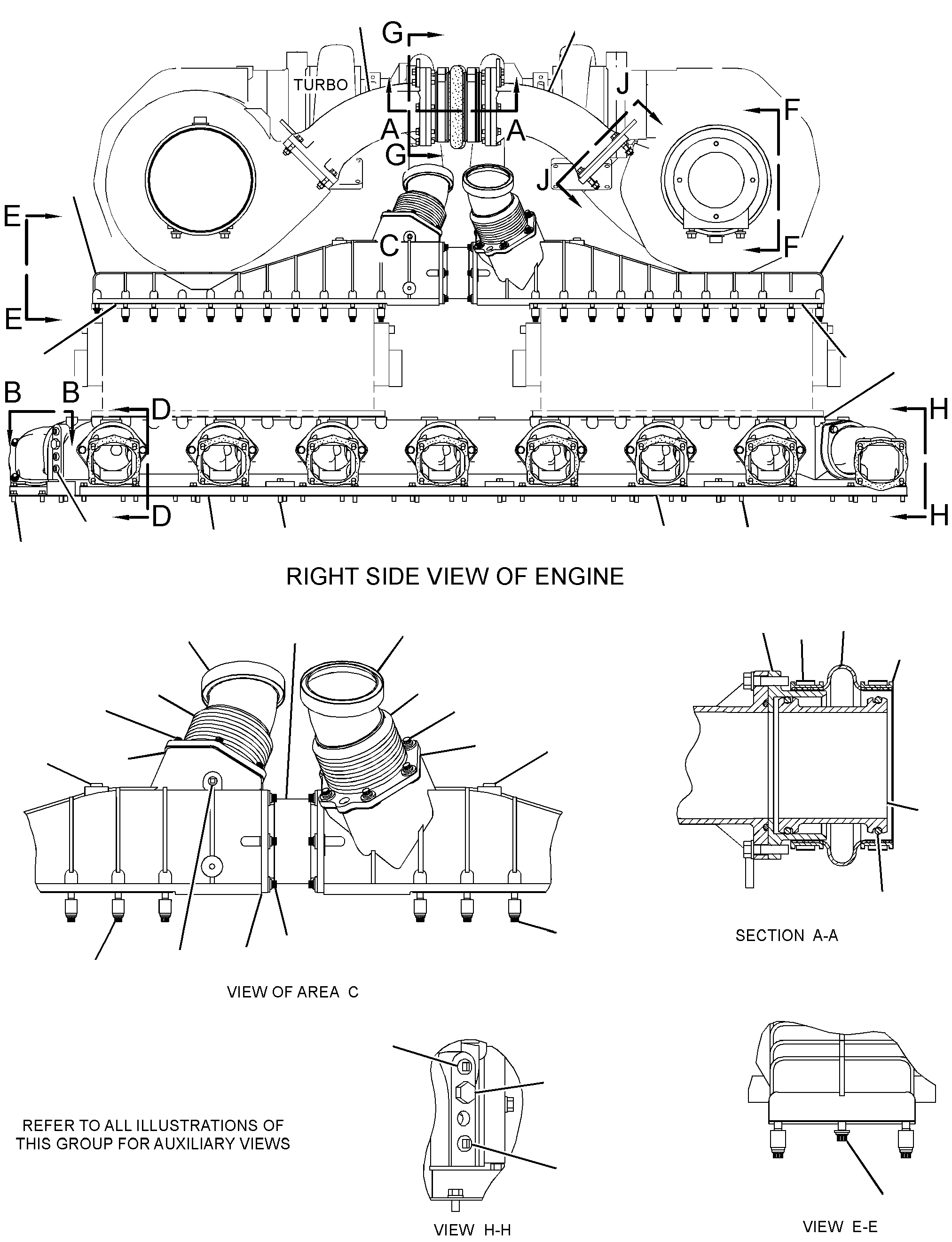

186-4190 LINES GP-AIRS/N 7TR1202-1244

Group No: 186-4190
Part NumberPart NameQty
1W24311 CLAMP-BAND2
7C79092 ELBOW (AIR INLET)14
7C79103 ELBOW (AIR INLET)2
7C81994 FLANGE16
7E23465 ADAPTER2
7E23506 ADAPTER2
7N50807 GASKET-MANIFOLD16
8T67628 PLUG-PIPE (1/2-14-THD)9
10707639 PLATE AS4
1F0750NUT-WELD (3/8-16-THD)3
115362510 GROMMET4
123691411 BAR2
123691512 PLATE1
160984813 ELBOW2
177906114 MANIFOLD1
186419115 COVER AS2
2H1190PIN-DOWEL1
196913816 GASKET4
207138517 BELLOWS AS1
325365618 BELLOWS AS2
0L207019 BOLT (3/8-16X2.25-IN)4
0S050920 BOLT (3/8-16X0.75-IN)6
0S159021 BOLT (3/8-16X2-IN)12
0S159122 BOLT (3/8-16X1.5-IN)42
0S159523 BOLT (1/2-13X1.25-IN)4
103087324 GASKET2
1C225125 BOLT (3/8-16X1.87-IN)6
1T072026 BOLT-12 POINT HEAD (3/8-16X1.25-IN)64
1T076527 BOLT (3/8-16X1-IN)4
224080828 CLAMP4
2A463929 BOLT (3/8-16X1.625-IN)32
2M084930 WASHER-HARD (13.5X25.5X5-MM THK)4
3K036031 SEAL-O-RING2
3S012732 BOLT-12 POINT HEAD (3/8-16X2.25-IN)42
4S589833 SEAL-O-RING16
5D954734 SPACER (1.15-IN THK)42
5M289435 WASHER-HARD (10.2X18.5X2.5-MM THK)160
5P894036 SEAL-O-RING4
6D915737 SEAL-O-RING2
6V182038 BOLT (M10X1.5X30-MM)8
6V510139 SEAL-O-RING16
6V510340 SEAL-O-RING4
6V583941 WASHER (11X21X2.5-MM THK)8
7E234942 COUPLING2
8M317543 WASHER-HARD (10.2X16X3-MM THK)42
8T675844 PLUG-PIPE (1/4-18-THD)2
9S418545 PLUG (3/4-16-THD)2
9S875246 NUT-FULL (3/8-16-THD)8
9X400847 HOSE2
9X645848 WASHER-HARD (10.2X22.5X3-MM THK)34
4J853649 CLAMP2
113819450 CAP2
