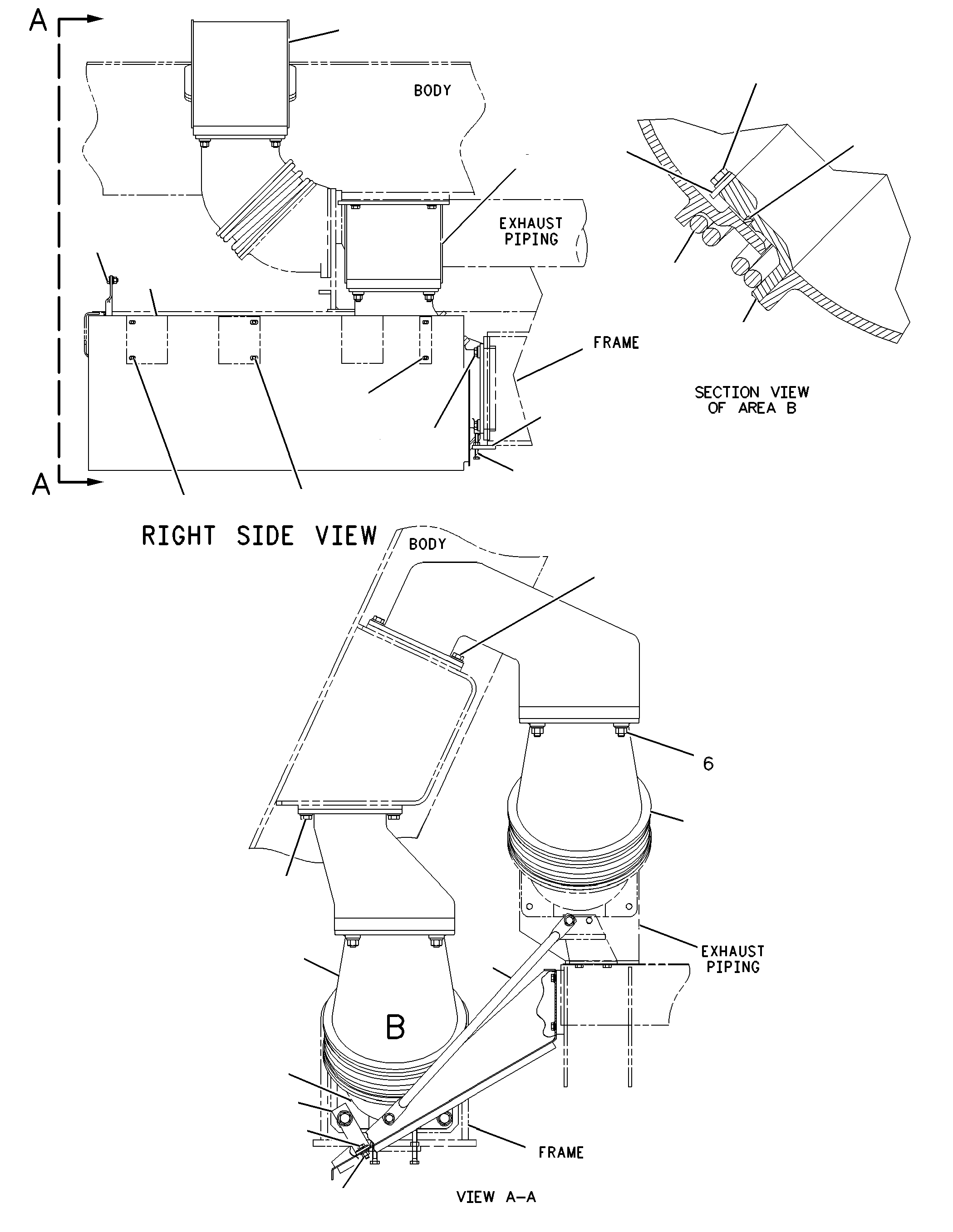

8X-2851 PIPE GP-EXHAUST -BODY FLOWS/N 4AR1-UP

Group No: 8X-2851
Part NumberPart NameQty
8X32181 PLATE AS1
8X32272 PLATE AS1
6V44293 BOLT (M16X2X40-MM)8
5P82474 WASHER-HARD (17X32X3.5-MM THK)20
5T33675 ELBOW2
8C06236 STUD-TAPERLOCK (M16X2X70-MM)8
7K12707 WASHER (17X38X8-MM THK)12
8T17578 NUT (M16X2-THD)8
5T27629 SPRING2
6G703810 RING-SEAL2
8X323311 PISTON2
8X325312 LOCK6
6V631713 BOLT (M10X1.5X20-MM)12
8T412114 WASHER-HARD (11X21X2.5-MM THK)15
6G703115 ELBOW1
8T037516 BOLT (M16X2X45-MM)4
092552417 BOLT (M12X1.75X80-MM)2
6V814918 NUT (M12X1.75-THD)4
8X325619 GUARD AS1
8T413720 BOLT (M10X1.5X20-MM)2
8T417921 BOLT (M12X1.75X20-MM)4
5P1076WASHER-HARD (13.5X30X4-MM THK)4
8T413322 NUT (M10X1.5-THD)1
5T782623 BRACE1
6V366824 BOLT (M12X1.75X30-MM)2
5P8245WASHER-HARD (13.5X25.5X3-MM THK)4
8T422225 WASHER-PLATED (11X32X2.5-MM THK)1
8T4195BOLT (M10X1.5X30-MM)1
5T664326 PLATE1
105113427 PLATE1
