System And Components

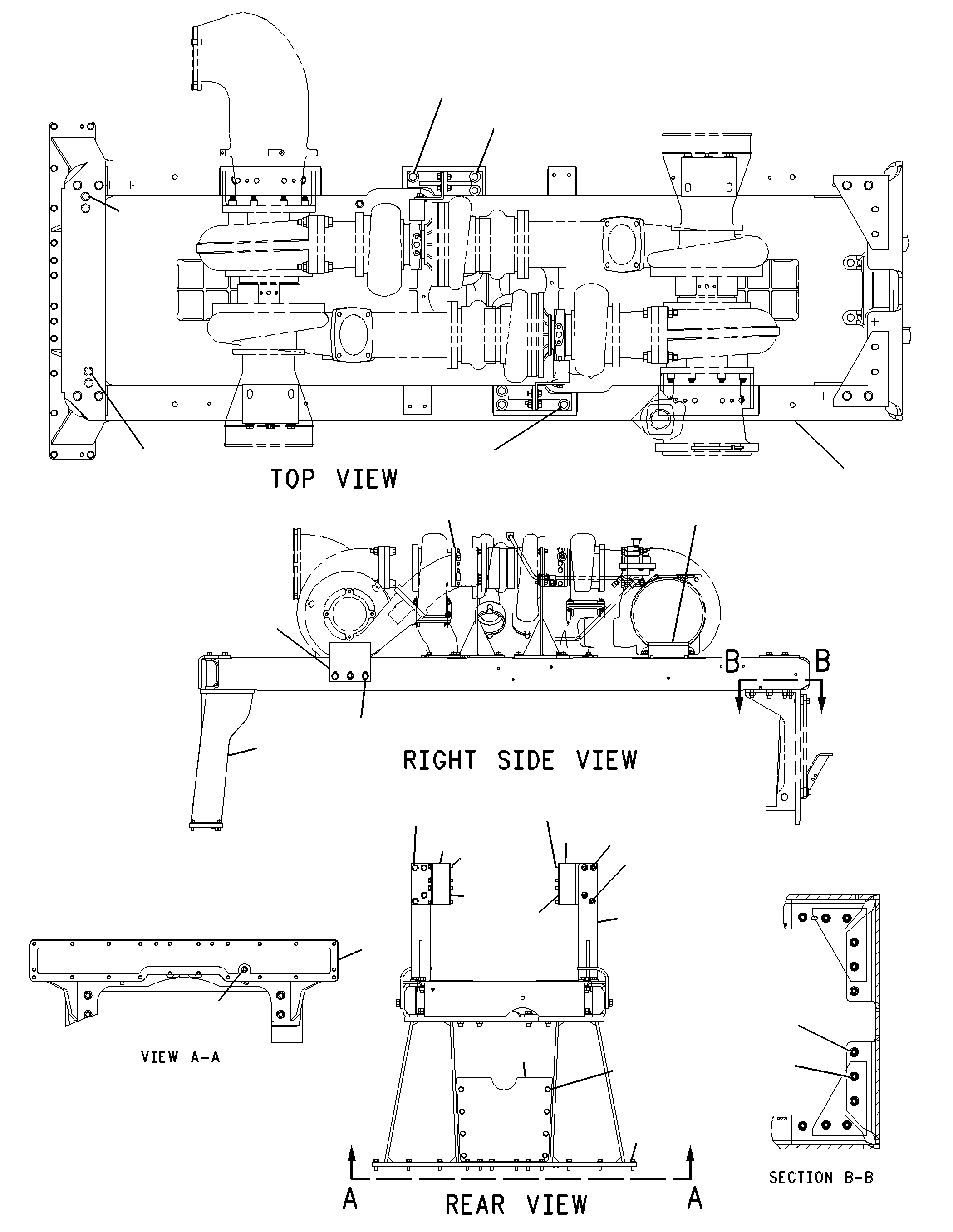

121-5801 SUPPORT GP-TURBOCHARGERS/N 7TR1-1043
Group No: 121-5801
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1W4736 | 1 GASKET-COVER | 1 | |
| 4B6697 | 2 BOLT-SPECIAL | 2 | |
| 7E2340 | 4 GASKET | 2 | |
| 7E2351 | 5 BRACKET | 2 | |
| 7E7517 | 6 SUPPORT AS | 2 | |
| 1417164 | 7 ADAPTER | 2 | |
| 1215815 | 8 BRACKET | 2 | |
| 1236923 | 9 SUPPORT AS-REAR | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 8 | |
| 1236924 | 10 PLATE | 1 | |
| 1236992 | 11 SUPPORT GP-TURBOCHARGER | 1 | |
| 0S0509 | 12 BOLT (3/8-16X0.75-IN) | 8 | |
| 0L1352 | 13 BOLT (3/8-16X3.25-IN) | 8 | |
| 0S1587 | 14 BOLT (1/2-13X1.75-IN) | 15 | |
| 0S1588 | 15 BOLT (3/8-16X1.25-IN) | 29 | |
| 0S1591 | 16 BOLT (3/8-16X1.5-IN) | 1 | |
| 1A1460 | 18 BOLT (1/2-13X2-IN) | 7 | |
| 1F7958 | 19 NUT-FULL (1/2-13-THD) | 26 | |
| 2J6274 | 20 SEAL-O-RING | 1 | |
| 5M2894 | 21 WASHER-HARD (10.2X18.5X2.5-MM THK) | 38 | |
| 5P8245 | 22 WASHER-HARD (13.5X25.5X3-MM THK) | 32 | |
| 7D1649 | 23 WASHER-HARD (13.5X32X5-MM THK) | 12 | |
| 8M9024 | 24 WASHER-HARD (10.2X22.5X5-MM THK) | 2 | |
| 9S8752 | 26 NUT-FULL (3/8-16-THD) | 8 | |
| 9X6458 | 27 WASHER-HARD (10.2X22.5X3-MM THK) | 16 | |
| 9X8873 | 28 BOLT (1/2-13X2.25-IN) | 4 |
