System And Components
Assembly
100%

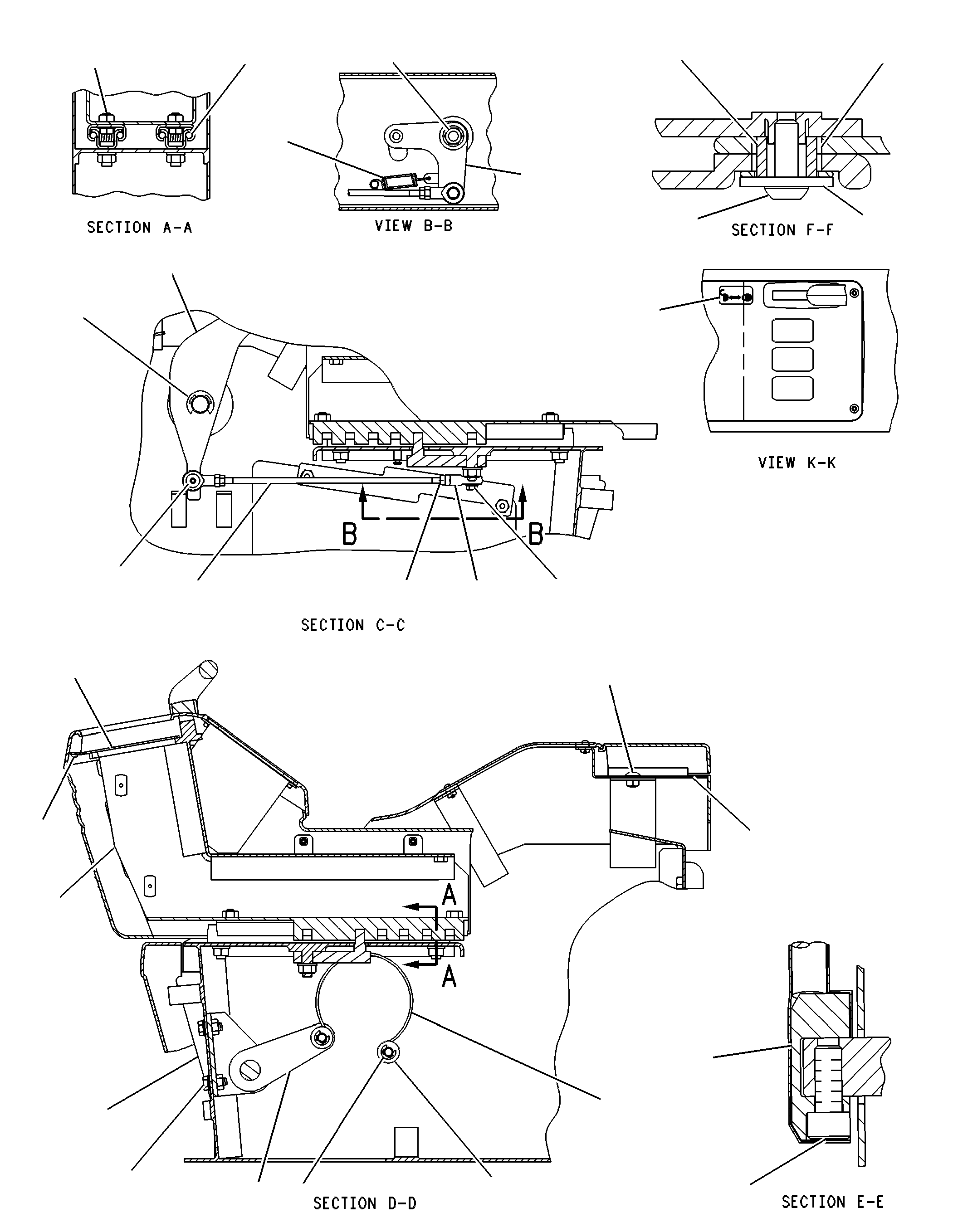

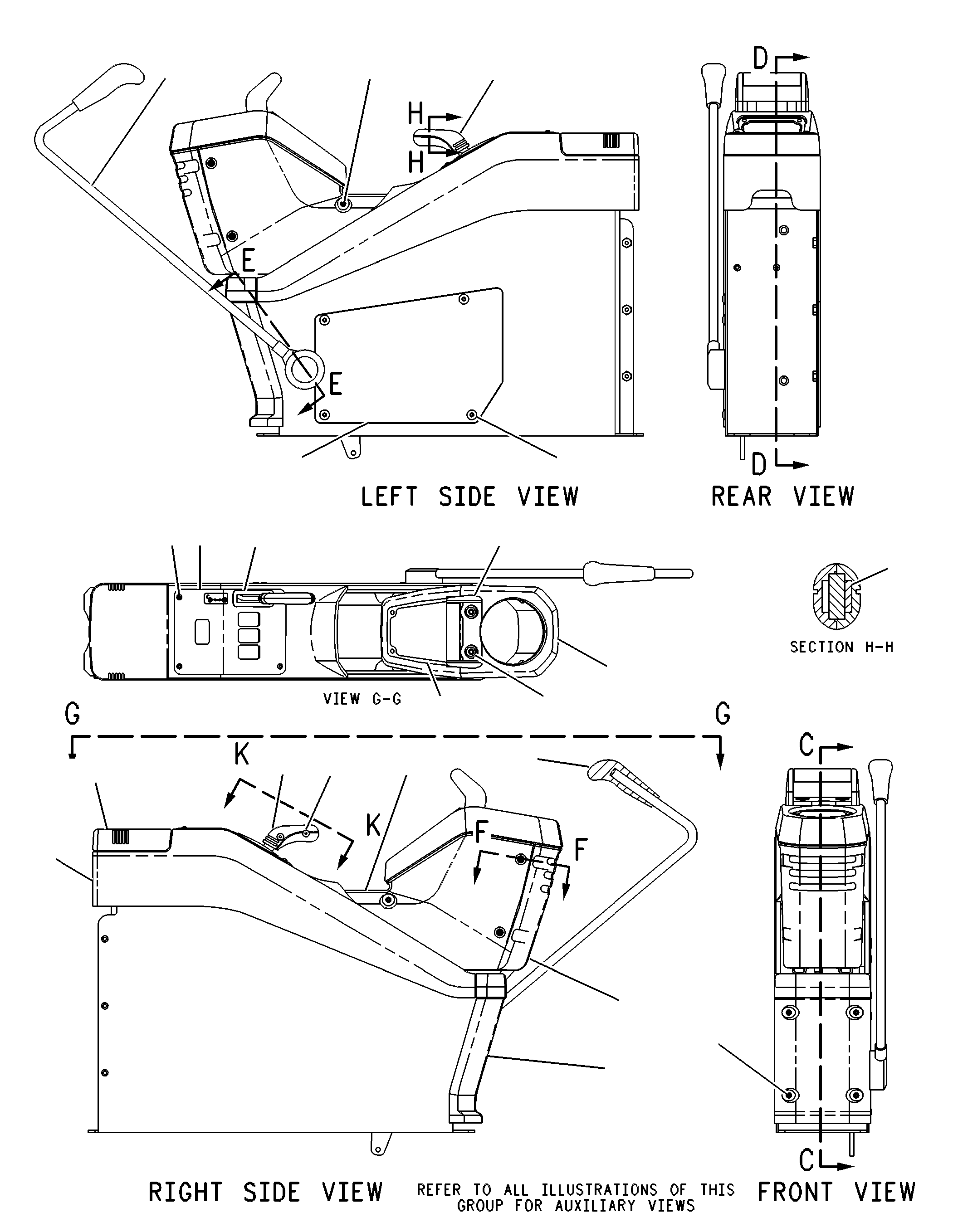

129-4107 CONSOLE GP-OPERATOR -LHS/N 2WM500-UP

Group No: 129-4107
Part NumberPart NameQty
7Y31731 SCREW-BUTTON HEAD (M4X0.7X12-MM)16
11056022 KNOB1
7Y73943 SCREW-BUTTON HEAD (M8X1.25X25-MM)2
7Y30364 LEVER1
7Y30805 SUPPORT AS1
6V9632NUT-WELD (M6X1-THD)2
7Y3270NUT (M4X0.7-THD)4
8T2321NUT-WELD (M8X1.25-THD)4
5I32826 SUPPORT AS1
6V9632NUT-WELD (M6X1-THD)14
8T3490NUT-WELD (M10X1.5-THD)2
11056017 CAP1
9X20448 SCREW-TRUSS HEAD (M6X1X16-MM)7
10282929 PANEL1
8T420010 BOLT (M8X1.25X16-MM)4
8T422411 WASHER-HARD (8.8X16X2-MM THK)11
096390912 ADJUSTER2
096488313 LOCKNUT (M10X1.5-THD)1
8T412114 WASHER-HARD (11X21X2.5-MM THK)1
7Y308215 LEVER AS1
4H352116 SPRING1
6V982417 RING-RETAINING1
7Y313318 ROD1
5C289019 NUT (M6X1-THD)2
9X825620 WASHER (6.6X12X2-MM THK)2
8C311121 ROD END2
5C955322 BOLT (M6X1X16-MM)1
6V849123 RING-RETAINING2
111112124 SPRING1
111112225 BUSHING2
110556026 LEVER AS1
5I331627 LEVER AS1
8T3612NUT-WELD (M8X1.25-THD)3
8T418928 BOLT (M8X1.25X20-MM)3
105348429 BOLT-SOCKET HEAD (M10X1.5X25-MM)1
7Y316830 PLATE1
6V521031 SCREW-MACHINE (M4X0.7X10-MM)2
7Y318432 KNOB1
7Y324833 SCREW (M4X0.7X12-MM)2
7Y318534 KNOB1
100770935 COVER1
7Y315436 COVER1
7Y316537 COVER AS1
7Y315638 COVER-FRONT1
7Y326739 COVER1
7Y319140 PANEL1
7Y326841 COVER1
7Y327242 SPACER (10.4X16X1.5-MM THK)4
7Y328243 WASHER (1.6-MM THK)4
7Y327144 SPACER (6.83X10.29X7-MM THK)4
5I370845 COVER1
7Y315546 COVER1
7Y327347 PANEL AS1
8F132648 WASHER (4.2X9.5X0.8-MM THK)8
4I042049 STRIP1
4I008850 FILM-SLIDE LOCK1
4I128251 GRIP1
