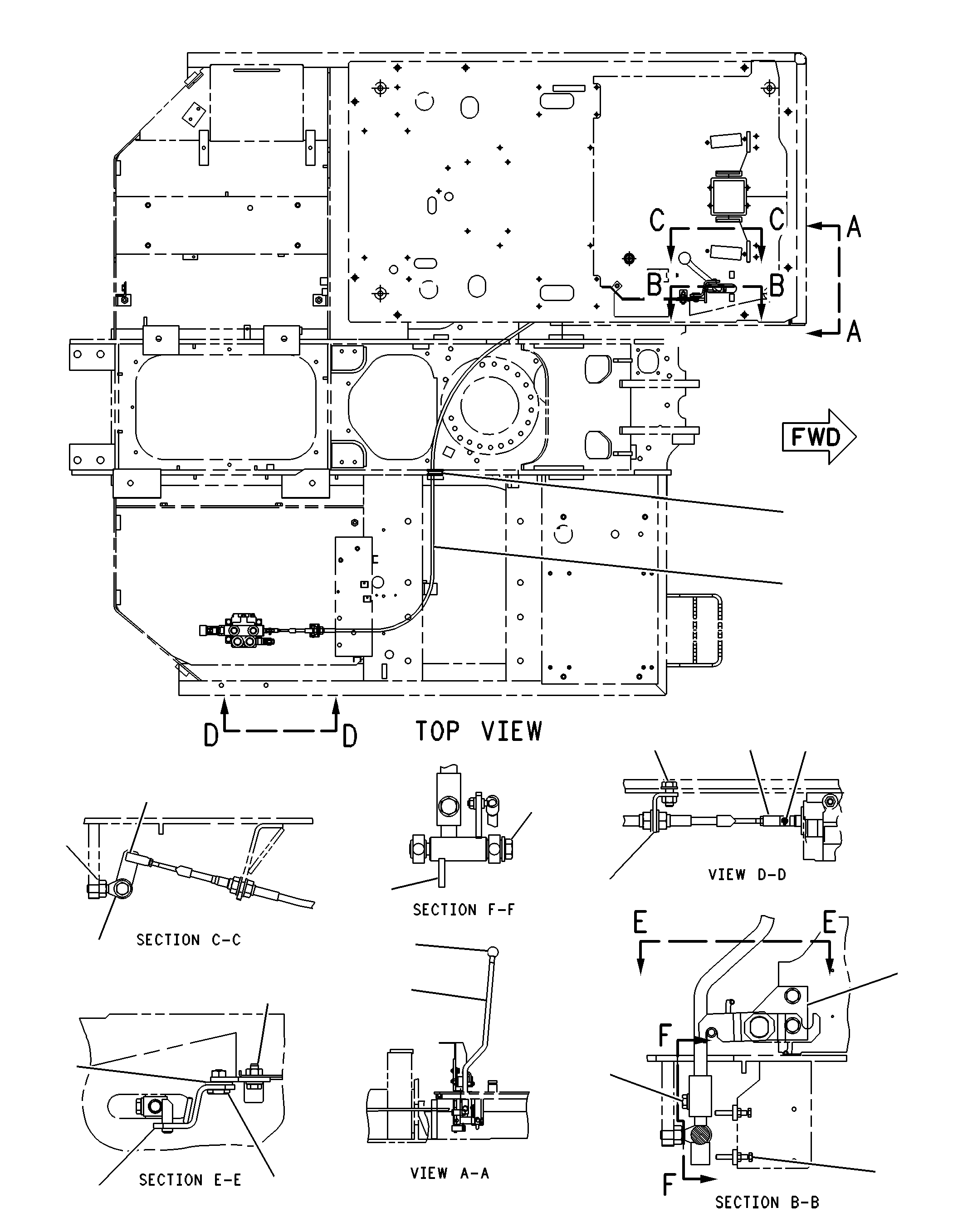

129-3922 CONTROL GP-BLADES/N 2WM500-UP

Group No: 129-3922
Part NumberPart NameQty
12399731 LEVER AS1
12399782 SHAFT AS1
12399843 PLATE AS1
12399874 PIN1
8T41235 WASHER (3.62X5.75X0.375-MM THK)1
12518116 CABLE AS1
10282457 BALL JOINT2
09342028 BOLT (M6X1X45-MM)2
09938579 KNOB1
095574010 JOINT1
099049211 LOCKNUT (M6X1-THD)1
8T413612 BOLT (M10X1.5X25-MM)5
8T495613 BOLT (M12X1.75X35-MM)1
5C289014 NUT (M6X1-THD)2
8T424415 NUT (M12X1.75-THD)2
9X825616 WASHER (6.6X12X2-MM THK)1
8T412117 WASHER-HARD (11X21X2.5-MM THK)5
8T422318 WASHER-HARD (13.5X25.5X3-MM THK)1
123999119 PLATE AS1
8T3490NUT-WELD (M10X1.5-THD)1
095130820 PIN-CLEVIS1
095084121 PIN-COTTER1
085627722 YOKE1
085628123 SUPPORT AS1
0964883LOCKNUT (M10X1.5-THD)2
4I539924 GROMMET1
