System And Components
Assembly
100%

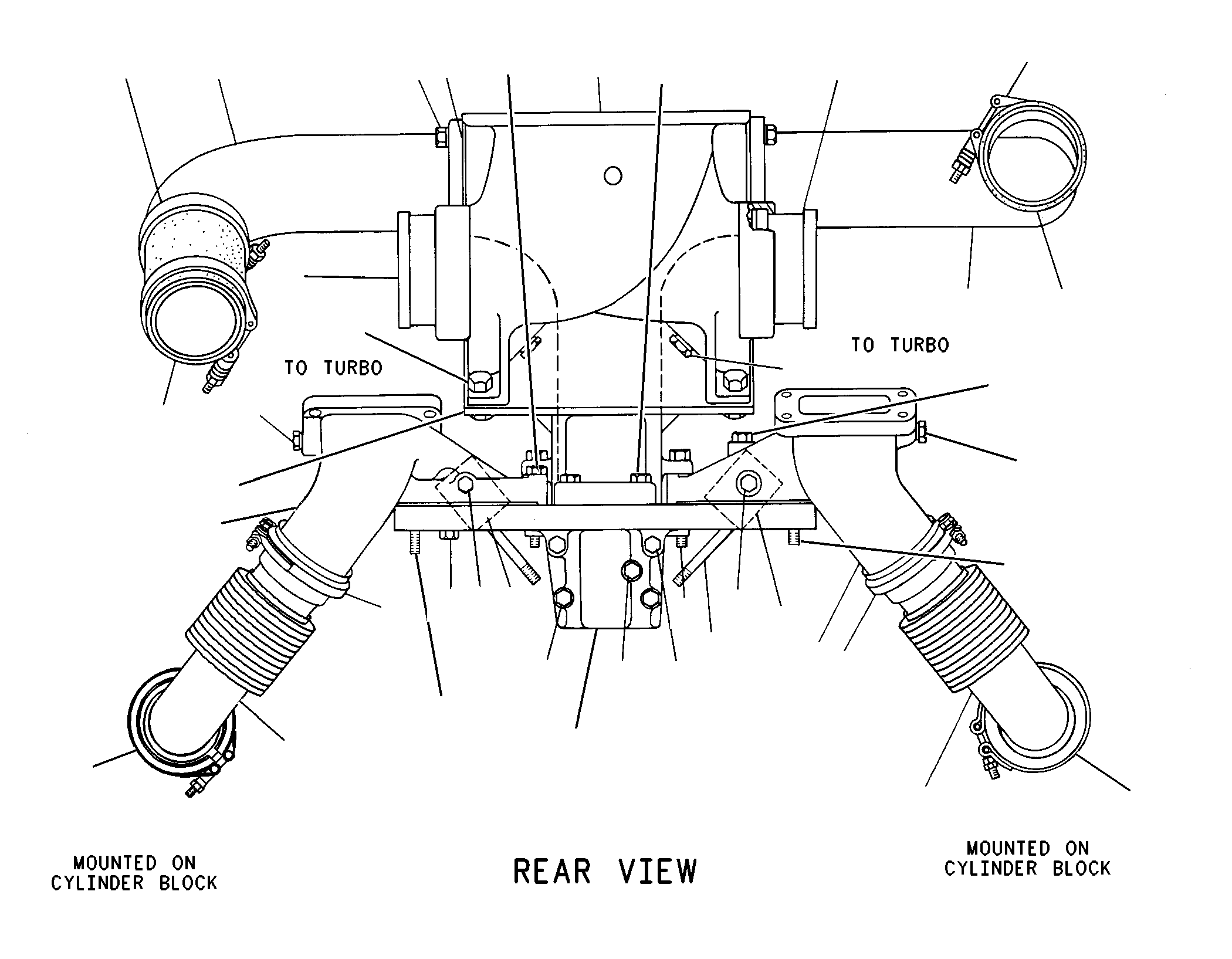

4W-7649 LINES GP-AIRS/N 81Z14501-21910

Group No: 4W-7649
Part NumberPart NameQty
8N83481 CLAMP-HOSE4
1N44742 TUBE AS-OUTLET1
3B19153 BOLT (3/8-16X1.375-IN)8
5M28944 WASHER-HARD (10.2X18.5X2.5-MM THK)10
4N13205 GASKET (ADAPTER)2
3N33686 PIPE-EXHAUST1
1A20297 BOLT (3/8-16X1.125-IN)2
0S15878 BOLT (1/2-13X1.75-IN)4
1W75159 COUPLING2
8S919110 BOLT (3/8-16X4-IN)2
4W738011 HOSE2
1N318012 TUBE AS-OUTLET1
7W649213 PLUG-PIPE (1/2-14-THD)2
3E742814 PLUG-PIPE (1/4-18-THD)2
1A518315 BOLT (3/8-16X4.75-IN)3
6I285516 TUBE AS1
8N087917 CLAMP4
1A596418 BOLT (3/8-16X4.5-IN)1
0L114319 BOLT (3/8-16X2.5-IN)2
122843320 ELBOW-EXHAUST1
6N673421 SUPPORT-HOUSING (RH)1
0S161922 BOLT (3/8-16X3-IN)4
0L1352BOLT (3/8-16X3.25-IN)4
9S875223 NUT-FULL (3/8-16-THD)3
9F899924 BOLT (3/8-16X7-IN)1
5B263825 BOLT (3/8-16X5.25-IN)2
6N715226 SUPPORT-ELBOW1
2M841128 STUD-TAPERLOCK1
6N673329 SUPPORT-HOUSING (LH)1
0S159130 BOLT (3/8-16X1.5-IN)4
133223231 TUBE AS1
122843232 ELBOW-EXHAUST1
0L114333 BOLT (3/8-16X2.5-IN)4
0T0573BOLT (3/8-16X2.75-IN)3
1F795834 NUT-FULL (1/2-13-THD)4
6N714935 SUPPORT-ELBOW1
